2 Tier Mini Greenhouse
7202007
ARGOS
3. ASSEMBLY INSTRUCTIONS
Stage 1- Fitting the frame
2 Tier Mini Greenhouse-Assembly Instructions
1. COMPONENT LIST
2 x Top Frame(Approx.1500mm)
4 x Long Tube(Approx. 680mm)
2 x Mesh Grill (Approx. 620 x 500mm)
NOTE: There are many different kinds
of Tubes. Ensure you check before
assembly.
1. Insert four plastic connector(7) into the
ends of two long Tubes(2). See Dia 1.
2. Insert two T-Tubes(3) into the end
of Medium Tube(5). Then insert the
plastic connector(7) into the ends of
T-Tubes.See Dia 2.
3. Follow the same method in Dia 1 and
Dia 2 to produce another frame.
4. Insert four Short Tubes(4) into the
plastic connectors(7). See Dia 3.
1 x Cover
4 x T-Tube(Approx. 455mm)
4 x Short Tube(Approx. 356mm)
2 x Medium Tube(Approx. 670mm)
8 x Plastic Connector
3 x Roof rib connecting wire
(Approx. 500mm,dia 3.8mm)
-2- -3-
2. FITTINGS
IMPORTANT
1.Read these instructions carefully and familiarise yourself with the procedure before
assembling the unit.
2. Check that you have all the component parts following the list on the back cover and
familiarise yourself with each part before proceeding.
3. Take all the fittings out of the plastic bag and separate them into their groups.
4. Ensure you have enough space to lay out all the parts before assembly.
5. To avoid scratching it is recommend that you assemble the unit on a soft level surface.
6. Please unzip front door before adding cover to frame
7. Not suitable for using heater inside or near this product.
Dia 1
Dia 2
Dia 3
2 Tier Mini Greenhouse-Assembly Instructions

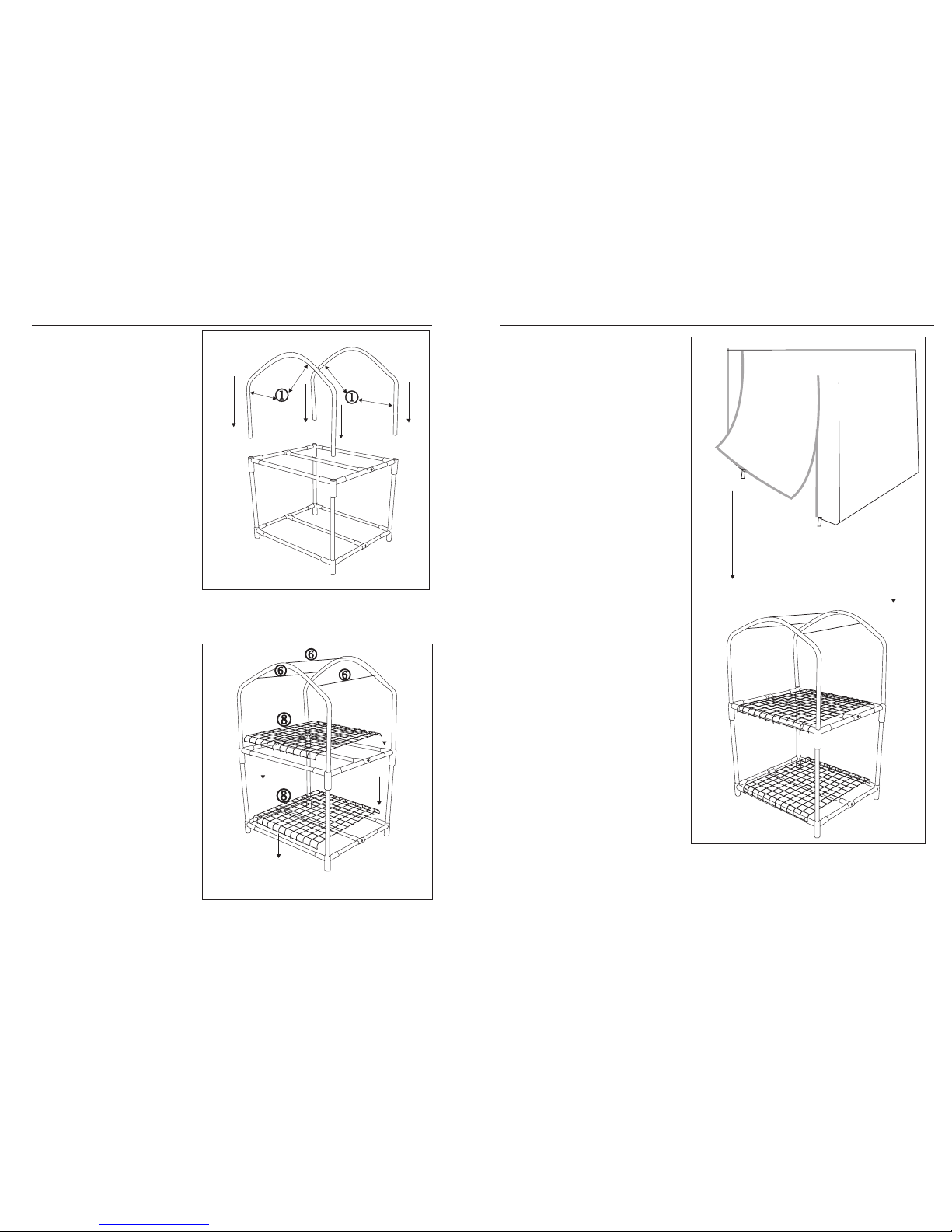

1. Insert the Top Frames(1) onto the
unit. See Dia 4.
-4- -5-
2 Tier Mini Greenhouse-Components
Stage 2 - Fitting Top Frames
& Shelf s
2. Locate the Mesh grill(8) onto the
unit. See Dia 5.
3. Fit the Roof rib connecting wires (6)
to the Top Frames. See Dia 5
Dia 4
Dia 5
Dia 7
NOTE: Locate the unit on flat ground
free from obstruction.
Please unzip before adding
cover to frame.
IMPORTANT: The unit is light weight
and should be located in a sheltered
place away from wind and heavy rain.
2. Place the Cover onto the unit.
See Dia 7.
2 Tier Mini Greenhouse - Assembly Instructions
Stage 3 - Fitting the Cover
Dia 8
-6-
1. The front flap can be zipped open and
tied up if required (Dia 8). The cover
can be attached to the frame by four
ties at the base. Then place the unit in
the desired location. See Dia 8
Care and Maintenance
Safety
To avoid and risk of suffocation to animals or children dispose of the plastic bags immediately.
Cleaning
As with all surfaces clean with a damp cloth and mild detergent, do not use bleach or abrasive
products.
2 Tier Mini Greenhouse- Assembly Instructions
Stage 4 - Finishing the Unit
