Argo APOLLO Manual de usuario

Air conditioner without outdoor unit

APOLLO

SERVICE MANUAL

I. Removing back panel

1. first remove a total of 6 screws on the left and right sides of the front shell with a

screwdriver; remove the screws fixed to the back plate.

2. pull the back plate outward by hand to ensure that the upper and lower clamps of the

front shell are detached from the back plate.

The front housing and the rear back plate

joint has the clasp, when disassembles pays

attention.

The front housing and the rear back plate

joint has the clasp, when disassembles pays

attention.

II. Removal of front housing assemblies

1. swing the guide plate to the horizontal position, remove the three screws behind the guide

plate with a screwdriver.

2. remove the 2 screws fixed on the electronic control box cover, remove the electronic

control box cover, and pull out the connected terminal for subsequent disassembly and

maintenance. .

3. slightly lift the base with the hand, pull the front shell out, the left and right sides of the

front shell and the machine left and right sides of the sheet metal joint clip to ensure that has

been detached, the front shell bottom and the machine inside the base joint clip to ensure

that has been detached, horizontal move out of the front shell, when moving out pay

attention to loosen the connection line.

III. Dismantling of electronic control components

1. remove the 2 screws of the fixing appliance box and remove the appliance box.

2. remove the screws fixing the main control PCB and remove the main control PCB.

Remove the screws that fix the PCB radiator and the electronic control box and remove the

PCB radiator.

3. remove the 2 screws on the fixed heat dissipation fan bracket and remove the

heat dissipation fan.

4. remove the screws that fix the reactor and remove the reactor.

VI. Remove the evaporator duct assembly

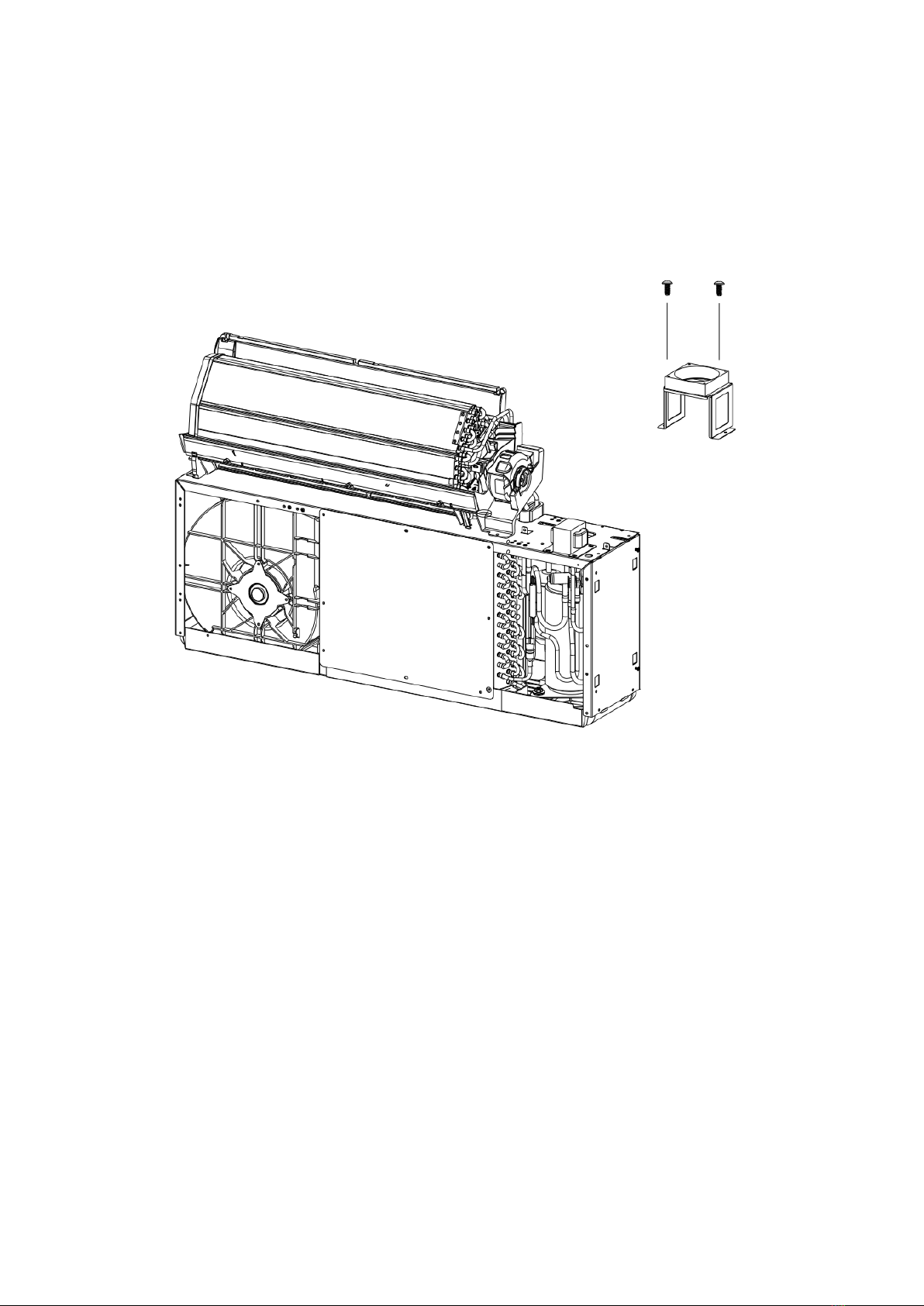

1. remove the screws that fix the motor press plate and remove the motor press

plate.

1. remove the screws fixed to the evaporator to the air duct assembly.

1. remove the screws fixed to the evaporator to the air duct

assembly.
