ARETE AB100 Manual de usuario
User Guide
AB100
Bluetooth UHF RFID Reader
AB100_User Guide
2 / 22
Notice
Registered Trademark
ARETE mobile is launched by PHYCHIPS Inc. for mobile device and currently registered worldwide
with its ARETE mobile trade mark legally protected by law.
© 2012 PHYCHIPS Inc. All rights reserved.
This User Guide is produced by PHYCHIPS Inc. and protected by Copyright Laws.
Please note that there may be possible mistake or omission of information in this document.
Applicable Device
This document is applicable for Android 2.2.1~4.0.4
AB100_User Guide
3 / 22
Contents
Chapter 1: Understanding AB100........................................................................................................4
1.1 AB100 at a Glance.....................................................................................................................4
1.2 Accessories................................................................................................................................4
1.3 Specifications.............................................................................................................................5
Chapter 2: Basics..................................................................................................................................6
2.1 Activating....................................................................................................................................6
2.2 Application: How to Install in your Phone...................................................................................7
2.3 Bluetooth Pairing........................................................................................................................9
2.4 Inventory..................................................................................................................................10
2.5 When disconnected from phone..............................................................................................11
2.6 How to Grip..............................................................................................................................12
Chapter 3: How to use Application....................................................................................................13
3.1 Main Display ............................................................................................................................13
3.2 Pairing with AB100...................................................................................................................13
3.3 Read EPC Tag.........................................................................................................................14
3.4 Read Tag Memory....................................................................................................................15
3.5 Write Tag Memory....................................................................................................................16
3.6 Lock Tag Memry.......................................................................................................................17
3.7 Kill Tag Memory .......................................................................................................................18
3.8 Additional Functions.................................................................................................................19
Chapter 4: Information........................................................................................................................20
4.1 Safety Information....................................................................................................................20
4.2 Troubleshooting .......................................................................................................................20
4.3 Disposal and Recycling ...........................................................................................................21
4.4 Customer Service ....................................................................................................................21
AB100_User Guide
4 / 22
Chapter 1: UnderstandingAB100
1.1 AB100 at a Glance
1.2 Accessories
Power ON/OFF
Button
Status Indicator_LED
Charger Connector
Strap Holder
RFID Antenna
USB Cable
Neck Strap
Quick Manual
AB100_User Guide
5 / 22
1.3 Specifications
PHYSICAL
Dimension(WxLxH) 35.9 x 101.5 x 11.7mm
Weight 40g
Indication Power on LED(Blue), Charging LED(Red/Green), Tagging(Red blinking)
Battery Rechargeable, 350mAh Li-polymer
Continuous Time 2.5 hours , Sleep mode function
Charging Micro USB 5pin
Color White
RFID PERFORMANCE
RFID Reader Chip PR9000
Air Protocol ISO 18000-6C/ EPC Class1 Gen 2
Operating Frequency 902.75 ㎒~ 927.25 ㎒
OS Apple IOS 4.01, Android 2.2 above, Windows XP, Windows7
Output (EIRP) 25mW(14dBm)
RFID Read Distance Max 0.5m (depend on tags)
Antenna Circularly Polarized Patch Antenna
Tag Read, Write
BLUETOOTH PERFORMANCE
Bluetooth V2.1 + EDR
Frequency 2.4GHz
Profile SPP, IAP
Bluetooth Distance Max 10m
USER ENVIRONMENT
Operating Temp 0~40˚C
Storage Temp -20~60˚C
AB100_User Guide
6 / 22
Chapter 2: Basics
2.1 Activating
1. Power ON
1) Power button is located on the front side of the product
2) Power button should be pressed for 2 seconds
3) LED indicator will be blinked for 60 seconds in blue color
2. Power OFF
1) AB100 will be changed to “Power off” mode automatically if fail to pairing for 60 seconds
2) AB100 will be changed to “Power off” mode automatically after 60 second of pairing and tag
reading
3. Battery Charging
1) Battery will be charged by Micro B USB connector
2) It is compatible with general Micro B USB connector
3) Charging time is about 2 hours
4) Red LED blinking: under charging
5) Blue LED blinking: completed charging
LED Indicator
Power Button
AB100_User Guide
7 / 22
2.2 Application: How to Install in your Phone
1. Connect your phone to PC
2. Turn on USB storage
3. Copy apps into your phone
1) Your phone shows up as a removable device on your PC.
2) Create a folder and copy apps on removable drive.
AB100_User Guide
8 / 22
4. Install
1) Allow unknown sources
2) Open your file browser app
3) Install the APK file
AB100_User Guide
9 / 22
2.3 Bluetooth Pairing
1. Turn on Bluetooth at Settings
2. Turn on AB100
3. Run App
4. Touch Pair
5. Connected
AB100_User Guide
10 / 22

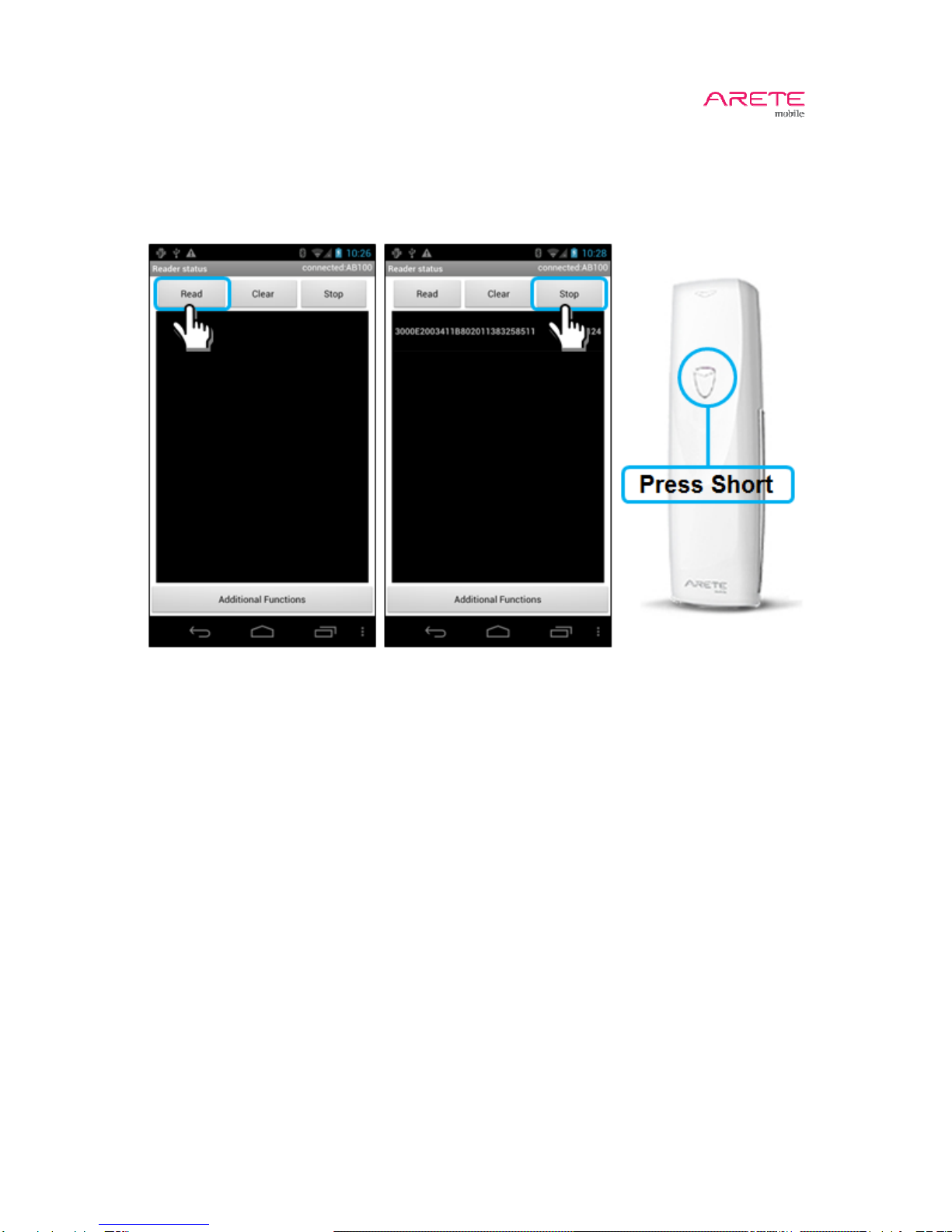

2.4 Inventory
1. Touch Read button to inventory tag continuously
2. Touch Stop button to finish inventory tag
3. Press shortly the reader button to inventory tag 1 short time
