CONTENTS

Inside you will find many helpful hints on how to use and maintain your air conditioner

properly. Just a little preventive care on your part can save you a great deal of time

and money over the life of your air conditioner. You'll find many answers to common

problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting

Tips first, you may not need to call for service at all.

Contact the authorized service technician for repair or maintenance of this unit.

Contact the installer for installation of this unit.

The air conditioner is not intended for use by young children or infirm persons

without supervision.

Young children should be supervised to ensure that they do not play with the air

conditioner.

If the power cord is to be replaced, replacement work shall be performed by

authorized personnel only.

Installation work must be performed in accordance with the national wiring

standards by authorized personnel only.

!CAUTION

Read This Manual

1. SAFETY PRECAUTIONS..................................................................2

2. IMPORTANT SAFETY INSTRUCTIONS ..........................................4

3. NORMAL SOUNDS ...........................................................................5

4. AIR CONDITIONER FEATURES .......................................................5

5. INSTALLATION INSTRUCTIONS......................................................9

6. CARE AND CLEANING ....................................................................22

7. TROUBLESHOOTING TIPS...............................................................23

Meijer.com

To prevent injury to the user or other people and property damage, the following instructions

must be followed. Incorrect operation due to ignoring of instructions may cause harm or

damage. The seriousness is classified by the following indications.

Safety Precautions

This symbol indicates the possibility of death or serious injury.

Meanings of symbols used in this manual are as shown below.

WARNING

Always do this.

Never do this.

CAUTION

This symbol indicates the possibility of injury or damage to property.

Plug in power plug

properly.

Do not modify power cord

length or share the outlet

with other appliances.

Always ensure effective

earthing.

Unplug the unit if strange

sounds, smell, or smoke

comes from it.

Keep firearms away.

Ventilate room before operating air

conditioner if there is a gas leakage from

another appliance.

Otherwise, it may cause electric

shock or fire due to heat

generation.

excess

It may cause electric shock or

fire due to heat generation.

Incorrect earthing may cause

electric shock.

It may cause fire and electric

shock.

It may cause fire.

It may cause explosion, fire and, burns.

It may cause electric shock or fire

due to heat generation.

It may cause electric shock.

It may cause failure of machine

or electric shock.

It may cause fire and electric

shock.

It may cause fire and electric

shock.

It may cause electric shock or fire.

If the power cord is damaged, it

must be replaced by the manufac-

turer or an authorised service

centre or a similarly qualified per-

son in order to avoid a hazard.

This could damage your health.

Incorrect installation may cause

fire and electric shock.

It may cause electric shock.

It may cause an explosion or fire.

It may cause failure and electric shock.

Do not operate or stop the

unit by inserting or pulling

out the power plug.

Do not operate with wet

hands or in damp

environment.

Do not allow water to run

into electric parts.

Do not use the socket if it is

loose or damaged.

Do not use the power cord

close to heating appliances.

Do not damage or use an

unspecified power cord.

Do not direct airflow at

room occupants only.

Always install circuit

breaker and a dedicated

power circuit.

Do not open the unit

during operation.

Do not use the power cord near

flammable gas or combustibles, such

as gasoline, benzene, thinner, etc.

Do not disassemble or modify unit.

WARNING

!!!

Meijer.com

CAUTION

When the air filter is to be

removed, do not touch the

metal parts of the unit.

It may cause an injury.

Do not clean unit when

power is on as it may cause

fire and electric shock, it may

cause an injury.

Operation with windows

opened may cause wetting

of indoor and soaking of

household furniture.

When the unit is to be

cleaned, switch off, and turn

off the circuit breaker.

Stop operation and close

the window in storm or

hurricane.

Use caution when unpacking and

installing. Sharp edges could cause injury.

Do not clean the air

conditioner with water.

Water may enter the unit and

degrade the insulation. It may

cause an electric shock.

This could injure the pet or

plant.

It may cause electric shock

and damage.

Do not put a pet or house

plant where it will be

exposed to direct air flow.

Hold the plug by the head

of the power plug when

taking it out.

Ventilate the room well when

used together with a stove,

etc.

An oxygen shortage may occur.

Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects.

It may cause deterioration of

quality, etc.

It may cause failure of product

or fire.

Do not use for special

purposes.

Turn off the main power

switch when not sing the

unit for a long time.

If water enters the unit, turn the unit off at the power

outlet and switch off the circuit breaker. Isolate

supply by taking the power-plug out and contact a

qualified service technician.

It may cause failure of

appliance or accident.

Appearance may be

deteriorated due to change

of product color or

scratching of its surface.

Do not place obstacles

around air-inlets or inside

of air-outlet.

Do not use strong deter-

gent such as wax or

thinner but use a soft cloth.

If bracket is damaged, there

is concern of damage due to

falling of unit.

There is danger of fire or

electric shock.

Ensure that the installation bracket of

the outdoor appliance is not damaged

due to prolonged exposure.

Do not place heavy object on the

power cord and ensure that the cord

is not compressed.

Operation without filters may

cause failure.

It contains contaminants and

could make you sick.

Always insert the filters

securely. Clean filter once

every two weeks.

Do not drink water drained

from air conditioner.

Meijer.com

IMPORTANT SAFETY INSTRUCTIONS

Be sure the electrical service is adequate for the model you have

chosen. This information can be found on the serial plate, which

is located on the side of the cabinet and behind the grille.

Be sure the air conditioner is properly grounded. To minimize

shock and fire hazards, proper grounding is important. The power

cord is equipped with a three-prong grounding plug for protection

against shock hazards.

Your air conditioner must be used in a properly grounded wall

receptacle. If the wall receptacle you intend to use is not adequately

grounded or protected by a time delay fuse or circuit breaker,

have a qualified electrician install the proper receptacle.

Ensure the receptacle is accessible after the unit installation.

Do not run air conditioner without side protective cover in place.

This could result in mechanical damage within the air conditioner.

Do not use an extension cord or an adapter plug.

WARNING For your safety

Do not store or use gasoline or other flammable vapors and liquids in

the vicinity of this or any other appliance.

Avoid fire hazard or electric shock. Do not use an extension cord or an

adaptor plug. Do not remove any prong from the power cord.

WARNING Electrical Information

NOTE The power supply cord with

this air conditioner contains a current

detection device designed to reduce

the risk of fire.

Please refer to the section Operation

of Current Device for details.

In the event that the power supply

cord is damaged, it cannot be

repaired-it must be replaced with a

cord from the Product Manufacturer.

Do not, under any

circumstances, cut,

remove, or bypass

the grounding prong.

Power supply cord

with 3-prong grounding plug

and current detection device

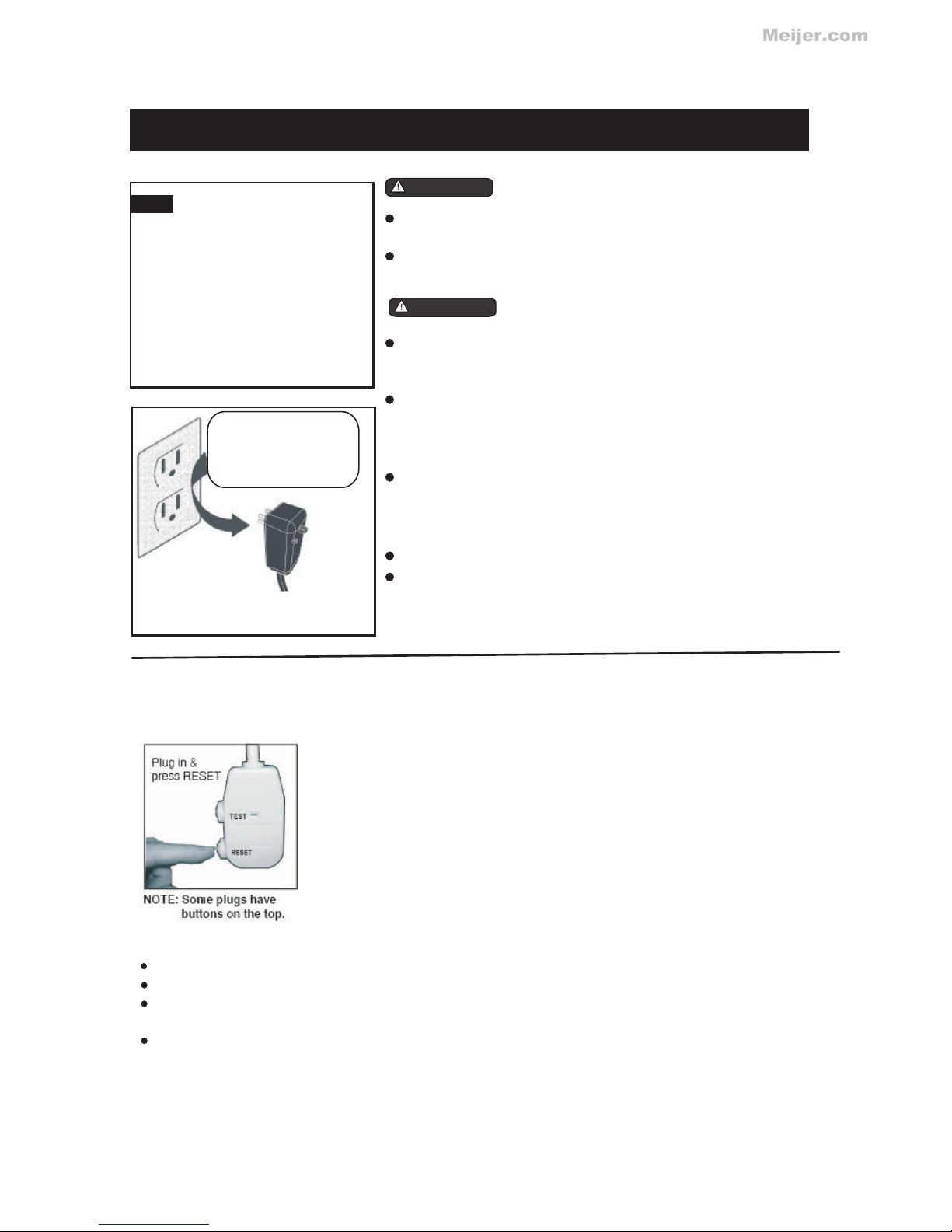

Operation of Current Device

The power supply cord contains a current device that senses damage to the power cord. To test your power

supply cord do the following:

1. Plug in the Air Conditioner.

2. The power supply cord will have TWO buttons on the plug head.

Press the TEST button, you will notice a click as the RESET

button pops out.

3. Press the RESET button, again you will notice a click as the button

engages.

4. The power supply cord is now supplying electricity to the unit.

(On some products this it also indicated by a light on the plug head.)

Do not use this device to turn the unit on or off.

Always make sure the RESET button is pushed in for correct operation.

The power supply must be replaced if it fails reset when either the TEST button is pushed, or it cannot be

reset. A new one can be obtained from the product manufacturer.

If power supply cord is damaged, it cannot be repaired. It MUST be replaced by one

NOTES:

obtained from the

product manufacturer.

Meijer.com

NORMAL SOUNDS

AIR CONDITIONER FEATURES

Sound of Rushing Air

At the front of the unit, you may

hear the sound of rushing air

being moved by the fan

High Pitched Chatter

High efficiency compressors

may have a high pitched chatter

during the cooling cycle.

Gurgle/Hiss

Gurgling or hissing noise may

be heard due to refrigerant

passing through evaporator

during normal operation.

Pinging or Switching

Droplets of water hitting condenser

during normal operation may cause

pinging or switching sounds.

Before you begin, thoroughly familiarize yourself with the control panel and remote as shown below

and all its functions, then follow the symbol for the functions you desire. The unit can be controlled

by the unit control alone or with the remote.

Vibration

Unit may vibrate and make noise

because of poor wall or window

construction or incorrect installation.

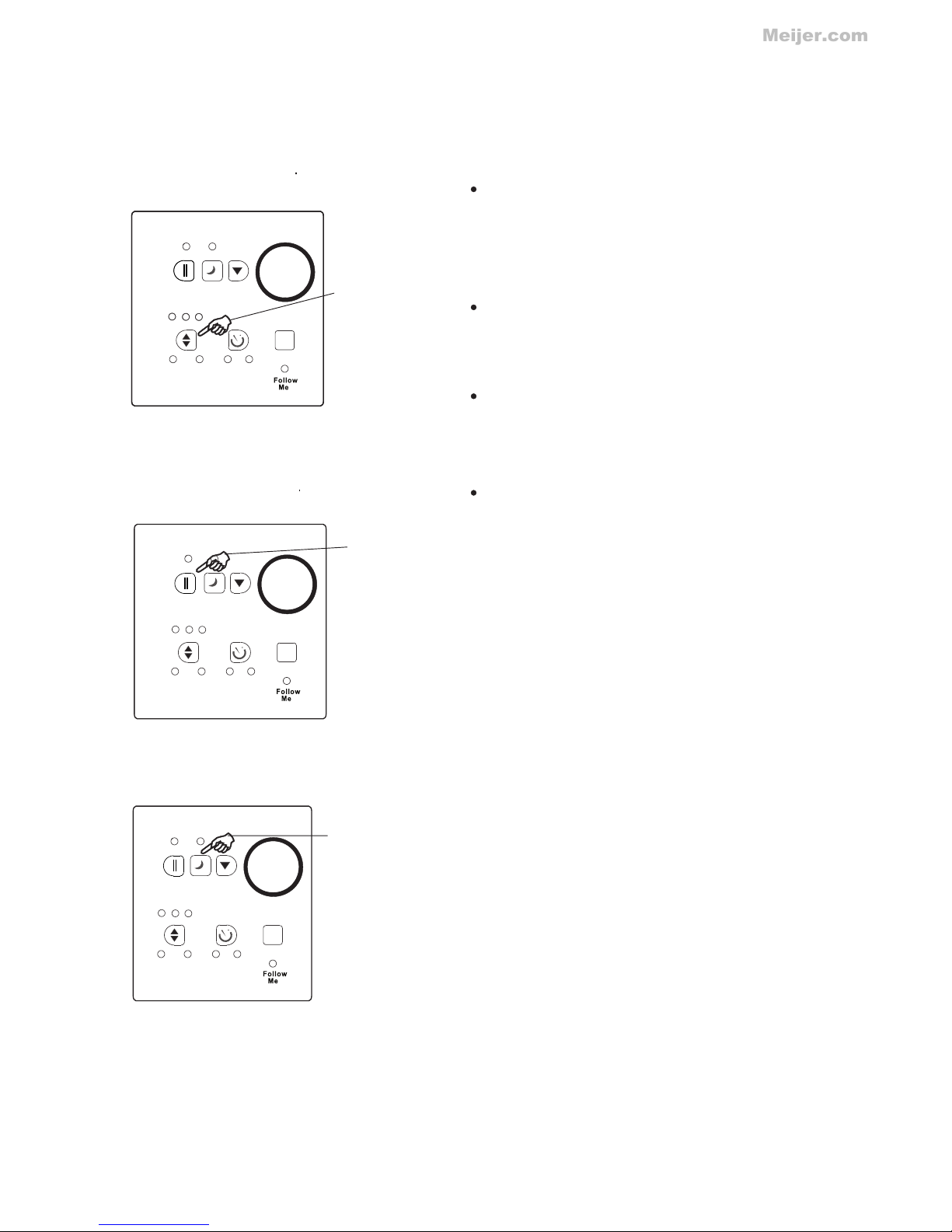

ELECTRONIC CONTROL OPERATING INSTRUCTIONS

UNIT CONTROL

(Cool/ Heat Model)

Energy

Saver Sleep Timer

Temp Temp

Timer Check

Filter

High Med

Mode Timer

Auto Cool On Off Auto Low

Fan

On/Off

Fan Dry

Heat

Meijer.com

AIR CONDITIONER FEATURES(CONTINUED)

TO SELECT THE

OPERATING MODE:

Press the Mode

button.

DO THIS:

To choose operating mode, press the Mode button.

Each time you press the button, a mode is selected

in a sequence that goes from Auto, Cool, Dry , Heat

(Cooling only models without) and Fan. The indicator

light beside will be illuminated and remained on

once the mode is selected.

NOTE:

To operate on Auto feature:

In this mode, the fan speed cannot be adjusted, it

starts automatically at a speed according to the

room temperature. If the room does not get too

warm, it will stay at Low speed.

To operate on Fan Only:

Use this function only when cooling is not desired,

such as for room air circulation or to exhaust stale

air(on some models). (Remember to open the vent

during this function, but keep it closed during

cooling for maximum cooling efficiency.) You can

choose any fan speed you prefer.

During this function, the display will show the actual

room temperature, not the set temperature as in the

cooling mode.

TO USE THE ENERGY

SAVER FEATURE:

Press the button

DO THIS:

In this mode, the fan will continue to run for 3 minutes

after the compressor shuts off. The fan then cycles

on for 2 minutes at 10 minute intervals until the room

temperature is above the set temperature, at which

time the compressor turns back on and cooling starts.

NOTE:

SLEEP FEATURE:

Press Sleep

button

DO THIS:

In this mode the selected temperature will increase by

2 degrees F 30 minutes after the mode is selected.

The temperature will then increase by another 2

degrees F after an additional 30 minutes. This new

temperature will be maintained for 7 hours before it

returns to the originally selected temperature. This

ends the Sleep mode and the unit will continue to

operate as originally programmed. The Sleep mode

program can be cancelled at any time during operation

by again pressing the Sleep button.

NOTE:

Energy

Saver Sleep Timer

Temp

Mode Timer

Auto Cool On Off

Energy

Saver Sleep Timer

Temp

Mode Timer

Auto Cool On Off

Energy

Saver Sleep Timer

Temp

Mode Timer

Auto Cool On Off

Fan Dry

Heat

Fan Dry

Heat

Fan Dry

Heat

Fan Dry

Heat

Meijer.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Arctic King

Arctic King

Arctic King MPPH-08CRN1-BI01 Manual de usuario

Arctic King

Arctic King MPPD-12CRN1-BI0 Manual de usuario

Arctic King

Arctic King WPPD08CW0N Manual de usuario

Arctic King

Arctic King WWK-10CRN1-BJ8 Manual de usuario

Arctic King

Arctic King AKW+12CR4 Manual de usuario

Arctic King

Arctic King MWDUL-10CRN1-BCJ4 Manual de usuario

Arctic King

Arctic King MWFUK-08CRN1-BCL0 Manual de usuario

Arctic King

Arctic King KAP09R1CWT Manual de usuario

Arctic King

Arctic King WWK Series Manual de usuario

Arctic King

Arctic King WPPH-06CR5 Manual de usuario

Arctic King

Arctic King MWHUK-15CRN8-BCK8 Manual de usuario

Arctic King

Arctic King KAW05M1BWT Manual de usuario

Arctic King

Arctic King MWEUK-08CRN1-BCL0 Manual de usuario

Arctic King

Arctic King AKTW+08CR4 Manual de usuario

Arctic King

Arctic King KAW05M1AWT Manual de usuario

Arctic King

Arctic King MWDUL-10CRN1-BCJ4 Manual de usuario

Arctic King

Arctic King MWHUK-05CMN8-BCK0 Manual de usuario

Arctic King

Arctic King WWK05CM91N Manual de usuario

Arctic King

Arctic King WWK05CM61N Manual de usuario

Arctic King

Arctic King WINDOW/WALL TYPE ROOM AIR CONDITIONER Manual de usuario

Arctic King

Arctic King WWK15CR71N Manual de usuario

Arctic King

Arctic King KAP08R1AWT Manual de reparación

Arctic King

Arctic King AKPD-14CR4 Manual de usuario

Arctic King

Arctic King 87795062 Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
