ITX-i230D

Mini-ITX Industrial Motherboard

Quick Installation Guide

Version 1.0

CPU

Soldered onboard

Intel®Celeron J1900

Processor

Form Factor

Mini-ITX

I/O

SATA/ USB 2.0/ USB3.0/

COM

Video

HDMI/LVDS

LAN

RTL8111G-CG Gigabit

Ethernet controller

Audio

Realtek ALC662 + ALC113,

Mic-in/Line-out

♦ Technical Support

If you have any technical difculties, please consult the user’s manual rst at:

ftp://ftp.arbor.com.tw/pub/manual

Contact our customer service at the following addresses if your problem persists.

http://www.arbor.com.tw

E-mail: info@arbor.com.tw

♦ Declaration of Conformity

FCC Class A

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions : (1) this device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

- 2 -

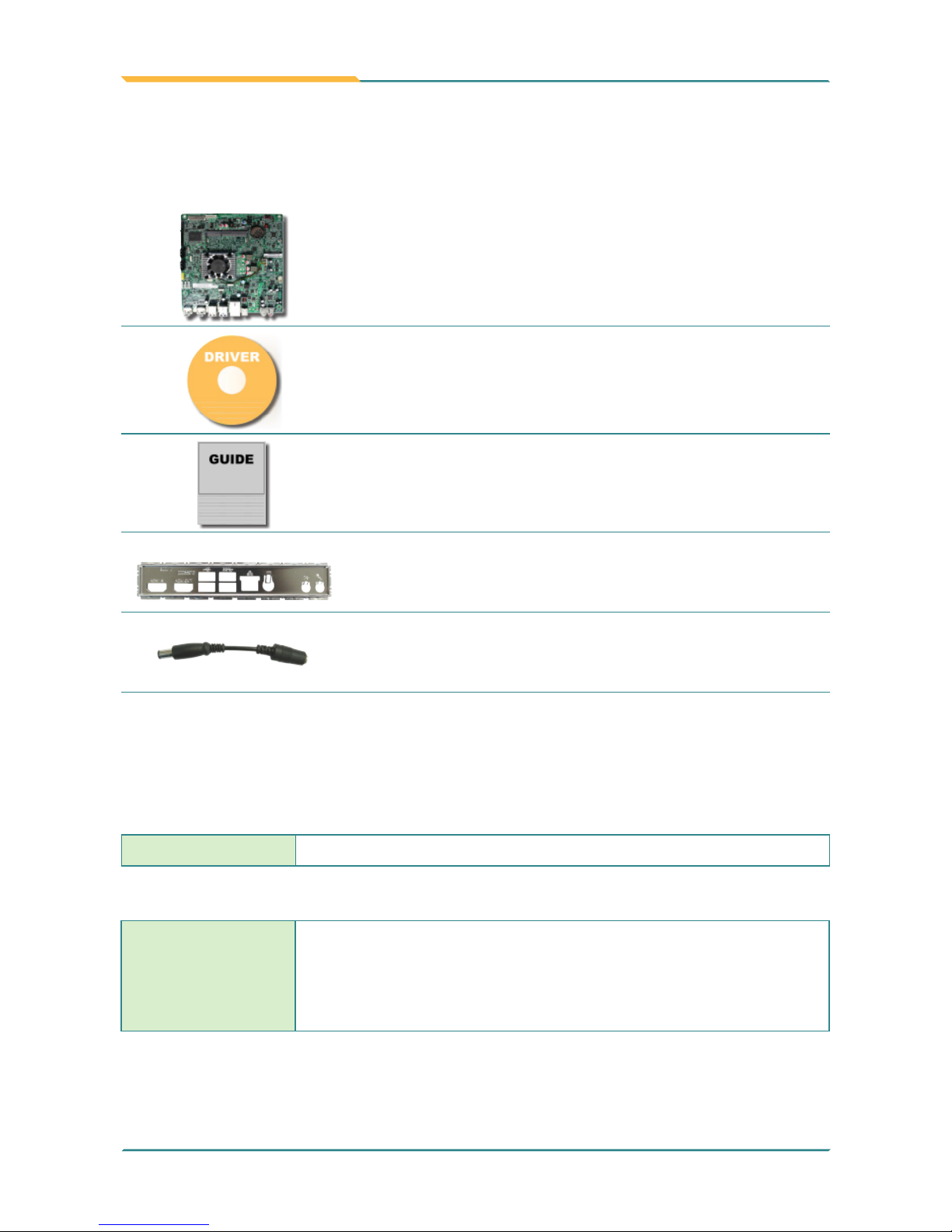

Packing List

Before you begin to install your single board, please make sure that the following

materials have been shipped:

1 x ITX-i230D Mini-ITX industrial motherboard

1 x Driver CD

1 x Quick Installation Guide

1 x I/O bracket

1 x DC 2.5 Jack to 7.4 Plug Cable

If any of the above items is damaged or missing, contact your vendor immediately.

Ordering Information

ITX-i230D Intel®Celeron® Processor J1900 Embedded Mini-ITX motherboard

Optional Accessories

CBK-07-230D-00

Cable Kit

1 x Two Ports USB cable

3 x One Port USB cables

1 x Two Ports SATA Power cable

2 x SATA cables

- 3 -

The Installation Paths of CD Driver

Windows 8 & 8.1

Driver Path

CHIPSET \Chipset\SetupChipset_10.0.13_PC

GRAPHIC \Graphics\WIN8_32\15.33.22.3621

\Graphics\WIN8_64\15.33.22.64.3621

ETHERNET \Ethernet\Realtek\Win8_8.1\Install_Win8_8.1_8031_05222014

AUDIO \Audio\32bit_Win7_Win8_Win81_R275

\Audio\64bit_Win7_Win8_Win81_R275

TXE \TXE\Installers

SERIAL IO \Serial IO\SerialIO_Installer_Win8.1_64bit_WW23

Windows 7

Driver Path

CHIPSET \Chipset\SetupChipset_10.0.13_PC

GRAPHIC \Graphics\WIN7_32\Intel_EMGD.WIN7_PC_Version_36_15_0_1073

\Graphics\WIN7_64\Intel_EMGD.WIN7_PC_Version_37_15_0_1073

ETHERNET \Ethernet\Realtek\Win7\Install_Win7_7085_05222014

AUDIO \Audio\32bit_Win7_Win8_Win81_R275

\Audio\64bit_Win7_Win8_Win81_R275

TXE \TXE\Installers

(For 64-bit Windows only)

USB3.0 \USB3.0\Intel(R) USB 3.0 eXtensible Host Controller_

Win7_32bit_64bit_R3.0.0.33

SERIAL IO \Serial IO\Intel Processor IO Drivers_Win7_32bit_64bit_Gold_v2.0

- 4 -

Specications

Form Factor Mini-ITX industrial motherboard

CPU Soldered onboard Intel® Celeron J1900 quad-core Processor

System Memory 1 x 204-pin DDR3 SO-DIMM socket supporting 1333/1066

MHz SDRAM up to 8GB

Graphic Chipset Integrated Intel®Gen 7 Graphics

Graphic Interface

1 x HDMI_OUT port

1 x HDMI_IN port

LCD: Dual-Channels 24-bit LVDS

Serial Port 1 x RS-232 port (Optional)

Expansion Bus 1 x Mini-card socket

Ethernet 1 x Realtek RTL8111G Gigabit Ethernet controllers

BIOS AMI 64Mb SPI Flash BIOS

Audio Realtek ALC662 + ALC113, Mic-in/Line-out

Serial ATA 2 x Serial ATA ports with 300MB/s HDD transfer rate

USB 7 x USB 2.0 ports

2 x USB 3.0/2.0 ports

Power Requirement 19V DC Jack

Operation Temp. 0 ~ 60°C (32 ~ 140°F) w/ cooling fan

Operating Humidity 10 ~ 60% @ 60°C (non-condensing)

Dimension (L xW) 170 x 170 mm (6.7” x 6.7”)

- 5 -

(0,0)

6,17

14,7

6,17

10,16

26,48

58,47

74,19

92,96

110,31

130,04

152,16

163,83

157,48

22,86

154,94

157,48

154,94

159,84

14,71

26,49

58,47

74,19

92,97

110,49

130,05

152,16

11,67

Board Dimensions

Unit:mm

- 6 -

Jumpers/Connectors Quick Reference

Jumpers

Label Function

❶ CLR_CMOS Clear CMOS Setting

❷ TXE_UNLOCK TXE Unlock

❸ LCD_SEL LCD Resolution Selection

Connectors

Label Function

①SYS_FAN Fan Power Connector

②COM Onboard serial port header

(optional)

③MINI_PCIE Mini PCI Express x1 slot

(supports half-card)

④CPU_FAN CPU Fan Power Connector

⑤SPEAKER

Speaker Connector

⑥DMIC Digital Microphone header

⑦F_AUDIO Front panel audio header

⑧MIC Microphone Connector

⑨LINE_OUT Line out Connector

⑩DC_IN DC IN Power Connectors

⑪LAN Ethernet Connectors

⑫USB3_0 USB 3.0 Connector

⑬USB2_0 USB 2.0 Connector

⑭HDMI_OUT HDMI Output Connector

⑮HDMI_IN HDMI Input Connector

⑯⑰⑱

TC/

CM/CR

5-pin USB 2.0 header

supports one USB 2.0

Device

⑲

F_USB Front panel USB 2.0

header

Label Function

20 21

SATA1/2 Serial ATA 3.0 Gb/s

connectors

SATA_PWR SATA power connector

F_PANEL Front panel switch/LED

header

LVDS LVDS connector

LVDS_BRT Display brightness header

DIMM1 204-pin DDR3 SDRAM

SO-DIMM

CIR Consumer Infrared header

(optional)

- 7 -

Jumpers & Connectors Locations

CLR_CMOS

➊

LCD_SEL

➌

TXE_UNLOCK

➋

①SYS_FAN

LVDS

LVDS_BRT CIR

⑧MIC

⑨LINE_OUT

⑩DC_IN

⑪LAN⑫USB3_0

⑬USB2_0

⑭HDMI_OUT

⑮HDMI_IN

③MINI_PCIE

⑤SPEAKER

⑦F_AUDIO

⑥DMIC

⑯TC

⑰CM

⑱CR

⑲F_USB

⑳SATA1

SATA2

F_PANEL

②COM

④CPU-FAN

25 DIMM1

SATA_PWR

- 8 -

Jumpers

Jumper Settings

The jumper is “short” (closed) when the jumper cap is

placed on pins. If not, that means the jumper is “open.”

Pin open Pin short

(closed)

Pin 2-3 short

(closed)

Pin 1-2 short

(closed)

❶

CLR_CMOS: Clear CMOS Setting

Connector type: 2.54mm pitch 1x3-pin headers.

Pin Mode

1-2 Keep CMOS (Default)

23 1

2-3 Clear CMOS

23 1

❷TXE_UNLOCK

: TXE Unlock (Optional)

Connector type: 2.54mm pitch 1x3-pin headers.

Pin Mode

1-2 Normal (Default)

2 31

2-3 Override

2 31

❸

LCD_SEL: LCD Resolution Selection

When your panel connects to LVDS, please check

LCD Select header setting rst.

Connector type: 2.54mm pitch 2x4-pin headers.

Pin Voltage

1-2

5-6 1600 x 900

1 2

7 8

1-2

3-4 1920 x 1080 (Default)

1 2

7 8

Connectors

①SYS_FAN

: Fan Power Connector

Connector Type:

2.54mm pitch 1x4-pin headers.

Pin Description

1GND

2+12V

3FAN_Detect

4 Control

②COM

: Onboard serial port header

(Optional)

Connect a serial port extension bracket to this header to

add a serial port to your system.

Connector Type:

2.54mm pitch 2x5-pin headers.

Pin Desc. Pin Desc.

1DCD 2SIN

3SOUT 4DTR

5GND 6DSR

7RTS 8CTS

9RI 10 N/C

③MINI_PCIE

: Mini PCI Express x1 slot

Connector type: Onboard 0.8mm-pitch 52-pin edge

card connector

The pin assignments conform to the industry standard.

51 52

- 9 -

④CPU_FAN: CPU Cooling FAN Connector

Connector Type:

2.54mm pitch 1x4-pin headers.

Pin Description

1GND

2+12V

3FAN_Detect

4 Control

⑤SPEAKER: Internal Speaker Header

Connector Type:

2.00mm pitch 1x4-pin headers.

Pin Description

1L_Channel-

2L_Channel+

3R_Channel+

4R_Channel-

⑥

DMIC: Digital MIC Header

Connector Type:

2.54mm pitch 1x5-pin headers.

Pin Description

1+3.3V

2DMIC DATA

3GND

4DMIC Clock

5N/C

⑦F_AUDIO

: Front Panel Audio Header

The front panel audio header allows the user to

install auxiliary front-oriented microphone and line-out

ports for easier access. This header supports HD

audio by default.

Connector Type:

2.54mm pitch 2x5-pin headers.

Pin Desc. Pin Desc.

1FP_MIC_in 2Analog_GND

3MIC_Power 4 Presence#

5 FP_Right 6 Sense1_Return

7 Sense_Send 8 N/C

9 FP_Left 10 Sense2_Return

⑧⑨MIC&LINE_OUT: Microphone&Line-out

The pin assignments

conform to the industry

standard.

LINEOUT MIC

⑩

DC_IN: DC jack

Connector type: DC Φ7.4 Male connector

Inner Shell :19V DC

Outer Shell :GND

⑪

LAN: Ethernet Connectors

The pin assignments

conform to the industry

standard.

1 8

⑬

USB3_0: USB 3.0 Connector

The pin assignments

conform to the industry

standard.

⑬

USB2_0: USB 2.0 Connector

The pin assignments

conform to the industry

standard.

- 10 -

⑭

HDMI_OUT: HDMI Output Connector

Connect the display device to the HDMI_OUT port

The pin assignments

conform to the industry

standard.

⑮

HDMI_IN: HDMI Input Connector

Connect other HDMI source to the HDMI_IN port

The pin assignments

conform to the industry

standard.

⑯⑰⑱

TC/CM/CR: 5-pin USB 2.0 header

Connector Type:

2.54mm pitch 1x5-pin headers.

Pin Description

1+5V

2USB-

3USB+

4GND

5N/C

⑲F_USB

10-pin USB 2.0 header supports card reader and cam-

era or other USB 2.0 devices

Connector Type:

2.54mm pitch 2x5-pin headers.

Pin Description Pin Description

1+5V 2+5V

3USB Port A (-) 4USB Port B (-)

5USB Port A (+) 6USB Port B (+)

7GND 8GND

9N/C 10 N/C

⑳

SATA1&2: Serial ATA Connectors

The pin assignments

conform to the industry

standard.

SATA_PWR: Serial ATA Power Connector

The pin assignments

conform to the industry

standard.

F_PANEL

:Front panel switch/LED

header

A standard set of switch and LED headers for ATX or

Micro ATX cases

Connector Type:

2.54mm pitch 2x5-pin headers.

Pin Description PinDescription

1HD LED(+) 2MSG LED (+)

3HD LED(-) 4MSG LED (-)

5Reset Switch (-) 6Power Switch (+)

7Reset Switch (+) 8Power Switch (-)

9Reserved 10 N/C

Tabla de contenidos

Otros manuales de Placa madre de Arbor Technology

Arbor Technology

Arbor Technology ITX-i89H0 Manual de usuario

Arbor Technology

Arbor Technology ITX-i92QA Manual de usuario

Arbor Technology

Arbor Technology EmCORE-i9651 Manual de usuario

Arbor Technology

Arbor Technology MB-i77Q0 Manual de usuario

Arbor Technology

Arbor Technology ITX-i2705D Manual de usuario

Arbor Technology

Arbor Technology PBE-1702 Manual de usuario

Arbor Technology

Arbor Technology HiCORE-i67Q1 Manual de usuario

Arbor Technology

Arbor Technology EmCore-a5360 Manual de usuario

Arbor Technology

Arbor Technology ITX-i2203 Manual de usuario

Arbor Technology

Arbor Technology MB-i67Q0 Manual de usuario

Arbor Technology

Arbor Technology EmCORE-i2702 Manual de usuario

Arbor Technology

Arbor Technology EmETXe-i90M3 Manual de usuario

Arbor Technology

Arbor Technology EmCORE-i55M0 Manual de usuario

Arbor Technology

Arbor Technology EPIC-747E Manual de usuario

Arbor Technology

Arbor Technology MB-i67Q0 Manual de usuario

Arbor Technology

Arbor Technology EmCORE-i230G Manual de usuario

Arbor Technology

Arbor Technology ITX-i87H0 Manual de usuario

Arbor Technology

Arbor Technology EasyBoard-650E Manual de usuario

Arbor Technology

Arbor Technology EmCORE-i965H Manual de usuario

Arbor Technology

Arbor Technology HiCORE-i6320 Manual de usuario

Arbor Technology

Arbor Technology ETX-620E Manual de usuario

Arbor Technology

Arbor Technology EmCORE-i2501 Manual de usuario

Arbor Technology

Arbor Technology MB-i89Q0 Manual de usuario

Arbor Technology

Arbor Technology ITX-i2203 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
