NOTICE:

Speciﬁcations may change without notice.

SWIMMING POOL

& SPA HEAT PUMPS

INSTALLATION MANUAL

Model AT550

w/Titanium Heat

Exchanger

a Division of Calorex USA L.L.C.

2213 Andrea Lane Ft. Myers FL 33912

888-297-3826 239-482-0606

www.aquathermheatpumps.com

HEAT PUMPS

INFORMATION

PLACEMENT

PLUMBING

ELECTRICAL

HEAT PUMP

OUT IN

FILTER

WATER

PUMP

SPA JETS

TO SPA

SPILLOVER

CHLORINATOR

TO POOL

RETURN

SPA

POOL

Jandy™

3-Way Valve VERTICAL

CHLORINATOR

LOOP

FROM

SPA

SUCTION

FROM

POOL

SKIMMER

SUCTION

FROM

POOL

FLOOR

SUCTION

NATIONAL SPA &

POOL INSTITUTE

MEMBER

A. Unit Description ........................................................................................ Page 3

B. Heat Pump Placement & Clearances ...................................................... Page 4

C. Plumbing- Water Connections ............................................................Pages 2-6

1. Basic Plumbing

2. Freeze Condition Plumbing

3. Bypass for Flow Rates Over 70 GPM

4. Multi Unit Water Connections

5. Pool/Spa Combination Plumbing

6. Pool/Spa Separate Plumbing

7. Plumbing with Solar

8. Plumbing Above or Below Water Level

D. Winterizing Procedures................................................................................ 6-7

1. Light Freeze Conditions

2. Hard Freeze Conditions

E. Electrical Connections & Wiring......................................................Pages 7-10

1. Supply Wiring 220V

2. Motor Valve Connections

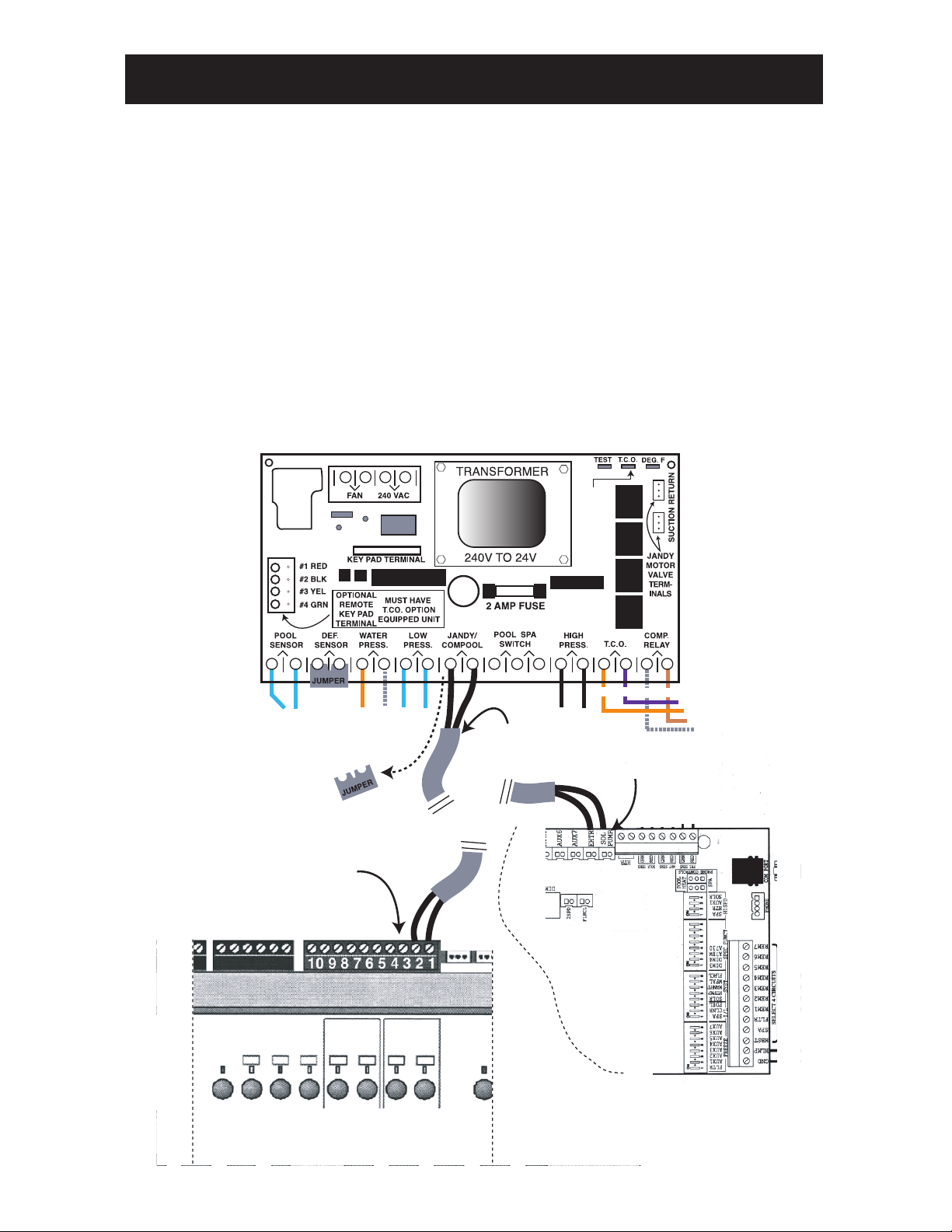

3. Interfacing with External Controls, Jandy & Compool

F. Control Panel Information, Operation & Description......................Page 11

G. Operational Sequence & Troubleshooting Flow Chart ...................... Page 12

TABLE OF CONTENTS

AT550 FACTORY SPECIFICATIONS

Kw/ Input ............................................................................ 4.8

Typical Running Amps ........................................................ 24

Min. Circuit Ampacity .......................................................... 39

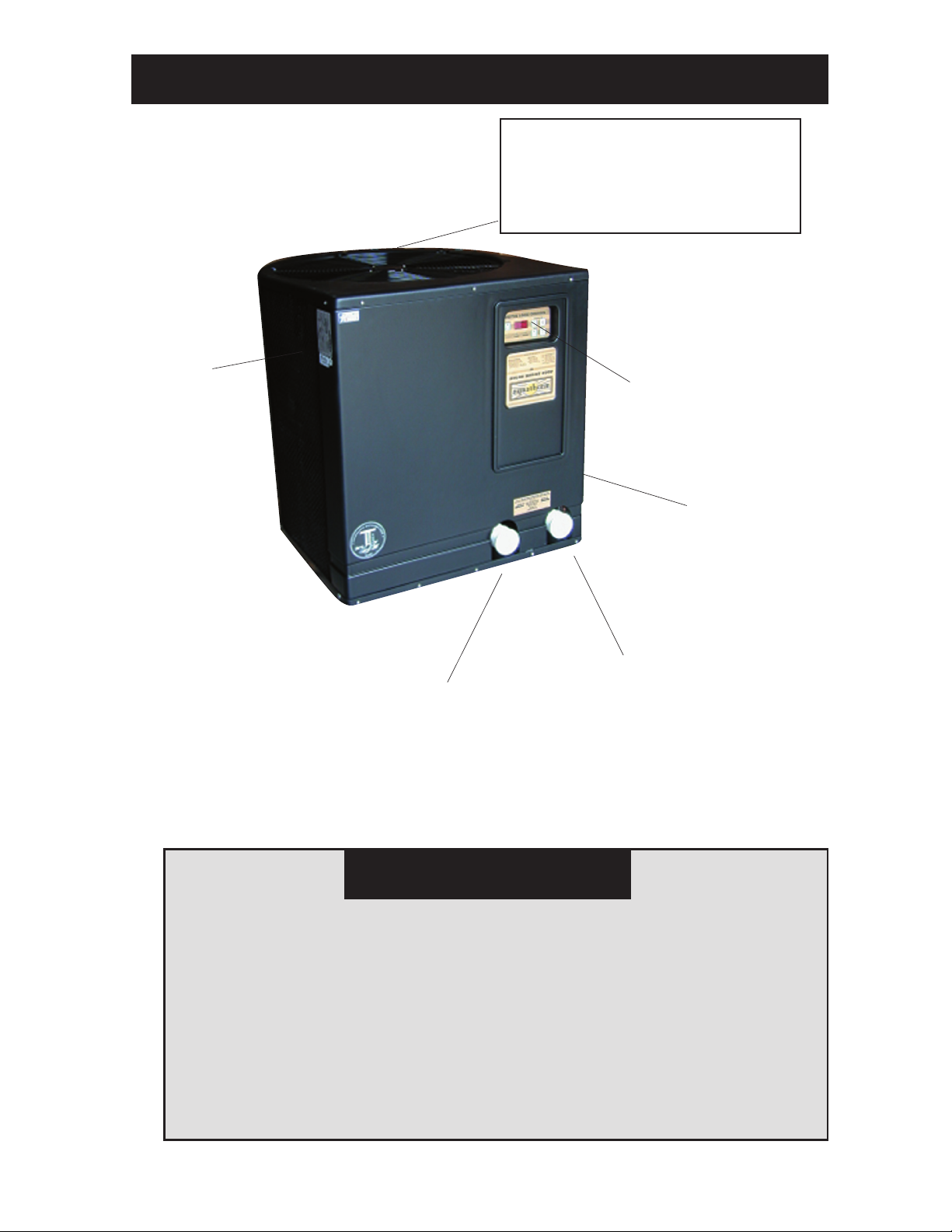

A. UNIT DESCRIPTION

AIR DISCHARGE FAN

WARNING: ROTATING

BLADE KEEP HANDS & HAIR

CLEAR!

CONTROLS with

LED READOUT

WATER OUT

2” MALE THREADED

UNION

(INCLUDED)

WATER IN

2” MALE THREADED

UNION

(INCLUDED)

DATA

PLATE

DANGER FROM ELECTRICAL SHOCK & ROTATING FAN !

SHUT OFF ALL POWER BEFORE SERVICING!

CAUTION:

MORE THAN ONE DISCONNECTION MAY BE REQUIRED TO

ELIMINATE ALL POWER TO THIS UNIT INCLUDING POWER TO

THE OPTIONAL TIME CLOCK OVERRIDE!

ELECTRICAL

INSTALLATION

PORT(S)

WARNING

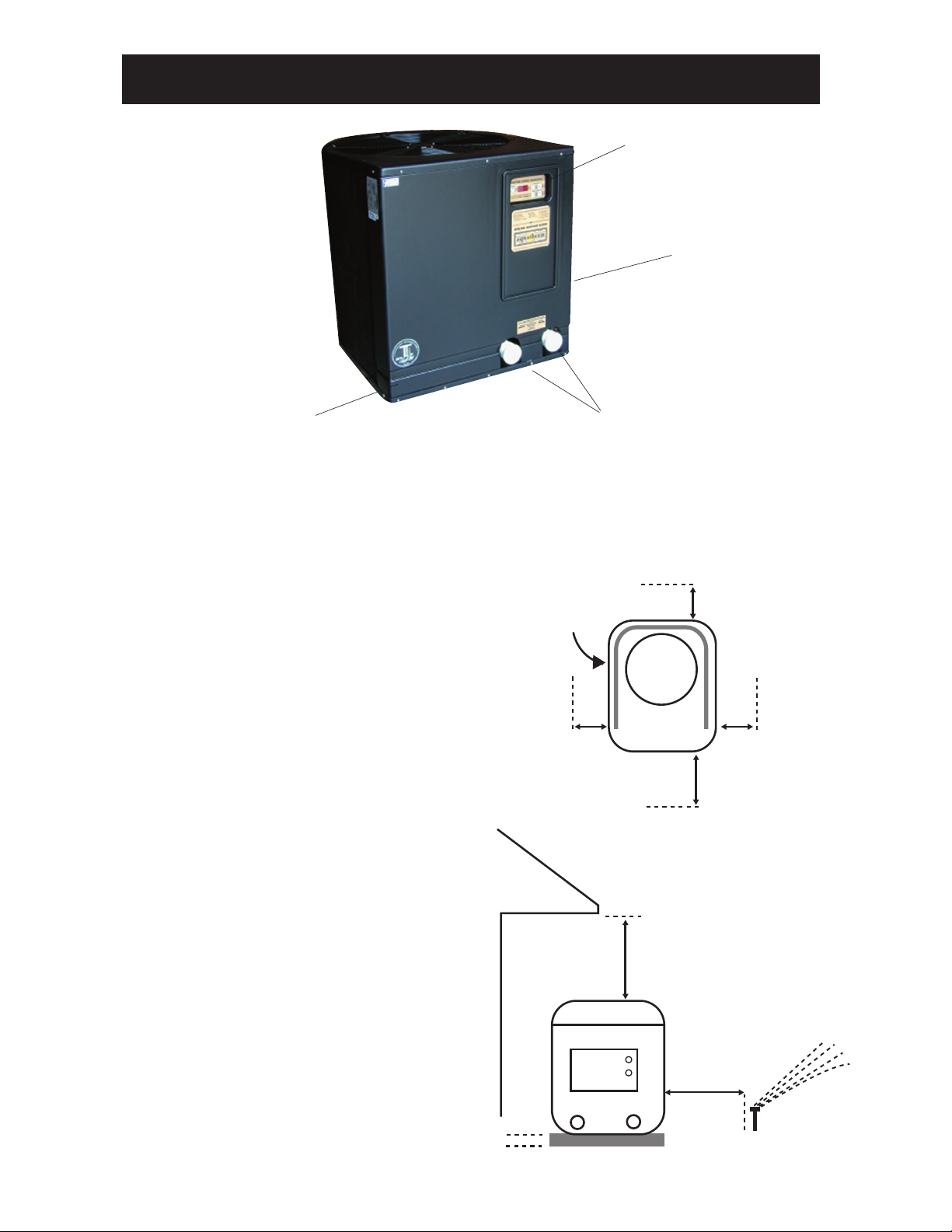

1. To allow for proper condensation drainage,

use a level slab to elevate the heat pump to

at least the same height as the pool ﬁlter

system slab, or 2 to 3 inches minimum

above grade.

2. Allow the minimum air ﬂow clearances on

top and the sides as shown here. Make sure

the unit can “breathe” well. Do not install

indoors or where the discharge air can ac-

cumulate and be drawn back through the

heater. Make sure the front is accessible

for future service.

3. Keep sprinkler heads at least 6 feet away

from the heat pump. Do not allow the

sprinkler to spray the unit in any way to

prevent damage.

4. If the unit is installed under a roof overhang

or under a roof valley, a gutter or diverter

should be ﬁtted to prevent excessive water

from pouring into the unit.

5. Keep all plants and shrubs trimmed away

from the heater to the minimum clearances

shown here to prevent air coil damage.

6. If the heater is installed above or below

the pool water level by more than 3 feet

you may require an external water ﬂow

switch. See the top of section C8 for more

information.

Minimum Air Flow

& Access

Clearances

B. HEAT PUMP PLACEMENT & CLEARANCES

AIR COIL

AIR FLOW IN

ON 3 SIDES

FAN DISCHARGE

AIR FLOW OUT

WATER IN/OUT PORT

INDICATOR LABEL

2” UNIONS

BACK

12” 12”

12”

36”

AIR

COIL

FRONT

Make sure the front is accessible

for future service.

FRONT

2” 6’

60”

HEAT PUMP

OUT IN

FILTER

WATER

PUMP

SPA JETS

TO SPA

SPILLOVER

CHLORINATOR

TO POOL

RETURN

SPA

POOL

Jandy™

3-Way Valve VERTICAL

CHLORINATOR

LOOP

FROM

SPA

SUCTION

FROM

POOL

SKIMMER

SUCTION

FROM

POOL

FLOOR

SUCTION

3. BYPASS FOR FLOW RATES OVER 70 G.P.M. Typi-

cally the automatic internal water bypass can handle up to a

1.5 H.P. water pump or 70 G.P.M. If the water pump exceeds

1.5 H.P. then install either of the optional bypasses as shown

below. The installation of a ﬂow meter on the WATER OUT

line is suggested. Adjust the bypass to divert a minimum of

40 to 50 G.P. M. through the heater. Flow meters should be

installed per the manufacturer’s instructions.

1. BASIC PLUMBING. For a pool only

or spa only, install the plumbing piping

as shown. Connections from factory

are 2”unions. Hand tighten then 1/4 to

1/2 snug tight with pliers. Water IN on

the RIGHT, Water OUT on the LEFT.

PLUMB AFTER the FILTER & BEFORE

any CHLORINATORS or CHEMICAL

FEEDERS

C. PLUMBING & WATER CONNECTIONS

4. MULTI UNIT WATER CONNECTIONS

Plumb multiple units as shown below. Use ﬂow meters on each

WATER OUT line if two or more units are plumbed together.

Use ball valves to balance the water ﬂow through each unit.

Using T’s, caps and a minimum 6 inch pipe extension on the

plumbing manifold will help equalize the water ﬂow better than

90˚’s. Flow meters should be installed per the manufacturer’s

instructions.

OUT OUT

IN IN

FLOW

METER

POOL TO

POOL

FROM

FILTER

FROM

FILTER

FLOW

METER

TOP VIEW

OUT OUT

IN IN

BALL

VALVE

FLOW

METER

TO POOL

FROM

FILTER CAP

& 6" OF PIPE

POOL

CHLORINATOR

PUMPS OVER 70 GPM

REQUIRE BYPASS HERE

6" TO 8"

HEAT

PUMP

FILTER

FROM

POOL

WATER

PUMP

OUT IN

2. FREEZE CONDITION PLUMBING. See WINTERIZING PROCEDURES on page 7.

5. POOL/SPA COMBINATIONS W/SPILL-OVER

Use this diagram for

a connected pool and

spa, where the spa has

a spill-over type wa-

terfall into the pool.

Where one pump and

one heater are used for

both the pool and spa.

If the water pump ex-

ceeds 1.5 H.P. then in-

stall a external bypass

as shown on page 5.

SEE CHLORINATOR LOOP &

CHECK VALVE REQUIREMENT

ON PAGE 5.

C. PLUMBING & WATER CONNECTIONS

OFF

POOL

FILTER POOL

WATER

PUMP

VERTICAL

CHLORINATOR

LOOP

JANDY™

3-WAY VALVE

HEAT PUMP

OUT

FROM

POOL

FLOOR

SUCTION

FROM

POOL

SKIMMER

SUCTION

BYPASS

12 LB

CHECK

VALVE

12 LB

CHECK

VALVE

POOL

CHLORINATOR

SPA

CHLORINATOR

VERTICAL

CHLORINATOR

LOOP

TO POOL

RETURNS

POOL

SPA

TO SPA

RETURN JETS

SPA

WATER PUMP

FROM

SPA

SUCTION

SPA

FILTER

6.POOL & SPA SEPERATE

Use this diagram for a separate pool and spa not

connected, and does not have a spill-over. Where

the pool and the spa have separate pump & ﬁlter

systems but using the same heater. If the water

pump exceeds 1.5 H.P. then install a external

bypass as shown on page 5.

OFF

JANDY ™

HEAT PUMP

INOUT

CHLORINATOR

TO POOL

RETURN

FROM

POOL

SKIMMER

SUCTION

FROM

POOL

FLOOR

SUCTION

VERTICAL

CHLORINATOR

LOOP

MOTORIZED

SOLAR

VALVE

FROM

SOLAR

SOLAR AUTOMATIC

SOLAR

CONTROL

DEVICE

WATER

PUMP

FILTER

7. PLUMBING WITH SOLAR.

Plumbing for a system where a solar pool

heater is installed. It

is strongly advised

that an automatic so-

lar control device be

used when used with

the heat pump. If the

water pump exceeds

1.5 H.P. then install

either of the optional

bypasses as shown on

page 5.

The heat pump and solar can be operated

together. The heat pump will share the heating

load with the solar. If the solar is operated on cloudy

days, while raining, at night or at low air temperatures,

it may cool the pool or spa. An automatic solar control

will shut the solar off when there is no solar heat gain,

otherwise it should be shut off manually during these times.

To use the heat pump as a backup to the solar, set the heat pump thermostat 2 to 4 degrees below

the solar’s target temperature setting. Therefore, if the solar is not maintaining water temperature,

the heat pump will come on to assist the solar. Some thermostat ﬁne tuning may be required by the

user.

C. PLUMBING & WATER CONNECTIONS

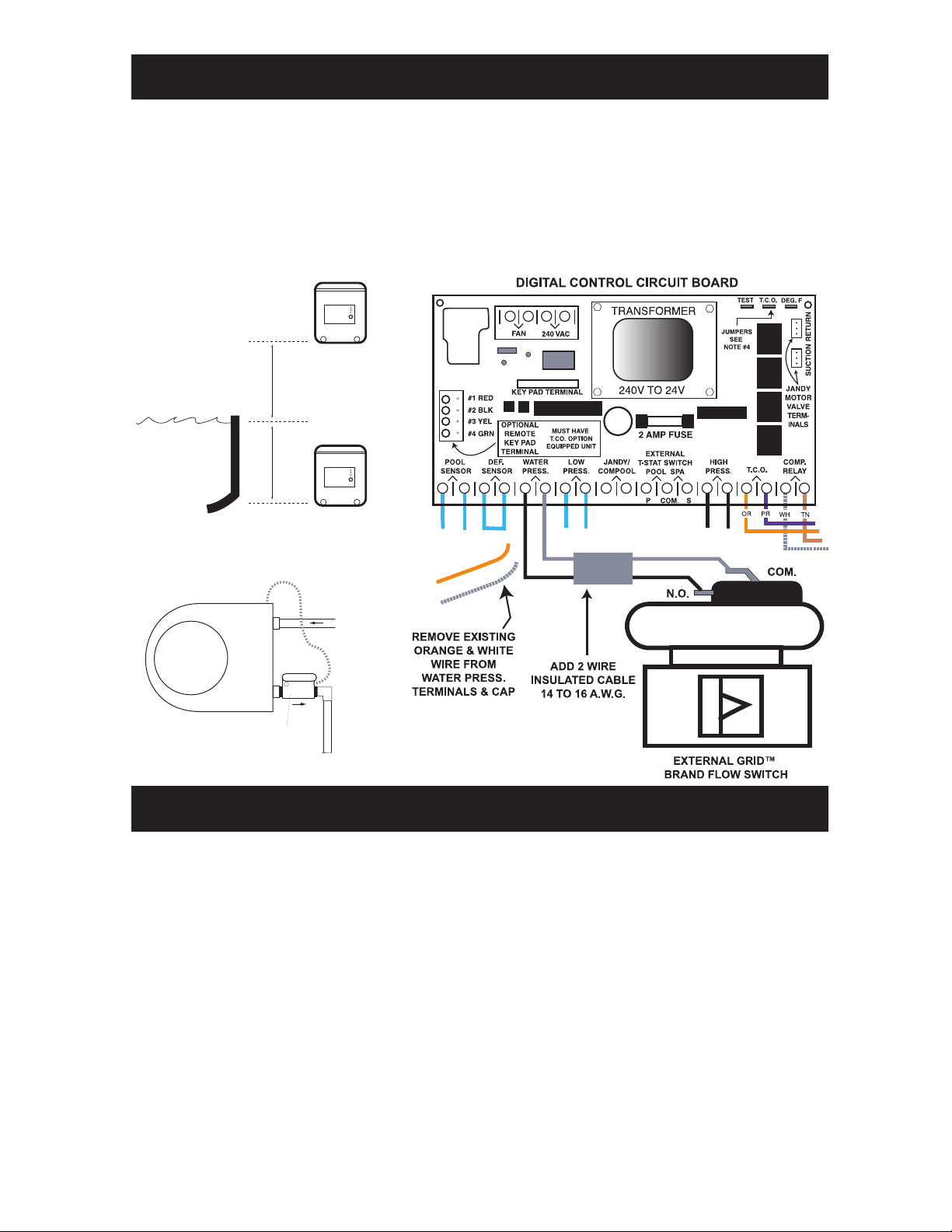

8. PLUMBING & WATER CONNECTIONS FOR ABOVE OR BELOW WATER LEVEL

If you install the heat pump above or below the pool or spa water level by more than 3 feet, the internal

water pressure switch may be effected by the static pressure of the pool water. In some cases it

may be necessary to eliminate the internal water “PRESSURE” switch and install a water “FLOW”

switch. The water ﬂow switch is not effected by changes in water pressure but only water movement.

We suggest installing a 2”, Grid Brand Model 20 ﬂow switch and disabling the internal water pressure

switch. Plumb in the ﬂow switch as shown here. Then run a TWO wire insulated cable from the ﬂow

switch into the heater and attach to the existing water pressure switch leads located on the heater’s

logic board, behind the low voltage service panel and wire as shown below.

POOL

LEVEL

USE

FLOW

SWITCH

USE

FLOW

SWITCH

3 FT.

HEAT PUMP

OUT IN

HEAT PUMP

OUT IN

HEAT PUMP

INOUT

FLOW

SWITCH

D. WINTERIZING PROCEDURES

1. LIGHT-FREEZE CONDITIONS

(Air temperature does not remain below 32ºf for more than 4-hours)

In the event your heater will not be used for an extended period, it is recommended pool water

be allowed to circulate through the heater during normally scheduled ﬁltration cycles. If light

freeze conditions are expected, adjust water pump controls for continuous operation throughout

the light freeze episode. Moving water will not freeze under light-freeze conditions. Remain

aware of abnormal climatic conditions; use “hard-freeze” instructions

(Below) if freezing conditions will exceed 4-hours.

CAUTION !

FAILURE TO PROPERLY WINTERIZE HEAT PUMP MAY RESULT IN SERIOUS

EQUIPMENT DAMAGE. FREEZE DAMAGE IS NOT COVERED UNDER THE

HEAT PUMP WARRANTY. FAILURE TO HEED THE FOLLOWING CAN RESULT IN

DAMAGE TO EQUIPMENT AND/OR PROPERTY.

E. ELECTRICAL CONNECTIONS AND WIRING

MAKE SURE TO TURN OFF ALL POWER TO UNIT INCLUDING POWER

TO POOL PUMP TIMER PRIOR TO MAKING ANY ELECTRICAL CON-

NECTIONS. SPECIFICATIONS ARE SUBJECT TO CHANGE. ALWAYS

REFER TO WIRING DIAGRAM LOCATED ON THE BACK OF THE UNIT’S

PLASTIC FRONT COVER AND DATA PLATE ON LEFT SIDE OF PLASTIC

FRONT PANEL.

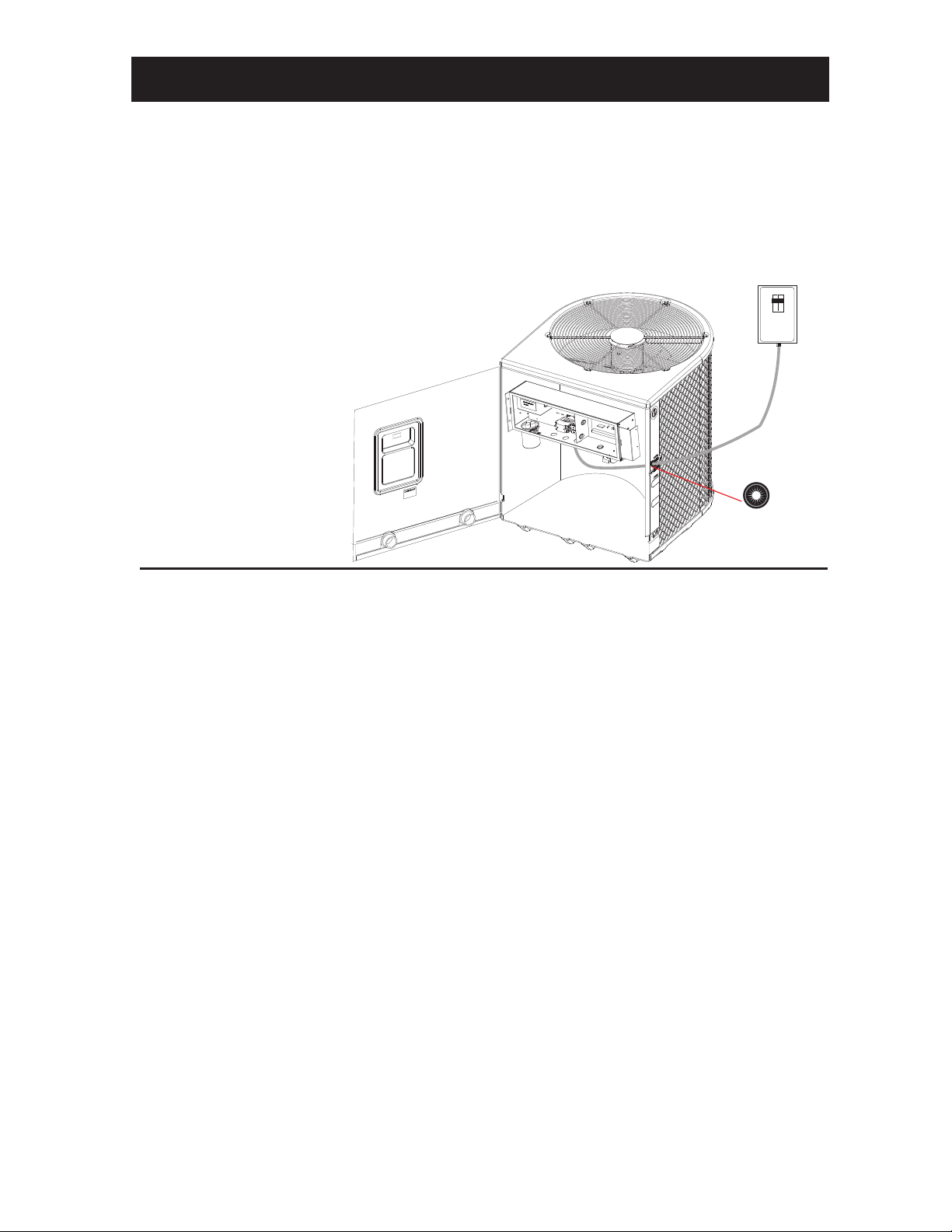

1. SUPPLY WIRING 220V

• Remove plastic front panel from unit.

• Locate and remove electric box high voltage cover located on left side of electric box.

• Determine sealtight length and slip plastic adaptor over conduit. Run conduit and proper

2. HARD-FREEZE CONDITIONS

(Air temperature remains below 32ºf for more than 4-hours)

WARNING !

TO AVOID INJURY FROM ROTATING EQUIPMENT, DISCONNECT ELECTRICAL

POWER FROM HEAT PUMP BEFORE PROCEEDING WITH INTERNAL DRAIN

WINTERIZING PROCESS. FAILURE TO HEED THE FOLLOWING MAY RESULT

IN PERMANENT INJURY OR DEATH.

1. Disconnect all electrical power to the heater; turn off circulating pump.

2. At the two (2) connection unions, disconnect the plumbing to the heater (removal is

counterclockwise).

3. Locate the drain plug at outside, lower front of heater. (see ﬁgure 1)

If the unit does not have an external drain plug, remove the exterior front panel of the unit.The

internal drain plug is located at the base of the heat exchanger (see ﬁgure 2). Follow the same

procedure as with an external drain plug.

4. Using a 5/8”, box-end wrench, remove the drain plug (removal is Counterclockwise).

5. Permit all water to drain from the condenser and then replace the plug: thread the plug in

clockwise until just snug, then apply an additional 1/8 turn.

6. To prevent insects and vermin from entering the plumbing during the winterized period,

partially reconnect the two (2) plumbing connection unions: couple each union one or two

threads; this will permit condensation to drain, but will prevent most insects and animals from

entering the plumbing circuit.

7. Next season: to ready the heat pump for use, simply retighten plumbing connection unions.

Hand-tight is generally sufﬁcient.

D. WINTERIZING PROCEDURES

FIGURE 2

INTERNAL

DRAIN PLUG

FIGURE 1

EXTERNAL

DRAIN PLUG





POWER

SUPPLY

SEALTITE

BUSHING

E. ELECTRICAL CONNECTIONS AND WIRING

size wire from power supply to the unit’s main contactor located on the right side of high

voltage compartment. The ground wire connection is located on the base of the box to the

left of the contactor. A knock out is located on the bottom of the box just below the contactor.

A sealtight ﬁtting must be used to attach the conduit to the electric box. All other models

require minimum #8 copper stranded wire. Model AT 1200 requires #6 wire.

• Replace electric box high voltage cover.

• Replace plastic front panel and place conduit and plastic adaptor in slot provided on right

side of unit.

• Run a #8 solid copper

wire from the bond lug

located on the right

side of unit to pool

pump bond wire or a

7 ft. copper rod driven

into the ground.

• Turn power to unit and

timeclock on.

OR PR TN

P COM. S

JUMPERS

SEE

NOTE #4

FOR AQUALINK/COMPOOL

REMOVE METAL JUMPER TERMINAL

"HTR" POSITIONS

2 WIRE CABLE

#14-16 AWG

COMPOOL

PC BOARD

GREEN TERMINAL BAR

POSITIONS 1 & 2

JANDY AQUALINK PC BOARD

To interface the “Digital Logic” digital control heat pump models with the Jandy AquaLink RS series

or Compool, run a 2 wire (16 A.W.G. or larger) insulated cable from the device to the heat pump.

Remove the 6 screws from the heaters front service access panel and open. Look for the heater’s

solid state circuit board located inside the top portion of the electrical compartment mounted on the

rear wall. Locate, remove and discard the ”METAL JUMPER TAB” attached to the bottom terminal

bar and labeled “Jandy/Compool”. Then, run a 2 wire cable from the 2 position terminal where the

metal jumper tab was, through the heater’s low voltage access port, then to the AquaLink RS or the

Compool control.

NOTE for AquaLink RS and Compool: Turn both heater thermostats all the way up and set the

mode selector switch to pool and do not use the heater controls as the Jandy or Compool now has

thermostatic control over the heater.

for AquaLink

Attach the 2

wire cable to

positions #1

and position

# 2 on the 10

slot, green ter-

minal bar inside

the AquaLink’s

power center.

*See the con-

trollers instal-

lation guide

also.

for Compool

Attach the 2

wire cable to

the Compool’s

power center

board located

on the termi-

nals labeled

“HTR” *See

the controllers

installation

guide also.

5. INTERFACING DIGITAL LOGIC CONTROL MODELS

with Jandy™Aqualink RS & Compool

E. ELECTRICAL CONNECTIONS AND WIRING

Tabla de contenidos

Otros manuales de Bomba de calor de aquatherm

aquatherm

aquatherm AT800 Manual de usuario

aquatherm

aquatherm AT75 Manual de usuario

aquatherm

aquatherm AT100 Manual de usuario

aquatherm

aquatherm AT800 Manual de usuario

aquatherm

aquatherm AT140 Manual de usuario

aquatherm

aquatherm AT800 Guía de inicio rápido

aquatherm

aquatherm AT600 Guía de inicio rápido

aquatherm

aquatherm AT75 Manual de usuario

aquatherm

aquatherm Calorex AT500 Manual de usuario

aquatherm

aquatherm Omni-Swim OS140 Manual de usuario

Manuales populares de Bomba de calor de otras marcas

MICROWELL

MICROWELL HP 1000 GREEN Manual de usuario

Sanyo

Sanyo SAP120FCH Manual de usuario

Daikin

Daikin EHYHBH05AA Manual de usuario

Panasonic

Panasonic WH-SDF03E3E5 Guía

Bryant

Bryant 544B Manual de usuario

Airxcel

Airxcel 45000 Series Manual

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manual de usuario

Dimplex

Dimplex LI 16I-TUR Guía del usuario

Carrier

Carrier WSHP Open v3 Guía de configuración rápida

TGM

TGM CTV14CN018A Manual de usuario

Carrier

Carrier 38MGQ Series Manual de usuario

Kokido

Kokido K2O K880BX/EU Guía de solución de problemas

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guía rápida

Carrier

Carrier 48EZN Manual de usuario

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Instrucciones de funcionamiento

Ariston

Ariston NIMBUS Manual de usuario

Weishaupt

Weishaupt WWP L 7 Guía del usuario

GE Zoneline AZ85H09EAC Manual de usuario

aquatherm AT550 Manual de usuario

Manuales populares de Bomba de calor de otras marcas
