Assembly Instructions
Please keep for future reference
Important - Please read these instructions fully before starting assembly
Styleline 122
Version 1 : 01/08/2017
ALR3417
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Make sure you have enough
space to layout the parts before
starting.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
Care and maintenance
Contact Us
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
Aqua Pacific UK Ltd.
Unit 10, Oriana Way
Nursling Industrial Estate
Southampton
SO16 0YU
Tel +44 (0) 2380 734000
Fax +44 (0) 2380 740200
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• Warning: This unit is heavy.
Please lift with care.
• Check you have all the
components and tools listed.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.

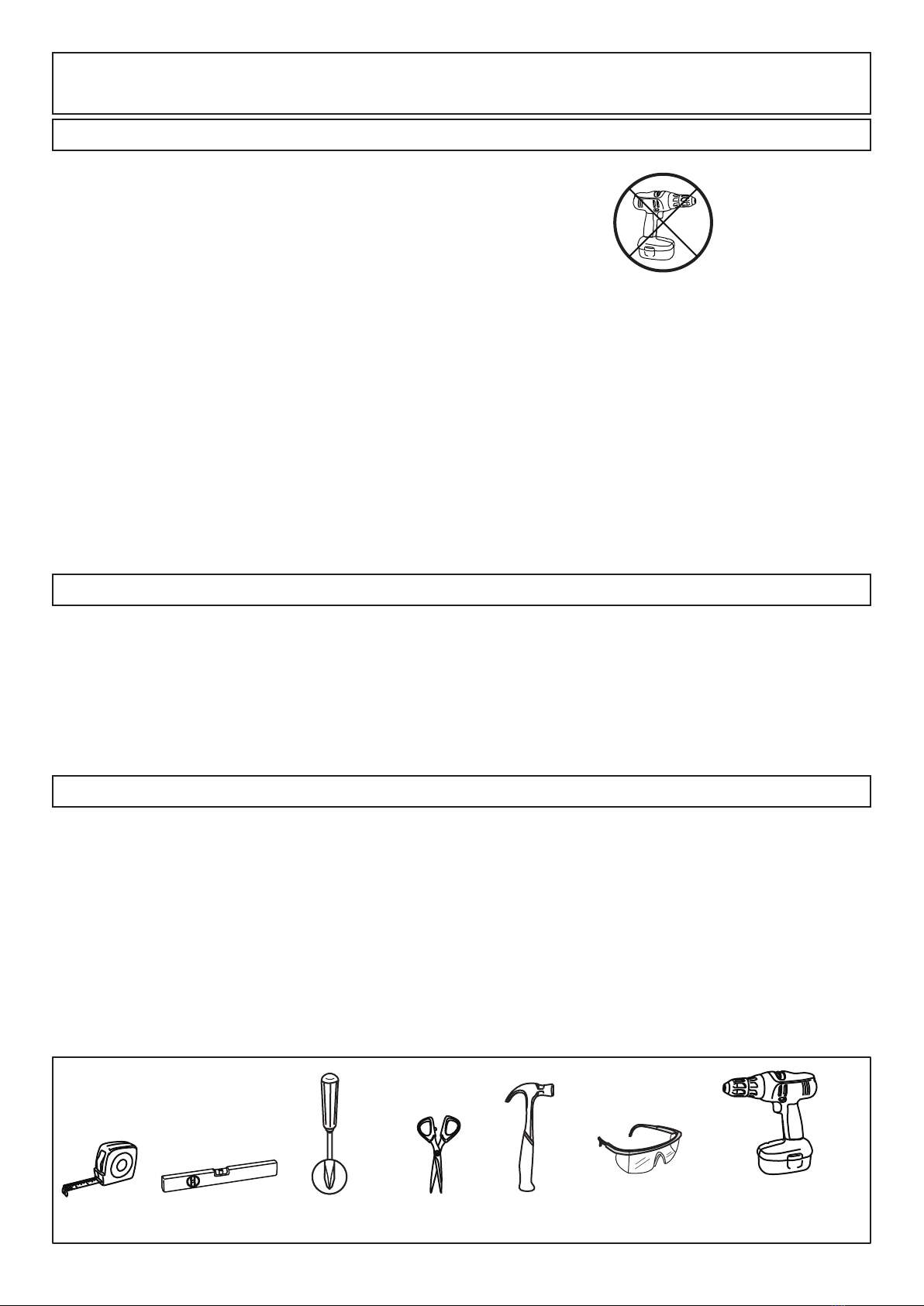

Tools
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Electric drill
(do not use for
fitting screws)
Spirit
level
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: This unit must
be secured to a wall using the
overbalance protector kits
supplied.
• Dispose of all packaging
carefully and responsibly.
Panels
Please check you have all the panels listed below
1Left Side
(DF-00012353)
(71.8 x 31.8cm)
5Top (DF-00012361)
(122.5 x 37.2cm)
2Right Side
(DF-00012354)
(71.8 x 31.8cm)
3Left Divider
(DF-00012368)
(71.8 x 29.8cm)
8Front Rail DF-00012570)
(114.9 x 9.2cm)
4Right Divider
(DF-00012384)
(71.8 x 29.8cm)
7Back (DF-00012356)
(76.1 x 39.7cm)
9Door (DF-00012367)
(65.3 x 38.9cm) x 3
6Base (DF-00012364)
(118.9 x 32cm)
Fittings
Please check you have all the fittings listed below
A B
Large Metal Dowel (F901) x 12
C
D E
Large Locking Cam
Nut (F900) x 12
H IG
45mm Screw (F65) x 2
F
Wooden Dowel (F22) x 20
40mm Screw (F910) x 8
J K
Overbalance Protector
Kit (F474) x 2
38mm Screw (F81) x 12
13mm Screw (F63) x 12
Foot (F233) x 6 Shelf Support (372) x 1
L
Hinge (F518) x 6
Hinge Plate
(F523) x 6
C
Finished
Front Edge
C
C
Step 1
Step 2
Step 3
Prepare the Left Side
Tap 4 Wooden Dowels
into the Left Side.
Insert 2 Large Locking
Cam Nuts into the Left
Side.
Screw a metal dowel
into the Left Side.
Fit 2 hinge plates onto
the Left Side, making
sure that the slot is
facing towards the
finished front edge.
Prepare the Right Side
Tap 4 Wooden Dowels
into the Right Side.
Insert 2 Large Locking
Cam Nuts into the Right
Side.
Screw a metal dowel
into the Right Side.
Fit 2 hinge plates onto
the Right Side, making
sure that the slot is
facing towards the
finished front edge.
H
H
H
B
C
C
B
10mm
C
C
C
B
B
C
C
H
H
H
Finished
Front Edge
Prepare the Front Rail
Tap 2 Wooden Dowels
into the Front Rail.
Insert 2 Large Locking
Cam Nuts into the Front
Rail.
Screw the Shelf Support
into the Front Rail.
1
2
A
B
A
C
B
8
Finished
Front Edge
L
Finished
Front Edge
Finished
Front Edge
Step 4
Step 5
Fit the Base
Push the Base onto the
Left and Right Side and
fix it using four 40mm
screws.
2
B
A
Fit the Sides to the
Front Rail
Push the Sides onto the
Front Rail.
Use a screwdriver to
tighten the 2 Large
Locking Cam Nuts
fitted to the Front Rail.
Note: Turn the Large
Locking Cam Nuts as far
as they will go - more
than 1/2 a turn.
Finished
Front Edge
8
1
Finished
Front Edge
E
E
E
E
2
1
6
C
C
C
C
Finished
Front Edge
Step 6
Step 7
Prepare the Left Divider
If required, fit 2 Hinge
Plates onto the Left
Divider, making sure that
the slot is facing towards
the finished front edge.
Tap 4 Wooden Dowels
into the Left Divider.
Insert 2 Large Locking
Cam Nuts into the Left
Divider.
B
B
C
C
3
Only fit Hinges to the
Left Divider if you
want the middle door
to open this way
H
H
Only fit Hinges to the
Right Divider if you
want the middle door
to open this way
B
B
C
C
H
H
Finished
Front Edge
4
Prepare the Right
Divider
If required, fit 2 Hinge
Plates onto the Right
Divider, making sure that
the slot is facing towards
the finished front edge.
Tap 4 Wooden Dowels
into the Right Divider.
Insert 2 Large Locking
Cam Nuts into the Right
Divider.
Packaging
piece
Packaging
piece
Packaging
piece
Packaging
piece
Step 8
Step 9
Fit the Dividers
Push the Dividers onto
the Base and fix them
using four 40mm screws.
6
E
E
E
E
Raise the assembly
To make it easier to fit
the Top Panel, place
packaging pieces
underneath the Side
Panels to raise the
assembly.
The rest of the stages will show
the Hinge Plates on the Right
Divider. You may have chosen to
fit them on the Left Divider.
3
4
Step 10
A
A
A
Finished
Front Edge
A
A
A
A
A
A
A
5
K
K
K
Prepare the top
Screw 10 Metal Dowels
into the Top.
Fit the 2 Brackets from
the Overbalance
Protector Kits to the
shallow mark-holes
drilled into the Top
using 1 of their Screws.
Note: Only fit 1 of the
Screws, the other 1 will
be fitted later.
Step 11
C
C
Fit the Top
Push the Top onto the
assembly.
Use a screwdriver to
tighten the 8 Large
Locking Cam Nuts fitted
to the Sides and Dividers.
Make sure that the Shelf
Support fitted to the
Front Rail is pushed into
its hole in the Top.
Step 13
Fit the Back
Push the Back onto the
Top.
Use a screwdriver to
tighten the 2 Large
Locking Cam Nuts fitted
to the Back.
Fix the Back to the Base
with two 45mm Screws.
Step 12
Prepare the Back
Tap 2 Wooden Dowels
into the Back.
Insert 2 Large Locking
Cam Nuts into the Back.
B
B
7
D
D
6
7
5
5
Step 14
Step 15
Fit the 6 Feet
Fit the 6 Feet to the Base
using the 38mm Screws.
Prepare the 3 Doors
Push fit 2 Hinges into
each of the Doors.
Secure each Hinge with
two 13mm screws into
the shallow mark holes.
I
GG
I
GG
9
I
GG
I
GG
9
I
GG
I
GG
9
FF
