Aqua Creek Products PATHFINDER Manual de usuario

PATHFINDERTM TO PATHFINDERTM REVERSE

US PATENT NUMBER: [D507,769 S]

300 LB. [136 kg] MAXIMUM CAPACITY

MANDATORY – LEAVE THIS MANUAL WITH LIFT OWNER

WARNING

IMPORTANT SAFETY INSTRUCTIONS

1. READ AND FOLLOW ALL INSTRUCTIONS. LIFT SAFETY CAN ONLY BE ENSURED IF THE LIFT

IS INSTALLED AND OPERATED PROPERLY – AS PER THESE INSTRUCTIONS.

2. WARNING- TO REDUCE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE THIS

PRODUCT UNLESS THEY ARE CLOSELY SUPERVISED AT ALL TIMES.

3. WARNING- DO NOT PERMIT CHILDREN TO PLAY ON THIS PRODUCT.

4. WARNING- NEVER APPLY DIRECT WATER PRESSURE TO ELECTRONIC COMPONENTS.

5. DO NOT USE THE RANGER-AT LIFT FOR WATER-DRAFTS OVER 12” (DECK TO WATERLINE).

6. NEVER OPERATE THIS LIFT UNDER LOAD WITH NO WATER (DRY POOL).

7. WARNING – FOR SAFETY REASONS NEVER SWIM ALONE.

8. SAVE A COPY OF THESE INSTRUCTIONS.

AQUA CREEK, LLC 2014 FEB 2014

- READ CAREFULLY-

Check entire box and inside all packing materials for parts. Before beginning assembly, read the

instructions and identify parts using the figures and parts listed in this document. It is critical that all

parts be carefully inspected by the installer prior to installation to ensure that no damage occurred in

transit and that a damaged part is not used. If any damage occurred in transit, Aqua Creek Products,

LLC must be notified within three days of receipt of unit. Proper installation cannot be overstressed, as

an improper installation voids Aqua Creek’s warranty and may affect the safety of the user.

DISASSEMBLING OVERVIEW

To make your PathfinderTM Pool Lift into a PathfinderTM Reverse you must

first partially disassemble the lift. You will need to remove the footrest, seat

support, control arm, chair arm, chair and actuator. You will also need to

switch the extension cord bracket to the reverse side of the main arm

assembly. Follow the steps on the pages following to disassemble your lift.

DISASSEMBLING MAIN CONFIGURATION

1) FOOTREST:

Remove 1/4" Button-Head, flat washers &

nylock nut. Remove plastic footrest. Unpin

footrest tube from chair and remove. Save and

set aside hardware and footrest tube for

reverse footrest assembly.

2) CONTROL ARM:

Remove 1/2" x 7” hex bolt, flat washers &

nylock nut. Remove 1/2" x 1-1/2” hex bolt,

flat washers and nylock nut. Save and set aside

control arm and all hardware.

3) SEAT SUPPORT:

Remove 1/4" x 5/8” hex bolts behind chair.

Remove 3/4" nylock nut and flat washer. Save

and set aside seat support and all hardware.

4) CHAIR ARM & CHAIR:

Slide chair arm and chair away from main arm

assembly and set aside.

5) ACTUATOR:

Remove 3/8” shoulder bolts and nylock nuts from

top and bottom lugs. Slide actuator off of lugs, save

and set aside along with all hardware.

6) BRACKET:

Remove extension cord bracket from main

arm assembly and set aside. Replace

hardware back into main arm assembly.

ASSEMBLING REVERSE CONFIGURATION

NOTE: Aqua Creek recommends that all old nylocks be

replaced with new nylock nuts when reassembling.

1) BRACKET:

Install the extension cord bracket to the opposite side of the

main arm assembly from the normal configuration using the

1/4" x 3/8" button-heads, lock washers and flat washers.

2) ACTUATOR:

Install actuator onto top and bottom lugs,

rotated 180ofrom normal configuration.

3) CHAIR ARM:

Slide chair arm shaft through main arm assembly.

4a) SEAT SUPPORT:

Before installing the seat support,

first assemble both plates onto seat

support tube reversed from how

they were for normal configuration.

4b) SEAT SUPPORT:

Once the plates have been installed

for the reverse configuration,

connect the top plate to the chair

arm shaft using the 3/4" nylock nut

and flat washer and connect the

bottom plate to the back of the

chair arm using the 1/4" x 5/8” hex

bolts.

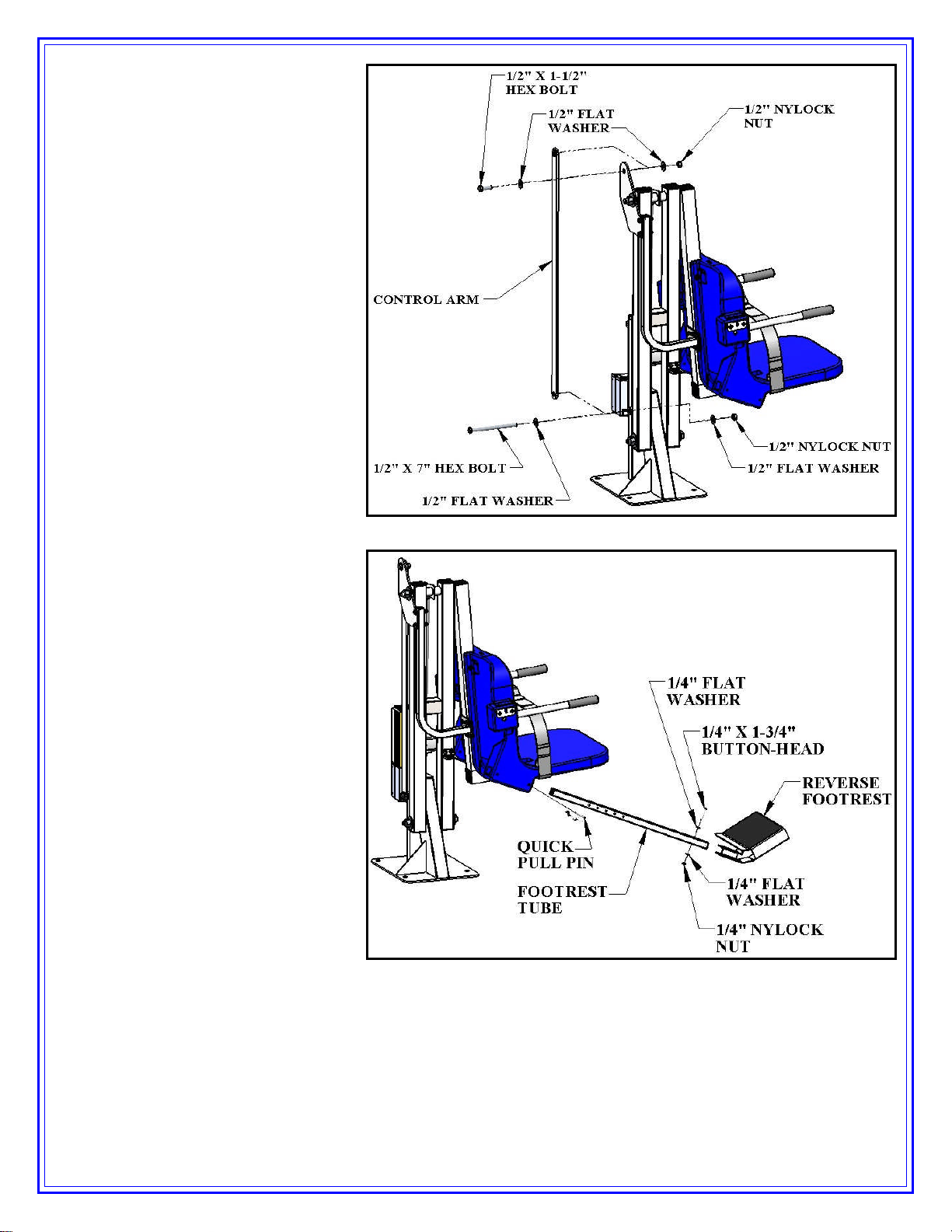

5) CONTROL ARM:

Install the bottom of the control

arm to the main arm assembly

with the 1/2" x 7” hex bolt, flat

washers and nylock nut. Connect

the top of the control arm to the

inside of the top plate of the seat

support using the 1/2" x 1-1/2”

hex bolt, flat washers and nylock

nut.

6) FOOTREST:

Slide footrest tube into chair and

pin to desired height. Connect

reverse footrest to footrest tube

using 1/4" button-head, flat

washers and nylock nut.
