Apro AP-C4000SR Manual de usuario
AP-C4000SR
1 2
Feature

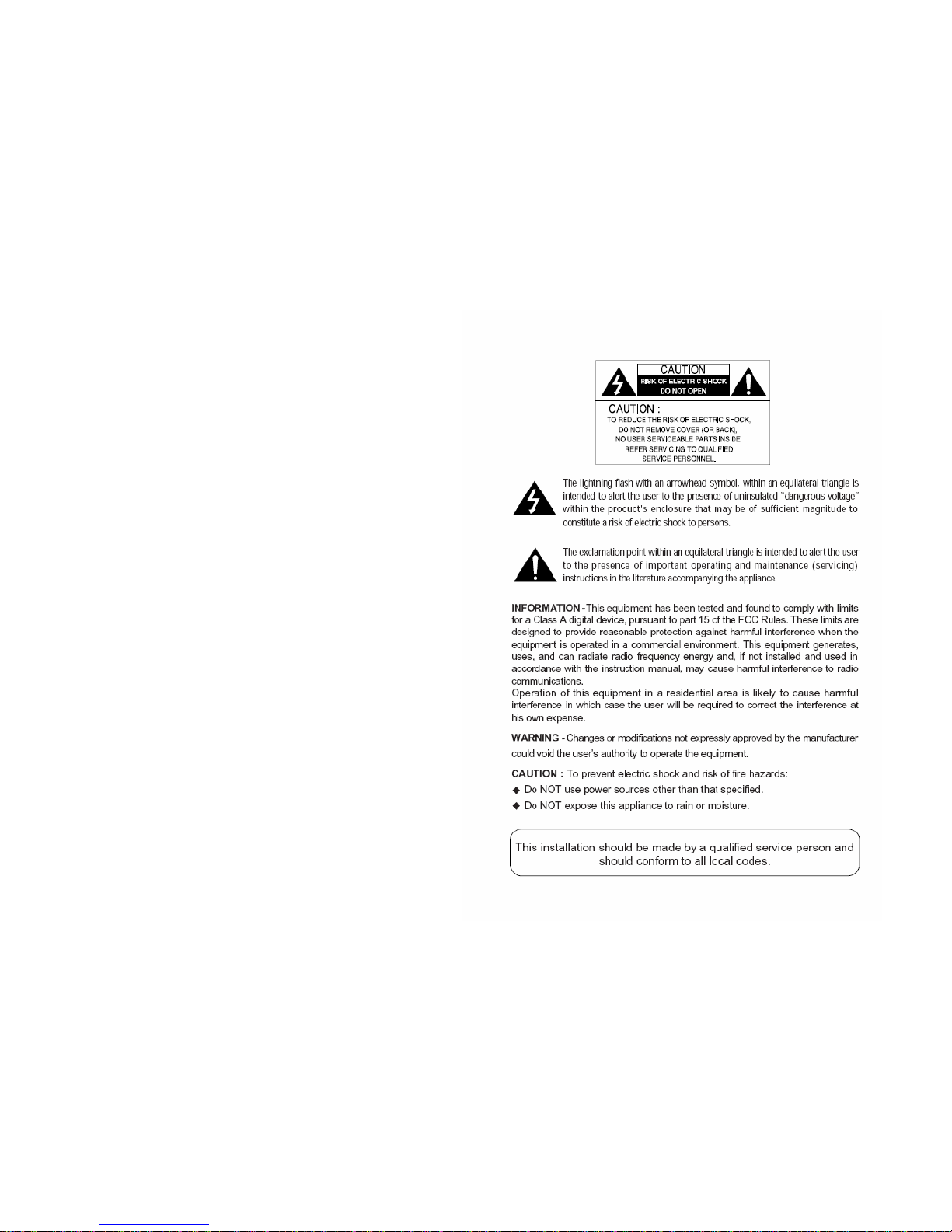

Precautions
3
5
Contents
Operating Your Camera
■SET UP
■Setting Up LENS
*SHUTTER SPEED CONTROL
*BACK LIGHT
*WHITE BALANCE
*DNR
*SENSE UP
*CAMERA ID
*COLOR/SYNC
*MOTION DETECTION
*PRIVACY
*MIRROR
*SHARPNESS
*RESET/RETURN
Troubleshooting
Dimension & Specifications
21
7
10
11
15
17
19
20
9
27
29
31
33
25
23
30
35
♣SUPER BLC
When the image is in front of strong background
lighting, your camera allows you to get the clear
image.
♣SENCE UP (Fine Picture Condition
Under Very Low Illumination)
1/3 inch density CCD and digital processor permit
high quality pictures to be captured in very low light
condition.
♣High Resolution
The horizontal resolution of 530TV lines can be
achieved by using a SONY CCD having Double
Speed 410,000 pixels noiseless and reliable pictures.
♣Motion Detection
Your camera detects motion of object without
sensor outside.
♣DNR (Digital Noise Reduction) CHIP
It has an assistant DSP chip that can remove image
noise efficiently and it shows clean and obvious im-
age in low luminance.
♣ELECTRONIC DAY/NIGHT (OPTION)
In normal or high luminance, camera maintains color
mode. On the contrary, it get changed into B/W
mode in low luminance.
♣MANUAL/DC LENS
You can choose MANUAL or DC LENS by using switch.
3 4
Features
♣Adoptable
One power connection self-configures to either 12V DC
or 24V AC. AC line lock standards with all cameras in 24V
AC operation.
* Do not install the camera in extreme temperature
conditions.
- Only use the camera under conditions where temperatures
are between -10℃ and +50℃. Be especially careful to provide
ventilation when operating under high temperatures.
* Do not install or use the camera in an environment where
the humidity is high.
- It can cause the image quality to be poor.
* Do not install the camera under unstable lighting conditions.
_ Severe lighting change or flicker can cause the camera
to work improperly.
5 6
* Do not touch the front lens of the camera.
_ It is one of the most important parts of the camera.
Be careful not to be stained by fingerprint.
* Do not drop the camera or subject them to physical shocks.
-It can cause malfunctions to occur.
* Do not expose the camera to radioactivity.
- If exposed to radioactivity, for heated CCD, it can be
out of order.
* Never keep the camera face to strong light directly.
- It can damage the CCD.
Precautions
SETUP MENU
◈Function ◈Setting up the menu
Use the 5 SETUP MENU buttons on back of the camera.
LENS option
●DC ●MANUAL
SHUTTER
●OFF ●F/L ●MANUAL
WHITE BALANCE
●ATW ●AWC MANUAL●
BACKLIGHT
●W-ATW ●AWC MANUAL●
AGC
●OFF ●LOW ●MIDDLE ●HIGH
GAIN
●OFF ●LOW ●MIDDLE ●HIGH
SENSE UP
●AUTO ●OFF
SPECIAL
●CAMERA ID ●COLOR ●SYNC
●MOTION DET ●PRIVACY ●MIRROR
●SHARPNESS ●RESET ●RETURN
SET button
UP button
DOWN button
RIGHT button
EXIT
LEFT button
7 8
SET button
UP button
DOWN button
RIGHT button
LEFT button
Operating your camera
Operating your camera -SET UP
1. Press the SET button to access the SETUP mode.
●SETUP menu is displayed on the monitor screen.
2. Select the desired feature using the UP or DOWN button.
●Each time you press the UP or DOWN button, the arrow
indicator moves up or down.
●Move the arrow indicator to the desired feature item.
3. Change the status of the selected feature using the LEFT or
RIGHT button.
●If you press RIGHT or LEFT button, it appears available status.
Press the button when gets desired feature.
4. When completed, move the arrow indicator to ‘EXIT’and press
the SET button.
•●You can access submenu using SET button.
•●For the mode with ’---’, you may not access submenu.
910
Notes
Operating your camera - SETUP LENS
1)Setting up the LENS
Select the lens pressing the RIGHT button.
①On the SETUP menu screen, move the arrow indicator to the lens
using the UP or DOWN button.
②Select the desired feature using the LEFT or RIGHT button.
▶When DC LENS selected, press SET button to control the
BRIGHTNESS.
※NOTE
●AUTO IRIS LENS(DC TYPE) is recommended than MANUAL LENS.
●Some lens can make a malfunction according to the BRIGHTNESS
LEVEL.
Notes
11 12
Operating your camera –SUTTER SPEED CONTROL①
2)Shutter status and speed control
You can control brightness of the screen by the shutter speed.
①Press the SET button to display the setup menu and move the arrow
indicator to ‘SHUTTER’using the UP or DOWN button.
②Set ‘SHUTTER’to the desired mode using the LEFT or RIGHT button.
▶OFF : Deactivation
▶FLK(1/100) : Flicker mode (When WDR is on, the image can flicker a little.)
▶MANUAL : When setting shutter speed manually. (Only for
LENS mode)
You can select speed from ‘1/60’to ‘1/200,000’sec
13 14
Operating your camera –SUTTER SPEED CONTROL
②
▶ESC : You can control the BRIGHTNESS.
③When completed, press ‘SET’
●Don’t make the camera exposed fluorescent lamp directly not to get
unstable image in the internal synchronization modes.
●When the SHUTTER menu is set to FLK mode, SENS-UP can not work.
Please control the menu.
Notes
15 16
Operating your camera - BACKLIGHT
▶HIGH▶MIDDLE▶LOW▶OFF
4) AUTO GAIN CONTROL(AGC)
AGC is to get bright picture. Higher GAIN level, getting brighter screen.
But you can get noise increase.
①Press the SET button to display the SETUP menu and move the arrow
indicator to ‘AGC’using the UP or DOWN button.
②SET ‘BACKLIGHT’to the desired mode using the LEFT or RIGHT button.
▶HIGH▶MIDDLE▶LOW
▶OFF
3) BACKLIGHT
SR chip built-in provides intelligent light level control to overcome
the severe Backlight condition.
①Press the SET button to display the SETUP menu and move the arrow
indicator to ‘BACKLIGHT’using the UP or DOWN button.
②SET ‘BACKLIGHT’to the desired mode using the LEFT or RIGHT button.
