Apogee SQ-646 Manual de usuario

APOGEE INSTRUMENTS, INC. | 721 WEST 1800 NORTH, LOGAN, UTAH 84321, USA

TEL: (435) 792-4700 | FAX: (435) 787-8268 | WEB: APOGEEINSTRUMENTS.COM

OWNER’S MANUAL

QUANTUM LIGHT POLLUTION

SENSOR

Model SQ-646

TABLE OF CONTENTS

Owner’s Manual ............................................................................................................................................................................... 1

Certificate of Compliance............................................................................................................................................................. 3

Introduction.................................................................................................................................................................................. 4

Sensor Models.............................................................................................................................................................................. 5

Specifications................................................................................................................................................................................ 6

Deployment and Installation ........................................................................................................................................................ 8

Software Installation .................................................................................................................................................................... 9

Operation and Measurement..................................................................................................................................................... 10

Windows Software ..................................................................................................................................................................... 11

Mac Software ............................................................................................................................................................................. 16

Maintenance and Recalibration ................................................................................................................................................. 22

Troubleshooting and Customer Support .................................................................................................................................... 23

Return and Warranty Policy ....................................................................................................................................................... 24

CERTIFICATE OF COMPLIANCE

EU Declaration of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Apogee Instruments, Inc.

721 W 1800 N

Logan, Utah 84321

USA

for the following product(s):

Models: SQ-646

Type: Quantum Light Pollution Sensor

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

2014/30/EU Electromagnetic Compatibility (EMC) Directive

2011/65/EU Restriction of Hazardous Substances (RoHS 2) Directive

2015/863/EU Amending Annex II to Directive 2011/65/EU (RoHS 3)

Standards referenced during compliance assessment:

EN 61326-1:2013 Electrical equipment for measurement, control and laboratory use –EMC requirements

EN 50581:2012 Technical documentation for the assessment of electrical and electronic products with respect to

the restriction of hazardous substances

Please be advised that based on the information available to us from our raw material suppliers, the products

manufactured by us do not contain, as intentional additives, any of the restricted materials including lead (see

note below), mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), polybrominated

diphenyls (PBDE), bis(2-ethylhexyl) phthalate (DEHP), butyl benzyl phthalate (BBP), dibutyl phthalate (DBP), and

diisobutyl phthalate (DIBP). However, please note that articles containing greater than 0.1% lead concentration are

RoHS 3 compliant using exemption 6c.

Further note that Apogee Instruments does not specifically run any analysis on our raw materials or end products

for the presence of these substances, but rely on the information provided to us by our material suppliers.

Signed for and on behalf of:

Apogee Instruments, June 2020

Bruce Bugbee

President

Apogee Instruments, Inc.

INTRODUCTION

Radiation that drives photosynthesis is called photosynthetically active radiation (PAR) and is typically defined as

total radiation across a range of 400 to 700 nm. PAR is almost universally quantified as photosynthetic photon flux

density (PPFD) in units of micromoles per square meter per second (µmol m-2 s-1, equal to microEinsteins per

square meter per second) summed from 400 to 700 nm (total number of photons from 400 to 700 nm). However,

ultraviolet and far red photons outside the defined PAR range of 400-700 nm can also contribute to photosynthesis

and influence plant responses (e.g., flowering).

Sensors that measure PPFD are often called quantum sensors due to the quantized nature of radiation. A quantum

refers to the minimum quantity of radiation, one photon, involved in physical interactions (e.g., absorption by

photosynthetic pigments). In other words, one photon is a single quantum of radiation. Sensors that function like

traditional quantum sensors, but measure a wider range of wavelengths can be thought of as an ‘extended range’

quantum sensor.

Typical applications of traditional quantum sensors include incoming PPFD measurement over plant canopies in

outdoor environments or in greenhouses and growth chambers, and reflected or under-canopy (transmitted) PPFD

measurement in the same environments. The Extended Range PFD Sensor detailed in this manual uses a detector

that is sensitive to radiation up to about 1100 nm, well beyond the range of wavelengths that influence

photosynthesis and plant responses. This means this particular sensor should only be used for photon flux

density measurements under LEDs.

Apogee Instruments SQ-600 series Quantum Light Pollution Sensors consist of a cast acrylic diffuser (filter),

photodiode, and signal processing circuitry mounted in an anodized aluminum housing, and a cable to connect the

sensor to a measurement device. SQ-600 series sensors are designed for continuous photon flux density

measurements in indoor environments under LEDs. The SQ-640 Quantum Light Pollution models output a voltage

that is directly proportional to photon flux density.

SENSOR MODELS

This manual covers the USB Quantum Light Pollution sensor, model SQ-646 (listed in bold below). Additional

models are covered in their respective manuals.

Model

Signal

SQ-640

Self-powered

SQ-642

0-2.5 V

SQ-644

4-20 mA

SQ-645

0-5 V

SQ-646

USB

SQ-647

SDI-12

SQ-648

Modbus

Sensor model number and serial number are

located on the bottom of the sensor. If the

manufacturing date of a specific sensor is

required, please contact Apogee Instruments

with the serial number of the sensor.

SPECIFICATIONS

Calibration Traceability

Apogee Instruments SQ-600 series quantum light pollution sensors are calibrated through side-by-side comparison

to the mean of four transfer standard quantum light pollution sensors under a reference lamp. The transfer

standard quantum light pollution sensors are recalibrated with a quartz halogen lamp traceable to the National

Institute of Standards and Technology (NIST).

SQ-646

Resolution

0.1 µmol m-2 s-1

Calibration Factor

Custom for each sensor and stored in the firmware

Calibration Uncertainty

± 5 % (see calibration Traceability below)

Measurement Range

0 to 200 µmol m-2 s-1

Measurement Repeatability

Less than 0.5 %

Long-term Drift

(Non-stability)

Less than 2 % per year

Non-linearity

Less than 1 % (up to 4000 µmol m-2 s-1)

Response Time

Software updates every second

Field of View

180°

Spectral Range

340 to 1040 nm ± 5 nm (wavelengths where response is greater than 50 %; see Spectral

Response below)

Directional (Cosine) Response

± 2 % at 45° zenith angle, ± 5 % at 75° zenith angle (see Cosine Response below)

Temperature Response

-0.11± 0.04 % per C

Azimuth Error

Less than 0.5 %

Tilt Error

Less than 0.5 %

Housing

Anodized aluminum body with acrylic diffuser

IP Rating

IP68

Operating Environment

-40 to 70 C, 0 to 100 % relative humidity, can be submerged in water up to depths of 30 m

Dimensions

30.5 mm diameter, 37 mm height

Mass (with 5 m of cable)

140 g

USB Cable

4.5 m (15 ft)

Current Draw (when Logging)

61 mA

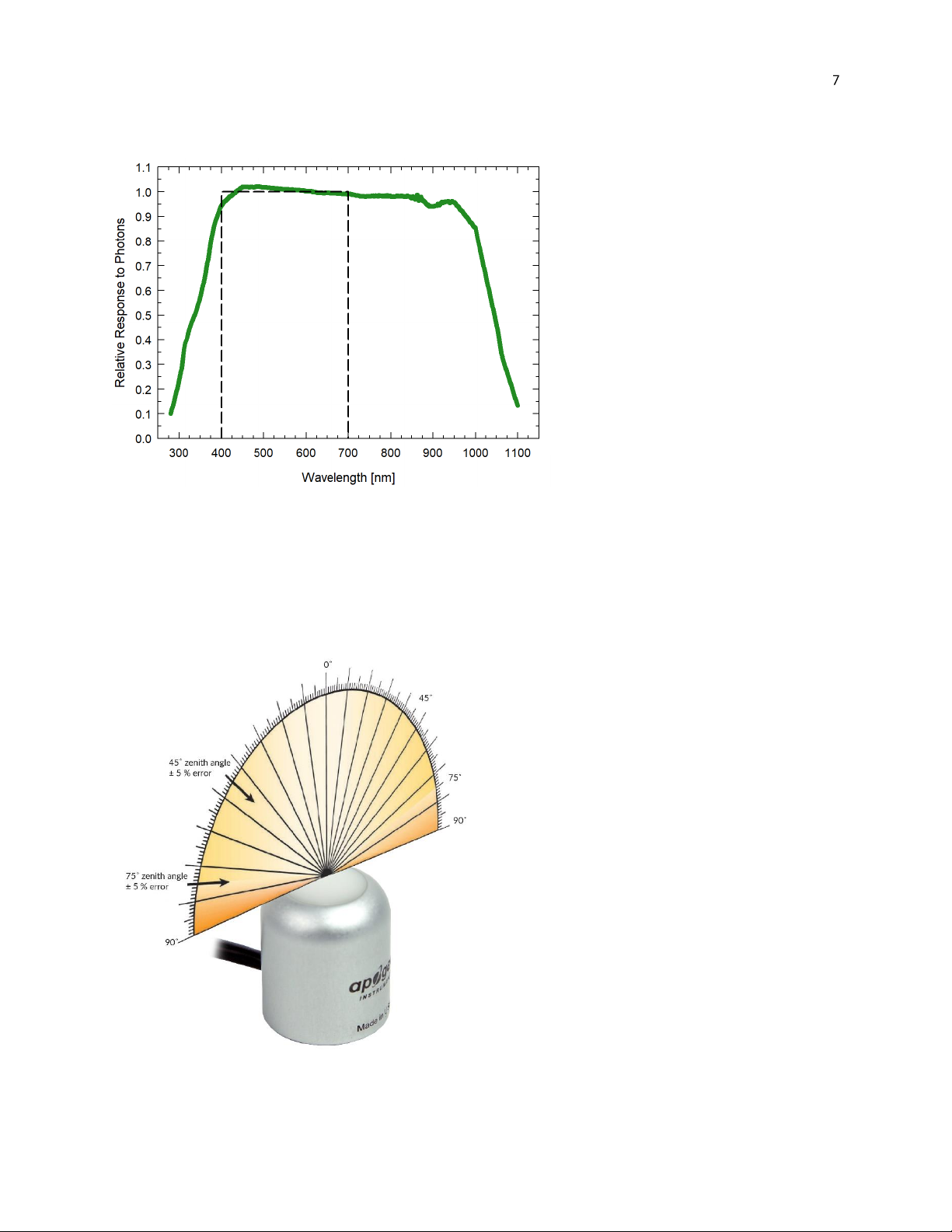

Spectral Response

Cosine Response

Mean spectral response measurements of six

replicate Apogee SQ-100 (original) and SQ-

500 (full-spectrum) series quantum sensors.

Spectral response measurements were made

at 10 nm increments across a wavelength

range of 300 to 800 nm with a

monochromator and an attached electric

light source. Measured spectral data from

each quantum sensor were normalized by

the measured spectral response of the

monochromator/electric light combination,

which was measured with a

spectroradiometer.

Mean spectral response measurements of

six replicate Apogee SQ-600 series Extended

Range PFD Sensors. Spectral response

measurements were made at 10 nm

increments across a wavelength range of

300 to 1100 nm in a monochromator with

an attached electric light source. Measured

spectral data from each PFD sensor were

normalized by the measured spectral

response of the monochromator/electric

light combination, which was measured with

a spectroradiometer

Directional, or cosine, response is defined as the

measurement error at a specific angle of radiation

incidence. Error for Apogee SQ-600 series Quantum Light

Pollution Sensor is approximately ± 2 % and ± 5 % at solar

zenith angles of 45° and 75°, respectively.

Mean spectral response measurements of

six replicate Apogee SQ-600 series Quantum

Light Pollution Sensors. Spectral response

measurements were made at 10 nm

increments across a wavelength range of

300 to 1100 nm in a monochromator with

an attached electric light source. Measured

spectral data from each quantum light

pollution sensor were normalized by the

measured spectral response of the

monochromator/electric light combination,

which was measured with a

spectroradiometer

DEPLOYMENT AND INSTALLATION

Mount the sensor to a solid surface with the nylon mounting screw provided. To accurately measure photon flux

density incident on a horizontal surface, the sensor must be level. An Apogee Instruments model AL-100 leveling

plate is recommended for this purpose. To facilitate mounting on a cross arm, an Apogee Instruments model AM-

110 mounting bracket is recommended.

To minimize azimuth error, the sensor should be mounted with the cable pointing toward true north in the

northern hemisphere or true south in the southern hemisphere. Azimuth error is typically less than 0.5 %, but it is

easy to minimize by proper cable orientation.

In addition to orienting the cable to point toward the nearest pole, the sensor should also be mounted such that

obstructions (e.g., weather station tripod/tower or other instrumentation) do not shade the sensor. Once

mounted, the green cap should be removed from the sensor. The green cap can be used as a protective covering

for the sensor when it is not in use.

Nylon Screw: 10-32 x 3/8

Model: AL-110

Model: AL-120

Nylon Screw: 10-32 x 3/8

SOFTWARE INSTALLATION

The most recent version of ApogeeConnect software can be downloaded at

http://www.apogeeinstruments.com/downloads/.

Installing the software on a PC (Windows compatible, XP and later)

1. Double click on the installer package:

2. On the ‘Welcome’ screen, please click ‘Next’ to continue.

3. Select the radio button next to “I Agree” to the UELA… and click ‘Next’ to continue.

4. On the ‘Ready to Install the Program’ screen, click ‘Install’ to continue.

5. Click ‘Finish’ to complete the installation. There are shortcuts on your desktop and in your start bar.

Installing the software on a Mac (Mac compatible, 10.10 and later)

1. Double click on the installer package

2. On the ‘Introduction’ screen, please click ‘Continue’ to proceed.

3. Select ‘Continue’ on the ‘Read Me’ screen to continue, this screen contains a history of updates made to

the ApogeeConnect software versions.

4. Select ‘Continue’ on the ‘License’ screen to receive a prompt to agree to the terms of the software license

agreement. Click ‘Agree’ to continue once you receive the prompt.

5. On the ‘Installation Type’ screen, click ‘Install’ to install the software. You can change the location the

software installs to by clicking ‘Change Install Location…’. *Note: You may be prompted for an

administrator password at this time. If you are, proceed by entering your respective password and clicking

‘Install Software’.

6. Once you receive the message “The installation was successful.” on the ‘Summary’ screen click ‘Close’.

Your software is now ready to be used.

OPERATION AND MEASUREMENT

Low Light Measurements

Accurate low light measurements are required in flowering and light pollution studies. Research indicates

flowering can be triggered in some plants at photosynthetic and/or far red photon flux densities less than 0.1 mol

m-2 s-1. The threshold photon flux density at which flowering is triggered is variable among species. Two of the

most light sensitive species are Poinsettias and Cannabis. For reference, photon flux density of moonlight when the

moon is full and near the minimum zenith angle is 0.005 mol m-2 s-1.

The model SQ-620 Extended Range Quantum Sensor can measure a photon flux density range of 0-4000 mol m-2

s-1. The model SQ-640 Quantum Light Pollution Sensor is designed for low light measurements and can only

measure a photon flux density range of 0-200 mol m-2 s-1 (the sensor will output values beyond, 200 mol m-2 s-1,

but these are beyond the linear range of the sensor), and is referred to as the low light version. The sensitivity of

the SQ-640 is twenty times higher than the sensitivity of the SQ-620 (1 mV per mol m-2 s-1 versus 0.05 mV per

mol m-2 s-1) to provide greater measurement resolution under low light conditions. For example, if the photon

flux density were 0.1 mol m-2 s-1, the SQ-640 would output 0.1 mV, whereas the SQ-620 would output 0.005 mV.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios de Apogee

Apogee

Apogee Symphony Mobile Manual de usuario

Apogee

Apogee SQX Series Manual de usuario

Apogee

Apogee ensemble Manual de usuario

Apogee

Apogee SU-221 Manual de usuario

Apogee

Apogee Symphony I/O Manual de instrucciones

Apogee

Apogee Element 24 Manual de usuario

Apogee

Apogee SQ-627 Manual de usuario

Apogee

Apogee symphony i/o mk II Manual de usuario

Apogee

Apogee Apogee Duet Manual de usuario

Apogee

Apogee SP-522 Manual de usuario

Apogee

Apogee SQ-212 Manual de usuario

Apogee

Apogee AD-16X Manual de usuario

Apogee

Apogee SQ-514 Manual de usuario

Apogee

Apogee SQ Series Manual de usuario

Apogee

Apogee Apogee Duet Manual de usuario

Apogee

Apogee SQ-512 Manual de usuario

Apogee

Apogee ensemble Manual de usuario

Apogee

Apogee ensemble Manual de usuario

Apogee

Apogee SQ-100 Series Manual de usuario

Apogee

Apogee ensemble Manual de usuario

Apogee

Apogee SQ-617 Manual de usuario

Apogee

Apogee S2-141 Manual de usuario

Apogee

Apogee SQ-222 Manual de usuario

Apogee

Apogee symphony i/o mk II Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario
