Aplex AHM-6XX6A Manual de usuario

AHM-6XX6A User Manual

AHM-6XX6A

8”, 12.1”, 15”, 17”, 19”Intel Atom D525 Fanless HMI Series

User Manual

Release Date Revision

Jul. 2015 V1.4

Aplex Technology, Inc.

15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan

Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail: aplex@aplex.com.tw URL: www.aplextec.com

AHM-6XX6A User Manual

Revision History

Reversion

Date

Description

1.0

2012/04/01

Official Version

1.1

2012/12/03

Modify Specifications

1.2

2014/06/11

Add Power Consumption and Weight in Spec.

1.3

2014/07/08

Modify Specifications

1.4

2015/07/03

17”and 19”Delete VGA function

AHM-6XX6A User Manual

Warning!__________________________

This equipment generates, uses and can radiate radio frequency energy and

if not installed and used in accordance with the instructions manual, it may cause

interference to radio communications. It has been tested and found to comply

with the limits for a Class A computing device pursuant to FCC Rules, which are

designed to provide reasonable protection against such interference when

operated in a commercial environment. Operation of this equipment in a

residential area is likely to cause interference in which case the user at his own

expense will be required to take whatever measures may be required to correct

the interference.

Disclaimer

This information in this document is subject to change without notice. In no event

shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or

consequential, arising from either the use or misuse of information in this

document or in any related materials.

Electric Shock Hazard –Do not operate the machine with its back cover removed.

There are dangerous high voltages inside.

AHM-6XX6A User Manual

Packing List

Accessories (as ticked) included in this package are:

□AC power cable

□Driver & manual CD disc

□Other.___________________(please specify)

Safety Precautions

Follow the messages below to avoid your systems from damage:

◆Avoid your system from static electricity on all occasions.

◆Prevent electric shock. Don‘t touch any components of this card when

the card is power-on. Always disconnect power when the system is not

in use.

◆Disconnect power when you change any hardware devices. For instance,

when you connect a jumper or install any cards, a surge of power may

damage the electronic components or the whole system.

AHM-6XX6A User Manual

Table of Contents

Revision History………………………………………………………………………………….1

Warning!/Disclaimer.…………………………..………………………………….……..….2

Packing List/Safety Precautions............................................................3

Chapter 1 Getting Started

1.1 Specifications……………………………………….………….……...…..6

1.2 Dimensions………………………………...……………….…………......8

1.3 Brief Description of AHM-6XX6A…….………….………………13

1.4 Installation of HDD.........................................................16

Chapter 2 Hardware Installation

2.1 Motherboard Specifications……………………….………………18

2.2 Jumpers Setting and Connectors…………………………………22

Chapter 3 BIOS Setup

3.1 Operations after POST Screen.......................................31

3.2 BIOS Setup Utility…........................................................32

3.3 System Overview...........................................................33

3.4 Advanced Settings.........................................................34

3.5 Advanced PCI/PnP Settings............................................41

3.6 Boot Settings.................................................................43

3.7 Security Settings............................................................45

3.8 Advanced Chipset Settings............................................46

3.9 Exit Options...................................................................50

3.10 Examples of GPIO Programming..................................52

Chapter 4 Installation of Drivers

4.1 Intel Chipset Driver…..…………………...…………………………..61

4.2 Intel GMA 3150 VGA Chipset Driver..…....…......…......…..64

4.3 Intel 82574L Network adapter Driver…….......................67

4.4 Realtek HD Audio Driver Installation………………………70

AHM-6XX6A User Manual

Chapter 5 Touch Screen Installation

5.1 Introduction to Touch Screen Controller Board………....73

5.2 Windows 2000/XP USB Driver Installation………………….73

Appendix A Panel Mounting and VESA Mounting 88

Figures

Figure 1.1: Dimensions of AHM-6086A………….……………………8

Figure 1.2: Dimensions of AHM-6126A…………….....……….…...9

Figure 1.3: Dimensions of AHM-6156A..…………………………..10

Figure 1.4: Dimensions of AHM-6176A..…………………...……..11

Figure 1.5: Dimensions of AHM-6196A………………….………….12

Figure 1.6: Front View of AHM-6XX6A……………...................13

Figure 1.7: Rear View of AHM-6086A……………………….........13

Figure 1.8: Rear View of AHM-6126A……………………………….14

Figure 1.9: Rear View of AHM-6156A……………………………....14

Figure 1.10: Rear View of AHM-6176A……………………………..15

Figure 1.11: Rear View of AHM-6196A………………………….....15

Figure 2.1: Motherboard Overview………………….……………….18

Figure 2.2: Motherboard Dimensions…………………………….…18

Figure 2.3: Jumpers and Connectors Location-TOP……………19

Figure 2.4: Jumpers and Connectors Location- Bottom…….19

Figure 5.1: Bird’s Eye View of Control Board……………………..73

Figure A: Panel mounting and VESA mounting………………….88

AHM-6XX6A User Manual

Chapter 1 Getting Started

1.1 Specifications

Model No.

Specs

AHM-6086A

AHM-6126A

AHM-6156A

AHM-6176A

AHM-6196A

System

Processor

Intel Atom D525 1.8GHz processor FSB 800MHz

System Chipset

Intel ICH8M Chipset

System Memory

1 x 204 Pin SO-DIMM DDR3 800GHz, up to 2GB SDRAM

Storage

1 x 2 .5" SATA HDD Space

1 x CF Internal Slot (AHM-6086A)

1 x CF External Slot for option (AHM-6126A/6156A/6176A/6196A)

External I/O Port

AHM-6086A

4 x USB ports

2 x LAN ports

1 x DB-15 VGA

1 x DB-9 RS-232 COM1

1 x DB-9 RS-422/485 COM3 (default:RS-485)

1 x 2 Pin terminal block connector

AHM-6126A/6156A/6176A/6196A

4 x USB 2.0

2 x GbE RJ-45 LAN port

1 x DB-15 VGA (not available for AHM-6176A and AHM-6196A)

2 x DB-9 RS-232 COM1/COM2

1 x DB-9 RS-422/485 COM3 (default:RS-485)

1 x DC 3 pins terminal block power input

1 x 8 Pin terminal block for 2 in/2 out GPIO, power switch and VCC

1 x audio line out 3.5mm jack

1 x Earth Ground hole

Expansion Slots

None

OS support

Windows CE 6.0, XP Pro, XP Embedded, Windows Embedded Standard 7

LCD

Display Type

8”

TFT-LCD

12.1”

TFT-LCD

15”

TFT-LCD

17”

TFT-LCD

19”

TFT-LCD

Max. Resolution

800x600 (AHM-6086A/6126A)

1024x768 (AHM-6156A)

AHM-6XX6A User Manual

1280x1024 (AHM-6176A/6196A)

Max. Color

262K (AHM-6086A/6126A/ AHM-6156A)

16.7M (AHM-6176A)

16.2M (AHM-6196A)

Luminance (cd/m2)

350 (cd/m2) (AHM-6086A/6126A)

400 (cd/m2) (AHM-6156A)

350 (cd/m2) (AHM-6176A)

450 (cd/m2) (AHM-6196A)

View Angle

H:130°/ V:110°(AHM-6086A)

H:140°/ V:110°(AHM-6126A)

H:160°/ V:145° (AHM-6156A)

H:170°/ V:160°(AHM-6176A/6196A)

Backlight Lifetime

50,000 hrs

Touch Screen

Type

Overlay Resistive Touch (AHM-6086A/6126A)

Resistive Touch (AHM-6156A/6176A/6196A)

Light Transmission

80%

Power Supply

Power Input

DC 12V / DC 11~32V (option)

Power Consumption

Max:23.2W

Max:26.3W

Max:32W

Max:41.8W

Max:44.4W

Mechanical

Construction

Plastic molding front panel and metal housing (AHM-6086A/6126A)

Heavy-duty steel front panel and housing (AHM-6156A/6176A/6196A)

IP Rating

Front Panel IP65

Mounting

Panel/VESA 75x75 Mount (AHM-6086A/6126A/6156A/6176A)

Panel/VESA 100x100 Mount (AHM-6196A)

Dimensions (WxHxD)

231 (W) x 176 (H) x 76.3 (D) mm (AHM-6086A)

317 (W) x 243 (H) x 76.6 (D) mm (AHM-6126A)

410 (W) x 310 (H) x 70.6 (D) mm (AHM-6156A)

439 (W) x 348 (H) x 71.1 (D) mm (AHM-6176A)

484 (W) x 400 (H) x 74.5 (D) mm (AHM-6196A)

Net Weight (KGs)

2.5KG

3.7KG

7.1KG

8.6KG

10.4KG

Environmental

Operating Temperature

0~50 ﾟC (AHM-6086A/6126A)

-20~50 ﾟC (AHM-6156A/6176A/6196A)

Storage Temperature

-30~60 ﾟC

Storage Humidity

10~90% @40 ﾟC non-condensing

Certificate

CE/FCC Class A

AHM-6XX6A User Manual

1.2 Dimensions

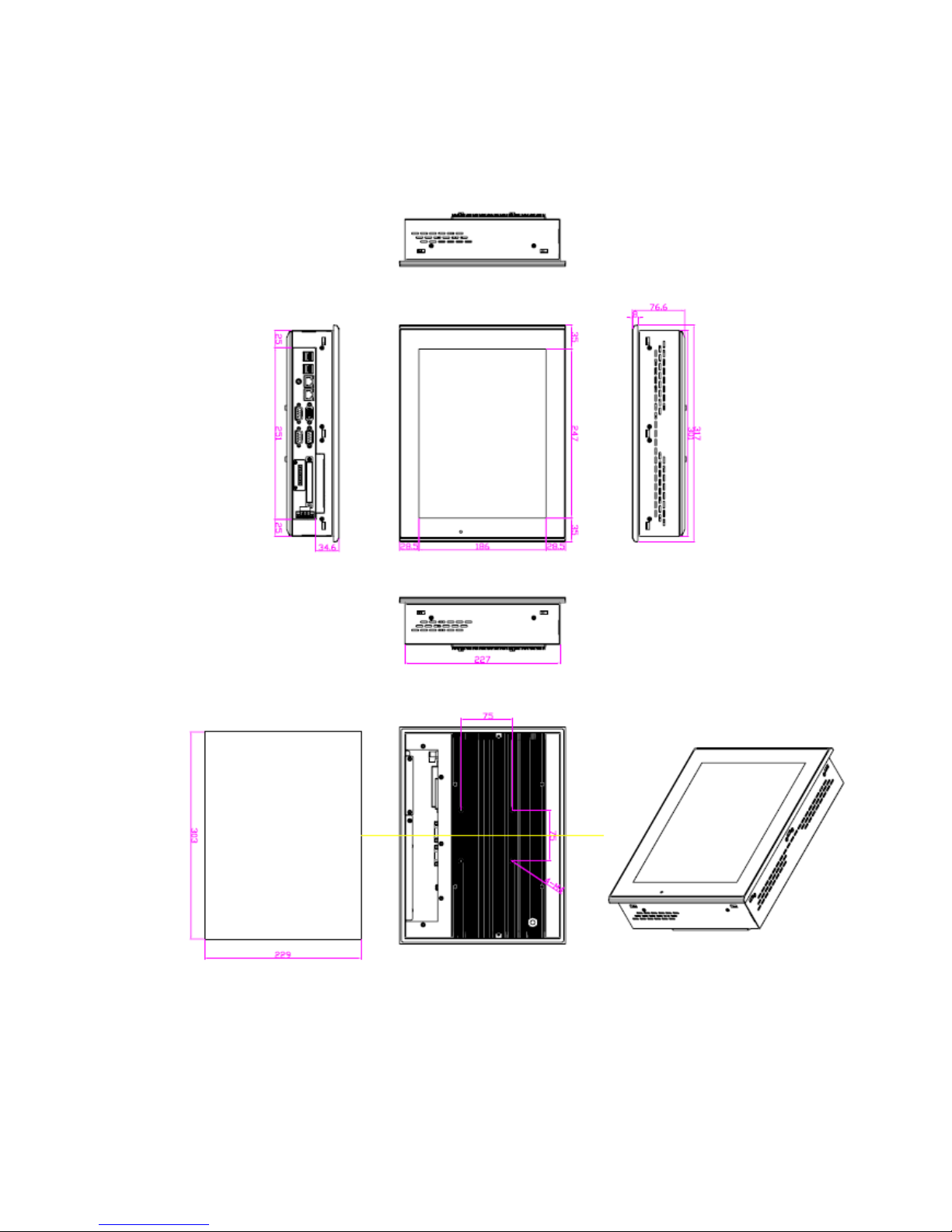

Figure 1.1: Dimensions of the AHM-6086A

AHM-6XX6A User Manual

Figure 1.2: Dimensions of the AHM-6126A
