AOC AGON AG274FZ Manual de usuario
1
©
www.aoc.com
2021 AOC.All Rights Reserved
TM
LCD Monitor
User Manual
AG274FZ
i
Safety ................................................................................................................................................................................... 1
National Conventions ................................................................................................................................................ 1
Power ........................................................................................................................................................................ 2
Installation ................................................................................................................................................................. 3
Cleaning .................................................................................................................................................................... 4
Other ......................................................................................................................................................................... 5
Setup .................................................................................................................................................................................... 6
Contents in Box......................................................................................................................................................... 6
Setup Stand & Base.................................................................................................................................................. 7
Adjusting the monitor ................................................................................................................................................ 8
Connecting the Monitor ............................................................................................................................................. 9
Wall Mounting.......................................................................................................................................................... 10
Adaptive-Sync function (Available for selective models)..........................................................................................11
AMD FreeSync Premium function (Available for selective models) .........................................................................11
HDR ........................................................................................................................................................................ 12
Adjusting............................................................................................................................................................................. 13
Hotkeys ................................................................................................................................................................... 13
Quick Switch ........................................................................................................................................................... 14
OSD Key Guide (Menu) .......................................................................................................................................... 15
OSD Setting ............................................................................................................................................................ 17
Game Setting............................................................................................................................................... 18
Luminance ................................................................................................................................................... 19
Image Setup ............................................................................................................................................... 20
Color Setup.................................................................................................................................................. 21
Audio............................................................................................................................................................ 22
Light FX ....................................................................................................................................................... 23
Extra ............................................................................................................................................................ 24
OSD Setup................................................................................................................................................... 25
LED Indicator .......................................................................................................................................................... 26
Troubleshoot....................................................................................................................................................................... 27
Specication ....................................................................................................................................................................... 28
General Specication .............................................................................................................................................. 28
Preset Display Modes ............................................................................................................................................. 29
Pin Assignments...................................................................................................................................................... 30
Plug and Play .......................................................................................................................................................... 31
1
Safety
National Conventions
The following subsections describe notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These
blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: A NOTE indicates important information that helps you make better use of your computer system.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem.Some warnings
may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specic presentation of the
warning is mandated by regulatory authority.
2
Power
The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the
type of power supplied to your home, consult your dealer or local power company.
The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will t
only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an
electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of
the grounded plug.
Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the
monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in re or electric shock.
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate congured
receptacles marked between 100-240V AC, Min. 5A.
The wall socket shall be installed near the equipment and shall be easily accessible.
For use only with the attached power adapter
Manufacturers: TPV ELECTRONICS(FUJIAN)CO.,LTD. Model: ADPC20120
3
Installation
Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a
person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by
the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and use
mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.
Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a re or electric
shock. Never spill liquids on the monitor.
Do not place the front of the product on the oor.
If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit
instructions.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence
overheating may cause a re or damage to the monitor.
To avoid potential damage, for example the panel peeling from the bezel, ensure that the monitor does not tilt
downward by more than -5 degrees. If the -5 degree downward tilt angle maximum is exceeded, the monitor damage will
not be covered under warranty.
See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the
stand:
Installed with stand
Installed with stand
12 inches
30cm
4 inches
10cm
4 inches
10cm
4 inches
10cm
Leave at lease this
space around the set
4
Cleaning
Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent
which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it
will scratch the screen surface.
Please disconnect the power cord before cleaning the product.
5
Other
If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a
Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
6
Setup
Contents in Box
*
*
*
***
CD Manual Stand Screwdriver Base Wire clipWarranty card
Quick Switch
Keypad
Adaptor DP Cable HDMI Cable USB Cable Micphone
Cable
Power Cable
Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch
ofce for conrmation.
7
Setup Stand & Base

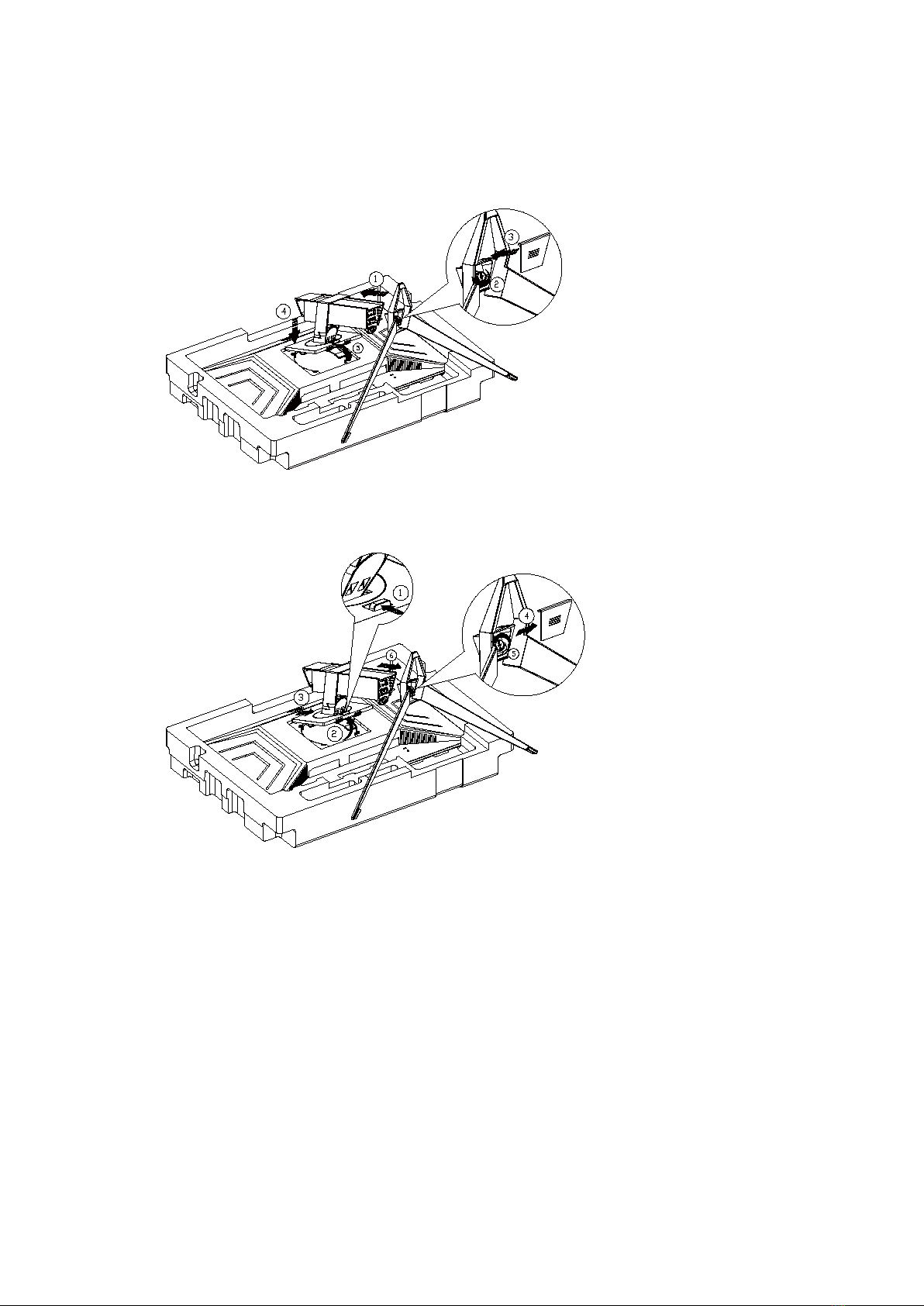

Please setup or remove the base following the steps as below.
Setup:
Remove:
8
Adjusting the monitor
For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own
preference.
Hold the stand so you will not topple the monitor when you change the monitor’s angle.
You are able to adjust the monitor as below:
90°
120mm
20°20°
NOTE:
Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
Warning：
1. To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more
than -5 degrees.
2. Do not press the screen while adjusting the angle of the monitor. Grasp only the bezel.
