Antec VP450 Manual de usuario

VP450

OWER

UPPLY

SER

’

ANUAL

SER

’

ANUAL

ERIES

VP450

OWER

UPPLY

TRICTLY

OWER

The VP450 is crafte for quality, performance an incre ible value. This entry-level solution gives you

everything you nee in a power supply. No twinkly lights or glittery paint jobs: a 120 mm fan for effective

an quiet cooling, ual +12V rails for amazingly stable power an heavy- uty protection circuitry for peace

of min , no matter how eman ing your system. An it comes with all the assurance of Antec’s AQ2 Antec

Quality 2 year limite warranty. All the features, none of the waste: for buil ers that are strictly business,

the VP450 is strictly power.

TANDARDS AND

EATURES

The connectors an power specifications of the VP450 PSU are all compatible with ATX12V v2.3 an EPS12V v2.91

specifications. The VP450 also features 450 watts of Continuous Power, the actual stable power a PSU can output

continuously at maximum loa level.

YSTEM

ROTECTION

A variety of in ustrial-gra e safety circuitry will help protect your computer: OVP (Over Voltage Protection), SCP

(Short Circuit Protection), OPP (Over Power Protection) an OCP (Over Current Protection). Sometimes the PSU

will “latch” into a protecte state. You will nee to power off the PSU an clear the fault before it will function

again. There are no user-replaceable fuses in your VP450.

OWER

UTPUT

ONNECTORS

The VP450 power supply istributes power on separate rails. Some rails require a minimum loa in or er to run. To

see the output capacity an regulation for each ifferent voltage, see Table 1. A list of all available power

connectors can be foun in Table 2.

ABLE

Output Voltage Load Max. Regulation Ripple & Noise

+3.3V 24A ±5% < 50 mV

+5V 15A ±5% < 50 mV

+12V1 18A ±5% < 120 mV

+12V2 18A ±5% < 120 mV

–12V 0.3A ±10% < 120 mV

+5VSB 2.5A ±5% < 50 mV

ABLE

Quantity Connector Description Rail

24(20 + 4)-pin main connector

12V1

8(4 + 4)-pin ATX12V / EPS12V

12V2

6-pin PCI-E

12V1

SATA connectors

12V1

Molex connectors

12V1

Floppy

12V1

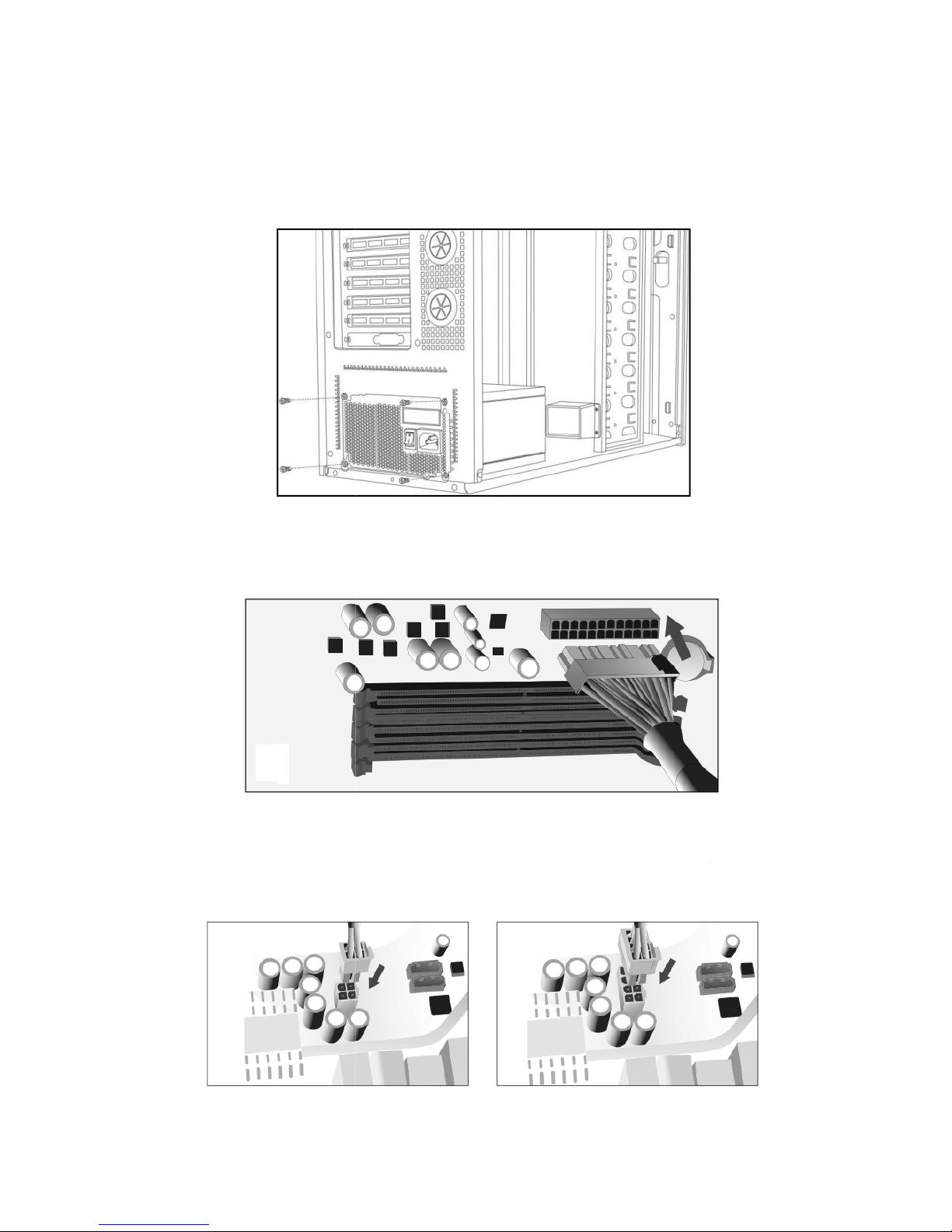

NSTALLATION

1. Install the VP450 PSU into

either the top or bottom of

case manual if you are unsure where the power supply shoul be installe .

2. Connect the 24(20+4)-pin

main power connector to your motherboar . If

connector, etach the 4-

pin attachment on the 24

Note: The etachable 4-

pin section cannot be use in place of a 4

3. Connect the 8-pin or 4+4-

pin connector for the CPU. If your mother

some of the openings, we recommen that you remove the cover an use the 8

Note:

Please also refer to your motherboar user’s manual for any special instructions

either the top or bottom of

your case with the four screws provi e .

case manual if you are unsure where the power supply shoul be installe .

main power connector to your motherboar . If

your motherboar uses a 20

pin attachment on the 24

-pin connector.

pin section cannot be use in place of a 4

-pin +12V connector.

pin connector for the CPU. If your mother

boar has an 8-

pin socket with a cover on

some of the openings, we recommen that you remove the cover an use the 8

pin connector.

Please also refer to your motherboar user’s manual for any special instructions

your case with the four screws provi e .

Refer to your

your motherboar uses a 20

-pin

pin socket with a cover on

pin connector.

4. Connect the 6-pin PCI-E connector to your graphics car (if applicable).

5. Connect all Molex/SATA connector(s) to your har rives, optical rives (CD/DVD/BluRay™) an other

accessories. Please note that some evices will use either the ol er 4-pin Molex connectors, while others will

use the newer 15-pin SATA connector. 4-pin Molex connectors have two black wires, a yellow, an a re . The

SATA connector has an a itional orange power wire.

6. Connect your floppy rive (if present) using the supplie FDD connector shown in Table 2.

7. When you have all the connections secure , connect the AC power cor to the power supply AC inlet, making

sure the use the heavy- uty cor supplie with your VP450. Turn the switch on the PSU to the “|” position.

Antec, nc.

47900 Fremont Blv .

Fremont, CA 94538

tel: 510-770-1200

fax: 510-770-1288

Antec Europe B.V.

Stuttgartstraat 12

3047 A Rotter am

Netherlan s

tel: +31 (0) 10 462-2060

fax: +31 (0) 10 437-1752

Technical Support:

US & Canada

1-800-22ANTEC

customersupport@antec.com

Europe

europe.techsupport@antec.com

www.antec.com

All tra emarks are the property of their respective owners.

Repro uction in whole or in part without written permission is prohibite .
