Antari S-100X Manual de usuario

S-100X / S-200X

Snow Machine User Manual

English Français Deutsch • • • 中文

User Manual

Antari S-100X & S-200X Snow Machine

Introduction

Thank you for choosing an ANTARI Special Effects Machine. You now own a rugged and

powerful state-of-the-art machine. Prior to use, we suggest that you carefully read all of the

instructions. By following the suggestions found in this user manual, you can look forward to

the reliable and satisfactory performance of your ANTARI S-100X & S-200X Silent Snow

Machine.

Keep this device dry.

For indoor use only. Not designed for outside use.

Use a grounded electrical outlet only. Prior to use take care to determine that the unit is

installed at the rated voltage.

Always unplug your ANTARI Snow Machine before filling its tank.

Turn off or unplug when not in use.

This machine is not water or splash proof. If moisture, water, or snow liquid gets inside the

housing, immediately unplug the unit and contact a recommended service technician or

your ANTARI dealer before using it again.

There are no user-serviceable parts inside. Refer to your ANTARI dealer or other qualified

service personnel.

For adult use only. This machine must be installed out of the reach of children. Never leave

the unit running unattended.

Never aim the output nozzle directly at people or animals.

Locate the machine in a well-ventilated area.

Never add flammable liquids of any kind (oil, gas, perfume) to the snow liquid.

Pay attention to all warning labels and instructions printed on the exterior of your ANTARI

CAUTION

DANGER OF ELECTRIC SHOCK!

Keep this device away from rain and moisture!

Never open the housing!

DANGER OF BURNING!

Never touch the device during the operation!

S-100X & S-200X Snow Machine.

Use only the high-quality snow liquid that your dealer recommends.

Always make sure there is sufficient liquid in the machine's liquid tank.

If your ANTARI machine fails to work properly, discontinue use immediately. Drain all liquid

from the tank, pack the unit securely (preferably in the original packing material), and

return it to your ANTARI dealer for service.

Unpacking & Inspection

Open the shipping carton and verify that all equipment necessary to operate the system has

arrived intact.

If any equipment is missing contact your ANTARI dealer immediately.

The shipping carton should contain the following Items:

1. Snow machine with power cable

2. SC-2 volume remote controller

3. Fluid tank

4. Hanging bracket

5. Screw set and user manual

Before beginning your initial setup of the ANTARI S-100X & S-200X Snow Machine, make

sure that there is no evident damage caused by transportation. In the event that the unit's

housing or cable is damaged, do not plug it in and do not attempt to use it until after contacting

your ANTARI dealer for assistance.

Setup

1. Remove all packing materials from shipping box. Check that all foam and plastic padding

is removed.

2. Place the machine on a flat surface and follow the steps below.

3. Assemble the hanging bracket on the machine, use the M8 screws to position the hanging

bracket with the machine, the tightening screws are for adjusting the machine’s angle

when in the air.

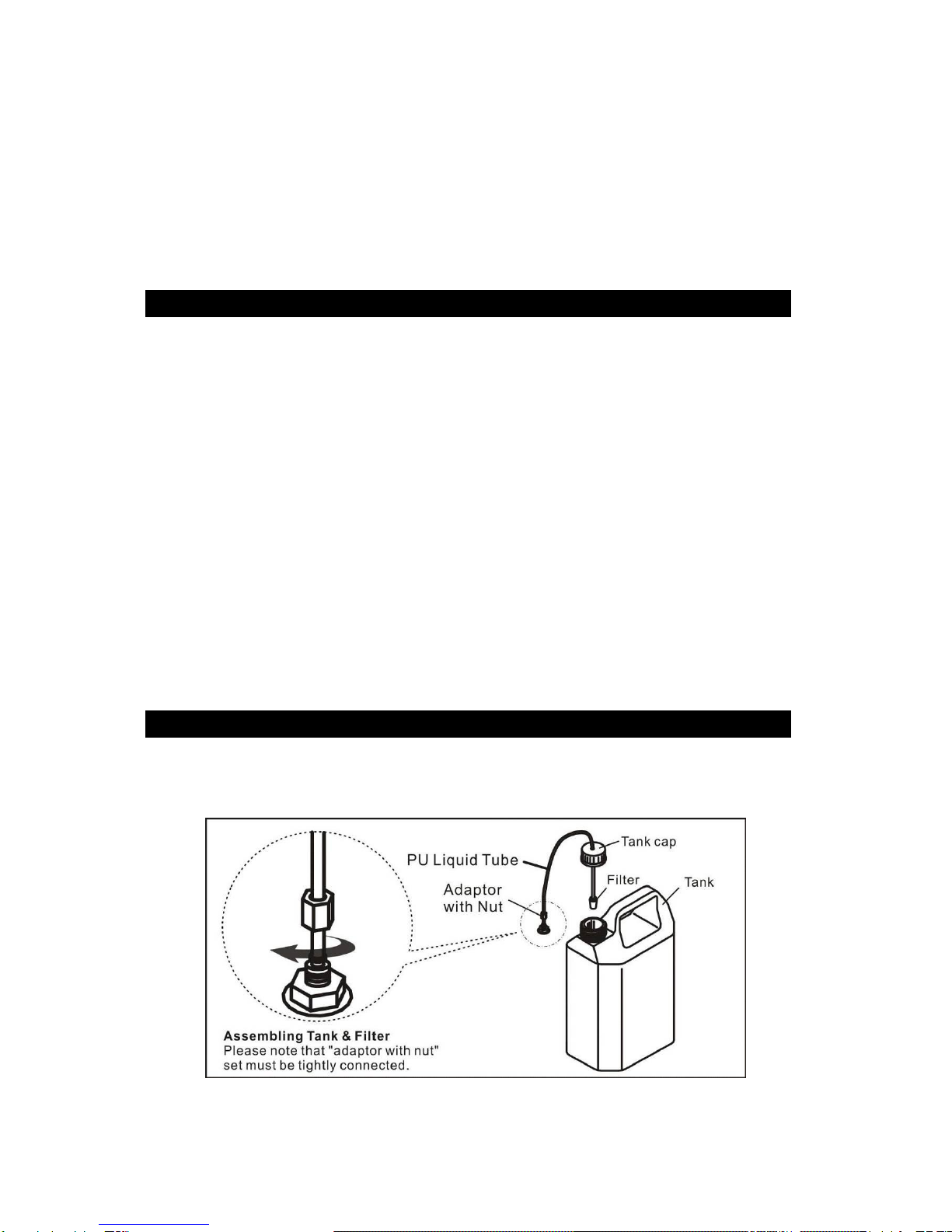

4. Fill with ANTARI SL-5 Snow Liquid, ANTARI SL-5A Premium Snow Liquid or other

high-quality, water-based snow liquid recommended by your dealer. Any other types of

fluid can damage the unit. When filled, place cap back on liquid tank.

5. Firmly attach the 4-pin connector on the remote control cable to the proper input on the

rear of the machine.

Installation Note

1. The snow machine may be installed at floor level or suspended overhead. It is best

suggested to mount the machine up high. When mounting the unit overhead, please make

sure that it is secured with a safety bond looped through the safety ring. Whatever

installation method you choose, do not allow the unit to have more than a 15 degree angle

of inclination.

2. It is important that the snow does not shoot directly at anyone's face.

3. Always monitor tank fluid level during operation. Running a snow machine without fluid

can permanently damage the unit. If you experience low output, mechanical noise or no

output at all, unplug immediately. Check fluid level, the external fuse, remote connection,

and power from the wall. If all of the above appears to be fine, plug the unit in again. If

snow does not come out after holding the remote ON/OFF button down, check the hose

attached to the tank to make sure there is fluid going through the hose. If you are unable to

determine the cause of the problem, do not simply continue pushing the remote button, as

this may damage the unit. Return the machine to your Antari dealer.

Operation

1. Plug the power cable into a grounded electrical outlet.

2. Turn on the machine by pressing the red power switch on the rear of the unit and make

sure the red indicator that is located above the Power switch is lit.

The units can be controlled by either DMX or the SC-2 volume remote control. See the

respective topics below:

3. Connect the remote control's male 4-pin plug to the machines' INPUT socket and make

sure the red “POWER” indicator is lit.

4. Press ON/OFF button, the IN USE indicator lights up green and the machine is ready to

operate (during this procedure, the machine’s fan and motors are operating).

5. Use the adjustable knob “OUTPUT VOLUME” on the SC-2 Volume Remote controller to

set an output value between 10% and 100%.

6. There’s a smaller button “AIR VOLUME” located at rear of the machine used for adjusting

the fan output volume. In general, when the fan output is increased the snowflakes

produced are smaller. In contrast, when the fan output is decreased, bigger snowflakes will

be produced. However, the snow output volume will not be affected.

DMX Connector Pin Assignment

The machine provides a3-pin XLR connector for DMX connection. The diagram below

indicates pin assignment information.

Function

Ground

Data-

Data+

DMX Control

a) Connect the DMX cord to the DMX IN socket on the rear of the machine.

b) Test the system by activating the snow system's selected DMX channel. When the

channel value is increased the snow machine should produce snow at a steadily

increasing rate. The unit is OFF when a value between 0-5 is selected. It will reach 100%

output once the channel is set to 255.

DMX Protocol

DMX VALUE

0-5

OFF

6-255

c) Addressing:

Each device occupies 1 channel. To ensure that the control signals are properly directed

to each device, theyrequire addressing. This is to be adjusted for every single device by

changing the DIP switches as set out in the table below.

The starting address is defined as the first channel from which the device will respond to

the controller. Please make sure that you do not have any overlapping channels in order

to control each device correctly and independently from any other fixture on the DMX

data link. If two, three or more devices are addressed similarly, they will work similarly.

DMX Address Setting

Dip Switch Corresponding Chart

Channel No.

128

256

Dip Switch

Example 1: Set DMX starting address to 69

Dip switch # 7 = 64 channel

Dip switch # 3 = 4 channel

Dip switch # 1 = 1 channel

Total = 64 + 4 + 1 = 69 channel

Maintenance

1. Do not allow the snow liquid to become contaminated. Always replace the caps on the

liquid container and the snow machine liquid tank immediately after filling.

2. Before storing away after each operation, rinse the system with pure water and let it pump

for at least 1or 2 minutes. This step helps to ensure a longer life span of the motor and the

nozzle.

3. It is strongly recommended to regularly clean the dust/residue around the machines' vent

holes (on both sides of the machine). Simply use a small brush, a toothbrush for example,

and gently brush in the direction from top to bottom. This step helps to ensure that minimal

debris will get into the machine or causes clogging.

Snow Liquid

Depending on the desired effect, use either ANTARI SL-5 Snow/Foam Liquid for normal snow

or ANTARI SL-5A Snow Liquid for fast-dissipating snow.

Technical Specifications

MODEL

S-100X & S-200X

Power Supply

100/120V AC, 230/240V AC, 50/60Hz

Motor

770W (min. output), 1000W (max. output)

Output Volume

180ml/min

Tank Capacity

5 liters

Fluid Consumption Rate

5.5 min/liter (100% output)

Weight

11 kg

Dimensions (LxWxH)

L505 W276 H280 mm

Remote Included

SC-2

10 Meter Remote Extension

EXT-6

DMX

On-board

Warm-up Time

N/A

Save these instructions.
