ANTAIRA FCU-280 Series Manual de usuario
10/100/1000Base-T to 1000Base-SX/LX
Gigabit Ethernet Media Converter
User’s Manual
Trademarks
Copyright © Antaira Technologies 2013
Contents subject to revision without prior notice.
Antaira is a registered trademark of Antaira Technologies. The
information in this manual is subject to change without notice.
All other trademarks belongs to their respective owners.
Disclaimer
Antaira Technologies does not warrant that the hardware will
work properly in all environments and applications, and makes
no warranty and representation, either implied or expressed,
with respect to the quality, performance, merchantability, or
tness for a particular purpose.
Antaira has made every effort to ensure that this User’s Manual
is accurate; Antaira disclaims liability for any inaccuracies or
omissions that may have occurred.
Information in this User’s Manual is subject to change without
notice and does not represent a commitment on the part of
Antaira. Antaira assumes no responsibility for any inaccuracies
that may be contained in this User’s Manual. Antaira makes no
commitment to update or keep current the information in this
User’s Manual, and reserves the right to make improvements
to this User’s Manual and/or to the products described in this
User’s Manual, at any time without notice.
If you nd information in this manual that is incorrect,
misleading, or incomplete, we would appreciate your comments
and suggestions.
FCC Warning
This equipment has been tested and found to comply with the
regulations for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with this user’s guide, may
cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct
the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference, in which case the user
may be required to take adequate measures.
Energy Saving Note of the Device
This power required device does not support Standby mode
operation.
For energy saving, please remove the DC-plug or push the
hardware Power Switch to OFF position to disconnect the device
from the power circuit.
Without removing the DC-plug or switching to OFF, the device
will still consume power from the power source. In the view of
Saving Energy and reducing unnecessary power consumption, it
is strongly suggested to power off or to remove the DC-plug for
the device if this device is not intended to be active.
WEEE Warning
To avoid the potential effects on the environment and
human health as a result of the presence of
hazardous substances in electrical and electronic
equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out
wheeled bin symbol. Do not dispose of WEEE as unsorted
municipal waste and have to collect such WEEE separately.
Revision
User’s Manual for Antaira Gigabit Ethernet Converter
Rev 3.1 (November 2013)
Part No: 2010-AA4230-470
Table of Contents
1. PRODUCT FEATURES ......................................................... 6
2. MODEL LIST..................................................................... 7
3. CHECKLIST ...................................................................... 8
4. PRODUCT OUTLOOK.......................................................... 9
5. LINK FAULT PASS THROUGH (LFP) ................................... 14
6. INSTALLING THE CONVERTER.......................................... 17
7. DUPLEX MODE SUPPORT ................................................. 19
8. LED INDICATION ............................................................ 20
9. CABLE CONNECTION PARAMETER ................................... 21
10. PRODUCT SPECIFICATION ............................................. 22
6
1. Product Features
●Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX
Ethernet standard
●Bridge mode Media Converter with TP port supports
10/100/1000Base-T and auto-MDI / MDIX
●Auto-Negotiation for 10/100/1000Base-T; Half-duplex or Full-
duplex for 10Mbps and 100Mbps, full-duplex for 1000Mbps
●LED indicators for simple diagnostics and management
●Provides DIP switch for LFP function (Disable / Enable) setting
●Compact in size, easy installation
●OAM (TS-1000 and IEEE 802.3ah) supported
●9K Jumbo frame supported
●Can be installed on Antaira’s Media Converter Chassis
7
2. checklist
Your FCU-280x package should contain the following items:
●The Gigabit Ethernet Media Converter
●AC-DC Power Adapter (Output: 5VDC, 2A max.)
●This User’s Manual
If any items are missing or damaged, please consult the dealer
from which you purchased your Gigabit Ethernet Converter.
Note
WDM models has one vacant SFP module slot. The
mini GBIC SFP module is not bundled with the
package.
8

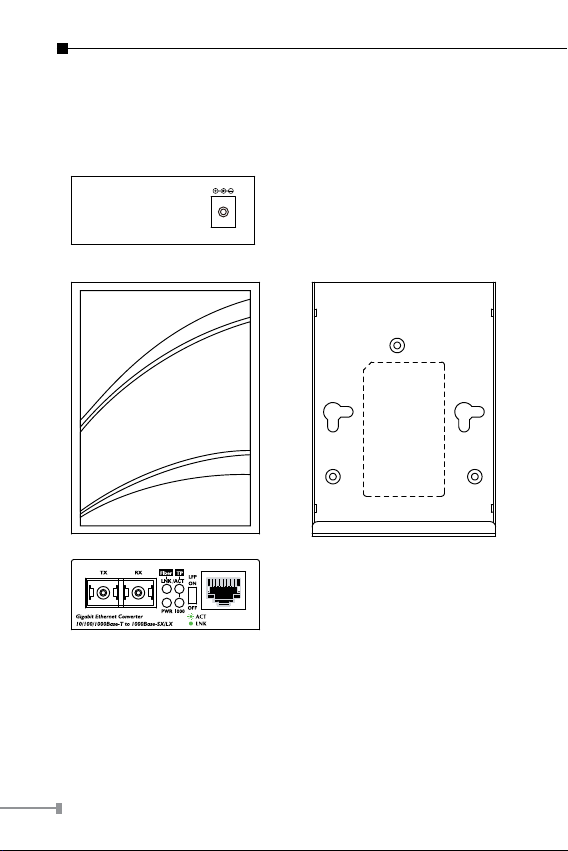

3. Product outlook
Overview

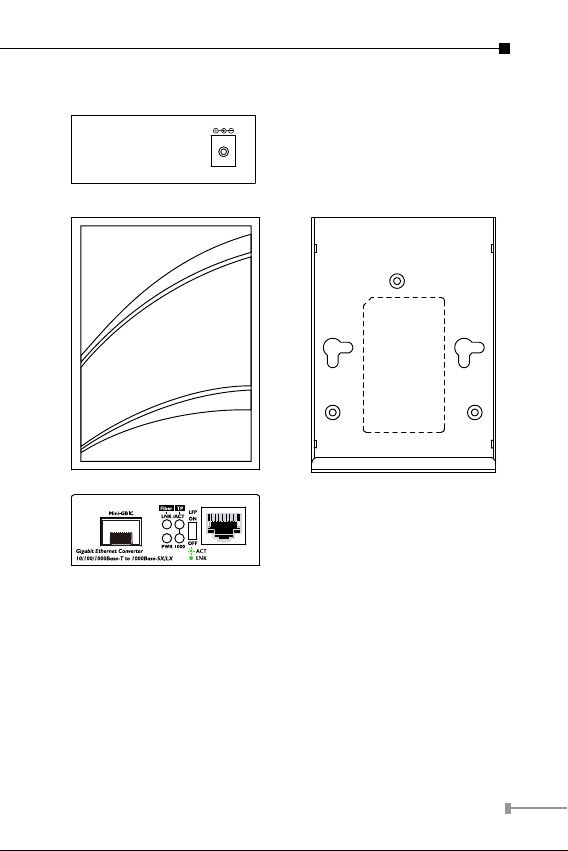

Real Panel
TOP Panel
Front Panel
Bottom
5V DC
Figure 1: Multi-Mode/Single-Mode Duplex Model
9
Real Panel
TOP Panel
Front Panel
Bottom
5V DC
Figure 2: SFP Model
10
Real Panel
TOP Panel Bottom
5V DC
Front Panel
Figure 3: WDM (Single-Strand Fiber) Model
Left View
The Front Panel of the Gigabit Ethernet Media Converter consists
of one 1000Base-SX / 1000Base-LX / mini-GBIC SFP / 1000Base-
LX WDM ports and one Auto-Sensing 10/100/1000Mbps Ethernet
RJ-45 Port, one DIP switch for LFP ON/OFF. Figure 4 & 5 & 6
shows a front panel of Gigabit Ethernet Media Converter.
