Product Introduction

MX370105A

Mobile WiMAX IQproducer

MG3700

Vector Signal Generator

MX370105A-E-L-1

Slide 1

For MG3700A Vector Signal Generator

MX370105A

Mobile WiMAX IQproducerTM

Product Introduction

ANRITSU CORPORATION

V3.00

MX370105A-E-L-1

Slide 2

Ordering Information

Model/

Order No. Name

MG3700A Vector Signal Generator Indispensa

bility

MG3700A-001 Rubidium Reference Oscillator Aging rate: ±1 × 10–10/Month

MG3700A-002 Mechanical Attenuator Standard Electron Attenuator is changed into

Mechanical Attenuator.

MG3700A-011 Upper Frequency 6 GHz Standard “250 kHz to 3 GHz” is extended to

“250 kHz to 6 GHz.”

MG3700A-021 ARB Memory Upgrade 512 M

sample

Standard “128 Msample/channel × 2” is

extended to “256 Msample/channel × 2.”

Recomme

ndation

The play time of 1GB movie file is about 16 seconds. When

movie file is used, this option is recommended to be added

beforehand.

MG3700A-031 High Speed BER Test Function Standard “1 kbps to 20 Mbps” is extended to

“100 bps to 120 Mbps.”

MX370104A Multi-carrier IQproducer Recomme

ndation Software to generate wavy pattern of multi carrier.

MX370105A Mobile WiMAX IQproducer Indispensa

bility

W2495AE MG3700A operation manual

W2496AE MG3700A IQproducer operation

manual

W2539AE MG3700A standard waveform

pattern operation manual

W2733AE MX370104A Multi-carrier

IQproducer operation manual

Recomme

ndation

W2734AE MX370105A Mobile WiMAX

IQproducer operation manual

Recomme

ndation

The PDF manual is preserved in CD of the MX370105A

software. Please order this accessory when the booklet is

necessary.

J1261D Ethernet Cable (Shield Type) Cross, 3 m Recomme

ndation

When PC is connected directly with MG3700A by LAN, the

crossover cable is necessary.

Z0777 Standard waveform pattern

upgrade kit

DVD set of pre-install wave form pattern of

latest version

G0141 HDD ASSY Exchange HDD when built-in HDD break.

J1277 IQ Output Conversion Adapter Cable that converts IQ output connector (D-

sub) of mainframe into BNC

Recomme

ndation

The IQ output connector in the back of MG3700A is D-Sub.

This is necessary to convert D-sub into BNC.

— Softwares (License Key for IQproducer system) —

— Optional accessories —

Remarks

— Mainframe —

— Options —

MX370105A-E-L-1

Slide 3

What is Mobile WiMAX IQproducer?

The MX370105A Mobile WiMAX IQproducer is GUI-driven PC application software

for setting parameters and generating waveform patterns in accordance with the

IEEE802.16e-2005 Wireless MAN-OFDMA MAC/PHY standard.

Parameters are set freely at the PC to generate waveform data. The generated

waveform data is transferred to the MG3700A using a Compact Flash card or via a

LAN and the MG3700A main frame outputs the required waveform by selecting the

waveform data.

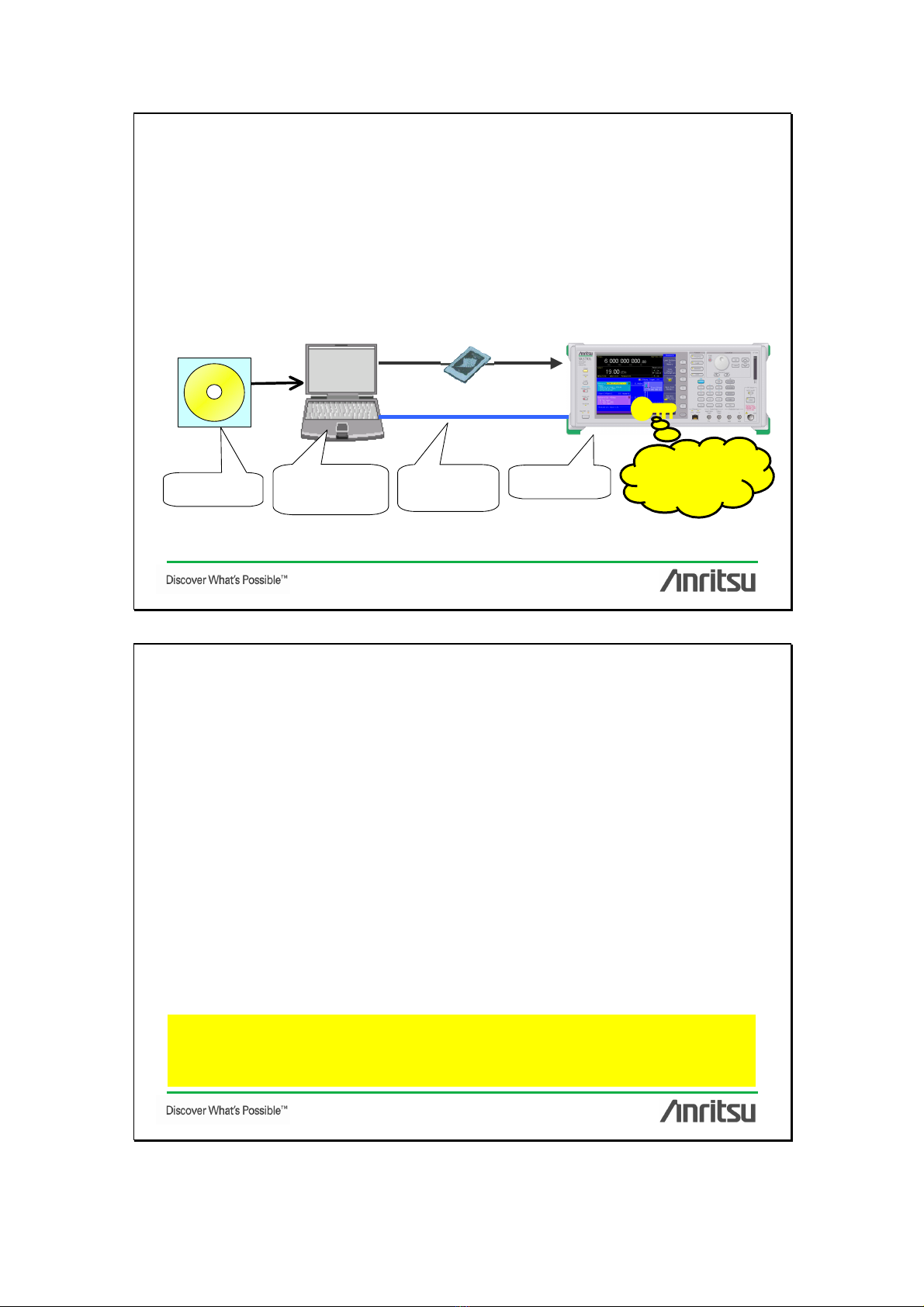

MG3700A

Vector Signal Generator

100Base-TX LAN

PC CF Card

IQproducer

(2) Waveform

data generated

using IQproducer

(3) Waveform

data transferred

to MG3700A

(4) Signal

output

(1) IQproducer

installed in PC

MX370105A

license key

required

MX370105A-E-L-1

Slide 4

Some parameters of the MAC management messages, such as DL/UL-MAP,

DCD/UCD, etc., can be set. The generated waveform pattern can be used for part*

of the IEEE802.16e tests (8.4.13 Receiver Requirement tests).

(*Function tests (HO, etc.) that cannot be performed using only a signal generator

are excluded.)

- Generating Waveform Patterns using MX370101A/02A/03A/04A/05A/06A

=> The main frame requires a license.

The unlicensed software will run on the PC to test waveform pattern generation but an unlicensed MG3700A cannot

output signals because it does not recognize the waveform patterns.

- Generating Waveform Patterns using EDA Tools (C, MATLAB, Microwave Office) => Free license

What is Mobile WiMAX IQproducer?

[Features]

•Set MIMO/STC (Matrix A/B) of Ranging at Wave2

•Set both Downlink and Uplink frames.

•Set Zone (8 max.), Burst (16 max./Zone), and MACPDU (32 max./Burst).

•Easy Zone/Burst expansion/reduction using mouse at Segment Edit screen.

•MAC data, such as DLFP, DL-MAP, and UL-MAP, for setting physical layer selected

automatically or by user file.

•Data type for MAC PDU, etc., selected from 16_ bit repeat, PN9fix, PN15fix, S_QPSK,

S_16QAM, S_64QAM, and User_File.

•FFT size selected from 128, 512,1024, 2048.

•Bandwidth selected from 1.25, 1.50, 1.75, 2.50, 3.00, 3.50, 5.00, 6.00, 7.00, 8.75, 10.00, 12.00,

14.00, 15.00, 17.50, 20.00, 24.00, and 28.00 MHz.

•Frame length selected from 2.0, 2.5, 4.0, 5.0, 8.0, 10.0, 12.5, 20.0, and Continuous.

MX370105A-E-L-1

Slide 5

Operation Image

Setup Slide 6

Starting IQproducer Slide 7

IQproducer Main Screen Slide 7

Editing Parameters Slides 8-16

Generating Waveforms Slide 17

Transferring Waveform Pattern Slides 18-19

Outputting Waveform Pattern Slide 20

Saving/Recalling Parameters Slide 21

Receiver Requirement Test of IEEE802.16e Standard Slide 23

Merits Slides 24-32

Appendix: Parameter Setting Range Slides 33-43

MX370105A-E-L-1

Slide 6

Setup

*Read the appended [LAN Connection] for the LAN

connection method between the PC and MG3700A.

*Read the appended [IQproducer Upgrade

Procedure] for the IQproducer installation method.

IQproducerTM Operating Environment

CPU Pentium III, 1 GHz or faster

Memory > 512 Mbytes

HDD > 5 Gbytes

Display 1024 x 768 pixels or better

OS Windows2000(R) Professional,

Windows XP(R)

The MG3700A Vector Signal Generator and PC are connected as shown below.

The MX370105A Mobile WiMAX IQproducer application software must be installed in the

PC.

The MX370105A Mobile WiMAX IQproducer license key must be installed in the MG3700A.

MG3700A Vector Signal Generator

+ MX370105A License key

100Base-TX LAN

Crossover cable

IQproducer

MX370105A-E-L-1

Slide 7

Starting IQproducer

Start > Programs > Anritsu Corporation > IQproducer for MG3700A

Start Main screen

Start IQproducer as follows:

IQproducer Main Screen

When IQproducer starts, the following screen is displayed.

Choose Mobile WiMAX from the [System] pull-down menu.

MX370105A-E-L-1

Slide 8

Editing Parameters: Main Screen

When Mobile WiMAX is selected, the Main screen displays all setting parameters.

(2) Common parameter list:

Parameters, such as physical layers

and filters, are set here.

(3) PHY/MAC

parameter list:

Parameters for items

selected in the tree

on the left and at the

Segment Edit screen

are set here.

(4) Error display:

Setting errors, etc.,

are displayed here.

(1) Tree view:

This tree displays PHY/MAC

parameters.

The following items can be

added and deleted:

DCD, UCD, FCH,

Downlink, Uplink, Preamble,

MAC Message,

Zone (MAX8),

Burst (MAX16/Zone),

MAC PDU (MAX32/Burst

include DCD/UCD),

DL-MAP, UL-MAP,

MAP-Burst,

Initial/Handover Ranging,

BW Request/Periodic

Ranging,

Fast-Feedback Region

MX370105A-E-L-1

Slide 9

Mobile WiMAX System Profile (4.1.11 STC/MIMO)

Mobile Radio Conformance Tests

MS-22.2 MS Receiver MIMO Processing

MIMO can be set using STC/MIMO of Downlink_Zone by the setting Number

of Tx Antennas in Common parameters to 2.

Either Matrix A or Matrix B can be selected.

[Reference] MIMO Description in WiMAX Forum material.

Editing Parameters: MIMO Function

The following MIMO parameter can be set on the Main screen.

MX370105A-E-L-1

Slide 10

Downlink:

PUSC

PUSC(all SC)

FUSC

AMC (6x1)

AMC (3x2)

AMC (2x3)

AMC (1x6)

Uplink:

PUSC

PUSC(w/o SC rotation)

AMC (6x1)

AMC (3x2)

AMC (2x3)

AMC (1x6)

Segment Edit Screen

Blue: Permutation needed in System Profile

Uplink Zone AMC (2x3)

Downlink Zone AMC (2x3)

Editing Parameters: Permutation

The following Permutation parameter can be set on the Main screen.

MX370105A-E-L-1

Slide 11

Settings

•Initial/Handover Ranging Region

•Initial/Handover Ranging Burst

•BW Request/Periodic Ranging Region

•BW Request/Periodic Burst

•Fast-Feedback Region

•Fast-Feedback Burst

Initial/Handover

Ranging Region, Burst

BW Request/Periodic

Ranging Region, Burst

Fast-Feedback

Region, Burst

Editing Parameters: Ranging, Fast-Feedback

The Ranging and Fast-Feedback parameters can be set at Uplink_Zone on the Main screen.

MX370105A-E-L-1

Slide 12

The Easy Setup function easily sets the number of Downlink/Uplink symbols

provided by System Profile.

The Uplink starting position can be set by automatic operation using this function.

Editing Parameters: Easy Setup Function

MX370105A-E-L-1

Slide 13

Editing Parameters: Segment Edit Screen 1/4

Segment Edit Screen Segment Edit Screen

The magnified or reduced Zone or Burst can be edited using the mouse cursor.

Click with mouse. Magnified/Reduced

MX370105A-E-L-1

Slide 14

Editing Parameters: Segment Edit Screen 2/4

The editing result is reflected in the Main screen parameters.

MX370105A-E-L-1

Slide 15

Editing Parameters: Segment Edit Screen 3/4

Parameters for the clicked area are displayed on the Main screen.

Click with mouse. Parameters for

selected item

displayed on Main

screen

MX370105A-E-L-1

Slide 16

Editing Parameters: Segment Edit Screen 4/4

Segment Edit Screen

An information window about the area opens when pointed to using the mouse cursor.

Information

window

Display the information window as

follows:

(1) Move the mouse cursor over the

required position on the screen for a

second or two.

(2) Right-click the mouse, and select

Property at the pop-up screen.

MX370105A-E-L-1

Slide 17

Generating Waveform: Calculation

Clicking the [Calculation] icon starts creating the waveform pattern after parameter

setting. It also creates a file for saving the waveform pattern in following path:

C:¥Program Files¥Anritsu Corporation¥IQproducer¥MWiMAX¥Data

Name of waveform pattern file:

20 characters max.

Comment on MG3700A screen:

38 characters max. per line

Name of waveform pattern package:

(31 characters max.)

Generate the waveform pattern by clicking the [OK] button.

Calculation: Creates waveform

pattern

Calculation: Creates waveform

pattern

MX370105A-E-L-1

Slide 18

Transferring Waveform Pattern

Connect the MG3700A and PC via a LAN.

Transfer & Setting

Input Host name or IP Address of

MG3700 main frame.

Connect to LAN.

Otros manuales para MG3700A MG3700A

Tabla de contenidos

Otros manuales de Generador portátil de Anritsu

Anritsu

Anritsu MP1763C Manual de usuario

Anritsu

Anritsu MG3702xA Series Manual de usuario

Anritsu

Anritsu MG3690B Manual de instrucciones

Anritsu

Anritsu 681 C Series Manual de usuario

Anritsu

Anritsu MG3710A Instrucciones de instalación y funcionamiento

Anritsu

Anritsu MG369 C Series Manual del propietario

Anritsu

Anritsu MG369 Series Manual de usuario

Anritsu

Anritsu MG3700A MG3700A Manual de usuario

Anritsu

Anritsu MG369XA Series Manual del propietario

Anritsu

Anritsu MG3700A MG3700A Manual de usuario

Anritsu

Anritsu Rubidium MG362 1A Series Manual de usuario

Anritsu

Anritsu MG369XB Series Manual del propietario

Anritsu

Anritsu Rubidium MG36271A Manual de usuario

Anritsu

Anritsu MG3700A MG3700A Manual de usuario

Anritsu

Anritsu 690 B Series Manual de usuario

Anritsu

Anritsu MG3692A Manual de usuario

Anritsu

Anritsu MG3702xA Series Manual de usuario

Anritsu

Anritsu MG3710A Instrucciones de instalación y funcionamiento

Anritsu

Anritsu 680 B Series Manual de usuario

Anritsu

Anritsu MG369 B Series Manual de usuario

Anritsu

Anritsu Rubidium MG362 1A Series Manual de usuario

Anritsu

Anritsu MG3690A Manual de instrucciones

Anritsu

Anritsu MG369 C Series Manual del propietario

Manuales populares de Generador portátil de otras marcas

Kohler

Kohler 20EORZ Manual de instrucciones

Powerhorse

Powerhorse 83171 Manual de usuario

HURST

HURST ML-630-SI Manual de usuario

ETQ

ETQ TG4000 Manual de usuario

Briggs & Stratton

Briggs & Stratton 40265 Guía de configuración

ConMed

ConMed 7550 Manual de usuario

Owon

Owon Waveform Generator Manual de usuario

evertz

evertz 7700 Series Manual de usuario

Power Stroke

Power Stroke PS906025 Manual de usuario

Firefly

Firefly Cygnus CYG2400/460/24 Manual de usuario

Draper

Draper PG950S Actualización de firmware

PowerBoss

PowerBoss PowerBoss Manual de usuario

SDMO

SDMO SH 4000 Manual de usuario

EINHELL

EINHELL STE 5500 Manual de usuario

Wanco

Wanco WI3000P Manual de usuario

Full Boar

Full Boar FBT-3300 Manual de usuario

Dwyer Instruments

Dwyer Instruments ASG Manual de usuario

Westinghouse

Westinghouse WH1000i Series Manual de usuario
