Assembly Instructions 8000284-01

90cm, 1.0m & 1.2m SMC Antenna System

with Az/El Cap Mount



DATE DESCRIPTION REV.

2/26/90 Changed Pages 4, 6, 7, 8, 9 and 10. A

ECN 9001516

4/20/90 Changed Pages 3, 4, 5, 6, 7, 8, 9 & 10. B

ECN 9001550

9/10/90 Changed Cover, Pages 1, 6, 7, 12 & 13. C

ECN 9001616

11/19/90 Changed Cover, Pages 1, 3, 4, 5, 6, 7, 8, 0, 10, 11 & 13. D

ECN 9001665

11/4/91 Changed Cover, Pages 1, 2, 3, 4, 6 & 8-18. E

ECN 9001881

9/93 Changed Cover, Inside Front Cover, Pages 1, 4, 6, 7, 8, 9, 10 & 11. F

ECN 9002250

10/94 Changed Cover and Page 1. G

ECN 9002568

8/97 All Pages H

ECN 9003587

8/02 Changed Pages 4, 6, 10 & 12 J

ECN 9006120

9/02 Changed Pages 4, 6, & 10 K

ECN 9006205

5/04 ECN9006666

VSAT ANTENNA/MOUNT/LNB

LIMITED TWELVE (12) MONTH WARRANTY

This ANDREW CORPORATION®equipment is warranted to be free from defects in material and workmanship under normal use and

service. ANDREW shall repair or replace defective equipment, at no charge, or at its option, refund the purchase price, if

the equipment is returned to ANDREW not more than twelve (12) months after shipment. Removal or reinstallation of

equipment and its transportation shall not be at the cost of ANDREW except ANDREW shall return repaired or replaced equipment

freight prepaid.

This Warranty shall not apply to equipment which has been repaired or altered in any way so as to affect its stability or durability, or which

has been subject to misuse, negligence or accident. This Warranty does not cover equipment which has been impaired by severe

weather conditions such as excessive wind, ice, storms, lightning, or other natural occurrences over which ANDREWhas no control,

and this Warranty shall not apply to equipment which has been operated or installed other than in accordance with the instructions fur-

nished by ANDREW.

Claimants under this Warranty shall present their claims along with the defective equipment to ANDREW immediately upon failure. Non-

compliance with any part of this claim procedure may invalidate this warranty in whole or in part.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER AGREEMENTS AND WARRANTIES, ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED IN DURATION TO THE DURATION OF THIS

WARRANTY. ANDREW DOES NOT AUTHORIZE ANY PERSON TO ASSUME FOR IT THE OBLIGATIONS CONTAINED IN THIS WAR-

RANTY AND ANDREW NEITHER ASSUMES NOR AUTHORIZES ANY REPRESENTATIVE OR OTHER

PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE EQUIPMENT DELIVERED OR PROVIDED.

IN NO EVENT SHALL ANDREW BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF

BUSINESS, OR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND.

In no event shall ANDREW be liable for damages in an amount greater than the purchase price of the equipment.

Some states do not allow limitations on how long an implied warranty lasts, or allow the exclusion or limitation of incidental or

consequential damages, so the above limitations or exclusions may not apply to you.

DANGER!!!

WATCH FOR WIRES! Installation of this product near power lines is dangerous. For your own safety, follow these

important safety rules.

1. Perform as many functions as possible on the ground.

2. Watch out for overhead power lines. Check the distance to the power lines before starting installation. We recommend

you stay a minimum of 6 meters (20 feet) from all power lines.

3. Do not use metal ladders.

4. Do not install antenna or mast assembly on a windy day.

5. If you start to drop antenna or mast assembly, get away from it and let it fall.

6. If any part of the antenna or mast assembly comes in contact with a power line, call your local power company.

DO NOT TRY TO REMOVE IT YOURSELF! They will remove it safely.

7. Make sure that the mast assembly is properly grounded.

WARNING!!!

Assembling dish antennas on windy days can be dangerous. Because of the antenna surface, even slight winds

create strong forces. For example, a 1.0m antenna facing a wind of 32 km/h (20 mph) can undergo forces of 269 N

(60 lbs). Be prepared to safely handle these forces at unexpected moments. Do not attempt to assemble, move or

mount a dish on windy days or serious, even fatal accidents may occur. ANDREW is not responsible or liable for dam-

age or injury resulting from antenna installations.

SITE SELECTION

The first and most important consideration when choosing a prospective antenna site is whether or

not the area can provide an acceptable “look angle” at the satellites. A site with a clear, unobstructed view from a suitable

roof or wall facing south, southeast or southwest is required. Your antenna site must be selected in advance so that you

will be able to receive the strongest signal available. To avoid obstructions, it is important to conduct an on-site survey with

a portable antenna.

As with any type of construction, a local permit may be required before installing an antenna. It is the owner’s

responsibility to obtain any and all permits.

INTRODUCTION

This manual covers the installation of the ANDREW 1.0m &

1.2m SMC antenna system with AZ/EL cap mount and Ku-

single polarity feed.

For best results in the assembly process, perform each step

in the same sequence as listed in this manual.

ASSEMBLY TOOLS REQUIRED

The following list of tools are those required for hand assembly and installation of the antenna.

1 - Ratchet Wrench (³⁄₈” Drive) 1 - 10mm Nut Driver 1 - 13mm Socket (³⁄₈”Drive)

1 - 13mm Open/Box End Wrench 1 - Phillips Screwdriver 1 - Compass

HARDWARE SORTER

GRADE 8.8 (8G) - YELLOW COLOR GRADE 2 - SILVER COLOR

M6 M8 M10 M12 M16 M20 #10 ¹⁄₄ IN. ⁵⁄₁₆ IN. ³⁄₈ IN. ¹⁄₂ IN. ⁵⁄₈ IN. ³⁄₄ IN. 1 IN.

7 18 32 58 144 260 32 6 11 20 43 92 124 259

FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS

9.5 24 43 79 195 353 3.6 8 15 27 58 125 168 351

N-m N-m N-m N-m N-m N-m N-m N-m N-m N-m N-m N-m N-m N-m

APPLY 24 N-m (18 FT-LBS) OF TORQUE TO M8 BOLT APPLY 11 FT-LBS (15 N-m) OF TORQUE TO ⁵⁄₁₆ BOLT

BOLT TORQUE

M8 x 60mm Round Head Square Neck Bolt

M4 x 12mm Phillips Head Screw

M8 x 20mm Round Head Square Neck Bolt

M8 x 30mm Round Head Square Neck Bolt

Washer, Flat - ¹⁄₄" x ³⁄₄" OD

Washer, Flat - ¹⁄₄" x ⁷⁄₈" OD

M6 x 30mm Hex Head Bolt

M4 x 10mm Phillips Head Screw

M6 Tapping Screw

Hardware illustrations are true size.

Place actual hardware on top of illustration to identify.

11 13

CLAMP

SURFACE

Junction Block (9)

GROUND POLE INSTALLATION

2³⁄₈” O.D. x 72” LONG

;;

1" to 2"

SLOPE FOR

WATER RUN OFF

GRADE

BELOW

FROST LINE

OVAL END

MIN.

DIA.

2³⁄₈" O.D.

PIER

FOUNDATIONS

;;

48"

1" to 2"

SLOPE FOR

WATER RUN OFF

GRADE

BELOW

FROST LINE

OVAL END

MIN.

DIA.

NOTE:

48" may be

increased, concrete

and length of rebar

will increase

accordingly.

2³⁄₈" O.D.

DEEP

FROST LINE

FOUNDATIONS

;

;;

(SEE NOTE)

1-1.5"

APPROX.

;;

(4) #3 x 24" MIN.

AT 90˚APART

(SEE NOTE)

211

PARTS AND HARDWARE LISTING

FIG. 4.1 - ANTENNA, ANTENNA FEED (LNB) & FEED SUPPORT LEGS

ANT WIND VEL. DIM “d”CONC VOL. DIM “d”CONC VOL. GROUND POLE

80 MPH 9” 1.5 FT37” 1.2 FT3

90 MPH 11” 2.2 FT37” 1.2 FT3Mo. 611652931

90cm 100 MPH 13” 3.0 FT38” 1.5 FT3

110 MPH 15” 4.0 FT310” 2.4 FT3SEE NOTE 1

125 MPH 18” 5.8 FT312” 3.5 FT3

80 MPH 10” 1.8 FT37” 1.2 FT3Mo. 611652931

1.0M 90 MPH 13” 3.0 FT38” 1.5 FT3

100 MPH 15” 4.0 FT39” 1.9 FT3SEE NOTE 2

108 MPH 16” 4.6 FT310” 2.4 FT3

PIER FOUNDATIONS DEEP FROST LINE FOUNDATIONS

POLE SPECIFICATIONS:

2” SCH 40 2³⁄₈” O.D. x .154 Wall x 72” Long Steel - CM PN 611652931 w/Oval End and

Powder Paint Finish.

1. When wind velocity exceeds 108 MPH on the 90cm antenna at heights shown, the

ground pole must be a heavy wall pipe as follows: 2” pipe (2³⁄₈” O.D.) Schedule 80

(.218” wall thickness) and purchased locally. Field weld ¹⁄₄ x 1¹⁄₂ x 5 key as shown in

Fig. 1.0 to prevent rotation in the concrete or use 3” O.D. ground pole and AZ/EL cap.

2. These charted values based on using Model 611652931 ground pole, 2.375 O.D. x

1.54 wall. When wind velocity exceeds 108 MPH, use 3” O.D. ground pole and AZ/EL

cap.

3. Pole and foundation design based on the following criteria: (a) Uniform Building

Code Exposure C and 1.5 stability factor, (b) Vertical soil pressure of 2000 pounds

per square foot, (c) Lateral soil pressure of 400 pounds per square foot, (d) Concrete

compressive strength of 2500 pounds per square inc h in 28 days.

4. CAUTION - The foundation design shown does not represent an appropriate design

for any specific locality since soil conditions vary and may not meet design criteria

given in Note 1. You should consult a local professional engineer to determine your

soil conditions and appropriate foundation.

;;

APPROX.

;;

KEY

¹⁄₄ x 1¹⁄₂ x 5

FIELD WELD

.21

FIG. 1.0

ITEM DESCRIPTION QTY.

4 LEG BOTTOM (90cm) 1

4 LEG-BOTTOM-FEED (1.0m) 1

4 LEG-BOTTOM-FEED (1.2m) 1

5 REFLECTOR-SMC 1.0m 1

5 REFLECTOR-SMC 1.2m 1

5 REFLECTOR-SMC 90cm 1

6 LEG-SIDE-FEED (1.0m) 2

6 LEG-SIDE-FEED (1.2m) 2

6 LEG-SIDE-FEED (90cm) 2

7 BOLT-HEX M6 x 30 4

8 WASHER, FLAT ¹⁄₄”x⁷⁄₈”2

9* BLOCK-JUNCTION 1

10 WASHER-FLAT ¹⁄₄”x³⁄₄”O.D. 2

11* CLAMP-HALF-JCT. 1

12* BOLT HH M6 x 20 2

13* WASHER-FLAT M6 x ¹⁄₂”O.D. 2

14* KU-FEED ASSY. 1

15 SCREW-TPG-SPL M6 1

*Provided in feed assembly.

;;

(B)

1" to 2"

SLOPE FOR

WATER RUN OFF

GRADE

#3 REBAR X DIA. OF PIER,

INSERT THRU HOLE IN

TUBE & CENTER BELOW

FROST LINE

MIN.

DIA.

NOTE:

Clearance

increases at

elevations

greater than 23˚.

3" O.D.

PIER

FOUNDATIONS

;;

48"

(B)

1" to 2"

SLOPE FOR

WATER RUN OFF

GRADE

#3 REBAR

LENGTH = d MIN LESS 1"

INSERT THROUGH

HOLE IN TUBE & CENTER

(4) #3 x 24" MIN.

AT 90˚APART

(SEE NOTE)

BELOW

FROST LINE

MIN.

DIA.

NOTE:

48" may be

increased, concrete

and length of rebar

will increase

accordingly.

3" O.D.

DEEP

FROST LINE

FOUNDATIONS

;

;;

(SEE NOTE 2)

1-1.5"

APPROX.

;;

OPTIONAL

PARTS AND HARDWARE LISTING

8.04 REF

11.80 REF

8.13 REF

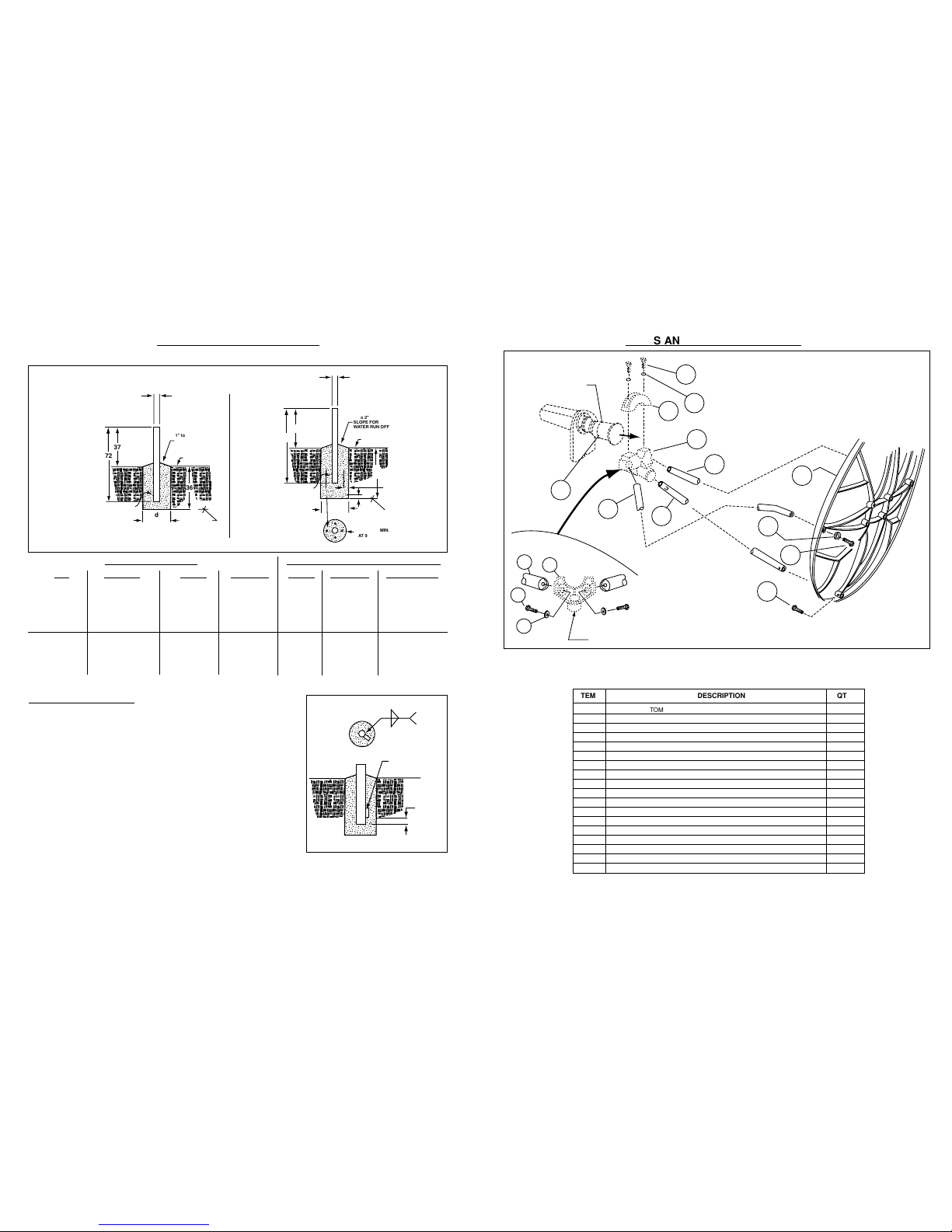

FIG. 4.0 - AZ/EL CAP MOUNT

GROUND POLE INSTALLATION

3”O.D. x 68”& 72”LONG

ANT WIND VEL. DIM “L”DIM “A”DIM “d”CONC VOL. DIM “L”DIM “A”DIM “d”CONC VOL. GROUND POLE

80 MPH 9”1.5 FT37”1.2 FT3

90 MPH 11”2.2 FT37”1.2 FT3

90cm 110 MPH 68”37”13”3.0 FT368”37”8”1.5 FT3Mo. 611652731

110 MPH 15”4.0 FT310”2.4 FT3See Note 2

125 MPH 18”5.8 FT312”3.5 FT3

80 MPH 10”1.8 FT37”1.2 FT3

90 MPH 13”3.0 FT38”1.5 FT3

1.0M 110 MPH 68”37”15”4.0 FT368”37”10”2.4 FT3Mo. 611652731

110 MPH 17”5.2 FT311”2.9 FT3See Note 2

125 MPH 20”7.2 FT314”4.7 FT3

80 MPH 14”3.5 FT39”1.9 FT3

90 MPH 17”5.2 FT311”2.9 FT3

1.2M 110 MPH 72”39”19”6.5 FT372”39”13”4.1 FT3Mo. 611685101

110 MPH 22”8.7 FT315”5.4 FT3See Note 2

125 MPH 25”11.2 FT319”8.7 FT3

PIER FOUNDATIONS DEEP FROST LINE FOUNDATIONS

POLE SPECIFICATIONS:

3”O.D. x .120 Wall x 68”Long Steel w/Powder Paint Finish - CM PN 611652731.

3”O.D. x .148 Wall x 72”Long Steel w/Powder Paint Finish - CM PN 611685101.

1. Pole and foundation design based on the following criteria: (a) Uniform Building Code Exposure C and 1.5 stability factor, (b) Vertical

soil pressure of 2000 pounds per square foot, (c) Lateral soil pressure of 400 pounds per square foot, (d) Concrete compressive

strength of 2500 pounds per square inch in 28 days.

2. If Model 6851 (3”x 72”) is used for 90cm and 1.0m Antenna Dimension “B”on pier foundation must be increased by 4”and concrete

volume will increase accordingly.

3. CAUTION - The foundation design shown does not represent an appropriate design for any specific locality since soil conditions vary

and may not meet design criteria given in Note 1. You should consult a local professional engineer to determine your soil conditions

and appropriate foundation.

ITEM DESCRIPTION QTY.

1 MOUNT ASSY AZ-EL CAP 2⁷⁄₈”-3”MAST 1

3 CLAMP HALF 2⁷⁄₈”-3”AZ-EL 2

4 HOUSING AZ-EL CAP MOUNT 1

5 BOLT, M8 x 130mm HEX HEAD 1

6 NUT, SWIVEL, SPECIAL M8 1

7 BOLT, M8 x 20mm, CRG 3

8 BOLT, M8 x 30mm, CRG 4

9 WASHER, ⁵⁄₁₆”FLAT 7

10 NUT, M8, HEX 1

11 WASHER, SPHER., DELRIN 1

12 NUT, M8 ELASTIC STOP (ESNA) 8

13 LABEL, ELEVATION ADJUSTMENT 1

ASSEMBLY AND INSTALLATION

The AZ/EL Cap Mount can be installed on a 2³⁄₈”or 3”

O.D. ground tube, roof, or wall mount depending on

model. The appropriate mount should be assembled and

in place before installing the AZ/EL cap.

As the AZ/EL cap mount is factory preassembled, there

is no assembly required for the mount.

ASSEMBLING ANTENNA TO CAP MOUNT

Install four M8 x 60mm (2³⁄₈”) carriage bolts (1) into holes

in center of reflector and assemble to cap mount flanges.

(Reference Fig. 2.0) Install four lock washers (2) and hex

nuts (3) on bolts.Tighten and torque to 11 ft.-lbs (15 N-m).

IMPORTANT! Bottom feed leg hole to be located as

shown in Fig. 2.0.

INSTALLING CAP MOUNT ON MOUNT TUBE

Lift reflector/cap mount assembly and slide cap mount

onto mount tube (Reference Fig. 2.1). Swivel antenna

assembly until reflector faces southward.

Tighten M8 clamp nuts so that the antenna assembly is

held stationary on tube, but can be swiveled with slight

pressure.

FEED AND FEED LEGS INSTALLATION

Assemble feed assembly and feed legs to antenna as

shown in Fig. 2.2.

Insert bottom feed leg (4) into hole in bottom edge of

antenna (5). NOTE: Bottom feed leg is the one with a

slight bend on one end of leg, lance on opposite end,

and is shorter than the two side legs (6).

Install side legs (6) to antenna. From back side of antenna,

secure with M6 x 30mm (¹⁄₄”x 1³⁄₁₆”) hex bolts and

¹⁄₄”special (⁷⁄₈”O.D.) flat washer (7 & 8). Do not tighten.

Insert bottom leg (4) into hole on center of junction

block* (9) until lance on leg is engaged.

Insert one side leg (6) into junction block* (9) and secure

with M6 x 30mm (¹⁄₄”x 1³⁄₁₆”) hex bolts and ¹⁄₄”flat

washer (7 & 10). Do not tighten.

Insert opposite side leg (6) into junction block* (9)

and secure with M6 x 30mm hex bolt and ¹⁄₄”flat washer

(7 & 10). Tighten and torque bolts securing side legs

to junction block and antenna to 4 ft-lbs (5.4 N-m).

Tighten self tapping screw (31) with bottom feed leg

(make sure screw engages hole in leg).

Refer to feed instructions packed with feed to assemble

and install the feed assembly.

*NOTE: Junction block (9) is packed with feed assembly.

ANTENNA

MOUNT

ASSEMBLY

BOTTOM FEED LEG HOLE

FIG. 2.0 - ASSEMBLING REFLECTOR TO AZ/EL

CAP MOUNT

MOUNT

TUBE

MOUNT

ASSEMBLY

CLAMP

NUT

FIG. 2.1 - INSTALLING ANTENNA/MOUNT

ASSEMBLY ONTO MOUNT TUBE

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80

180

190

200

210

220

230

240

250

260

270

180

170

160

150

140

130

120

110

270

[AZIMUTH COLUMN READING WHEN EARTH STATION IS WEST OF SATELLITE]

[AZIMUTH COLUMN READING WHEN EARTH STATION IS EAST OF SATELLITE]

EARTH STATION ANTENNA LATITUDE (IN DEGREES NORTH OR SOUTH OF EQUATOR)

EARTH STATION ANTENNA AZIMUTH (IN DEGREES)

" L" IS THE DIFFERENCE BETWEEN THE EARTH STATION

ANTENNA SITE LONGITUDE AND THE SATELLITE LONGITUDE

AZIMUTH CHART

CHART 3

0°

5°

10°

15°

20°

25°

30°

35°

40°

45°

50°

55°

60°

65°

70°

75°

NORTHERN

HEMISPHERE

SOUTHERN

HEMISPHERE

WEST EASTWESTEAST

360

350

340

330

320

310

300

290

280

270

IMPORTANT: Sealing RF coaxial connector:

The copper-plated center conductor in the RF coaxial cable,

which connects receiver to LNB, can experience electrolysis

corrosion at the LNB connector. Moisture and DC current

cause this type of corrosion. To prevent corrosion, apply a

moderate coat of silicon grease to the center conductor and

then wrap the entire connection with COAX-SEAL®tape

to seal.

(COAX-SEAL®IS A REGISTERED TRADEMARK OF UNIVERSAL ELECTRONICS, INC.)

GROUNDING

Ground pole, antenna mount assembly and feed cables

must be grounded in accordance with current National

Electric Code and local electric codes to protect from

surges due to nearby lightning strikes.The illustration below

illustrates a typical grounding method.

Clamps that provide a solid connection between ground

wire and ground source should be used.

ALL INSTALLATIONS TO CONFORM TO

THE LATEST ISSUE OF THE

NATIONAL ELECTRIC CODE.

FIG. 2.3 - GROUNDING FEED CABLES

*Ground Block

NEC SECTION 810-20

*Groundwire

NEC SECTION 810-20

*Items Not

Supplied

*Coaxial Cable

From LNB

*Coaxial Cable

To Receiver

FIG. 2.2 - INSTALLATION OF FEED AND FEED SUPPORT LEGS TO ANTENNA

0 1020304050607080

EARTH STATION LATITUDE IN DEGREES NORTH OR SOUTH OF EQUATOR

ELEVATION IN DEGREES

" L" IS THE DIFFERENCE BETWEEN THE EARTH STATION

ANTENNA SITE LONGITUDE AND THE SATELLITE LONGITUDE

ELEVATION CHART

CHART 2

5°

10°

15°

20°

25°

30°

35°

40°

45°

50°

55°

60°

65°

70°

75°

50°

125°

120°

115°

110°

105°

100°

95°

90°

85°

80°

75°

70°

65°

50°

47.5°

45°

42.5°

40°

37.5°

35°

32.5°

30°

27.5°

25°

47.5°

45°

42.5°

40°

37.5°

35°

32.5°

30°

27.5°

25°

11 13

CLAMP

SURFACE

Junction Block (9)

ANTENNA ALIGNMENT PROCEDURE

Alignment with the satellite is obtained by setting polar-

ization, elevation and azimuth. Charts 1, 2 & 3 are to

determine the values for your earth station antenna site.

“∆L”is the difference between the earth station antenna

site longitude and the satellite longitude. Use “∆L”and

your earth station latitude to obtain polarization,

elevation or azimuth setting.

POLARIZATION OF FEED

Loosen feed horn M6 clamp bolts (12) and turn feed

clockwise or counterclockwise, depending on being east

or west of the satellite as shown on Chart 1. Align marks

on the horn clamp and appropriate mark on the horn

scale clamp is installed with arrow pointed toward antenna

as shown in Fig. 3.0. Keep cable groove on header in the

down position when adjusting polarization. NOTE:

Single Polarity Feed is factory assembled for vertical

polarity. If horizontal polarity is desired, rotate feed

90˚(clockwise or counterclockwise).

ELEVATION

To obtain elevation value for your satellite, refer to chart

2. Loosen bolts in curved slots of AZ/EL Housing ¹⁄₈ to

¹⁄₄ a turn (Ref. Fig. 3.1). Turn elevation adjustment bolt

clockwise to decrease elevation and counterclockwise

to increase elevation. Align the edge of clamp with

appropriate mark at the desired elevation reading

(Ref. Fig. 3.1). NOTE: Degree values shown on eleva-

tion scale are Beam; that is when the antenna face is

vertical mechanical elevation is 0˚, while the Beam

Elevation (signal) is 22.6˚.This will be an approximate

setting. Optimum setting achieved when fine tuning.

Temporarily tighten elevation bracket nuts.

AZIMUTH

Use Chart 3 and determine your azimuth setting. Values

in chart must be adjusted for magnetic deviation for your

location for correct compass reading. Rotate the antenna

and mount, pointing it to the correct compass reading for

your location and satellite (Ref. Fig. 3.2). Slowly sweep

the antenna in azimuth until a signal is found. If the

desired signal is not found, increase or decrease

elevation setting and repeat the azimuth sweep.

FINE TUNING

Use a signal strength measuring device for final adjust-

ments to obtain maximum antenna performance.

Alternate between elevation and azimuth fine tuning to

reach maximum signal strength until no improvement

can be detected. Tighten all hardware. Torque for M8

round head, square neck bolts is 15 N-m (11 ft-lbs).

-40 +40

ALIGNMENT

MARK

ARROW

FIG. 3.0

FEED

ASSEMBLY

FIG. 3.0 - POLARIZATION OF THE FEED

10˚

20˚

30˚

40˚

50˚

60˚

70˚

80˚

90˚

ELEVATION ADJUSTING BOLT

Align this edge

with desired

elevation setting

(shown at 22.5˚)

POINTER

PIVOT BOLT

AZ/EL

HOUSING

CLAMP

BOLT

20˚

30˚

40˚

FIG. 3.1 - SETTING ANTENNA ELEVATION

AZIMUTH

FIG. 3.2 - ROTATING ANTENNA FOR AZIMUTH

0 1020304050607080

ANTENNA

FEED

NORTHERN SOUTHERN

POLARIZATION CHART SIGN VALUES (+ OR -) HEMISPHERE HEMISPHERE

ANTENNA SITE WEST OF SATELLITE LONGITUDE - +

ANTENNA SITE EAST OF SATELLITE LONGITUDE + -

EARTH STATION LATITUDE IN DEGREES NORTH OR SOUTH OF EQUATOR

POLARIZATION + OR –(SEE ILLUSTRATION)

" L" IS THE DIFFERENCE BETWEEN THE EARTH STATION

ANTENNA SITE LONGITUDE AND THE SATELLITE LONGITUDE

POLARIZATION CHART

+–

CHART 1

75°

60°

40°

30°

20°

15°

10°

5°

Feed Rotation (Facing Antenna)

For + Polarization, Rotate CCW (Counter Clockwise)

For - Polarization, Rotate CW (Clockwise)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Antena de Andrew

Andrew

Andrew DB222 Series Manual de usuario

Andrew

Andrew CommScope Metro Cell Series Manual de usuario

Andrew

Andrew 7.6-Meter ESA Instrucciones de funcionamiento

Andrew

Andrew Grid Sectional Parabolic Antennas Manual de usuario

Andrew

Andrew ES45T Instrucciones de instalación y funcionamiento

Andrew

Andrew 960 .96 Meter Class II Manual de usuario

Andrew

Andrew Type 183 Manual de usuario

Andrew

Andrew ATC200-Lite Teletilt Manual de usuario

Andrew

Andrew DB404 Manual de usuario

Andrew

Andrew ES76PK-1 Instrucciones de instalación y funcionamiento

Andrew

Andrew 75E LFL Antenna Manual de usuario

Andrew

Andrew 174100 Manual

Andrew

Andrew 9.3-Meter ESA Manual de usuario

Andrew

Andrew OMACS3000 Manual de usuario

Andrew

Andrew 18T Series Manual de usuario

Andrew

Andrew DB201 Series Manual de usuario

Andrew

Andrew 75E LFL Antenna Manual de usuario

Andrew

Andrew DB860 Manual de usuario

Andrew

Andrew APC300 Manual de usuario

Andrew

Andrew 5.6-Meter ESA Manual de usuario

Andrew

Andrew ValuLine VHLP2-10-IT1B Manual de usuario

Andrew

Andrew CommScope Sentinel SHP 4 Series Manual de usuario

Andrew

Andrew OM24SNG-RC Guía de instalación

Andrew

Andrew 7.3-Meter ESA Instrucciones de instalación y funcionamiento

Manuales populares de Antena de otras marcas

Alfa Network

Alfa Network APA-L01 Manual de usuario

Naval

Naval PR-422CA Manual de usuario

Feig Electronic

Feig Electronic ID ISC.ANTH200/200 Series Manual de usuario

TERK Technologies

TERK Technologies TV44 Manual de usuario

Directive Systems & Engineering

Directive Systems & Engineering DSE2324LYRMK Manual de usuario

HP J8999A Manual de usuario

MobilSat

MobilSat MSP-S Manual de usuario

Steren

Steren ANT-UHF 13 Manual de usuario

Novatel

Novatel 600-G Manual de operación

Radio Shack

Radio Shack Amplified VHF/UHF/FM Indoor Antenna Manual de usuario

TRENDnet

TRENDnet TEW-AO12O Manual de usuario

Radio Shack

Radio Shack 15-1837 Manual de usuario

CommScope

CommScope CMAX-OMFX-43M-I53 Manual de usuario

Ramsey Electronics

Ramsey Electronics DAP25 Manual de usuario

COBHAM

COBHAM SAILOR 800 VSAT Manual de uso y cuidado

Trango Systems

Trango Systems AD900-9 Manual de usuario

Steren

Steren ANT-100 Manual de usuario

Proxim

Proxim 5054-PA-23 Manual de usuario
