Anchor MiniVox PB-25T Manual de usuario

MINI-VOX

PUBLIC ADDRESS SYSTEM

Anchor Audio’s MiniVox public address system is a lightweight, compact, conveniently battery operated unit widely praised by users

across all industries. The package includes wireless microphone upgrade options and a shoulder strap for mobility. The MiniVox is

great for fire fighters, law enforcement, search and rescue squads, tour guides or any person needing voice amplification.

FOR MORE INFORMATION PLEASE CALL: 800.262.4671

www.anchoraudio.com

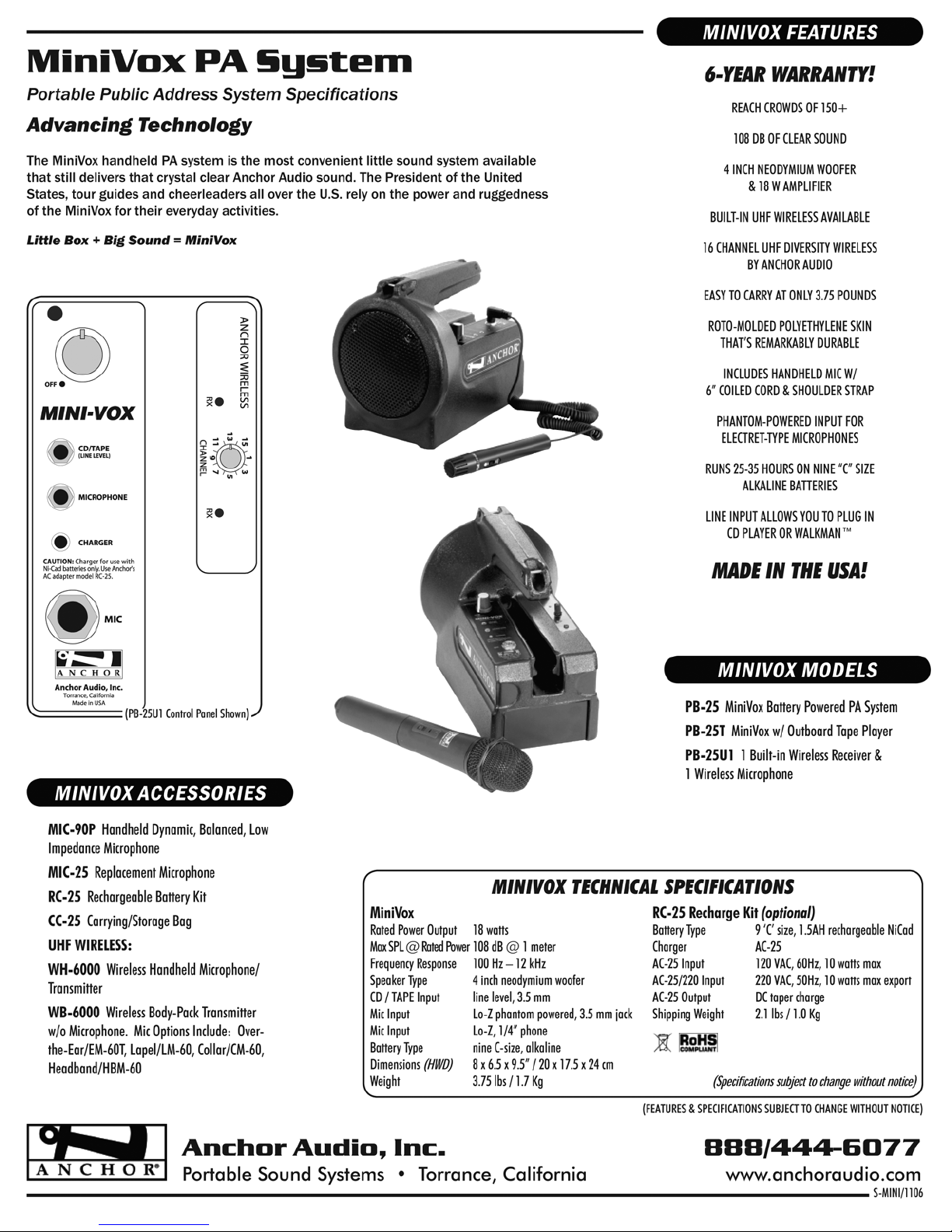

SPECIFICATIONS

MiniVox

Rated Power Output 18 Watts

Max SPL@Rated Power 108 dB @ 1 meter

Frequency Response 100Hz - 12Hz

Speaker Type 4” Neodymium woofer

CD/Tape Input line level, 3.5 mm

Mic Input Lo-Z phantom powered, 3.5 mm jack

Mic Input Lo-Z, 1/4” phone

Battery Type Nine C-size, alkaline

Dimensions (HWD) 8 x 6.5 x 9.5” / 20 x 17.5 x 24 cm

Weight 3.75 lbs. / 1.7 Kg.

RC-25 Recharge Kit (optional)

Battery Type 9 ‘C’ size, 1.5AH rechargeable NiCad

Charger AC-25

AC-25 Input 120 VAC, 60Hz, 10 Watts max

AC-25/220 Input 220 VAC, 50Hz, 10 Watts max export

AC-25 Output DC taper charge

Shipping Weight 2.1 lbs. / 1.0 Kg.

MADE IN THE USA!

108DB of Clear Sound

Reach crowds of 150+

Lightweight and Compact

Operates on Nine “C” Cell Batteries for up to 25-35 hrs.

Built-in UHF Wireless Receiver

16 Channel UHF Diversity Wireless by Anchor Audio

4” Neodymium Woofer and 18W Amplifier

Includes Handheld Mic w/6’ coiled cord and Shoulder Strap

Line Input allows you to plug in CD player or Walkman™

Phantom-powered input for electret-type microphone

Optional Rechargeable Kit

6-YEAR WARRANTY! MINIVOX PACKAGE INCLUDES:

• MiniVoxPAspeakerUnit

• HandheldWiredMicrophone(6”coil)

• MiniVoxCarryingBag

• WB-6000BodyPack andchoiceofmic:

- LM-60 Lapel Mic, HBM-60 Headband Mic, CM-60 Collar Mic

or EM-60T UltraLite Mic
