Analog Devices EVAL-ADV7282MEBZ Manual de usuario

ADV7282-M

Installation Guide

Rev. A

March 2013

ADV7282-M Installation Guide

Rev. A, March 2013 2

TABLE OF CONTENTS

Introduction to the ADV7282-M Installation Guide...................................................................................................... 3

Audience..........................................................................................................................................................................................3

Disclaimer .......................................................................................................................................................................................3

Trademark and Service Mark Notice...........................................................................................................................................3

1. Description of the ADV7282-M Evaluation Board................................................................................................ 4

2. Setting Up the ADV7282-M Evaluation Board...................................................................................................... 6

2.1. Download and Install an FTP Client ...........................................................................................................................6

2.2. Download ADV7282-M Files From ADI FTP Site....................................................................................................6

2.3. Install the DVP Eval Program.......................................................................................................................................7

2.4. Load the ADV7282-M Script Files...............................................................................................................................8

2.5. Power up the ADV7282-M Evaluation Board ............................................................................................................9

2.6. Program the ADV7282-M Evaluation Board .............................................................................................................9

List of Figures.................................................................................................................................................................... 12

List of Tables ..................................................................................................................................................................... 12

Revision History ............................................................................................................................................................... 12

ADV7282-M Installation Guide

Rev. A, March 2013 3

INTRODUCTION TO THE ADV7282-M INSTALLATION GUIDE

The ADV7282-M Installation Guide describes the ADV7282-M evaluation board; and provides instructions for setting up the ADV7282-

M evaluation board, installing the required ADV7282-M software, and running the scripts needed to operate the ADV7282-M evaluation

board.

AUDIENCE

The ADV7282-M Installation Guide is intended for the use of the person installing an ADV7282-M evaluation board.

DISCLAIMER

The information contained in this document is proprietary of Analog Devices Inc. (ADI). This document must not be made available to

anybody other than the intended recipient without the written permission of ADI.

The content of this document is believed to be correct. If any errors are found within this document, or if clarification is needed, contact

the local FAE.

TRADEMARK AND SERVICE MARK NOTICE

The Analog Devices logo is a registered trademark of Analog Devices, Inc. All other brand and product names are trademarks or service

marks of their respective owners.

ADV7282-M Installation Guide

Rev. A, March 2013 4

1. DESCRIPTION OF THE ADV7282-M EVALUATION BOARD

Analog video is fed into the analog inputs (Ain1 to Ain6) of the ADV7282-M evaluation board. The ADV7282-M evaluation board can be

configured to receive many different analog video formats (refer to Table 1). The analog video is fed into the ADV7282-M video decoder

which converts it into a MIPI CSI-2 output stream.

The MIPI CSI-2 output of the ADV7282-M consists of one differential data lane (D0+ and D0-) and one differential clock lane (Clk+ and

Clk-). These are output to the SMA connectors on the evaluation board.

Table 1. Acceptable Analog Video Input Formats to ADV7282-M Evaluation Board

Ain1 Ain2 Ain3 Ain4 Ain5 Ain6

Single-ended CVBS

(NTSC, PAL, SECAM)

SE CVBS1 SE CVBS2 [1] [1] [1] [1]

Differential CVBS [2] [2] DIFF CVBS1+ DIFF CVBS1- DIFF CVBS2+ DIFF CVBS2-

S-Video (YC)

S_Video1(Y)

S_Video1 (C)

[3]

YPbPr [4] [4] [4] No No No

Note: The shaded areas in Table 1indicate that modifications need to be made to the ADV7282-M evaluation board before that particular

video input standard can be input to that particular analog input pin.

[1] These inputs can be configured to receive single-ended CVBS, but the user needs to change some resistor values on the ADV7282-M

evaluation board.

[2] Ain1 and Ain2 can be configured to receive differential CVBS, but the user needs to change some resistor values on the ADV7282-M

evaluation board.

[3] These inputs can be configured to receive YC (S-video), but the user needs to change some resistor values on the ADV7282-M

evaluation board.

[4] These inputs can be configured to receive component (YPbPr), but the user needs to change some resistor values on the ADV7282-M

evaluation board.

ADV7282-M Installation Guide

Rev. A, March 2013 5

Figure 1. ADV7282-M Evaluation Board

LED D6: Indicates

power supply is ok

7.5V Power

Supply

Connector

USB

Connector

LED D7:

Indicates USB

connection

is ok

Ain1:

Single-ended

analog input

Positive MIPI

CSI-2 data

output lane

SMA connector

Positive MIPI

CSI-2 clock

output lane

SMA connector

ADV7282-M

Video Decoder

Negative MIPI

CSI-2 data

output lane

SMA connector

Negative MIPI

CSI-2 clock

output lane

SMA connector

Ain2:

Single-ended

analog input

Ain3 and 4:

Differential

analog inputs

Ain5 and 6:

Differential

analog inputs

I2C Headers

ADV7282-M Installation Guide

Rev. A, March 2013 6

2. SETTING UP THE ADV7282-M EVALUATION BOARD

The Analog Devices (ADI) DVP Eval program and ADV7282-M script files are needed to operate the ADV7282-M evaluation board. The

DVP Eval program and ADV7282-M script files are available on an ADI File Transfer Protocol (FTP) site.

The following setup process is recommended, and is described in detail in Section 2.1 to Section 2.6.

1. Download and install an FTP client.

2. Download the DVP Eval program and ADV7282-M script files from the ADI FTP site.

3. Install the DVP Eval program.

4. Load the ADV7282-M script files.

5. Power up the ADV7282-M evaluation board.

6. Program the ADV7282-M evaluation board.

2.1.DOWNLOAD AND INSTALL AN FTP CLIENT

Download and install an FTP client such as FileZilla in order to access the ADI FTP site.

1. Go to the http://filezilla-project.org/download.php?type=client website.

2. Download the FileZilla FTP client .exe installation file.

3. When the download is completed, run the .exe installation file and follow the onscreen instructions.

2.2.DOWNLOAD ADV7282-M FILES FROM ADI FTP SITE

The DVP Eval program and ADV7282-M script files are available on the ADI FTP site.

1. Open the FTP client, for example, FileZilla.

2. A quick connect bar appears near the top of the FileZilla client window. Enter the following information. (Note that the boxes

are case sensitive.)

a. In the Host box, enter ftp.analog.com.

b. In the Username box, enter adv728x.

c. In the Password box enter1dN62jy.

d. Leave the Port box blank.

3. Press the Quickconnect button.

FileZilla then shows two panes (refer to Figure 2). The left pane displays the Local Site Pane (that is, your computer). The right

pane displays the Remote Site Pane (that is, the ADI FTP site).

ADV7282-M Installation Guide

Rev. A, March 2013 7

Figure 2. Image of ADI ADV7282-M FTP Site

4. On the Local Site Pane, navigate to where you want to drop the ADV7282-M files.

5. On the Remote Site Pane, select the ADV7282-M folder and drag it to the desired location in the Local Site Pane.

The files and folders on the ADI FTP site then copy to your computer.

Note: The Transfer Queue Pane shows the progress of this copying.

6. On the Remote Site Pane, select the Install DVP Eval Latest Source 10-14-11.exe and drag it to the desired location in the Local

Site Pane.

2.3.INSTALL THE DVP EVAL PROGRAM

Note: If the DVP Eval program is already installed on your computer, then this section can be skipped.

1. When the transfer from the FTP site is complete (as described in Section 2.2), double click on the Install DVP Eval Latest

Source 10-14-11.exe file.

2. A window appears showing a software license agreement. After you have read the agreement, press the I Agree button.

3. A new window appears asking if you want to add Desktop and Start Menu shortcuts. Press the Next button.

4. A new window appears (refer to Figure 3), prompting you to select the installation destination folder. Press the Install button.

Note: It is strongly recommended to use the default destination folder. Selecting a different folder can cause the DVP Eval

program to not install correctly in some versions of Windows.

Local Site

Pane (your

computer)

Remote Site Pane

(ADI FTP site)

Enter ADI FTP site details

here. (See Step 2 above.)

Transfer Queue Pane

Shows progress of file transfers from ADI

FTP site to your computer

ADV7282-M Installation Guide

Rev. A, March 2013 8

Figure 3. Installation Destination for DVP Eval Program

5. Restart your computer after the DVP Eval program is installed.

2.4.LOAD THE ADV7282-M SCRIPT FILES

This section describes how to load the ADV7282-M script files to the DVP Eval program.

1. Open the ADV7282-M folder that you downloaded from the ADI FTP site.

2. Open the Software for Rev.A Evaluation Board folder in the ADV7282-M folder.

3. Copy the folder called ADV7282M_CUST to the following directory:

C:\Documents and Settings\USER_NAME\My Documents\Analog Devices\DVP Eval Latest Source 10-14-11\xml\New Boards.

Note: This directory may be slightly different depending on where you installed the DVP Eval program.

4. To open the DVP Eval program, select Start -> Analog Devices -> DVP Eval Latest Source 10-14-11.

5. Select File -> Update Boards.

Figure 4. Update Board Files on DVP Eval Program

A number of black command prompt windows appear and then disappear. Finally, a window appears with the message “update

boards successful”. Press the OK button.

The ADV7282-M script files have been added to the DVP Eval program.

6. Exit the DVP Eval program.

ADV7282-M Installation Guide

Rev. A, March 2013 9

2.5.POWER UP THE ADV7282-M EVALUATION BOARD

1. Connect a mains cable to the 7.5 V supply cable included in the ADV7282-M evaluation kit.

2. Connect the 7.5 V supply cable to Jumper J8 on the ADV7282-M evaluation board. When this is done correctly, LED D6 turns

on (refer to Figure 1).

3. Connect the USB cable included in the ADV7282-M evaluation kit to the computer where you installed the DVP Eval program

and ADV7282-M script files. This cable is used to send commands from your computer to the ADV7282-M evaluation board.

4. Connect the other end of the USB cable to Jumper J7 of the ADV7282-M evaluation board. When this is done correctly, LED D7

turns on (refer to Figure 1).

5. Connect the analog video input(s) to the Ain inputs of the ADV7282-M evaluation board. Refer to Table 1 for information on

how to connect these inputs.

6. Connect SMA cables to the MIPI CSI-2 output connectors and feed these to a sink device.

Notes:

•The I2C lines to the ADV7282-M can be accessed via test points on the evaluation board. Refer to Figure 1.

•Even after the ADV7282-M evaluation board is powered up, the 28.63636 MHz crystal (Y1) will not oscillate until the

ADV7282-M is programmed (refer to Section 2.6).

2.6.PROGRAM THE ADV7282-M EVALUATION BOARD

1. To run the DVP Eval Latest Source application, select Start-> All Programs -> Analog Devices -> DVP Eval Latest Source 10-14-

11.

2. Press the Choose Board button on the top left of the DVP Eval program window and the Board Selector window appears (refer

to Figure 5).

Figure 5. Board Selector Window of DVP Eval Program

3. Select ADV7282M_CUST in the Rx section of the Board Selector window.

4. Select None in the MotherBoard section.

5. Select None in the Tx section.

6. Press the Load button. A window similar to that shown in Figure 6 appears.

ADV7282-M Installation Guide

Rev. A, March 2013 10

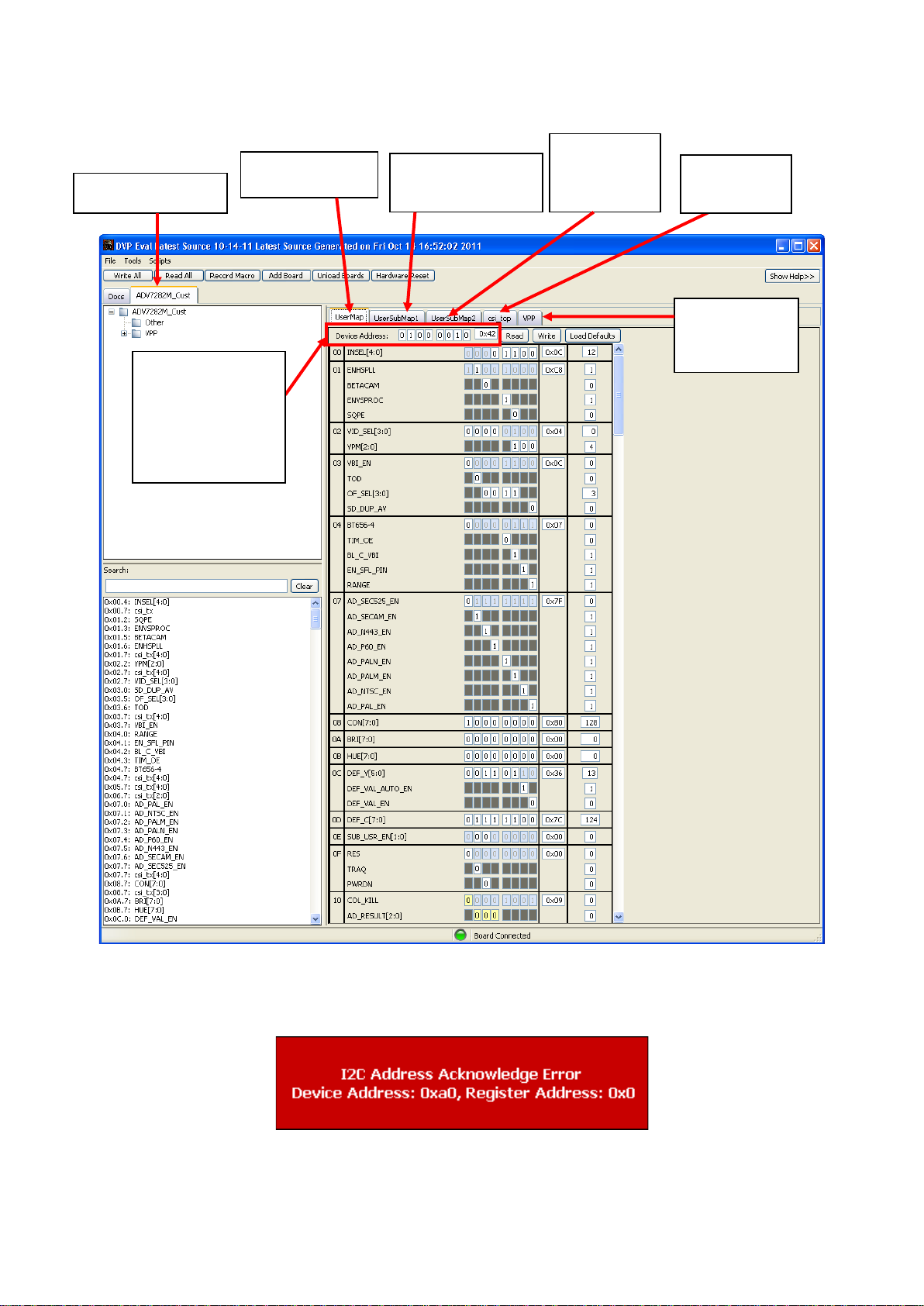

Figure 6. DVP Eval Program After Loading ADV7282-M Board

Note: A warning message similar to that shown in Figure 7 appears. This is expected as the I2C slave address of the CSI_Top

map has not yet been programmed. This warning will disappear after any script is run (see step 7).

Figure 7. Warning Message That Appears After Loading ADV7282-M Board

Selects ADV7282-M

Selects Main Map

of ADV7282-M

Selects

Interrupt/VDP Sub

Map of ADV7282-M

Selects

User Sub

Map 2 of

ADV7282-M

ALSB pin of

ADV7282-M tied

high on evaluation

board. Therefore,

I2C device address

of ADV7282-M set to

0x42.

Selects MIPI

CSI-2 Map of

ADV7282-M

Selects Video

Post Processor

Map of

ADV7282-M

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Analog Devices

Analog Devices

Analog Devices EVAL-ADPD1081Z-PPG Manual de usuario

Analog Devices

Analog Devices DC2874A-A Guía de configuración rápida

Analog Devices

Analog Devices EVAL-AD4114 Manual de usuario

Analog Devices

Analog Devices EVAL-ADG5404FEBZ Manual de usuario

Analog Devices

Analog Devices ADXRS450 Manual de usuario

Analog Devices

Analog Devices EVAL-ADRF5700 Manual de usuario

Analog Devices

Analog Devices Linear Technology DC2668A Guía de configuración rápida

Analog Devices

Analog Devices Linear Technology DC2432B Guía de configuración rápida

Analog Devices

Analog Devices AD-FMCMOTCON1-EBZ Manual de usuario

Analog Devices

Analog Devices ADP5350-EVALZ Manual de usuario

Analog Devices

Analog Devices EVAL-AD7606BFMCZ Manual de usuario

Analog Devices

Analog Devices UG-012 Manual de usuario

Analog Devices

Analog Devices EVAL-AD7606C16FMCZ Manual de usuario

Analog Devices

Analog Devices EZ-Extender ADSP-CM408 Series Manual de usuario

Analog Devices

Analog Devices UG-547 Manual de usuario

Analog Devices

Analog Devices EV-ADUCRF101 Manual de usuario

Analog Devices

Analog Devices SHARC EZ-Extender Manual de usuario

Analog Devices

Analog Devices ADAR1000-EVALZ Manual de usuario

Analog Devices

Analog Devices EVAL-ADXL362Z-MLP Manual de usuario

Analog Devices

Analog Devices EZ-KIT LITE ADSP-2191 Manual de usuario

Analog Devices

Analog Devices iCoupler ADuM4160 Manual de usuario

Analog Devices

Analog Devices EVAL-AD5933EBZ Manual de usuario

Analog Devices

Analog Devices Linear Technology DC2691A Manual de usuario

Analog Devices

Analog Devices EVAL-ADP2311 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
