To u c h Pa n e l s a n d A c c e s s o r i e s

VTM-D15/A

15" MultiMedia Touch Panel Systems

AMX Limited Warranty and Disclaimer

AMX Corporation warrants its products to be free of defects in material and workmanship under normal use for

three (3) years from the date of purchase from AMX Corporation, with the following exceptions:

• Electroluminescent and LCD Control Panels are warranted for three (3) years, except for the display and touch

overlay components that are warranted for a period of one (1) year.

• Disk drive mechanisms, pan/tilt heads, power supplies, MX Series products, and KC Series products are

warranted for a period of one (1) year.

• Unless otherwise specified, OEM and custom products are warranted for a period of one (1) year.

• Software is warranted for a period of ninety (90) days.

• Batteries and incandescent lamps are not covered under the warranty.

This warranty extends only to products purchased directly from AMX Corporation or an Authorized AMX Dealer.

AMX Corporation is not liable for any damages caused by its products or for the failure of its products to perform.

This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX Corporation is not

liable for any claim made by a third party or by an AMX Dealer for a third party.

This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort

claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of

liability cannot be waived or amended by any person. This limitation of liability will be effective even if AMX

Corporation or an authorized representative of AMX Corporation has been advised of the possibility of any such

damages. This limitation of liability, however, will not apply to claims for personal injury.

Some states do not allow a limitation of how long an implied warranty last. Some states do not allow the limitation or

exclusion of incidental or consequential damages for consumer products. In such states, the limitation or exclusion of

the Limited Warranty may not apply. This Limited Warranty gives the owner specific legal rights. The owner may

also have other rights that vary from state to state. The owner is advised to consult applicable state laws for full

determination of rights.

EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, AMX CORPORATION MAKES NO

OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AMX CORPORATION

EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY

IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS

LIMITED WARRANTY.

Table of Contents

VTM-D15/A 15" MultiMedia Touch Panel Systems

Table of Contents

MultiMedia Touch Panel ...........................................................................................1

MultiMedia System Components....................................................................................... 1

VTM-D15/A and VTM-D15/AB Specifications ................................................................... 3

VTM-D15/A and VTM-D15/AB Rear Components ............................................................ 5

AXB-TPI/3 Specifications .................................................................................................. 6

AXB-TPI/3 Components .................................................................................................... 9

VTM-D15/A Sample Configuration .................................................................................. 10

Installation and Wiring ...........................................................................................11

Setting up the AXB-TPI/3 ................................................................................................ 11

Installing the input modules.................................................................................................... 11

Removing input modules........................................................................................................ 11

Mounting the TPI/3 in an equipment rack .............................................................................. 12

Setting up the Panel ........................................................................................................ 12

Table Top Installation (VTM-D15/A and D15/AS) ........................................................... 13

Installing the Table Top support bracket ................................................................................ 13

Connecting the cables on a VTM-D15/A table top panel ....................................................... 15

Surface Mount Installation (VTM-D15/AB and D15/ASB) ............................................... 15

Installing the Surface Mount support bracket......................................................................... 15

Connecting the cables on a VTM-D15/AB surface mount panel............................................ 17

Wiring the AXB-TPI/3 ...................................................................................................... 18

Preparing captive wires.......................................................................................................... 18

Wiring guidelines.................................................................................................................... 19

Using the AXlink connector for data and power ..................................................................... 19

Using the VGA IN DB-15 (male) high-density connector ....................................................... 20

Connecting the MultiMedia Components ........................................................................ 20

Configuration and Setup ........................................................................................23

VTM-D15/A Startup and Setup Procedures .................................................................... 23

Front Panel buttons and indicators LEDs............................................................................... 23

Setting Up Serial Communication from PC to the TPI/3.................................................. 24

Setting Up Serial procedures ................................................................................................. 24

Using AXCESSX for serial communication ............................................................................ 24

Using HyperTerminal for serial communication ..................................................................... 25

Setting up the VTM-D15/A touch device ................................................................................ 26

Setting the Output Resolution ................................................................................................ 27

Calibrating the Monitor ........................................................................................................... 28

ii VTM-D15/A 15" MultiMedia Touch Panel Systems

Table of Contents

Setting Up AXlink Communication from Master to the TPI/3 .......................................... 28

Setting Up AXlink procedures ................................................................................................ 28

Using AXCESSX for AXlink communication .......................................................................... 29

Using HyperTerminal for AXlink communication.................................................................... 29

Setting up the VTM-D15/A touch device through AXlink........................................................ 29

Setting Up NetLinx Communication from PC to the TPI/3 .............................................. 30

Using NetLinx Studio for communication via an Ethernet connection.................................... 30

Using NetLinx Studio for communication via an COM Port.................................................... 32

Upgrading the TPI/3 Firmware ..............................................................................35

Configuration................................................................................................................... 35

Downloading the Firmware ............................................................................................. 35

On Screen Display (OSD) Features ......................................................................37

On Screen Display (OSD) Icons. .................................................................................... 37

Exiting the OSD............................................................................................................... 38

Selecting the Language of the OSD................................................................................ 38

Adjusting Screen Brightness and Contrast ..................................................................... 39

Adjusting Display Performance (Phase and Clock) ........................................................ 39

Adjusting Horizontal and Vertical Screen Position .......................................................... 40

Selecting the Picture Color Temperature ........................................................................ 40

Adjusting Display Color (Red, Green, Blue).................................................................... 41

Adjusting OSD Menu Parameters (OSD Position and Timer)......................................... 41

Adjusting the Picture Sharpness ..................................................................................... 42

Automatic Contrast Adjustment....................................................................................... 43

Optimizing Picture Performance in DOS (Graphic/Text)................................................. 43

Returning (RECALL) to Factory Default Settings............................................................ 44

Exiting the OSD............................................................................................................... 44

Troubleshooting ..................................................................................................... 45

Display Troubleshooting.................................................................................................. 45

Warning Messages and their Meanings.......................................................................... 46

MultiMedia Touch Panel

VTM-D15/A 15" MultiMedia Touch Panel Systems

MultiMedia Touch Panel

The MultiMedia Touch Panel System (VTM-D15/A) comes ready-to-install and ready-to-use, the

MultiMedia system comes in different types of configurations:

The VTM-D15/A provides an impressive blend of vivid color graphics, sharp icons and seamless

video. The TPD3-VID Video Module allows you to input different video sources, such as VCRs,

Satellites, and DVDs into the TPI/3. The AXB-TPI/3 has three slots on the rear panel that can

contain any combination of three types of input modules: Composite video/S-video (TP3-VID),

RGB (TP3-RGB), and VGA (TP3-VGA). The touch input works via a serial device, such as a serial

mouse or touch monitor. This system can be expanded by purchasing additional TPI/3 modules

such as the TP3-VGA (Graphics), TP3-RGB (RGB input), and additional TP3-VID cards. The

TPI/3 allows the use of any combination of three cards.

MultiMedia System Components

•VTM-D15/A • 15" Table Top MultiMedia Touch Panel

•VTM-D15/AB • 15" Surface Mount MultiMedia Touch Panel

•VTM-D15/AS • 15" Table Top System:

VTM-D15/A, AXB-TPI/3, and TP3-VID

•VTM-D15/ASB • 15" Surface Mount System:

VTM-D15/AB, AXB-TPI/3, TP3-VID, and VTM-WMB

VTM-D15/A 15" MultiMedia Touch Panel

Available in Table Top (VTM-D15/A) or Surface/Wall Mount

(VTM-D15/AB) versions. This touch panel has a wide viewing

angle of up to 160 degrees, crisp color with quality depth/con-

trast, and an enhanced touch screen overlay. Receives a VGA

signal through either a Composite or S-Video connector port

on the TP3-VID.

AXB-TPI/3 Touch Panel Interface 3

The unit sends graphics to a touch panel of your choice. The

TPI/3 supports up to three scalable windows, which are

driven by plug-in cards for video and computer graphics. The

MultiMedia system comes pre-installed with a TP3-VID Video

Module.

TP3-VID VIdeo Input Module

This input card provides Composite and S-Video connector

ports that can be used to input a variety of video formats from

different video sources. The TPI/3 comes with three available

module slots, by installing a TP3-VID card, this leaves two

other input slots available for use. With additional modules,

you can mix and match any combination of input cards.

Cont.

MultiMedia Touch Panel

2VTM-D15/A 15" MultiMedia Touch Panel Systems

Power Adapter

Connects to the Power Cord in order to supply power to the

VTM-D15/A touch panel.

Power Cord

Connects to the Power Adapter in order to supply power to

the VTM-D15/A touch panel.

15-pin DB15 VGA Signal Cable

Provides a video signal from the video source to the rear of

the VTM-D15/A touch panel.

8-pin Mini Din to 9-pin DB9 Touch Panel Signal Cable

Provides a touchscreen signal from the VTM-D15/A touch

panel to the panel interface.

Touch Screen Support Bracket and screws

(Table Top Panel ONLY)

Provides upright support for the VTM-D15/A touch panel

when placed on a flat level surface.

VTM-WMB Surface Mount Support Bracket and screw

(ONLY available with either the VTM-D15/ASB system or

stand alone VTM-d15/AB Surface Mount Panel)

Provides support for the VTM-D15/A touch panel when

attached to a vertical surface.

CD-ROM

Provides the touchscreen drivers that are used with the

touch panel.

DB-9 (on COM1/2) 8-pin mini-DIN

(on rear of panel)

Cont.

MultiMedia Touch Panel

VTM-D15/A 15" MultiMedia Touch Panel Systems

VTM-D15/A and VTM-D15/AB Specifications

The Surface Mount MultiMedia Panel (VTM-D15/AB) differs from the Table Top MultiMedia

Panel (VTM-D15/A) only in the use of a VTM-WMB Wall Mount bracket that comes with the

Surface Mount unit. The following table lists specifications and describes the front and rear panel

components of the 15" MultiMedia Touch Panels.

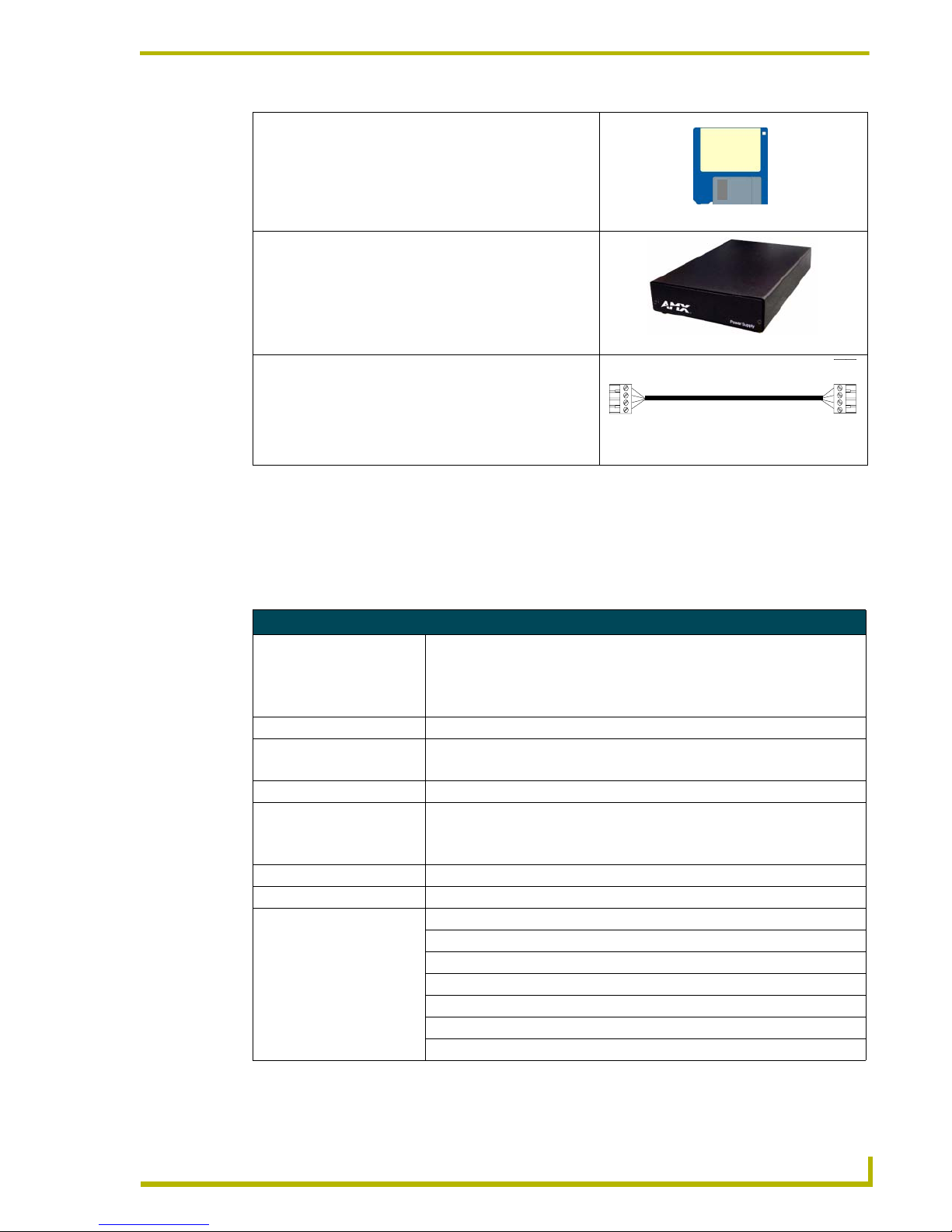

Floppy Disk

Provides the computer monitor drivers.

PSN6.5 Power Supply (optional)

The PSN6.5 NetLinx Power Supply distributes switched-mode

12 VDC power @ 6.5 A to up to three AMX devices.

The PSN6.5 supplies power to the AXB-TPI/3 Touch Panel

Interface 3.

Central Controller to AXlink Connection Cable

(optional)

This 4-pin to 4-pin cable connects the Central Controller to

the AXB-TPI/3 Touch Panel Interface.

Specifications

Dimensions (HWD):

TableTop Panel

Surface Mount Panel

VTM-WMB Bracket

• 14.25" x 15.20" x 6.65" (36.20 cm x 38.60 cm x 16.90 cm)

• 14.75" x 15.20" x 2.87" (37.47 cm x 38.60 cm x 7.30 cm)

• 5.44" x 5.17" x 0.55" (13.82 cm x 13.13 cm x 1.40 cm)

Screen Area Maximum to 1024 x 768 @ 75Hz

Power Consumption • AC: 90 ~ 265 V, 50 ~ 60 Hz

• < 30 W (On), < 8 W (stand-by), and < 5 W (Off)

Memory EPROM Chip

Ratings • Safety - UL, CUL, EPA, CB, TUV/BUART, Nordic

• EMI - FCC-B, CE

• VESA - DCC1/2B, DPMS

Enclosure Metal plate with gray matte finish

On-Screen Properties:

Screens Size 15 inch (38.10 cm) diagonal

Pixel Format 1024 x 768 vertical strip

Pixel Pitch 0.297 mm x 0.297 mm

Brightness 250 cd/m2

Contrast Ratio 300:1

Viewing Angle 160°/160° (minimum)

Color Depth 18-bit

4-pin captive-wire 4-pin captive-wire

MultiMedia Touch Panel

4VTM-D15/A 15" MultiMedia Touch Panel Systems

Specifications (Cont.)

Input Signal:

Horizontal Frequency 31 kHz - 60 kHz

Vertical Frequency 50 Hz - 75 Hz

Maximum Pixel Clock 80 MHz

Front Panel Features:

Power Switch Turns the display On and Off

LED Indicator • Lights-up green when the display is turned On

• Lights up orange when the display is in power-save mode

AUTO Button Adjusts the picture position and performance automatically

UP Button Activates the On-Screen Display menu and moves the menu cursor clockwise

to select menu items.

DOWN Button Activates the On-Screen Display menu and moves the menu cursor counter-

clockwise to select menu items.

Increase Button Activates the On-Screen Display menu. Selects the menu items and adjusts

their features (increases values).

Decrease Button Activates the On-Screen Display menu. Selects the menu items and adjusts

their features (decreases values).

Rear Panel Connectors:

VGA Analog Input 15-pin Mini D-Sub (DB-15) connector for input of VGA signals

TouchScreen Signal Cable 8-pin Mini Din to 9-pin (DB-9) connector for TouchScreen signal communica-

tion between the panel and computer through COM1 or COM2.

PWR 12 VDC 3-pin AC plug provides power to the display. Supplied by connecting

the Power Adapter and Power Cord.

Fold Switch Locks and unlocks the display into an upright position. The adjustable position

works by using the Support Bracket to fix the visible angle of the TouchScreen.

Tilt Angle 10° (degrees from vertical)

User Presets:

• 640 x 350 31.5 KHz 70 Hz IBM VGA

• 640 x 480 31.5 KHz 60 Hz IBM VGA

• 640 x 480 35.0 KHz 67 Hz Macintosh

• 640 x 480 37.9 KHz 72 Hz VGA/72

• 640 x 480 37.5 KHz 75 Hz VGA/75

• 720 x 400 31.5 KHz 70 Hz IBM VGA

• 800 x 600 35.2 KHz 56 Hz SVGA/56

• 800 x 600 37.9 KHz 60 Hz SVGA/60

• 800 x 600 48.1 KHz 72 Hz SVGA/72

• 800 x 600 46.9 KHz 75 Hz SVGA/75

• 832 x 624 49.7 KHz 75 Hz Macintosh

• 1024 x 768 48.4 KHz 60 Hz XGA/60

• 1024 x 768 56.5 KHz 70 Hz XGA/70

• 1024 x 768 60.0 KHz 75 Hz XGA/75

Environmental:

Operating Temperature 0° C to 40° C (32° F to 104° F)

Storage Temperature -20° to 50° C (-4° F to 122° F)

Operating Accessories 10% to 90%

Storage Humidity 10% to 90%

Accessories Refer to the MultiMedia System Components section on page 1 for more

information

MultiMedia Touch Panel

VTM-D15/A 15" MultiMedia Touch Panel Systems

VTM-D15/A and VTM-D15/AB Rear Components

FIG. 1 shows the rear components of the VTM-D15/A 15" Table Top MultiMedia Panel.

FIG. 2 shows the rear components of the VTM-D15/AB 15" Surface Mount MultiMedia Panel.

Specifications (Cont.)

Optional Accessory VTM-WMB: Surface/Wall Mounting Support Bracket

Weight:

VTM-D15/A panel 5.5 kg (12.10 lbs.)

VTM-WMB 2.0 kg (4.40 lbs.)

FIG. 1 Rear component connection locations on the VTM-D15/A

FIG. 2 Rear component connection locations on the VTM-D15/AB

Fold switch

100 V~

240 V~

AC input

12 VDC

input VGA input

Touch Screen

Signal cable

Power

adapter

VGA Input cable - connects from panel

to Monitor Out port on TPI/3

Touch Screen cable - connects

from panel to Mouse Port on TPI/3

12 VDC connector - routes

power from the power cord and

adapter

Power Adapter

12 VDC

input

VTM-WMB

Wall Mount

Bracket

MultiMedia Touch Panel

6VTM-D15/A 15" MultiMedia Touch Panel Systems

AXB-TPI/3 Specifications

The following table lists the specifications for the AXB-TPI/3 and its related input modules.

Specifications

Dimensions (HWD): 3.47" x 13.75" x 8.38" (8.81 cm x 34.93 cm x 21.29 cm)

• With brackets installed for rack-mounting: 3.47" x 19.00" x 8.38"

(8.81 cm x 48.26 cm x 21.29 cm)

• With brackets rotated 45° for under/over/vertical surface mounting:

3.85" x 19.00" x 8.38" (9.78 cm x 48.2 cm x 21.29 cm)

Front Panel:

Output Resolution LEDs 3 red LEDs indicate the output video resolution:

• VGA LED - VGA output display resolution LED lights to indicate an active 640

x 480 (HV) resolution.

• SVGA LED - SVGA output display resolution LED lights to indicate an active

800 x 600 (HV) resolution.

• XGA LED - XGA output display resolution LED lights to indicate an active

1024 x 768 (HV) resolution.

AXlink LED Green LED indicates AXlink status. AXlink LED blinks to indicate the communi-

cation activity, power, and data status:

• One blink per second: Power is active and AXlink data communication is

functional.

• Full On: Power is active and AXlink data communication is not functional.

Program Port 4-pin AXlink data/power bus jack. This port is an RS-232 DB-9 connector

(male) that can be connected to a DB-9 port on a PC; used with serial com-

mands, SoftROM downloads, other DB-9 capable panels, and to upload/down-

load touch panel page information from the TPDesign3 program.

Touch Drivers Downloadable touch drivers allow you to add to the standard list of available

drivers. Currently supports devices such as the VTM-D15/A and

Elo Intellitouch®touch monitors.

Current Consumption • 630 mA - with no input modules (cards) only supplying power to the TPI/3

• 1.13 A - with 1 input module/card - 500 mA input module

• 1.63 A - with 2 input modules/card - 500 mA input module

• 2.13 A - with 3 input modules/card - 500 mA input module

Memory Standard 9 MB (8 MB flash)

Font Support Unicode font support. Buttons with Unicode fonts can only be created and

edited with the TPDesign3 Touch Panel Program (Version 3.16 or higher).

Slots Equipped with any combination of input modules (S-Video/Composite, VGA,

and RGB).

Outputs VGA, HD-15, and RGB 5-BNC

Otros manuales para VTM-D15/A

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Panel táctil de AMX

AMX

AMX AC-CP4A/WRB Manual de usuario

AMX

AMX Modero Viewpoint MVP-5200i Manual de usuario

AMX

AMX MXD-430 Manual de usuario

AMX

AMX Modero G5 Manual de usuario

AMX

AMX Modero S Series Manual de usuario

AMX

AMX Landmark Cinema Manual de usuario

AMX

AMX MXD-430 Manual de lista de piezas

AMX

AMX 10.4 TOUCH PANELS (G3 FIRMWARE) Manual de usuario

AMX

AMX AXT-CP Manual de usuario

AMX

AMX modero NXD-CV10 Manual de usuario

AMX

AMX MVP-5200i-GB Manual de usuario

AMX

AMX AXP-TCA Guía

AMX

AMX Modero MXT-1001 Manual de usuario

AMX

AMX AXM-LC Guía

AMX

AMX AXT-MLC Guía

AMX

AMX Modero ViewPoint MVP-7500 Manual de usuario

AMX

AMX Wireless Touch Panels (Wave Server) Manual de usuario

AMX

AMX Modero ViewPoint MVP-7500 Manual de lista de piezas

AMX

AMX Modero X Series Instrucciones de funcionamiento y mantenimiento

AMX

AMX MSA-MMK/2-10 Manual de usuario

AMX

AMX Modero NXV-300 Manual de usuario

AMX

AMX AXT-CA10 Manual de usuario

AMX

AMX Modero NXD-1000Vi Manual de usuario

AMX

AMX NXD-CA15 Instrucciones de uso

Manuales populares de Panel táctil de otras marcas

FlowLine

FlowLine Data loop Manual de usuario

ALPEX

ALPEX AEx-8 P Series Manual de usuario

Ltech

Ltech E5S Manual de usuario

Harman

Harman AMX MODERO S MSD-701-L2 Manual de usuario

Acnodes

Acnodes PC 1150 Manual de usuario

AIS

AIS IP10IA99 series Manual de usuario

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manual de usuario

YASKAWA

YASKAWA TP 610C Manual de usuario

B&R

B&R Power Panel C Series Manual de usuario

Beijer Electronics

Beijer Electronics X2 control Manual de usuario

AXIOMTEK

AXIOMTEK GOT321W-521 Manual de usuario

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manual de usuario

Qomo

Qomo QIT1386 Manual de usuario

DFI

DFI KS104-CD Manual de usuario

Sartorius

Sartorius X3 PR 5410 Manual de usuario

Advantech

Advantech TPC-30 Series Manual de usuario

B&R Industries

B&R Industries MAPPC900-ENG Manual de usuario

FEC

FEC PP-9635 Manual de usuario
