AMT Datasouth Fastmark M7 Series Manual de usuario
Fastmark M7 Series
Thermal Transfer Barcode Printer
User’s Guide
Document #120702
Page of 732
1. Introduction.....................................................................................................4
1.1 Product Introduction................................................................................4
1.2 Compliances .............................................................................................4
2. Operations Overview......................................................................................6
2.1 Unpacking and Inspection.......................................................................6
2.2 Printer Overview.......................................................................................7
2.2.1 Front View.............................................................................................7
2.2.2 Interior view ..........................................................................................8
2.2.3 Rear View ...........................................................................................10
2.3 Operator Controls...................................................................................11
2.3.1 Front Panel Display ............................................................................ 11
2.3.2 LED Indicators ....................................................................................12
2.3.3 Front Panel Keys ................................................................................12
2.4 Setting Up the Printer.............................................................................12
2.5 Installation of Ribbon.............................................................................13
2.5.1 Loading Ribbon...................................................................................13
2.5.2 Remove Used Ribbon.........................................................................16
2.6 Installation of Media ...............................................................................17
2.6.1 Loading Roll Labels ............................................................................17
2.6.2 Loading Fan-fold Labels .....................................................................21
2.6.3 Loading Media in Peel-off Mode (Option) ...........................................23
2.6.4 Remove Liner from Internal Rewind (Option)......................................25
2.6.5 Loading Media in Rewind Liner with Label Mode (Option)..................27
2.6.6 Remove Labels from Internal Rewind (Option) ...................................29
2.7 Adjustment Knob....................................................................................30
2.7.1 Print head Pressure Adjustment Knob ................................................30
2.7.2 Print Head Burn Line Adjustment Knob...............................................30
Contents
Page of 733
3. Menu Function..............................................................................................32
3.1 Setup Menu Overview ............................................................................33
3.1.1 Printer Setup.......................................................................................34
3.1.2 Sensor ................................................................................................41
3.1.3 Serial Comm. ......................................................................................49
3.1.4 Ethernet ..............................................................................................52
3.2 File Manager............................................................................................55
3.2.1 File List ...............................................................................................55
3.2.2 Avail. Memory .....................................................................................56
3.2.3 Del. All Files ........................................................................................56
3.3 Diagnostics .............................................................................................57
3.3.1 Print Config. ........................................................................................57
3.3.2 Dump Mode ........................................................................................58
3.3.3 Rotate Cutter ......................................................................................59
3.4 Language.................................................................................................59
3.5 Service.....................................................................................................60
3.5.1 Initialization .........................................................................................60
3.5.2 Mileage Info. .......................................................................................61
4. Diagnostic Tool.............................................................................................62
4.1 Start the Diagnostic Tool........................................................................62
4.2 Printer Function (Calibrate sensor, Ethernet setup, RTC setup…) ....63
5. Troubleshooting............................................................................................64
5.1 Common Problems.................................................................................64
5.2 Mechanism Fine Adjustment to Avoid Ribbon Wrinkles.....................69
6. Maintenance..................................................................................................71
Contents
Page of 734
1. Introduction
1.1 Product Introduction
Thank you very much for purchasing an AMT Datasouth bar code printer.
This printer is designed with die-casting aluminum chassis and print mechanism,
metal cover with large clear media view window, which ensuring to work for the
extreme and heavy duty industrial environment and applications.
With back-lit graphic LCD display, printer status can be managed easier and operated
more user friendly. The moveable sensor design can accept wide range of label
media. All of the most frequently used bar code formats are included. Fonts and bar
codes can be printed in any one of the four directions. This printer is built-in the high
quality, high performance MONOTYPE IMAGING® True Type font engine and one CG
Triumvirate Bold Condensed smooth font. With flexible firmware design, user can also
download the True Type Font from PC into printer memory for printing labels. Besides
the scalable font, it also provides a choice of five different sizes of alphanumeric
bitmap font, OCR-A and OCR-B fonts. By integrating rich features, it is the most cost-
effective and high performance printer in its class!
1.2 Compliances
CE Class A:
EN55022:1998+A1:2000+A2:2003:
EN55024:1998+A1:2001+A2:2003:
EN 61000-4 SERIES REQULATIONS
ETSI EN 301 489-17:V1.2.1(2002-08)
FCC:
CFR 47, Part 15/CISPR 22 3RD EDITION:1997, Class A
Page of 735
ANSI C63.4:2003
CANADIAN ICES-003
C-Tick:
AS/NZS CISPR22 (Class A)
UL, CUL
UL 60950 3rd
TÜV-GS:
EN60950: 2000
Wichtige Sicherheits-Hinweise
1.Bitte lesen Sie Diese Hinweis sorgfältig durch
2.Heben Sie diese Anleitung fűr den späteren Gebrauch auf.
3.Vor jedem Reinigen ist das Gerät vom Stromentz zu trennen. Verwenden Sie Keine
Flűssig-oder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur
Reinigung.
4.Die Netzanschlußsteckdose soll nahe dem Gerät angebraucht und leicht zugänglich
sein.
5.Das Gerät ist vor Feuchtigkeit zu schűtzen.
6.Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen oder
Fallen könnte Beschädigungen hervorrufen.
7.Beáchten Sie beim Anschluß an das stromnetz die Anschlußwerte.
8. Dieses das Gerät kann bis zu einer Außentemperatur von maximal 40 betieben
werden.
Page of 736
2. Operations Overview
2.1 Unpacking and Inspection
This printer has been specially packaged to withstand damage during shipping.
Please carefully inspect the packaging and printer upon receiving the bar code printer.
Please retain the packaging materials in case you need to reship the printer.
Unpacking the printer, the following items are included in the carton.
One printer unit
One Windows labeling software/Windows driver CD disk
One quick installation guide
One power cord
One USB interface cable
If any parts are missing, please contact the Customer Service Department of your
purchased reseller or distributor.
Page of 737
2.2 Printer Overview
2.2.1 Front View
1. LED indicators
2. LCD display
3. Front panel buttons
4. Paper exit chute
5. Lower front cover
6. Printer right side cover
1
2
3
4
6
5
Page of 738

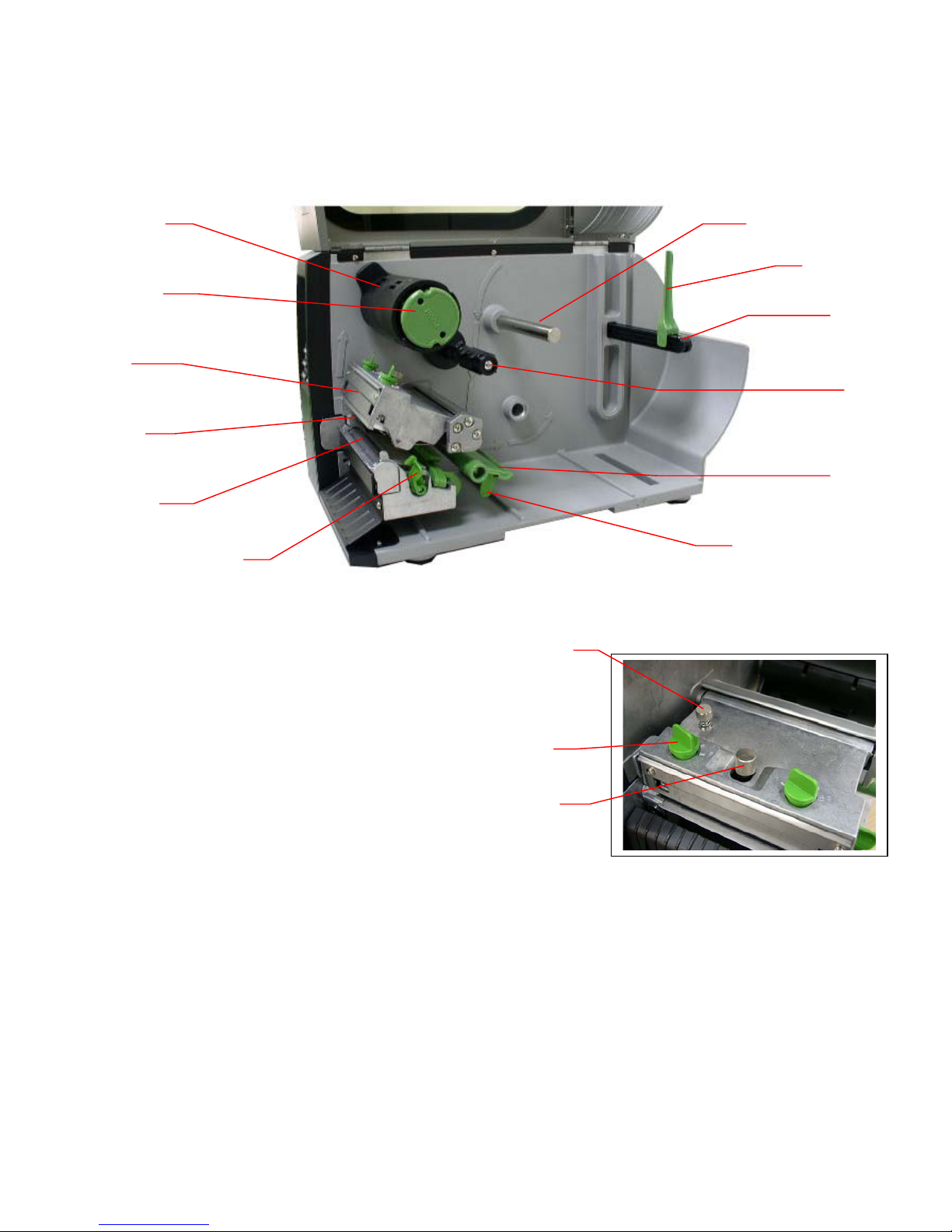

2.2.2 Interior view
1. Ribbon rewind spindle
2. Ribbon release button
3. Ribbon guide plate
4. Print head
5. Platen roller
6. Print head release lever
7. Media guide bar
8. Label roll guard
9. Label supply spindle
10. Ribbon supply spindle
11. Damper
12. Label guide
13. Z axis mechanism adjustment knob
14. Print head pressure adjustment knob
15. Print head secure screw
5
8
7
10
9
6
11
4
12
3
1
2
13
14
15
Page of 739
16. Ribbon sensor
17. Media sensor
17
16
Page of 7310
2.2.3 Rear View
1. Fan-fold paper entrance chute
2. Centronics interface
3. USB interface
4. RS-232C interface
5. Power jack socket
6. GPIO interface
*7. SD card slot
8. Ethernet interface
9. PS/2 interface
10. Power switch
* Recommended SD card specification.
SD V 1.0, V 1.1 SD V 2.0 (SDHC)
128MB
256MB
512MB
1GB
4GB class 6
-Supported DOS FAT file system.
-Folders stored on the SD card should be in the 8.3 filename format.
-Approved SD card manufacturer: SanDisk, Transcend.
1
3
5
4
2
10
6
7
8
9
Note:
1. SD card slot, Ethernet interface and PS/2 interface are standard
interfaces for M7 PLUS models, but optional for M7 non-PLUS
models.
2. GPIO interface card includes SD card slot, Ethernet and PS/2
interfaces. So GPIO interface is an factory option for M7 PLUS ,
but a dealer option for M7 non-PLUS models.
