Amprobe AM555 Manual de usuario
AM-555-EUR
Digital Multimeter
User Manual
6/2015, 6005742 A
©2015 Amprobe Test Tools.
All rights reserved. Printed in China.
English
Limited Warranty and Limitation of Liability
Your Amprobe product will be free from defects in material and workmanship for one
year from the date of purchase unless local laws require otherwise. This warranty does
not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration,
contamination, or abnormal conditions of operation or handling. Resellers are not authorized
to extend any other warranty on the behalf of Amprobe. To obtain service during the
warranty period, return the product with proof of purchase to an authorized Amprobe
Service Center or to an Amprobe dealer or distributor. See Repair Section for details. THIS
WARRANTY IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES - WHETHER EXPRESS, IMPLIED
OR STATUTORY - INCLUDING IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE
OR MERCHANTABILITY, ARE HEREBY DISCLAIMED. MANUFACTURER SHALL NOT BE LIABLE
FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES,
ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not allow the
exclusion or limitation of an implied warranty or of incidental or consequential damages, this
limitation of liability may not apply to you.
Repair
All Amprobe returned for warranty or non-warranty repair or for calibration should be
accompanied by the following: your name, company’s name, address, telephone number,
and proof of purchase. Additionally, please include a brief description of the problem or
the service requested and include the test leads with the meter. Non-warranty repair or
replacement charges should be remitted in the form of a check, a money order, credit card
with expiration date, or a purchase order made payable to Amprobe.
In-warranty Repairs and Replacement – All Countries
Please read the warranty statement and check your battery before requesting repair. During
the warranty period, any defective test tool can be returned to your Amprobe distributor
for an exchange for the same or like product. Please check the “Where to Buy” section on
Canada, in-warranty repair and replacement units can also be sent to an Amprobe Service
Center (see address below).
Non-warranty Repairs and Replacement – United States and Canada
Non-warranty repairs in the United States and Canada should be sent to an Amprobe Service
Center. Call Amprobe or inquire at your point of purchase for current repair and replacement
rates.
USA: Canada:
Amprobe Amprobe
Everett, WA 98203 Mississauga, ON L4Z 1X9
Tel: 877-AMPROBE (267-7623) Tel: 905-890-7600
Non-warranty Repairs and Replacement – Europe
European non-warranty units can be replaced by your Amprobe distributor for a nominal
distributors near you.
AM-555-EUR Digital Multimeter
1Flash light
2LC Display
3Push buttons (See making measurement for button functions)
4Low-impedance button
5Rotary switch
6SELECT button
7Input terminal for voltage, diode, capacitance, resistance,
continuity and temperature measurement
8COM (return) terminal for all measurements
9Input terminal for AC/DC mA/uA measurement
10 Input terminal for AC/DC A measurement up to 20A
1
2
3
4
6
5
7
89
10
Screen Display
1Auto- or Manual- range
2Direct current
3Negative reading
4Alternate current
5True-rms value
6Low battery indicator
7Data hold
8Diode test
9Continuity test
10 Relative zero mode
11 Non-contact Voltage
detection mode
12 Measurement units
for Resistance
13 Measurement units
for Frequency
14 Measurement units for Voltage
15 Measurement units for Current
69
5
2 4
3
7
10 19 2011 21
26
16
17
13 12
14 15
18
28
27
25
24
81 2223
16 Measurement units for Capacitance
17 Duty cycle
18 Auto power off
19 Maximum / minimum reading
memory
20 Positive / negative peak
reading memory
21 Measurement unit for temperature
22 Low-pass filter
23 400KΩlow-impedance test
24 Temperature measurement T1 or T2
25 Temperature measurement T1 - T2
26 Warning for error input terminals
connection for test leads
27 Hazardous Voltage presence
28 Analog bar graph display
1
AM-555-EUR Digital Multimeter
CONTENTS
SYMBOL.................................................................................................................2
SAFETY INFORMATION .........................................................................................2
UNPACKING AND INSPECTION .............................................................................3
FEATURES...............................................................................................................4
MAKING MEASUREMENT .....................................................................................5
Rotary Switch Positions ....................................................................................5
Function Buttons ..............................................................................................6
Measuring AC and DC Voltage ........................................................................8
Low Pass Filter...................................................................................................9
Measuring Frequency / Duty Cycle...................................................................10
Measuring AC and DC Current ........................................................................12
Measuring Resistance .......................................................................................13
Measuring Continuity ......................................................................................14
Measuring Capacitance ....................................................................................15
Measuring Diode...............................................................................................16
Measuring Temperature °C / °F ........................................................................16
Non-Contact Voltage Detection.......................................................................17
SPECIFICATIONS ....................................................................................................19
MAINTENANCE......................................................................................................24
BATTERY AND FUSE REPLACEMENT.....................................................................25
2
SYMBOLS
Caution! Risk of electric shock.
Caution! Refer to the explanation in this manual
Alternating Current (AC)
Direct Current (DC)
The equipment is protected by double insulation or reinforced
insulation
Earth ground
Audible tone
Battery
Complies with European directives
Conforms to relevant Australian standards
Canadian Standards Association (NRTL/C)
Do not dispose of this product as unsorted municipal waste.
Contact a qualified recycler.
SAFETY INFORMATION
The meters comply with:
IEC/EN 61010-1 3rd Edition Pollution Degree 2, Measurement Category IV 600V
and Measurement Category III 1000V
IEC/EN 61010-2-030
IEC/EN 61010-031 for test leads
EMC IEC/EN 61326-1
Measurement Category IV (CAT IV) is for measurements performed at the
source of the low-voltage installation. Examples are electricity meters and
measurements on primary overcurrent protection devices and ripple control
units.
3
Measurement Category III (CAT III) is for measurements performed in the
building installation. Examples are measurements on distribution boards,
circuit- breakers, wiring, including cables, bus-bars, junction boxes, switches,
socket-outlets in the fixed installation, and equipment for industrial use
and some other equipment, for example, stationary motors with permanent
connection to the fixed installation.
WARNING: Read before using
• To avoid possible electrical shock or personal injury, follow these
instructions and use the Meter only as specified in this manual.
• Do not use the Meter or test leads if they appear damaged, or if the
Meter is not operating properly. If in doubt, have the Meter serviced.
• Always use the proper function and range for measurements.
• Before rotating the function range selection switch, disconnect test
probe from circuit under test.
• Verify the Meter’s operation by measuring on a known voltage source.
• Do not apply more than the rated voltage, as marked on the Meter, between
the test probe or between any test probe and earth ground.
• Use the Meter with caution for voltages above 30 V ac rms, 42 V ac peak,
or 60 Vdc. These voltages pose electrical shock hazards.
• Disconnect circuit power and discharge all high-voltage capacitors before
testing resistance.
• Do not use the Meter around explosive gas or vapor.
• When using the test leads, keep your fingers behind the finger guards.
UNPACKING AND INSPECTION
Your shipping carton should include:
1 AM-555-EUR Multimeter
1 Pair of test leads
2 Temperature probes
1 Temperature adaptor
1 Velcro strap
1 9V (6F22) battery (installed)
1 User manual
1 Carrying case
If any of the items are damaged or missing, return the complete package to
the place of purchase for an exchange.
4
FEATURES
The Beha-Amprobe AM-555-EUR is a fully featured multimeter designed
for professional electricians who need to maintain service or troubleshoot
advanced electrical systems. True-rms sensing accurately measures voltage on
systems affected by harmonics, built-in flashlight allows you to identify wires
while working in dark conditions, and non-contact voltage detection allows
for quick go-no-go checks without the need for an additional tool. The
AM-555-EUR also features dual input temperature measurement, a low-
impedance function to detect stray voltage, and a low pass filter to accurately
take measurements on variable frequency drives. Safety rated to CAT IV 600V
and CAT III 1000V for use in the most demanding applications.
• Measurements: AC/DC Voltage up to 1000V, ac/dc current, Resistance,
Frequency, Capacitance, Temperature, duty cycle.
• Current measurements up to 10 A, 20 A for up to 30 seconds
• Special Functions:
- Low Z - to detect “ghost” voltages
- Low pass filter for variable frequency drives
- Non-contact Voltage detection
- Audible continuity
- Diode test
• Dual reading backlight LC Display with analog bargraph
• Events:
- Data hold
- MAX / MIN memory
- Peak hold (crest)
- Relative zero mode
• Built-in flash light
• Built-in test leads storage and “third hand holder”
• Warning against improper test leads connection
• Auto and manual ranging
• Auto power off
• Low battery warning
• Velcro strap to hang a meter
• Safety: CAT IV 600V, CAT III 1000V
5
MAKING MEASUREMENT
1. Use the proper function and range for measurements.
2. To avoid possible electrical shock, personal injury or damages to the
Meter, disconnect circuit power and discharge all high-voltage capacitors
before testing resistance and diode.
3. Connecting test leads:
• Connect the common (COM) test lead to the circuit before connecting
the live lead;
• After measurement, remove live lead before removing the common
(COM) test lead from the circuit
4. Symbol “OL” is displayed on LCD when the measurement is out of range.
Rotary Switch Positions
Switch Position Measurement Function
/ AC voltage measurement / Low-pass filter (1kHz).
Use SELECT button to select alternate function.
/ NCV DC voltage measurement / Non-contact Voltage
detection.Use SELECT button to select alternate function.
/ / % DC millivolt measurement / Frequency / Duty cycle
Use SELECT button to select alternate function.
/ / Resistance / Capacitance / Continuity measurement.
Use SELECT button to select alternate function.
Voltage measurement of diode PN junction (diode test).
°C °F Temperature measurement.
Use SELECT button to select temperature unit °C or °F.
μA mA
10A
AC or DC current measurement.
Use SELECT button to select alternate function ac or dc
6

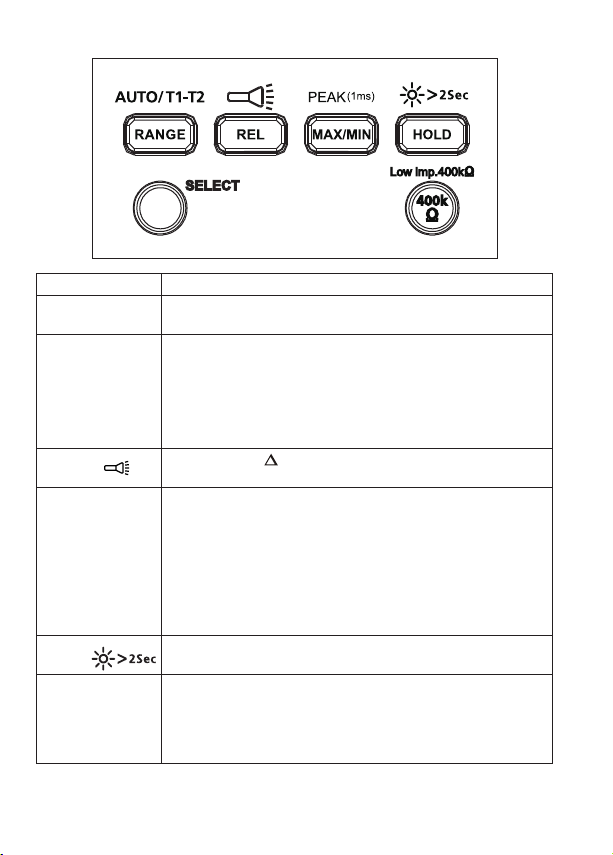

Function Buttons
Button Measurement Function
SELECT Press the yellow SELECT button to select alternate
measurement functions on the rotary switch.
RANGE /
AUTO T1-T2
Manual or auto range switching for voltage current,
resistance and capacitance. The default setting is Auto
ranging, press to switch to manual ranging. Press for 2
seconds to return to auto-ranging.
T1 or T2 or T1-T2 function switching for temperature
measurement.
REL / Relative mode / Press >2 seconds to turn ON or turn
OFF flash light.
MAX/MIN /
PEAK(1ms)
Press to enter Maximum / minimum reading memory
mode. Press again for naximum reading; press again for
minimum reading. Press > 2 seconds to exit maximum/
minimum reading mode.
Press > 2 seconds to enter Peak MAX/ Peak MIN mode.
Press again for Peak MAX reading; press again for Peak
MIN reading. Press > 2 seconds to exit Peak MAX/ Peak
MIN reading mode.
HOLD / Display freezes present reading / press > 2 seconds to turn
ON or turn OFF LCD backlight.
Low imp. 400kΩ
For voltage measurement functions only. Press and hold
the button to change the input impedance of V and COM
terminal to 400kΩ. Release 400kΩbutton to return to
normal input impedance of V and COM terminal (around
10MΩ).
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Idiomas:
Otros manuales de Multímetro de Amprobe
Amprobe
Amprobe AM-140-A Manual de usuario
Amprobe
Amprobe AC71B Manual de usuario
Amprobe
Amprobe AC71B Manual de usuario
Amprobe
Amprobe PXP-A Manual de usuario
Amprobe
Amprobe AU92 Manual de usuario
Amprobe
Amprobe 5XP-A Manual de usuario
Amprobe
Amprobe AM-510-EUR Manual de usuario
Amprobe
Amprobe AM-52 Manual de usuario
Amprobe
Amprobe DM7C Manual de usuario
Amprobe
Amprobe Hexagon 60 Manual de usuario
Amprobe
Amprobe 30XR-A Manual de usuario
Amprobe
Amprobe HD110C Manual de usuario
Amprobe
Amprobe ACD-11 Manual de usuario
Amprobe
Amprobe ACDC-100 TRMS Manual de usuario
Amprobe
Amprobe AM-100 Manual de usuario
Amprobe
Amprobe AM-510 Manual de usuario
Amprobe
Amprobe ACD-14 PLUS Manual de usuario
Amprobe
Amprobe ACD-10 TRMS-PLUS Manual de usuario
Amprobe
Amprobe HD160C Manual de usuario
Amprobe
Amprobe ac68C Manual de usuario
Manuales populares de Multímetro de otras marcas
Gossen MetraWatt
Gossen MetraWatt METRAmax 6 Manual de usuario
PeakTech
PeakTech 4000 Manual de uso y cuidado
YOKOGAWA
YOKOGAWA 90050B Manual de usuario
Gossen MetraWatt
Gossen MetraWatt METRALINE DMM16 Manual de usuario
Fluke
Fluke 8846A Manual de operación y mantenimiento
Tempo Communications
Tempo Communications MM200 Manual de usuario
