AMP®LOW VOLTAGE LANDSCAPE LIGHTING

AMP®Nano LED Spotlight

ITEM: AAL-1049

INSTALLATION & MAINTENANCE GUIDE

1-813-978-3900 • Mon-Fri 9am-6pm (EST)

IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION

INSTALLATION & MAINTENANCE GUIDE

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situations.

1. Make sure the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that

are suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or ﬁtting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

IMPORTANT SAFETY INSTRUCTIONS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

LIGHTED LAMP IS HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire ﬁtting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

AMP®Nano LED Spotlight - AAL-1049

813.978.3900 • [email protected]om • www.amplighting.com

PACKAGE CONTENTS

INSTALL FIXTURE BODY TO STAKE

813.978.3900 • [email protected]om • www.amplighting.com

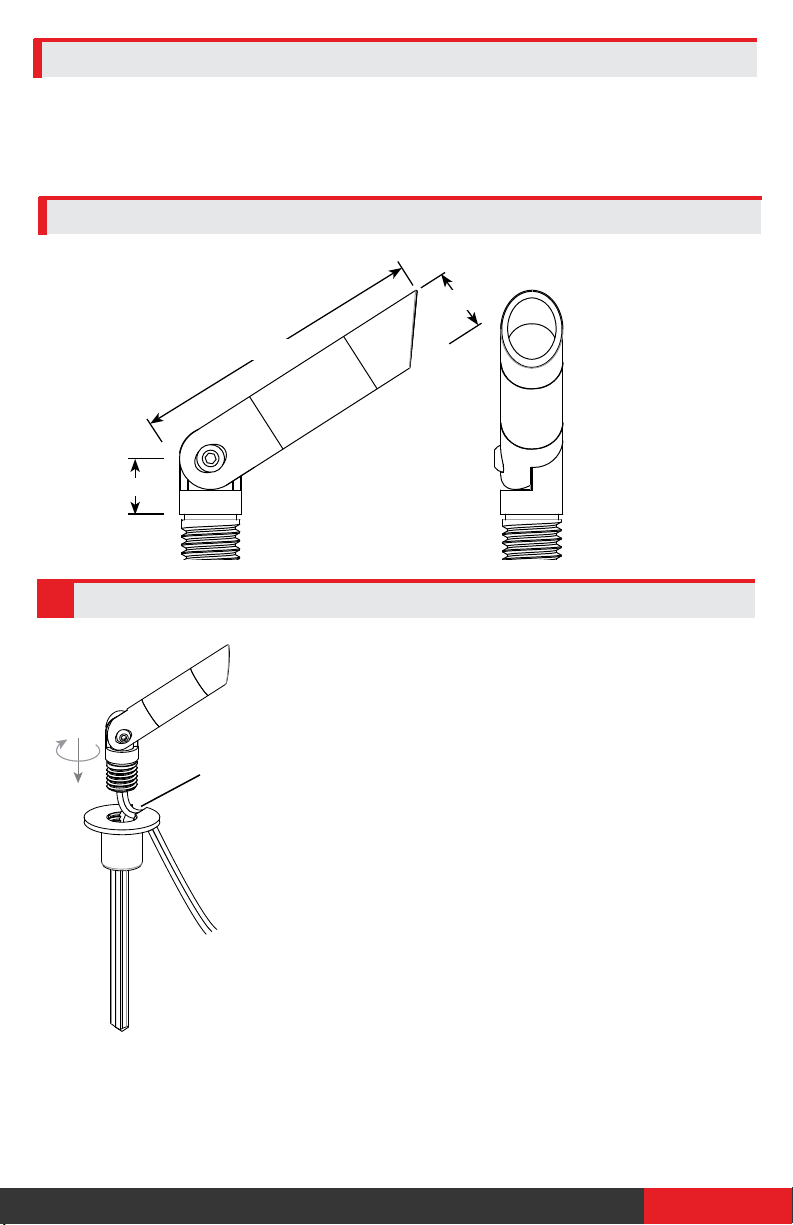

PRODUCT DIMENSIONS

A. (1) Fixture Body

B. (1) Allen Wrench

C. (1) Stake

2.39”

0.5”

0.45”

Pass the supply wire of the

ﬁxture body through the

wireway slot on the stake.

Thread the ﬁxture body onto

the stake.

Fixture Body

Wireway Slot

Supply Wires

Stake

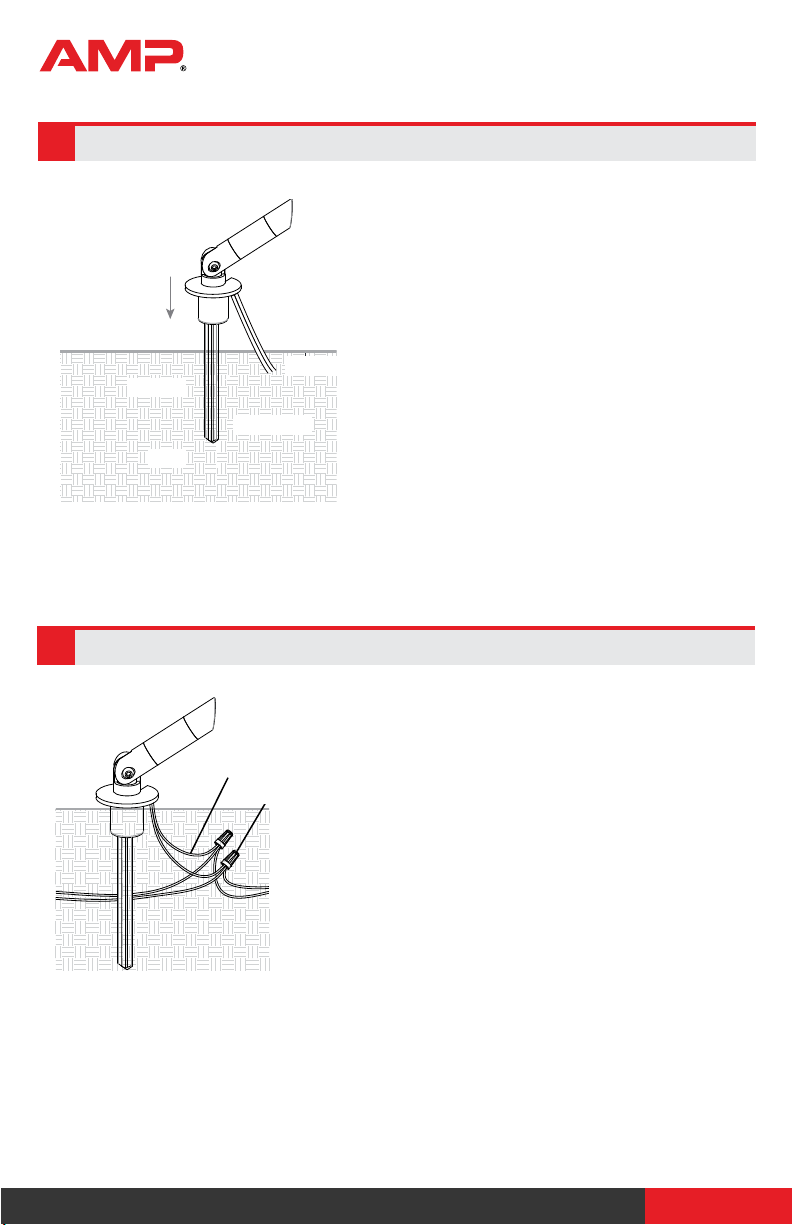

INSTALL STAKE INTO SOIL

WIRE CONNECTIONS

INSTALLATION & MAINTENANCE GUIDE

AMP®Nano LED Spotlight - AAL-1049

813.978.3900 • [email protected]om • www.amplighting.com

Insert the stake into the soil

until ﬂange of stake is ﬂush

to the ground.

Fixture Body

Supply Wire

Stake

Ground

Soil

Strip both the leads from

the luminaire pigtail.

Using two UL listed wire

connectors (sold separately),

connect the leads from

the luminaire to the main

supply cable leads.

Pigtail

Wire Connectors

Main Supply Cable

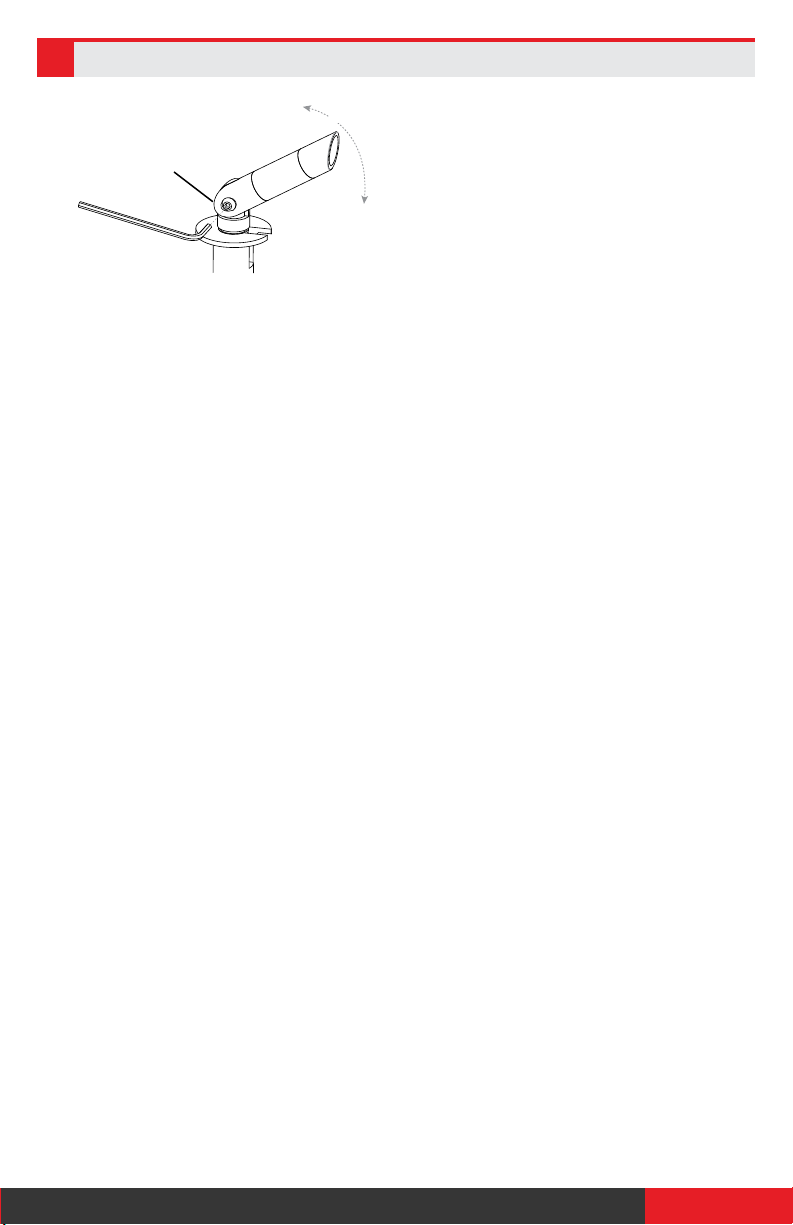

ADJUST DIRECTIONS

813.978.3900 • [email protected]om • www.amplighting.com

By using the Allen wrench,

loosen the screw at the joint

and adjust the luminaire to

the desired direction. Once

the desired direction is

achieved, tighten the screw.

ROTATE

Fixture Body

Screw

Allen Wrench

INSTALLATION & MAINTENANCE GUIDE

AMP®Nano LED Spotlight - AAL-1049

813.978.3900 • [email protected]om • www.amplighting.com

Speciﬁcations and product details subject to change without notice.
