AMP Lighting SleekPro MR11 Downlight Instrucciones de funcionamiento y seguridad

INSTALLATION & MAINTENANCE GUIDE

Help Hotline:

1-813-978-3900 • Mon-Fri 9am-6pm (EST)

www.amplighting.com

AMP®Low Voltage Landscape Lighting

AMP® SleekPro MR11 Downlight (Lamp Ready)

AAL-1034-B-BZ

AMP®SleekPro MR11 Downlight (Lamp Ready)

AAL-1034-B-BZ

INSTALLATION & MAINTENANCE GUIDE

www.amplighting.com

–2–

Important Safety Instructions: Read Before Installation

Important Safety Instructions

This luminaire is intended for installation in accordance with local codes and

the National Electric Code (NEC). Failure to adhere to these codes and in-

structions may result in serious injury, property damage and void the warran-

t y.

These instructions do not intend to cover all variations in installation, opera-

tion maintenance or mounting situations.

1. Make sure the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M)

or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply (trans-

former) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that are

suitable for outdoor use.

5. Position the low voltage wire and UL listed wire connector so that it is

located within 6 inches (15.2 cm) from a building structure, a luminaire

or tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may dam-

age lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

[email protected] • 813.978.3900

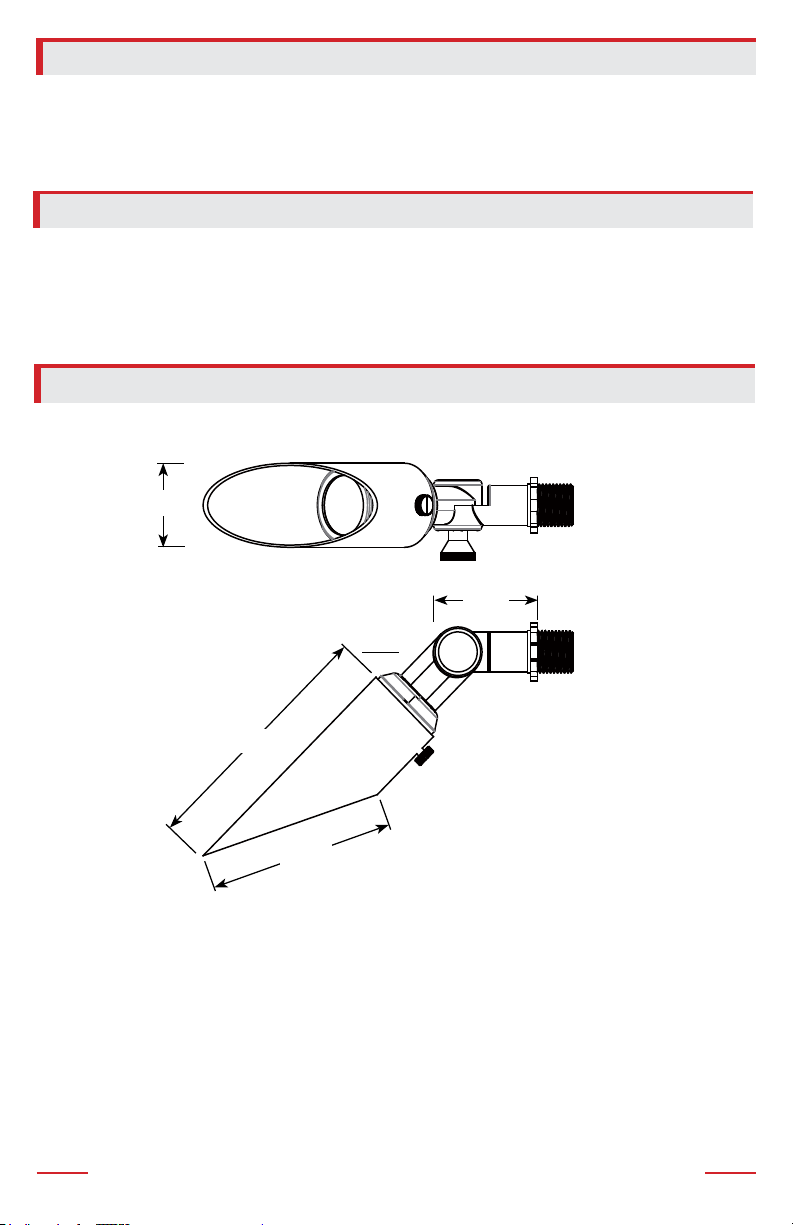

Product Dimensions

–3–

Package Contents

A. Fixture Body

B. Tool

Parts Required (sold separately)

A. Mounting Accessory

B. (1) MR11 Bulb

1.65”

5”

3.75”

2.1”

INSTALLATION & MAINTENANCE GUIDE

–4–

www.amplighting.com

–4–

AMP®SleekPro MR11 Downlight (Lamp Ready)

AAL-1034-B-BZ

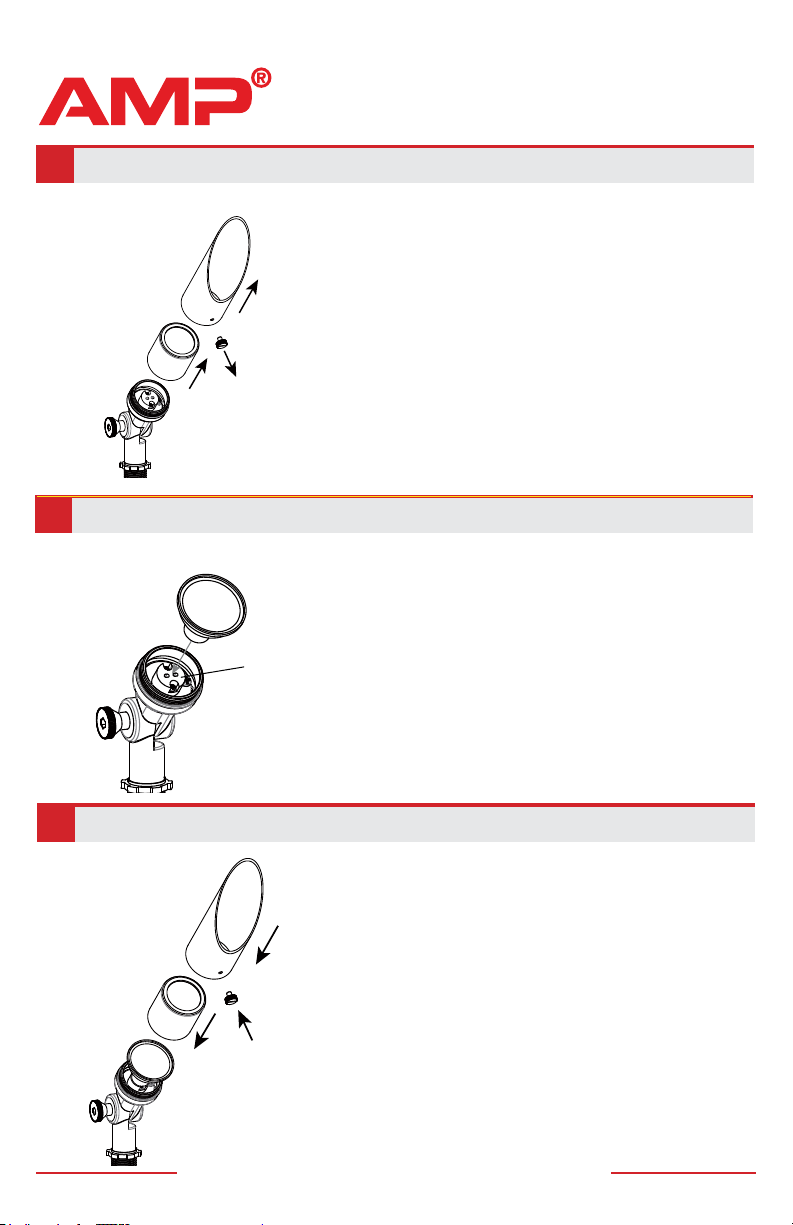

Remove Glare Guard and Lens

Loosen the set screw and remove

the glare guard.

Then twist and remove the lens

from the xture body.

Fixture Body

Lens Set Screw

Glare Guard

Insert the MR11 bulb with the

correct wattage and type marked

on the xture label.

CAUTION: Do not exceed

maximum wattage marked on

luminaire label.

MR11 Bulb

Socket

Install MR11 Bulb

Install Lens and Glare Guard

Fixture Body

Lens

Set Screw

Glare Guard

Thread the lens back onto the

xture body and hand tighten

until snug.

Place the glare guard back onto

the lens and secure by using the

previously removed set screw.

[email protected] • 813.978.3900

–5–

INSTALLATION & MAINTENANCE GUIDE

AMP®SleekPro MR11 Downlight (Lamp Ready)

AAL-1034-B-BZ

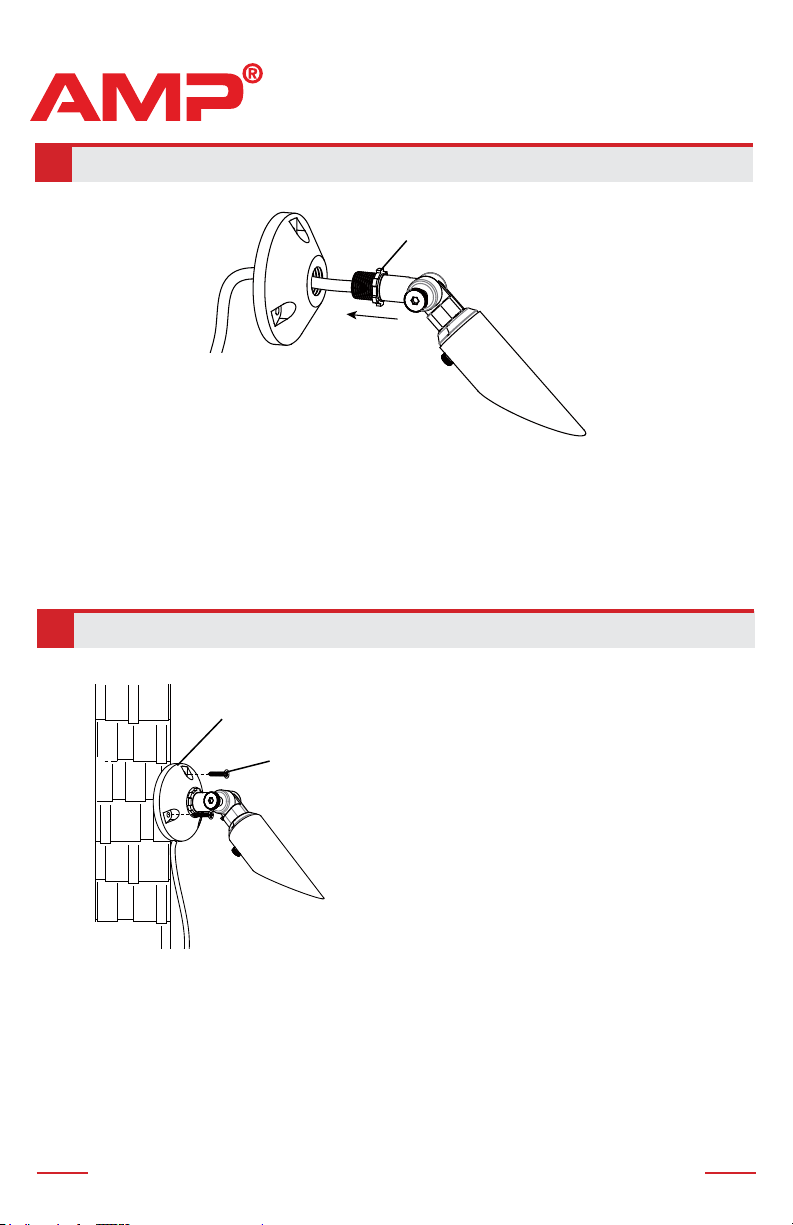

Install Fixture Body to Mount

Fixture Body

Pass the supply wire through the mount and thread the mount onto

the xture body.

Tighten the lock nut against the mount and hand tighten until snug.

Supply Wire

Mount

Lock Nut

Install Mount

Attach the mount onto the

surface using 3 self-tapping

screws.

Supply Wire

Tree

Base

Self-tapping Screw

INSTALLATION & MAINTENANCE GUIDE

–6–

www.amplighting.com

–6–

Wire Connections

AMP®SleekPro MR11 Downlight (Lamp Ready)

AAL-1034-B-BZ

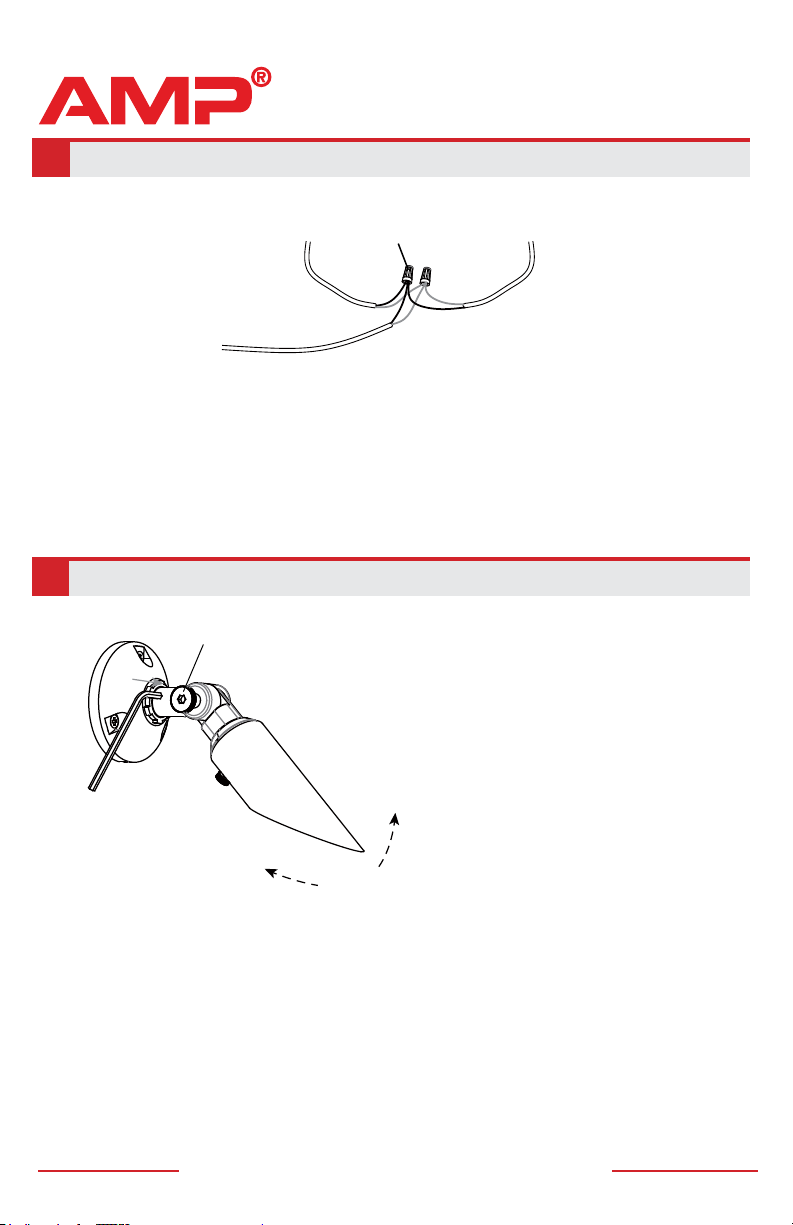

Strip both leads from the luminaire pigtail. Using two UL listed wire

connectors (sold separately), connect the leads from the luminaire to

the main supply cable leads.

Main Supply Cable

UL Listed

Wire Connectors

Fixture Pigtail

Adjust Fixture Direction

Using an Allen wrench, loosen the

knuckle and adjust the xture to

your desired direction. Once your

desired direction is achieved,

tighten the knuckle to secure it

in place.

ROTATE

Glare Guard

Allen Wrench

Knuckle

–6––6–

[email protected] • 813.978.3900

–7–

Install/Replace Bulb

Remove the glare guard and the lens to expose the MR11 bulb and replace it

with the correct wattage and type marked on the xture label. Then,

reinstall the lens and the glare guard.

IMPORTANT: MR11 bulb must be protected from moisture and dust at all

times. Always reinstall the lens and the glare guard when removed.

IS-AAL-1035-B-BZ-ver1.pdf

Specications and product details subject to change without notice.

[email protected] • 813.978.3900

Help Hotline:

1-813-978-3900 • Mon-Fri 9am-6pm (EST)

www.amplighting.com
