AMGO Hydraulics PRO-12SX Manual

FOUR-POST LIFT

Model: PRO-12SX

PRO-12ASX

PRO-12SX

Original

CONTENTS

Product Features and Specifications ..................................................... 1

Installation Requirement .................................................................... 2

Steps of Installation .......................................................................... 4

Exploded View ................................................................................. 22

Test Run ......................................................................................... 30

Operation Instruction ....................................................................... 31

Maintenance ................................................................................... 31

Trouble Shooting ............................................................................. 32

Lift Disposal......................................................................................32

I. PRODUCT FEATURES AND SPECIFICATIONS

FEATURES

· Manual-air control operation system.

· Mechanical self-lock and air-drived safety release.

· Manual hydraulic power system, cable-drived.

· Non-skid diamond platforms.

· Adjustable platform and adjustable safety lock ladders.

· Optional Jack: With hand pump/Air-operated hydraulic pump/Controlled by power

unit.

. Optional Turnplates:（only for PRO-12ASX）

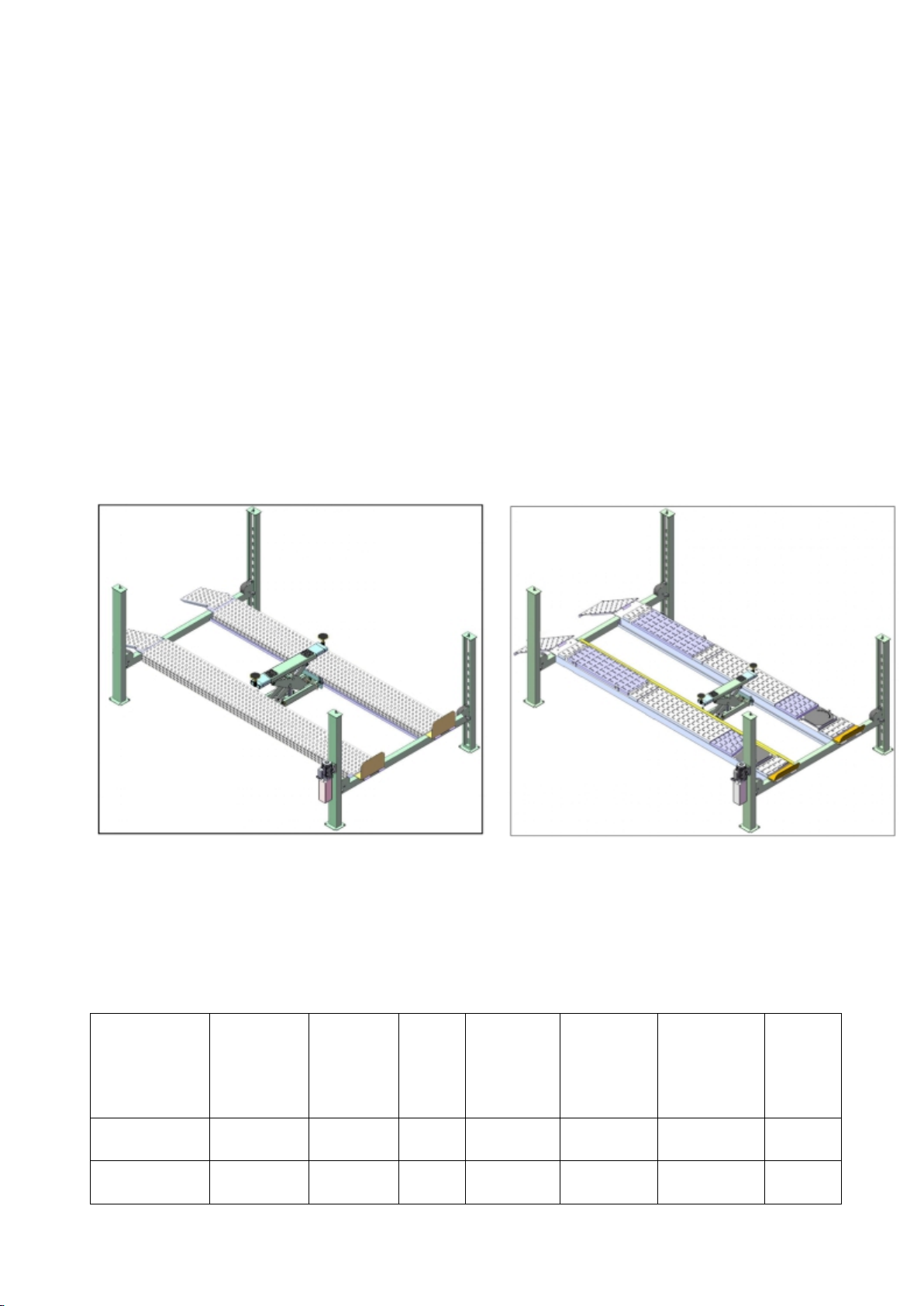

MODEL PRO-12S(AS) SPECIFICATIONS

Model

Lifting

Capacity

Lifting

Height

Liftin

Time

Overall

Length

(Inc.

Ramps)

Overall

Width

Between

Columns

Motor

PRO-12SX

12000lbs

73-1/2”

45S

237-5/8”

132-1/8”

118-1/8”

2.0HP

PRO-12ASX

12000lbs

75-3/8”

45S

237-5/8”

132-1/8”

118-1/8”

2.0HP

PRO-12ASX

Fig.2

PRO-12SX

Fig.1

II. INSTALLATION REQUIREMENT

A. TOOLS REQUIRED

Rotary Hammer Drill (Φ3/4’’)

Hammer

Level Bar

English Spanner (12")

Wrench Set (10#, 12#, 13#, 14#, 17#, 19#,

24#, 30#)

Ratchet Spanner with Socket (28#)

Carpenter’s Chalk

Screw Sets

Tape Measure (7.5m)

Pliers

Lock Wrench

Socket Head Wrench (3#, 5#, 6#)

Fig. 3

√

B. Equipment storage and installation requirements.

The equipment should be stored or installed in a shady, normal temperature,

ventilated and dry place.

C. The equipment should be unload and transfer by forklift. (See Fig.4)

D. SPECIFICATIONS OF CONCRETE (See Fig. 5)

Specifications of concrete must be adhered to the specification as following.

Failure to do so may result in lift and/or vehicle falling.

1. Concrete must be thickness 6” minimum and without reinforcing steel bars, and

must be dried completely before the installation.

2. Concrete must be in good condition and must be of test strength 3,000psi

(210kg/cm²) minimum.

3. Floors must be level and no cracks.

E. AIR SUPPLY

Air pressure requirement: 0.5Mpa~0.8Mpa, Air line size ￠8×￠6 and ￠6×￠4.

F. POWER SUPPLY

The electrical source must be 2HP minimum. The source cable size must be 2.5mm²

and in good condition of contacting with floor.

Fig. 3

Fig. 5

Fig. 4

≥6’’

III. STEPS OF INSTALLATION

A. Location of installation

Check and insure the installation location (concrete, layout, space size etc.) is

suitable for lift installation.

B. Check the parts before assembly

1. Packaged lift and hydraulic power unit (See Fig. 6).

2. Open the outer packing carefully (See Fig. 7).

Shipment Parts List

3. Take off the drive-in ramps and columns (See Fig. 8).

4. Loose the screws of the upper package stand, take off the offside platform, take out

the parts inside the power-side platform, then remove the package stand.

Power-side Platform

Drive-in Ramp

Offside Platform

Cross Beam

Column

Fig. 7

Fig. 8

Parts Box

Fig. 6

5. Move aside the parts and check the parts according to the shipment parts list

(See Fig. 9).

PRO-12SX

Fig. 9

PRO-12ASX

Fig. 10

6. Open the carton of parts and check the parts according to the parts box list

(See Fig. 11).

7. Check the parts of the parts bag according to the parts bag list (See Fig. 12)

Fig. 11

Fig. 12

Parts bag (2)

PRO-12SX

Part box（1）

PRO-12ASX

Part box（1）

C. Use a carpenter’s chalk line to establish installation layout as per Table 1

Make sure the size is right and base is flat (see Fig. 13).

Note: Reserve space front and behind the installation site.

MODEL

REMARK

PRO-12SX

PRO-12ASX

196-3/4”

132-1/8”

237”

Car in Direction

Fig. 13

Use a carpenter’s chalk line to

establish installation layout

D. Install cross beams (See Fig. 14, Fig. 15).

Fig. 15

Hole towards inside

Fig 14
