Surtronic®Duo
User Guide
2
English
Surtronic Duo
User Guide
This is Taylor Hobson’s User Guide for
the Surtronic Duo.
All the specifications in this document are correct at
time of production and are subject to change. Please
contact Taylor Hobson for further information.
K505-444
3
English
Contents
Surtronic Duo overview............................................................ 4
Surtronic Duo accessories........................................................8
System information...................................................................10
Surtronic Duo dimensions......................................................12
Quick start guide ......................................................................14
Using the instrument................................................................16
Overview.............................................................................................................16
Function buttons .............................................................................................17
Device icons.......................................................................................................18
Menu......................................................................................................................19
Calibration...........................................................................................................24
Factory reset......................................................................................................26
Test mode ...........................................................................................................27
Error codes.........................................................................................................28
4
English
Surtronic Duo overview
What it does
The Surtronic Duo is a superior portable surface roughness tester
that measures multiple roughness parameters with a 1-button click.
Roughness measurement parameters Ra, Rz, Rp, Rv, Rz1max, Rsk, Rq
& Rku are displayed on a brightly lit intuitive 2.4” LCD colour display.
Its rechargeable battery operation makes it a convenient way of
performing fast, easy and precise on-the-spot measurements in almost
any environment and surface.
How it does it
The hard-wearing diamond stylus is drawn across the part with a
precision motorised traverse mechanism to ensure that the correct
horizontal distance is travelled.Vertical movement of the stylus is
detected by a high quality piezo-electric pick-up as it travels across
peaks and valleys which converts mechanical movement into electrical
signals.The electrical signal is digitised and sent to a microprocessor
for instant calculation of surface parameters using standardised
algorithms.
Charging
The mini USB port can be used for charging with the included mains
charger (or with any standard USB charger).
5
English
Keeping it simple
The Surtronic philosophy keeps the process simple. It is the perfect
tool for any inspector to check surface roughness even in the most
demanding applications.
• Incoming inspections
• Final inspection before shipment
• Process control on the production line
• Checking large components or structures
Standards and traceability
The reference standard supplied can be used both to calibrate the
instrument and check for stylus wear to ensure the most accurate
results are always being achieved.
UKAS calibration and testing
Taylor Hobson provides full certification for artefacts and instruments
in our purpose built ISO graded clean room UKAS facility. Our
UKAS laboratory is able to measure all of the parameters associated
with surface texture, including French, German, USA and Japanese
derivatives.
Measurement Best capability
Roughness standards (Ra) ±(2% + 0.004 µm)
Workpiece or component
surface texture (Ra)
±3% of measured value per
trace
6
English
Prole graph
Clear detailed graph showing measurement
area – excellent for visually identifying defects.
Simple 3-button
navigation
Instant access to menu
options and settings.
Measure
Tactile measurement
button great for challenging
orientations.
Bluetooth technology
Quick, reliable communication
between traverse and display/unit.
Separates
Splits into a display/unit
and traverse unit via a
slide and lock mechanism.
USB mini
charging port
Charge from mains
or any standard
USB charging port.
Rubberised moulding
Enhanced durability and
improved grip provides
unbeatable protection in harsh
shop floor environments.
Li-Poly battery
Most advanced rechargeable
battery technology for unrivalled
reliability and battery life.
Diamond stylus and
piezoelectric pick-up
The hard wearing, robust piezoelectric
pick-up stylus with diamond tip
assures very reliable measurement.
Fast and reliable
Simply press the measurement button and in a few seconds a full set
of traceable measurement results including a detailed profile graph is
displayed.
Built to last, by design
Impact resistant rubberised mouldings surround a recessed, Mylar
protected high durability screen making the unit robust enough for
even the most demanding industrial environments.
7
English
InstantOn
By utilising InstantOn technology these instruments are ready to
measure in less than 5 seconds from switching on!
In situ measurements
Monitor wear and roughness changes in situ during product’s life. E.g.
monitoring changes in turbine blade roughness as an early warning
sign for defects and efficiency losses.
User-friendly, not user-hostile!
The Surtronic Duo are as simple and easy-to-use as any SmartPhone.
Users have the advantage of the intuitive quick access 3-button menu
and its crisp 2.4” daylight readable industrial colour LCD screen.
Bluetooth connectivity
This next generation bluetooth technology boasts super efficient
connectivity allowing wireless communication between the display
unit and traverse unit.
Built for power…
Powered by heavy duty reliable Li-Poly technology, the Surtronic Duo
operates 24/7 with over 10,000 measurements from a single charge.
Parameters
Parameters available: ISO 4287 Roughness*
Rt
Total profile
height
Rp
Maximum
profile peak
height
Rv
Maximum
profile valley
depth
Rz
Maximum
height of the
profile
Ra
arithmetic
mean
deviation
Other parameters include: Rsk, Rku, Rq, Rz1max
*Includes primary parameters
8
English

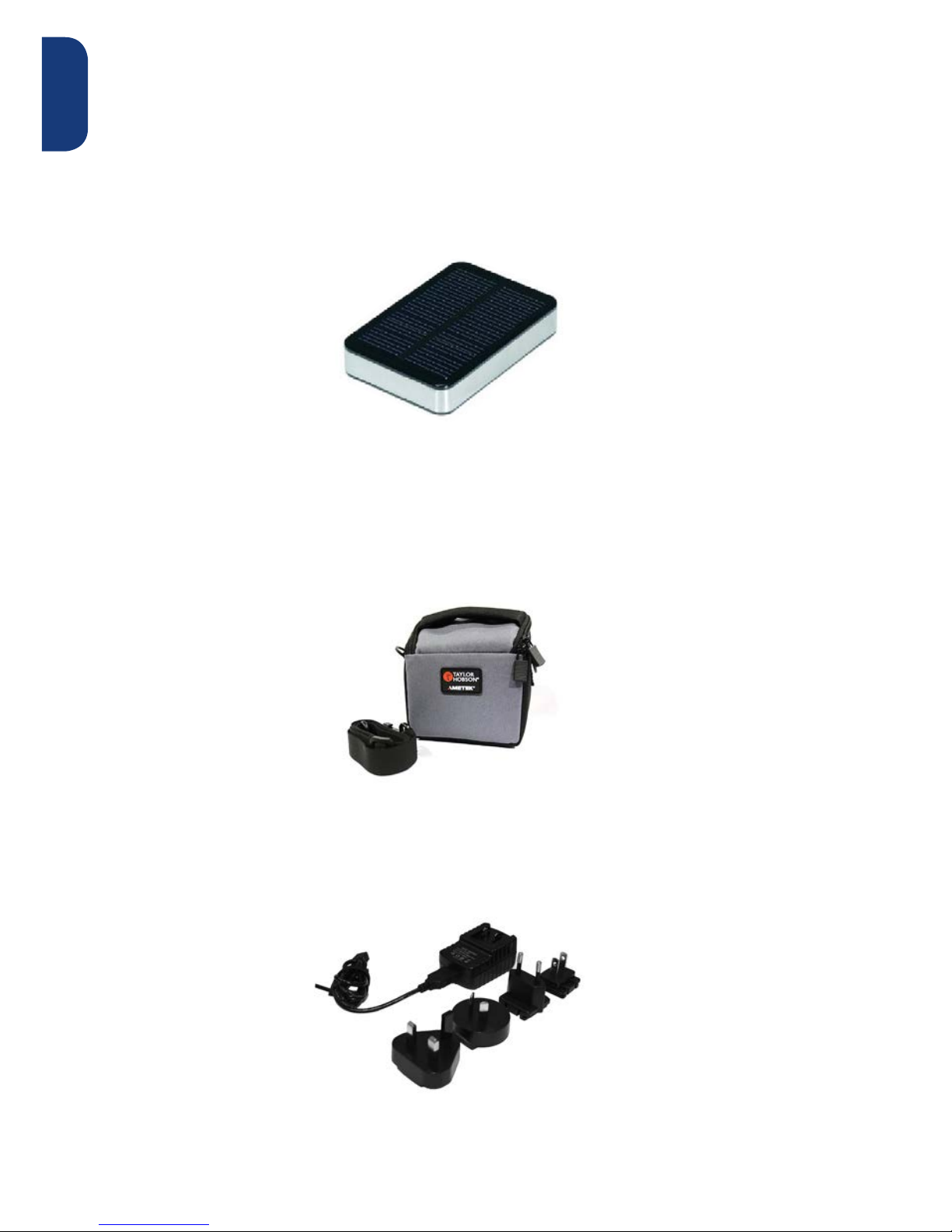

Surtronic Duo accessories
Portable hybrid solar rechargeable power bank*- Code SC-15
• Portable power bank for charging the Surtronic Duo on the go.
Can be charged by USB, mains AC or sunlight.
Compact portable carry bag - Code SA-51
• Helps secure the Surtronic Duo and prevent accidental drops
especially for applications involving measuring at heights.
USB charger - Code SC-10
• Mini USB charger 5V 1A 110-240 VAC 50/60 Hz with international
adapters.
*Not supplied as standard with Surtronic Duo
9
English
Hard transport case*- Code SA-55
• Air and water tight case that provides the Surtronic Duo with
extra protection for safe storage and/or transportation.
calibration standard - Code CS-20
• For calibrating and checking the Surtronic Duo instrument..
- Ra 5.81 µm (229 µin)
Magnetic base*- Code SA-41
• Lightweight compact base specially designed to allow for
measurements in multiple orientations including upside down on
metallic surfaces.
*Not supplied as standard with Surtronic Duo
10
English
System information
Instrument performance
Gauge Resolution 0.01 µm (0.4 µin)
Measurement
Range (Ra) Up to 40 µm (1600 µin)
Range
(Rz, Rv, Rp, Rt) Up to 199 µm (7800 µin)
Repeatability 2 % of value + noise
Accuracy 5 % of reading + 0.1 µm (4 µin)
Noise 0.1 µm (4 µin)
Calibration
Process Automatic software calibration
Standard Able to calibrate to ISO 4287
Roughness Standards
Parameters
Standards ISO 4287
ISO 4287
(Roughness)
Ra, Rz, Rp, Rv, Rt, Rz1max, Rsk,
Rq, Rku
ISO 4287
(Primary) Pa, Pz, Pp, Pv, Pt
Technical
Data output On-screen Up to 5 results per page, selectable
on-screen graph
Battery
Charger Mini USB 5V 1A 110-240 VAC 50 /
60 Hz
Charging time 4 hours
Power
Battery life > 10,000 measurements per charge
Standby time 5,000 Hours
InstantOn Max 5 sec from standby to ready to
measure
Auto-sleep
function 5 minutes
