American Standard BAYSEN01ATEMPA Instrucciones de montaje

Outdoor Temperature Sensor

ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES

IMPORTANT — This Document is customer property and is to remain with the outdoor unit.

Please return to service information pack upon completion of work.

Installer's Guide

BAYSEN01ATEMPA

18-HD61D1-2

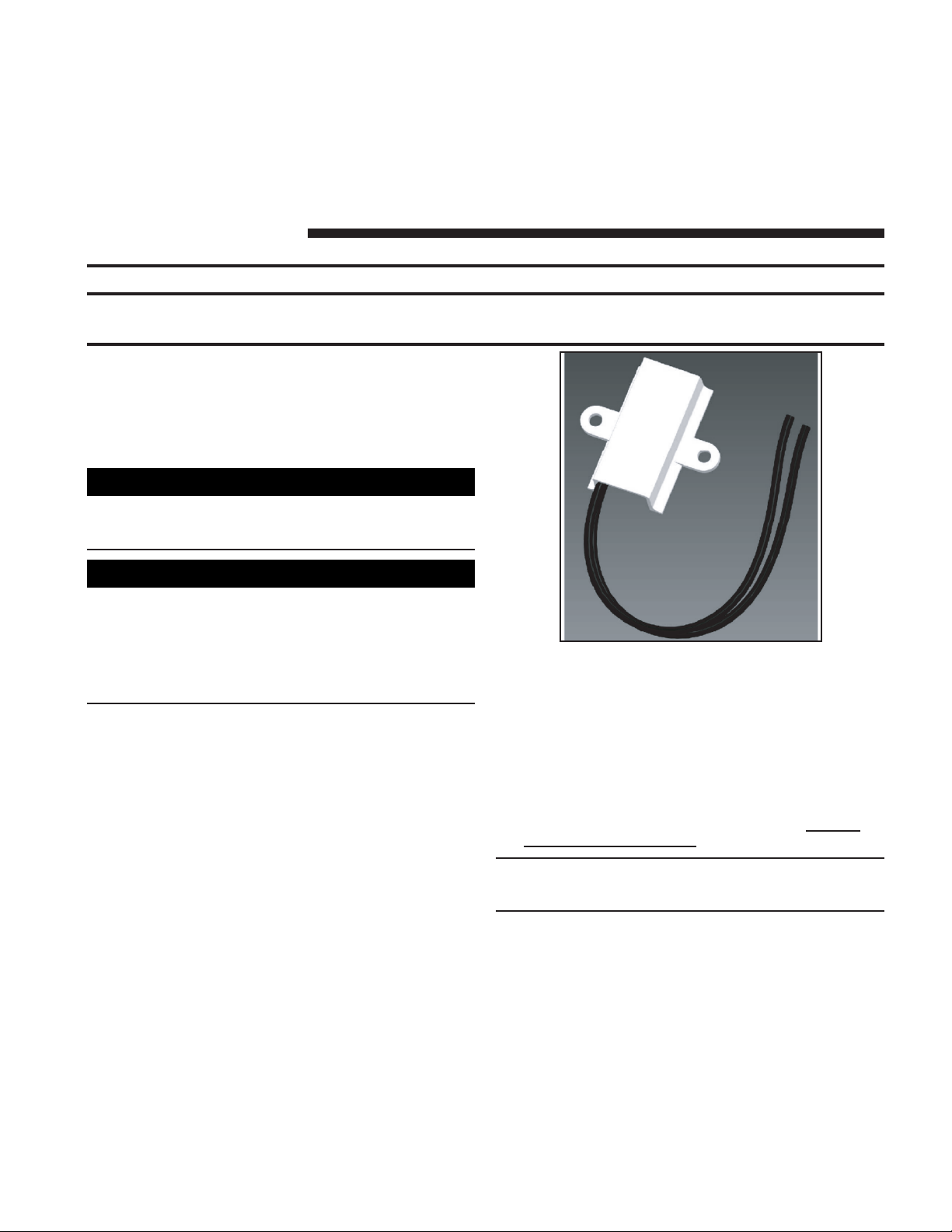

The BAYSEN01ATEMPA is a 10K ohm thermistor sensor

assembly used to sense outdoor temperature. Proper installa-

tion of this sensor is required for it to accurately sense outdoor

temperature.

Read this entire installation instruction before beginning the

installation.

▲CAUTION

Turn off all power to the heating and cooling equipment

before attempting to connect control wiring to Comfort

Control's subbase.

▲WARNING

This information is for use by individuals having adequate

backgrounds of electrical and mechanical experience. Any

attempt to repair a central air conditioning product may

result in personal injury and/or property damage. The

manufacturer or seller cannot be responsible for the

interpretation of this information, nor can it assume any

liability in connection with its use.

Installation

- Location

Careful consideration of the following recommendations will

help to insure that the outdoor sensor provides accurate

readings:

1. Mount the outdoor sensor on the north facing side of the

building in an area where it is exposed to freely circulat-

ing airflow and out of direct sunlight.

2. Do not allow hot air from the attic or drafts from inside

exterior walls to bias the sensor's operation. Always seal

the hole where sensor's wiring passes to the outside of

the structure. Use non-hardening caulk, putty, or

insulation.

3. Avoid locations such as near dryer vents or close to, or

directly above, the outdoor unit where it would be

exposed to hot discharge air from the condenser fan.

4. Install the sensor a minimum of 12 inches above normal

expected snow accumulation.

Wiring

•Maximum length of field wiring to sensor is 200 feet.

•Minimum wire gauge is 18AWG.

1. Turn all power off to the indoor air handler or furnace.

2. Separate the control from the mounting base. Route

sensor wires through the large hole in mounting base.

3. Adjust length and routing of the sensor wires to reach

the roper terminals on the connector block on mounting

base. Strip only 1/4-in. of insulation from each wire to

prevent adjacent wires from shorting together when

connected.

4. Connect the sensor's wires to the proper terminals on

the connector block.

5. Push any excess wire back into the wall and seal the

hole to prevent air leaks.

Note:

Air leaks in the wall behind the control can cause improper

operation.

Control setup and checkout

1. Reinstall the control on its mounting base.

2. Turn ON power to the furnace or air handler.

3. Enter the Comfort Control's Installer Setup mode and

enable the Outdoor Temperature for display only or

for display and control. See the control's installation/

setup instructions for details.

4. After setup is complete, verify that the sensor and

control are operating properly. The outdoor tempera-

ture should display with no service icon present.

Since the manufacturer has a policy of continuous product and product data improvement, it reserves the right to

change design and specifications without notice.

American Standard Inc.

6200Troup Highway

Tyler,TX 75707

For more information contact

your local dealer (distributor)

Installer’s Guide

Table 1

T deg F

RESISTANCE (OHMS

X 1000)

10K THERMISTOR

T deg F

RESISTANCE (OHMS

X 1000)

10K THERMISTOR

T deg F

RESISTANCE

(OHMS X 1000)

10K THERMISTOR

-15 138.9 35 30.0 80 9.3

-10 117.7 40 26.1 85 8.3

-5 99.9 45 22.7 90 7.3

085.1 50 19.9 95 6.5

572.7 55 17.4 100 5.8

10 62.3 60 15.3 105 5.2

15 53.5 65 13.5 110 4.7

20 46.1 70 11.9 115 4.2

25 39.8 75 10.5 120 3.8

30 34.5

Troubleshooting

Display shows two dashes when outdoor

temperature button is pressed.

Sensor not connected properly, shorted or open

wiring or sensor.

Control displays very high outdoor temperature. Wires are touching (shorted together) or sensor is

damaged.

Control displays very low temperature. Improper wiring connection to sensor or sensor is

damaged.

The sensor and the sensor field wiring can be checked by measuring the resistance at the control's

subbase with the control removed. See Table 1 for proper values. If the resistance value is within +/- 5

% of Table 1 values, the sensor is good.
