Installation Guide

Amcor

Split Air Conditioners

Andrew Ziegler

Dir. Product Management

Amcor USA

1. Remove compressor for outside installation from shipping box.*

Compressor should be mounted either on level base slab, or squarely on wall bracket.

2. Remove AC blower unit for inside installation from shipping box.*

*Any visible damage to Amcor products must be reported directly to manufacturer

within twenty four hours of delivery, in order to claim damage for replacement unit or component

Step 1. Getting Started

Remove metal electrical

plate cover as shown.

Step 2. Remove Metal Shield

See plastic shield

cover.

Step 3. Remove Plastic Shield

Remove plastic shield

cover screw.

Step 4. Remove Plastic Shield

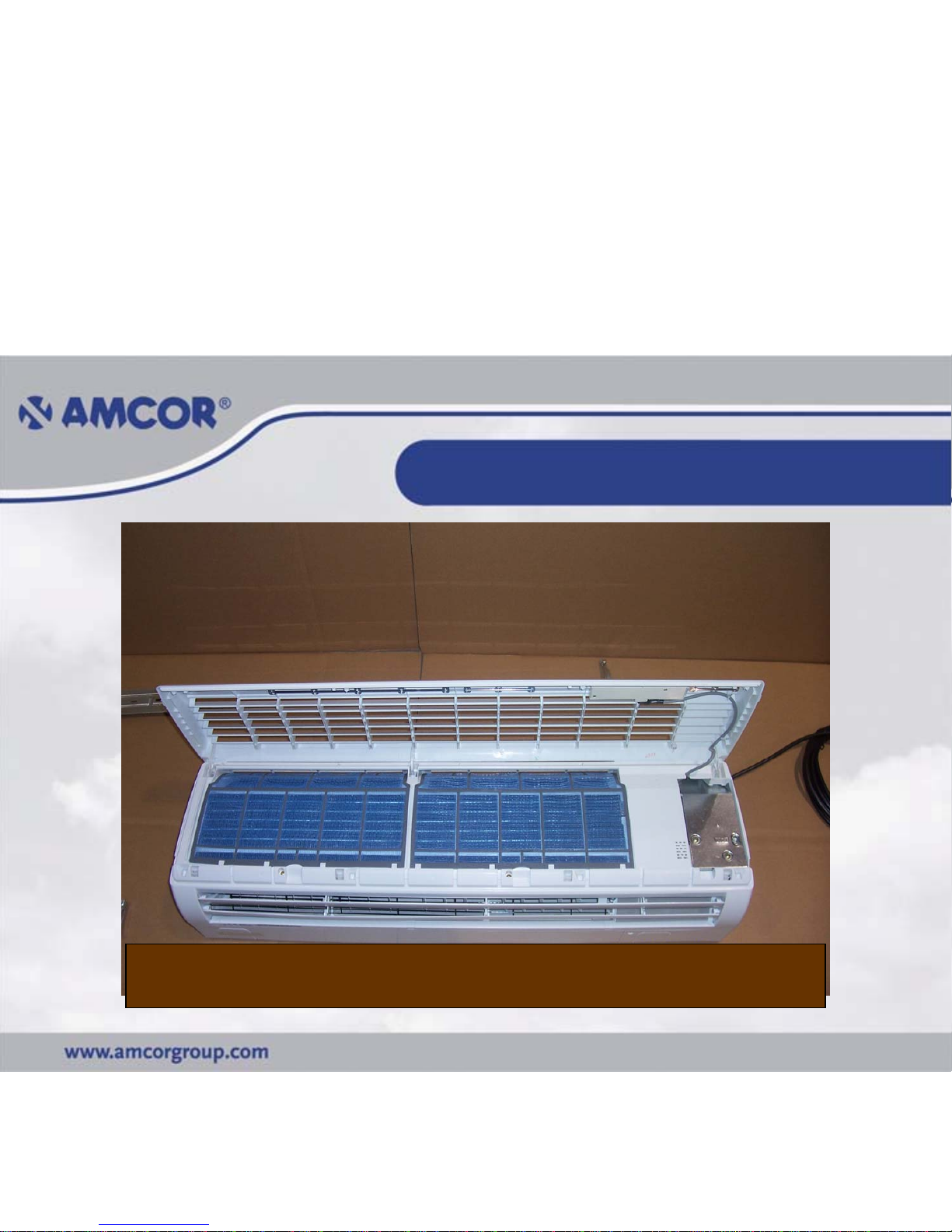

Now you are ready to

wire up the unit..

It is best not to put

these parts on delicate filter. This

just shows removal of (2) parts..

Step 5. Ready to Wire

After exposing the front wiring panel, carefully flip the unit over, resting it

on cardboard box or other protective surface.

.

Step 6. Care In Turing Unit Over

Remove the wall mounting bracket and set aside.

.

Step 7. Remove Wall Bracket

See wire cable management cover at lower left.

Remove single screw as shown by arrow.

.

Step 8. Remove Wire Mgt Cover

Remove the wire

management cover.

.

Step 9. Remove Wire Mgt Cover
