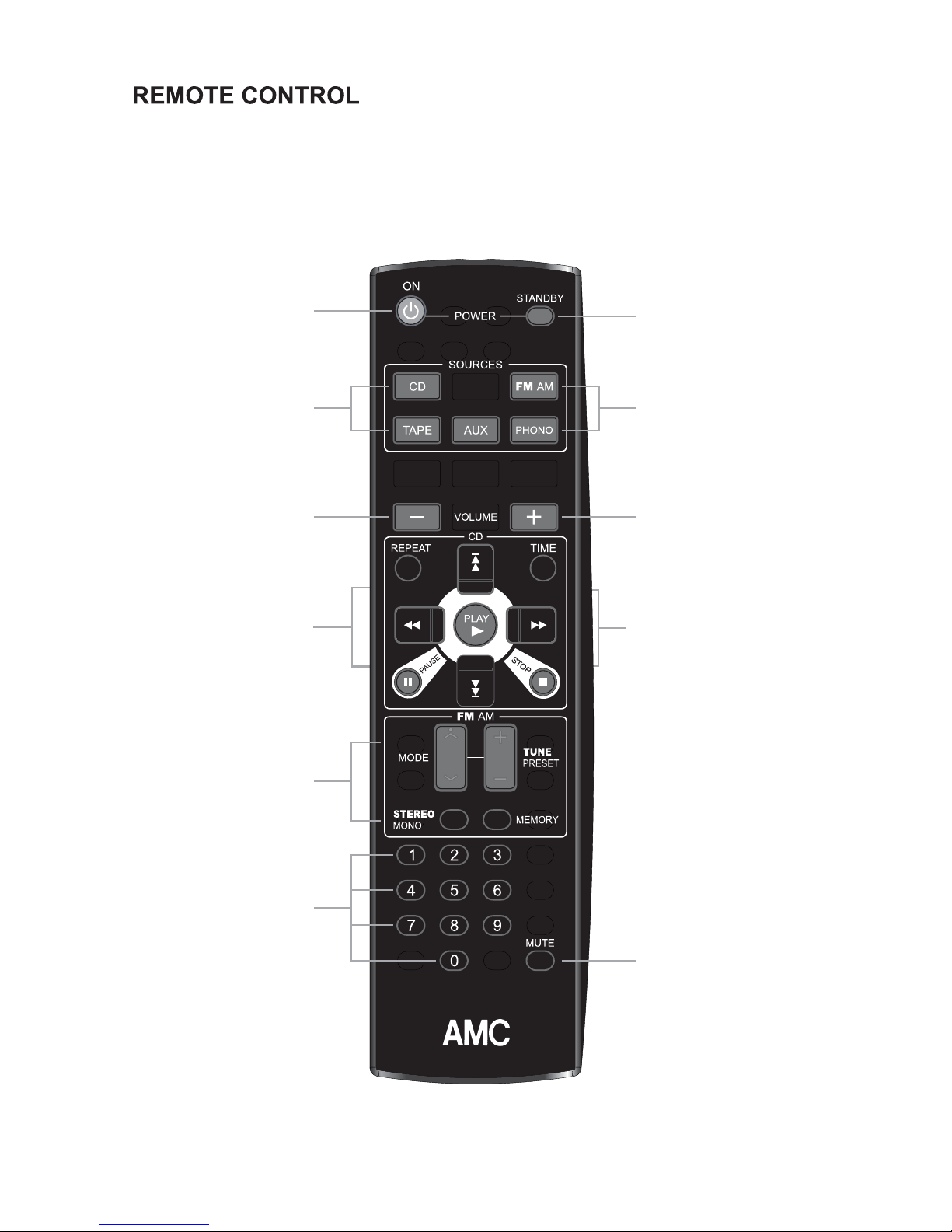

5
1.FM ANTENNA
2.AM ANTENNA
3.GROUND
4.PHONO INPUT
5.CD INPUT
6.TAPE INPUT/OUTPUT
7.AUX INPUT
8.iPod INPUT
9.SPEAKER OUTPUT A/B
10. SWITCHED AC OUTLET (120V
only)
11.UNSWITCHED AC OUTLET
Connect FM in door antenna wire.
Align FM indoor antenna position to
have the best reception of FM
stations. FM outdoor antenna can
improve the reception further.
Connect AM loop antenna and place
antenna as far as possible from the
receiver then align the direction of
loop antenna to have the best
reception.
The separate turnable ground lead
should be connected firmy to this
GROUND terminal to minimize the
hum level.
This input is designed for moving
magnet (MM) cartridge.
To minimize hum the turntable leads
should be kept away from the mains
wiring.
Note: A Phono MC amplifier will be
required for the turntable with MC
cartridge.
The CD input is suitable for use with
any CD player. Connect your CD
player to the sockets marked"CD".
This input is suitable for use with most
cassette or video recorders.
Connect the "record" leads of your
tape recorder to "TAPE OUT" on the
X7i rear panel.
Connect the "playback" leads of your
tape recorder to "TAPE IN" on X7i rear
panel.
The AUX (auxiliary) input can be used
for any source with line output level.
The shorting U-link must be plugged
off for using the AUX input.
A shorting U-link is plugged in AUX
and "To iPod CONNECTOR ON
FRONT PANEL" inputs for using iPod
INPUT jack on front panel.
This input is connected to "iPod
INPUT" on front panel. A shorting U-
link must be plugged in AUX and "To
iPod CONNECTOR ON FRONT
PANEL" inputs for using iPod INPUT
jack on front panel.
The SWITCHED AC OUTLET supply
AC mains at maximum power 120W
(1A 120V) to other equipment such as
AMC XCDi when X7i is switched on.
Don't connect any power consumption
over 120W equipment to SWITCHED
AC OUTLET to prevent any dangerous
may cause by over power.
The UNSWITCHED AC OUTLET
supply AC mains to other equipment
such as AMC XCDi when X7i is
connected to wall AC outlet.
The X7i is equipped with 2 pairs of
pluggable Terminal Blocks allow quick
connections of the internal amplifiers
to two stereo pairs of speakers. They
accept wire sizes for
14 to 28 AWG. Be sure to connect
speaker wires firmly and correctly
according to the channel (left and
right) and the polarity (+ and -).
Do not short-circuit the + and - speaker
wires which may damage the internal
power amplifier.
SPEAKER IMPEDANCE:8ohmone
pair
SPEAKER IMPEDANCE : 16 ohm two
pairs
