AMC SRL400/R Guía del usuario
www.amcelettronica.com SRL400/R V1.0 EN
SRL400/R
TWO-WAY RADIO BUZZER KIT FOR R400 SERIES CONTROL UNITS INSTALLER'S
MANUAL
COMPLIANT
CEI EN 50131-4:2010-08
SRL400 is a radio-controlled buzzer for outdoor use with a 220Vac power unit. It comprises 2 elements, the buzzer shell, which
features all the devices installed in the buzzers, (loudspeaker, buffer battery, etc.) and a transmitter that can be used with R400
series control units. SR400 can, besides the alarm status, signal the system enabled/disabled status, the alarm log, and any
faiulres in the power supply and buffer battery.
All the buzzer functions are managed by a micro-controller, which makes their programming easy and intuitive. All the functions
are selectable via DIP-SWITCHES.
DESCRIPTION
ENGLISH
www.amcelettronica.com SRL400/R V1.0 EN
DESCRIPTION OF THE ELECTRONIC BOARD OF THE BUZZER
The buzzer shell features a group of dip-switches with which the operator can select the following signals:
dip-switch funcions
programming key blinker
power supply
battery connector
antenna bush
anti-opening tamper
red LED
green LED
Can be enabled INDIVIDUALLY by BRINING the corresponding Dip-switch TO ON:
- Sound alarm log (DIP 1 ON);
emits a melody when the system is deacrivated following an alarm
- Visual alarm log (DIP 2 ON);
fast steady flashes after an alarm with the system enabled (goes off when the system is disabled)
- System ENABLED/DISABLED status sound signal (DIP 3 ON);
emits 3 BEEPS when the system is enabled and 1 prolonged beep when the system is disabled
- System ENABLED/DISABLED status visual signal (DIP 4 ON);
emits 3 brief flashes when the system is enabled and 1 prolonged flash when the system is disabled
- steady system ENABLED signal (DIP 5 ON);
when the system is enabled, a double flash is emitted
- Buzzer OK "stand-by" signal (DIP 6 ON):
emits a brief flash every 10 seconds, when the buzzer is working properly
www.amcelettronica.com SRL400/R V1.0 EN
The buzzer board features 2 signaling LED, a battery connector and 2 power supply terminals:
RED LED (POWER SUPPLY CHECK)
- Off: the buzzer is not powered
- Brief flash every 4 seconds: in standby operating mode
- Steady on: the battery is recharging
- Fast flash: the battery is not connected, is faulty or is dead
- Slow flash: recharging voltage missing
GREEN LED (RADIO PART SYSTEM AND CHECK):
- Steady on: no linked transmitter (buzzer not programmed)
- Steady on for 1 second: status transmitter toward CS400. (ALL OK)
- Fast flash for 1 second: control signal reception from CS400 (ALL OK)
- Slowly flashes during self-learning phase (see below)
CONNECTING THE POWER SUPPLY TERMINALS:
- Connect a power to the + - terminals (see figure) having an output voltage between 10 - 15 Vcc 200mA
POLARIZED BATTERY CONNECTOR:
- Connect the battery pack included in the buzzer package (TYPE Ni-MH 700mAh 7.2Vcc)
ASSEMBLY OF BUZZER SHELL AND ACCESSORIES
An installation according to standard requires the use of a screw fastened to a wall, whose head must exert pressure on the anti-
removal microswitch, located on the lower side of the board.
Note: bending the metal tab of the microswitch to achieve the same purpose nullifies the certification.
www.amcelettronica.com SRL400/R V1.0 EN
green LED
DESCRIPTION OF THE ELECTRONIC BOARD OF THE TRANSMITTER
Two-colored LED
Learn key
The CSR400 transmitter has been designed to be used with radio-controlled R 400 series control units; as such, it does not require
to be programmed. Connect the FLAT cable of the transmitter board to the multi-polar socket in the control unit and follow the
programming steps described in the next chapters.
TWO-COLORED EXTERNAL LED:
GREEN COMBINATION = OPERATION OK
ORANGE COMBINATION = FAILURE
RED COMBINATION = FAULT
Two-colored LED - green combination:
- Brief green flash every 4 seconds: in standby operating mode
- Steady on green: system enabled
- Slowly flashing green: system alarm
Two-colored LED - orange combination:
- flashes orange every 4’’: battet not charged
- Slow orange flash: battery charginb (low battery)
- Steady on orange: battery almost fully recharged
Two-colored LED - red combination:
- Slow red flash: very low battery (no power)
- Fast red flash: battery dead, replace
- Steady on red: buzzer has lost supervision.
GREEN LED inside the transmitter (RADIO PART SYSTEM AND CHECK):
- Steady on: transmitter not associated (not programmed for a buzzer)
- Steady on for 1 second: control transmitted to buzzer. (ALL OK)
- Fast flah for 1 second: status signal reception from buzzer (ALL OK)
- Slowly flashing: during self-learning phase (see below)
LOGIC OF THE LED ON THE TRANSMITTER
threaded antenna
Connector
fastening holes
www.amcelettronica.com SRL400/R V1.0 EN
Device programming is of self-learing type and takes place in two-way mode in just one operation:
- Power both the devices
- Hold the key on the SRL400 buzzer pressed until the green LED of the board flashes slowly.
- Hold the key on the SRL400 transmitter pressed until the green LED of the board flashes slowly.
- Hold the key on the CSR400 or on the SRL400 pressed shortly.
- If the programming sequence is not successful, both LED (on the SRL400 and on the CSR400 buzzer) will stop flashing slowly.
To check that the 2 objects are properly programmed, press the key on the CSR400 and check the BEEP on the SRL400 buzzer.
Conversely, by pressing the key on buzzer, the green LED will flash fast from 1 to 3 times.
Note: the combination between CSR400 and SRL400 is unique.
PROGRAMMING AND LEARNING

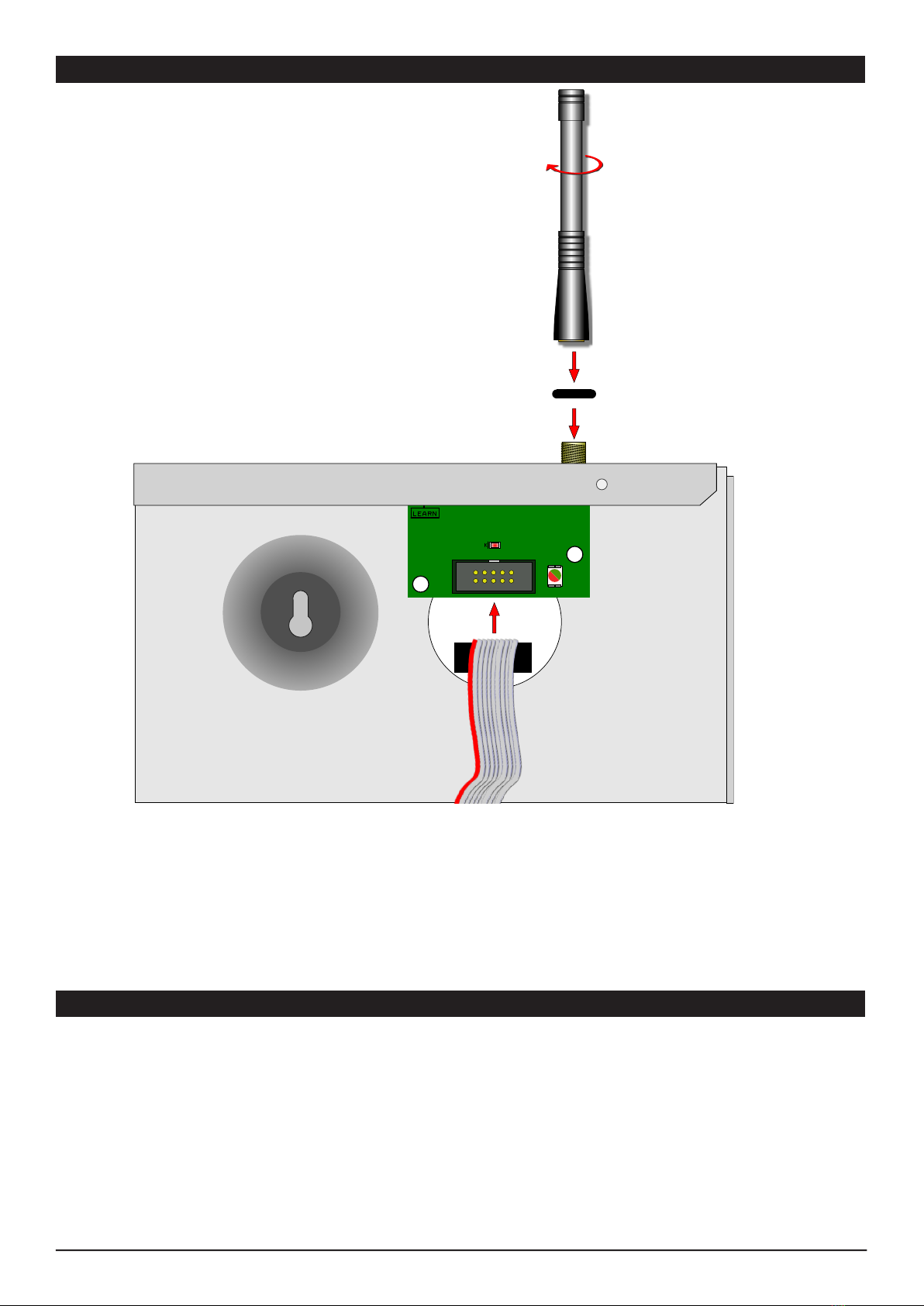

ASSEMBLY DIAGRAM OF THE TRANSMITTER MODULE FOR THE R400
- Insert the plstic turrets in the relevant holes
- insert the board in the turrets and thread the antenna connector in the hole
- insert thespacer O-ring in the connector and screw the antenna
- insert the FLAT cable in the connectors, respectively in control unit (r400) and on the mini-board (see fig.)
www.amcelettronica.com SRL400/R V1.0 EN
6
BUZZER SRL400 TECHNICAL SPECIFICATIONS
Power supply 13.8Vcc nominal
Maximum current 1.3A
minimum operating voltage (positive missing) 6Vcc
essential frequency 1,400Hz/1,700Hz
secondary frequency 1600Hz/3500Hz
sound pressure 110dB@1mt
max sound duration 15’
IP category IP54
operating temperature between -25℃ to +55℃
Buffer battery 12V 2.2Ah
Antiapertura / Anti-opening / Autoprotection •
Cover / Housing / Boiter steel/ABS
weight
Dimensioni / Dimensions
The installation must be carried out to state of the art by specialized personnel.
AMC Elettronica S.r.l. rejects any responsibility in the case that the product is tampered with by unauthorized persons.
We recommend that you check that the alarm system is working properly at least once a month. A reliable electronic alarm system does not
prevent break-in, theft, fire or other, but only lowers the risk of the latter occurring.
Meets the requirements:
Conforme ai requisiti:
CEI EN 50131-4:2010-08
Grade 2
Class 4
TRANSMISSION MODULE - TECHNICAL SPECIFICATIONS
Power supply 13.8Vcc nominal
Maximum current 40mA
minimum operating voltage (positive missing) 6Vcc
MAX open-collector current 50mA
Radio frequency 433.27Mhz - 433.92Mhz - 434.57Mhz @ 10mW
operating temperature between -25℃ to +55℃
