Ambir PS467 Manual de usuario

- 1 -

CE Conformity and FCC Statement ………………………………….

This equipment has been tested and found to comply with the limits of the European Council

Directive on the approximation of the member states relating to electromagnetic compatibility

according to EN 55022/55024 Part 15 B.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient the receiving antenna

•Increase the separation between the equipment and receiver

•Move the computer away from the receiver

•Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected

Trademarks

Windows, Windows Me, 2000, XP, Vista, 7 and Microsoft are the registered trademarks of Microsoft

Corporation. Adobe Acrobat and AmbirScan are registered trademarks or trademarks of Adobe Systems

Incorporated and Ambir Technology, Inc. in the United States and/or other countries.

Package Contents:

Ambir Scanner

USB 2.0 Cable

Carrying Case

2 Photo/Document Sleeves

1 Cleaning Sheet

2 Calibration Sheets

Installation CD

User Guide (printable from CD)

Quick Start Guide

- 2 -

Contents ………………………………….

CE Conformity and FCC Statement.......................................1

Welcome....................................................................................2

Installation of Software & Hardware ......................................3

Initial Calibration with AmbirScan®2.0...................................7

Using Your Scanner ...................................................................9

Tips & Cautions...........................................................................11

Technical Support .....................................................................12

Product Warranty Information.................................................12

Welcome………………………………….

Thank you for purchasing an Ambir scanner. We have designed this product to

provide the user with a simple but effective tool to capture, manage and archive

documents of many types. We encourage you to read this short, but important

User Guide carefully.

Your Ambir scanner has the latest technology and compatible drivers. These

drivers have been tested to be in compliance with Windows®2000 (SP4),

Windows XP (SP2), Windows Vista®, and Windows 7 operating systems. We also

feature a TWAIN 1.9 compatible driver that will work with thousands of imaging

applications. If you experience any difficulty with these drivers, please check our

website at www.ambir.com to verify you are using the latest version.

- 3 -

Installation of Software & Hardware

FOR BEST RESULTS PLEASE INSTALL THE SOFTWARE FROM THE

CD PROVIDED BEFORE PLUGGING IN YOUR SCANNER.

Note:

As a precaution, a RED warning label has been placed over the large end of the USB

plug to remind you to install the software from the CD first. Please remove this

warning label prior to plugging in the scanner cable.

STEP 1- Install Software

Driver Installation

a)Insert the installation CD that came with your Ambir scanner.

The installation program will begin automatically.

b)In Windows XP, if your CD does not start automatically, please double-click the

MY COMPUTER icon on your Windows desktop, then double-click the CD icon.

In Widows Vista, click Start ÆComputer, then double-click the CD icon. If the

installation program does not begin, double-click the SETUP icon.

c) Click the Install Scanner Driver button to begin installation.Follow the on

screen step-by-step instructions. Choose the “Complete” Setup Type option

(see below).

- 4 -

AmbirScan Installation

d) Click “Install AmbirScan” on the CD menu screen. Follow the on screen

step-by-step InstallShield Wizard instructions to install the AmbirScan 2.0software.

e) If you do not already have Adobe Reader installed, you should select the “Install

Adobe Reader” button on the CD menu. You may also print out the User Guide

after installing the Adobe Reader for your future reference. If you choose to install

Adobe Reader, you will see the screen below. Please follow the instructions to

install the software.

- 5 -

Note:

After you have completed all software installations, we strongly recommend you

restart your computer even if you are not prompted by Windows to do so.

Uninstalling Software/Hardware

f) To remove your scanner, AmbirScan 2.0 or the Adobe program you need to go to

Start ÆControl Panel ÆAdd or Remove Programs (Windows XP) or Start ÆControl

Panel ÆPrograms & Features (Windows Vista). To remove a scanner, you will have

to select it from the list of programs. Make sure the scanner is connected to your

computer when performing the uninstall function.

- 6 -

STEP 2- Install Hardware

After you have installed the software and restarted your computer:

a) Connect the USB cable from the scanner to the USB port on your computer

as shown below. If necessary, please check your computer’s user guide to

identify the USB ports available and their locations.

b)Under Windows XP, Vista, and Windows 7 operating system, the computer will

automatically detect the new hardware device and install the driver. (See

above)

c) Under Windows 2000, ME, and 98SE you may be required to browse to the

installation CD where Windows will retrieve additional driver components to

complete the installation. Follow the step-by-step Found New Hardware Wizard

installation instructions and finish your installation. (See above)

- 7 -

d)Users with Windows 2000, ME, and 98SE operating systems may see the “Windows

Logo” compatibility warning screen when installing the driver/hardware. We

assure you that your scanner has been fully tested and is compatible with these

systems. Simply click the “Continue Anyway” button and proceed with the final

installation.

Initial Calibration with AmbirScan 2.0

Note:

Calibration is a critical step in setting up your scanner. It allows the image quality to

be “balanced” for your computer and scanner combination. If at any time you

switch the computer that you use with your scanner, or change scanners, you will be

required to calibrate again.

Launch AmbirScan 2.0tobegin.

a) To open the AmbirScan 2.0application double-click the AmbirScan 2.0 shortcut

icon on your desktop.

b)Once you have launched AmbirScan 2.0, select the SCAN button and the

step-by-step calibration instructions will appear in a succession of prompts.

- 8 -

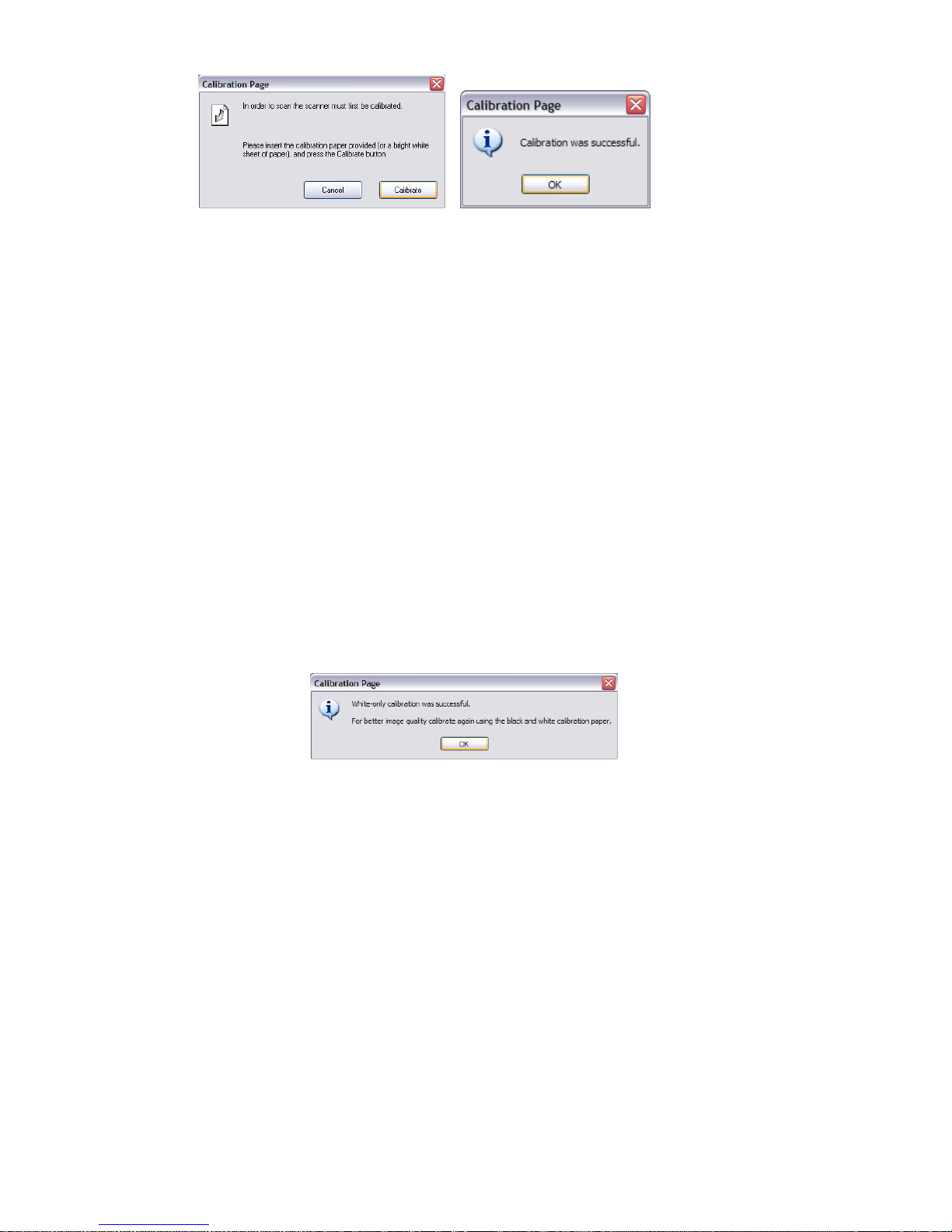

This calibration process will require the special black and white calibration

sheet that was included with your scanner. When calibrating, make sure the

page with the black bars are facing down and note the direction of the arrows

for proper insertion. When the calibration process has been completed

successfully, you will see the message above; otherwise you would need to

re-calibrate.

If you switch scanners or your image quality has become unsatisfactory, you

can first clean your scanner with the provided cleaning sheet, and then

re-calibrate your scanner. To calibrate the scanner simply click the Custom

button in the AmbirScan 2.0window and select Calibrate.

Should you lose the calibration paper that was included with your scanner, you

can simply use any plain “white” (the brighter the “white” the better) piece of

letter size printer paper and cut it to a dimension of (4 1/8 x 7 1/4) to perform

the calibration. The following message will be displayed.

- 9 -

Using your Scanner

There are two easy ways for you to scan and manage your documents and

images with your Ambir scanner.

1) The first is by utilizing the AmbirScan 2.0 control panel (Figure 1) that allows

you to select from the most common paper sizes, image settings and basic

file output information (location & name of your document). These files can

be saved in multiple file formats. If you need to scan multi-page documents

please select PDF format.

2) The second way is through the TWAIN user interface, which you can find by

pressing the Custom button on the AmbirScan 2.0 control panel. The TWAIN

user interface (Figure 2) allows you to control all details and settings of the

scanner. This type of “fine-tuning” of your scans may be required for some

of your document needs.

•When scanning documents make sure the image side to be

captured is inserted face down.

•Notice the Page Tabs at the top of the TWAIN user interface; they

are: Custom Settings, Information, and Language. Take a moment

to explore these tabs and their function:

oThe Custom Settings Tab allows you to change the settings to

the detailed specifications that you feel are required. You can

Figure 1 Figure 2
