1Introduction

Thank you for your purchase of the Ambient Weather Radio Controlled Analog Wall Clock. The

following user guide provides step by step instructions for operation and troubleshooting. To

download the latest manual and additional troubleshooting tips, please visit:

http://ambientweather.wikispaces.com/rc1200mtth

2Quick Start Guide

1. Set Time Zone and Daylight Savings Time switch (Section 7).

2. Insert the battery.

3. Hang the clock on the wall.

4. Wait 24-48 hours for the correct time to set.

3Overview

The radio controlled wall clock (RCC) updates time and date automatically using a radio receiver

from the atomic time transmitted from Fort Collins, CO, USA(WWVB).

This signal is shortwave, and travels thousands of miles by bouncing off of the ionosphere. The signal

is best received at night when there is no solar interference.

The radio controlled clock never requires setting, and automatically adjusts to daylight savings time

(DST). This feature can be overridden for locations that do not observe DST (example,Arizona).

Features include:

Noise free second hand

Hour, minute and second hands

Automatic daylight savings time update and leap year observation

Four time zone settings (Pacific, Mountain, Central, Eastern)

Thermometer and Hygrometer

Long battery life

The radio controlled reception is attempted every two hours, and generally is successful at night. Just

one successful synchronization per day is sufficient to accurately set the clock to the second.

4Important Notes

Before using this product, please read the following :

1. Read these instructions –All operating instructions should be read before the unit is operated.

2. Operate and store in a dry location. Do not operate outside.

3. The product must be protected against electromagnetic fields, static electrical fields, extreme

temperatures, and moisture.

4. Clean only with soft damp cloth.

5. Do not use near any heat sources such as radiators, heat registers, stoves, or other device

(including amplifiers) that produce heat.

6. Refer all servicing to qualified service personnel. Servicing is required when the device has

been damaged in any way, such as liquid has been spilled or the device has been exposed to

rain or moisture, does not operate normally, or has been dropped.

7. This device shall not be exposed to dripping or splashing water and that no object filled with

liquids shall be placed on the device.

8. Do not attempt to dismantle, open or repair this product yourself. If a fault occurs, seek

advice from Ambient Weather support only.

9. The product must not be exposed to substantial mechanical strain or strong vibrations.

10. Do not leave packaging materials unattended. It may become a dangerous plaything for

children.

11. Handle the product with care. It can be damaged by dropping and vibration.

Battery Safety Instructions

1. If the battery electrolyte in the cells should get on your skin, thoroughly wash with soap and

water. If in the eyes, rinse thoroughly with cool water. Immediately seek medical attention.

2. Leaking or damaged batteries might cause acid burns when in contact with skin, therefore use

suitable protective gloves to handle corrupted batteries.

3. Correct polarity must be observed while inserting the batteries.

4. Batteries should be removed from the device if not used for a long period of time to avoid

damage through leaking.

5. Keep batteries out of reach of children. Batteries can be swallowed and represent a choking

hazard.

6. Batteries must not be dismantled, short-circuited or thrown into fire.

5Installation

1. The clock includes a suspension eye for hanging on a wall.

2. To ensure proper radio reception, the clock should not be placed near electronic devices or on

a metal wall (metal blocks radio signals).

6Controls

The following controls are on the back of the clock face.

Description

Daylight Savings Time Observation

Locking pin (normally removed before

(OFF for Arizona)

shipping)

Resynchronization with Atomic Clock

Manual Clock Set

Reset Button

Time Zone (P=Pacific, M=Mountain,

C=Central, E=Eastern)

AA Battery Compartment

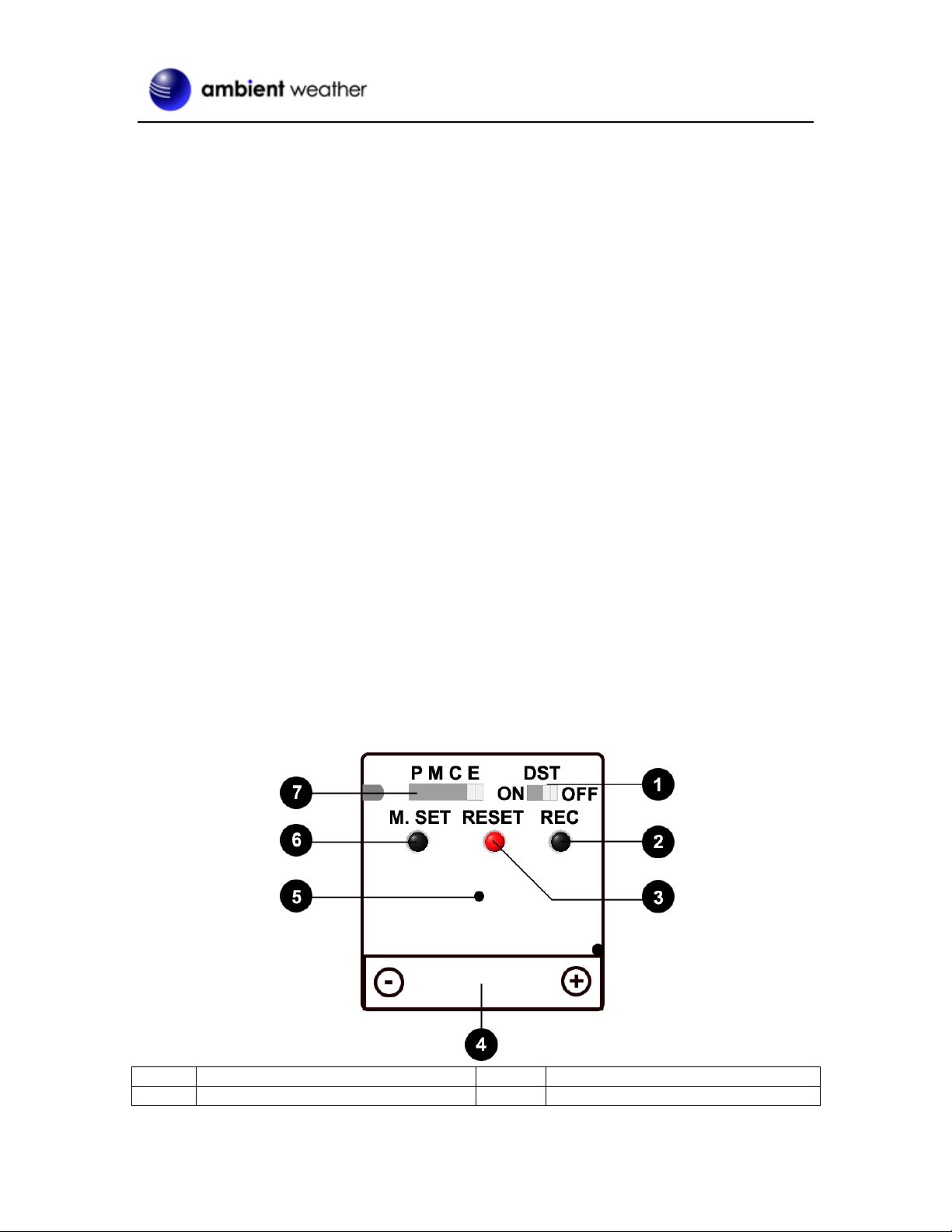

Figure 1

7Battery Installation and Initial Operation

1. Reference Figure 1. Enter the Time Zone and Daylight Savings Time (DST) as outlined in

Table 1.

Cities

Time

Zone

Hours from

GMT

Daylight Savings Time (DST)

Pacific Time

-8

Mountain Time

-7

Arizona Time

-7

OFF

Central Time

-6

Eastern Time

-5

Table 1

2. On the back of the housing, insert one AA battery, observing the correct polarity. The

correct polarity is indicated in the battery compartment.

Replace the cover by rotating clockwise, as shown in Figure 1.

3. The second hand will run and stop at the 12:00 o’clock position, followed by the minute hand

and hour hand aligning to the 12:00 o’clock position. This confirms the clock hands are

operating properly.

4. The clock attempts to synchronize with the atomic clock for 12 minutes. If it synchronizes,

the clock sets properly. If it does not receive the signal from the atomic clock (very likely

during the daytime), the clock will begin running from the 12:00 position until the time

synchronization is successful.

The clock will attempt synchronization every two hours (1:00, 3:00, 5:00, 7:00, 9:00, 11:00,

13:00, 15:00, 17:00, 19:00 and 21:00). During synchronization, the second hand will operate

properly.

8Mechanical Deviation Adjustment

During normal operation, the second hand will resynchronize at 1:30, 9:30 and 17:30 for two minutes

to account for mechanical deviation. The resynchronization occurs for two minutes, and makes the

proper second hand adjustment.

During normal operation, the minute hand will resynchronize from 1:52 to 1:58. If the minute hand

deviates within two minutes, it will automatically adjust. If the minute deviates more than two minutes,

the clock hands will align to 12:00 and attempt resynchronization.

9Setting the Time Manually

If reception is not available, the clock date and time can be set manually.

To set manually, press and hold the M. SET button (Figure 1) for three seconds, and the clock second

hand will stop and enter the manual mode.

Next, press and hold the M. SET button again until the time is two minutes ahead of the current time.

The clock will begin updating again after the M. SET button has not been pressed for two minutes.

The clock will attempt synchronization every two hours (1:00, 3:00, 5:00, 7:00, 9:00, 11:00, 13:00,

15:00, 17:00, 19:00 and 21:00). During synchronization, the second hand will operate properly.

10Forced Radio Resynchronization

To force resynchronization from the atomic clock, press and hold the REC button for 3 seconds. The

hands will return to the 12:00 position.

The clock attempts to synchronize with the atomic clock for 12 minutes. If it synchronizes, the clock

sets properly. If it does not receive the signal from the atomic clock (very likely during the daytime),

the clock will begin running from the 12:00 position until the time synchronization is successful.

The clock will attempt synchronization every two hours (1:00, 3:00, 5:00, 7:00, 9:00, 11:00, 13:00,

15:00, 17:00, 19:00 and 21:00). During synchronization, the second hand will operate properly.

11Temperature and Humidity Sensors

The clock includes a temperature and humidity sensor, as shown in Figure 2. The clock is intended for

indoor use only.

Figure 2

12Maintenance

The device is maintenance-free, but should be cleaned occasionally. Only use a slightly dampened and

soft cloth to clean the housing. Do not use abrasives or solvents.

13Specifications

Operating Voltage

1.5 Vdc

Battery

1 x AA

Battery Life

About 1 year (high quality batteries)

Radio controlled time protocol

WWVB (USA)

Dimensions

Approximately 12”

Measurement

Range

Accuracy

Resolution

Temperature

-10 to 130 °F

± 1.8 °F (± 1 °C)

1 °F

Humidity

0 to 100%

± 6% (10 to 40%)

± 5% (40 to 75%)

± 7% (75 to 85%)

± 8% (0 to 10 and 85 to

100%)

1 %

14Glossary of Terms

Term

Definition

DST

Daylight saving time (DST) or summer time is the

practice of advancing clocks during the lighter months so

that evenings have more daylight and mornings have

less. Typically clocks are adjusted forward one hour near

the start of spring and are adjusted backward in the

autumn.

Hygrometer

A hygrometer is a device that measures relative humidity.

Relative humidity is a term used to describe the amount

or percentage of water vapor that exists in air.

RCC

A radio-controlled clock is a clock that is synchronized

by a time code bit stream transmitted by a radio

transmitter connected to a time standard such as an

atomic clock.

WWVB

WWVB is a NIST time signal radio station near Fort

Collins, Colorado. WWVB is the station that

radio-controlled clocks in most of NorthAmerica use to

synchronize themselves. The 70 kW ERP signal

transmitted from WWVB is a continuous 60 kHz carrier

wave, the frequency of which is derived from a set of

atomic clocks located at the transmitter site, yielding a

frequency uncertainty of less than 1 part in one trillion.

15Troubleshooting Guide

If your question is not answered here, you can contact us as follows:

1. Email Support: support@ambientweather.com

2. Technical Support: 480-346-3380 (M-F 8am to 3pm Arizona Time)

Problem

Solution

Radio controlled clock does not update or

time is wrong.

Hang the clock on a wall. Laying the clock flat

on a surface will result in poor reception.

Be patient. Wait at least one week before

contacting Ambient Weather. The RCC is a

shortwave signal originating near Fort Collins,

Colorado, and travels thousands of miles by

bouncing off the ionosphere. The signal is better

at night due to solar interference during the

daytime. The farther you are from Colorado, the

weaker the signal. Urban environments can also

affect the signal strength.

Locate the Clock at night near a window or

outer wall, and away from other radiating

sources, like wireless routers or TVs. This will

insure the best reception possible.

Replace the batteries in the clock if

required. Low batteries are often the cause for

weak reception.

Check your Time Zone Setting. Make sure

your time zone is set properly in the clock

settings.

Avoid closed in areas. Closed in areas such as

basements are not recommended.

The clock is off by increments of an hour.

Check your Time Zone and DST

Settings. Make sure your time zone and DST

switches are set properly.

The clock does not respond to commands.

Press the reset button on the back of the clock.

16Liability Disclaimer

Reading the “User manual” is highly recommended. The manufacturer and supplier cannot accept any

responsibility for any incorrect readings and any consequences that occur should an inaccurate reading

take place.

This product is not to be used for medical purposes or public information.

The specifications of this product may change without prior notice.

This product is not a toy. Keep out of the reach of children.

No part of this manual may be reproduced without written authorization of the manufacturer.

Ambient, LLC WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL,

PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR

MALFUNCTION OF THIS PRODUCT.

This product complies with the applicable national and USA and European regulations. All rights

reserved and patent pending.

17Warranty Information

Ambient, LLC provides a 1-year limited warranty on this product against manufacturing defects in

materials and workmanship.

This limited warranty begins on the original purchase date, and is valid only on products purchased

and used in the United States, only to the original purchaser of this product, and only from an

authorized dealer. To receive warranty service, the purchaser must contact Ambient, LLC for

troubleshooting and service.

Warranty service can only be performed by an Ambient, LLC authorized service representative. The

original receipt must be provided upon request as proof of purchase toAmbient, LLC.

Ambient, LLC will replace this product with new or reconditioned parts or products, if found to be

defective during the limited warranty period specified above.

Replacement parts and products assume the remaining original warranty, or ninety (90) days,

whichever is longer.

The owner must pay any shipping charges incurred in getting your Ambient, LLC product to a

Ambient, LLC for replacement or repair. Ambient, LLC will pay reasonable return shipping charges to

the owner of the product.

Your Ambient, LLC warranty covers all defects in material and workmanship with the following

specified exceptions: (1) damage caused by accident, unreasonable use or neglect (including the lack

of reasonable and necessary maintenance); (2) damage resulting from failure to follow instructions

contained in your owner’s manual; (3) damage resulting from the performance of repairs or alterations

by someone other than an authorized Ambient, LLC authorized service center; (4) units used for other

than in the manner described in this manual.

18Disposal

Please help in the preservation of the environment and return used batteries to an authorized depot.

The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in

wild country and/or in unauthorized grounds strongly damages the environment.

Tabla de contenidos

Otros manuales de Reloj de Ambient Weather

Ambient Weather

Ambient Weather GL150-C1 Manual de usuario

Ambient Weather

Ambient Weather RC-1250CH Manual de usuario

Ambient Weather

Ambient Weather Fischer 1610GU-45 Manual de usuario

Ambient Weather

Ambient Weather RC-1200WBA Manual de usuario

Ambient Weather

Ambient Weather GL150-TT Manual de usuario

Ambient Weather

Ambient Weather RC-1200BS Manual de usuario

Ambient Weather

Ambient Weather Fischer 1606U-45 Manual de usuario

Ambient Weather

Ambient Weather TIDECLOCK-22 Manual de usuario

Ambient Weather

Ambient Weather Fischer 1588U-22 Manual de usuario

Ambient Weather

Ambient Weather RC-1200WBDN Manual de usuario

Ambient Weather

Ambient Weather TIDECLOCK-25 Manual de usuario

Ambient Weather

Ambient Weather TIDECLOCK-23 Manual de usuario

Ambient Weather

Ambient Weather RC-1800WSTH Manual de usuario

Ambient Weather

Ambient Weather Fischer Instruments 1434TD-22 Manual de usuario

Ambient Weather

Ambient Weather Fischer 1434U-22 Manual de usuario

Ambient Weather

Ambient Weather RC-1400WB Manual de usuario

Ambient Weather

Ambient Weather RC-1200BSN Manual de usuario

Ambient Weather

Ambient Weather RC-1200WB-IL Manual de usuario

Ambient Weather

Ambient Weather RC-1200BWDN Manual de usuario

Ambient Weather

Ambient Weather Fischer 103PMU Manual de usuario

Ambient Weather

Ambient Weather Fischer 1343U-22 Manual de usuario

Ambient Weather

Ambient Weather GL152-C2 Manual de usuario

Ambient Weather

Ambient Weather RC-1200WS Manual de usuario

Ambient Weather

Ambient Weather RC-8473 Manual de usuario

Manuales populares de Reloj de otras marcas

Silicon Laboratories

Silicon Laboratories SI5324 Manual de usuario

Heathkit

Heathkit GC-1005 Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manual de usuario

Andrew O'Malley

Andrew O'Malley DOTKLOK Manual de usuario

ALGE-Timing

ALGE-Timing ASC3 Manual de usuario

Bodet

Bodet Profil 960 Manual de usuario

Nixie Clock

Nixie Clock Divergence Meter Manual de usuario

La Crosse Technology

La Crosse Technology WS-8256-AL Manual de usuario

Mini Gadgets

Mini Gadgets MCPro Manual de usuario

Casio

Casio TMR-200 Manual de usuario

Progetti

Progetti ILTEMPOSTRINGE Manual

BVItech

BVItech BV-101 Manual de usuario

Progetti

Progetti KALIMERO Manual

La Crosse Technology

La Crosse Technology WT-3141b Manual

La Crosse Technology

La Crosse Technology W86531 Manual de usuario

Sharp

Sharp SPC900 Manual de usuario

La Crosse Technology

La Crosse Technology 404-50447 Manual de usuario

Datexx

Datexx DF0063 Manual de usuario
