Amazfit GTS 3e Manual de usuario
Amazfit GTS 3e Product Manual
1
01 Package Contents
Smartwatch with band × 1 Charging base × 1 Instruction Manual × 1
2
02 About the Watch
Note: Press and hold the power button to turn on the watch. If the watch cannot be
turned on, please charge it and then try again.
Heart rate sensor
Charging contacts
Power/Crown
03 Pairing the Watch
1.
2.
3.
4.
Scan the QR code on the Instruction Manual with your mobile phone to download
the app to your mobile phone. You can also download the latest version of app
from the Google Play Store or Apple App Store.
Open the app, register an account and log in.
Follow the steps in the app to pair your watch correctly. Once
pairing is complete, the watch will display the correct time.
You can set other watch features as needed.
Download Zepp App
3
4
Note:
1.
2.
3.
For better user experience, please use the most recent version of the APP.
The operating system needs to be Android 5.0, iOS 10.0, or above.
Do not pair the watch directly using your mobile phone’s Bluetooth. Follow the
steps in the app to pair your watch correctly.
5
04 Charging the Watch
1.
2.
3.
Note:
1.
2.
Please use the charging base that comes with the watch.
Make sure that the charging base is dry before charging.
Please use a 1A or above power adapter.
Connect the USB port of the watch charging cable to a power adapter or a
computer USB port.
Put the watch into the charging base. Pay attention to the direction and position
of the watch, and make sure that the metal contacts on the back of the watch fit
closely with the charging base.
When charging starts, the watch screen displays the
charging progress.
6

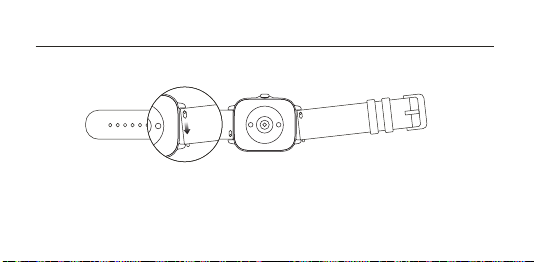

05 Disassembling and Assembling the Watch Strap
Please refer to the illustrations to disassemble or assemble the watch strap.
Note: Once the strap is assembled, pull the strap properly to ensure it is installed
successfully.
7
06 Wearing the Watch
1.
2.
3.
Wear the watch strap neither too tight nor too loose, and leave enough space for the
skin to breathe. This makes you feel comfortable and allows the sensor to function.
When measuring blood oxygen saturation, wear the watch correctly. Avoid wearing
the watch on the wrist joint, keep your arm flat, maintain comfortable (appropriately
tight) fitting between the watch and the skin of your wrist, and keep your arm still
throughout the measurement process. When aected by external factors (arm sag,
arm sway, arm hair, tattoo, etc.), the measurement result may be inaccurate or the
measurement may fail and provide no output.
We recommend that you tighten the watch strap during workout and loosen it
afterwards.
8
07 Basic Parameters
Product model: A2035
Bluetooth version: BLE V5.1
BLE output power: < 5 dBm
Input: DC 5 V 500 mA MAX
View product certification information on the watch's Settings > System >
Regulation page.
Device requirements: Devices installed with Android 5.0 or iOS 10.0 or above OS versions
Bluetooth frequency: 2400–2483.5 MHz
Operating temperature: 0°C to 45°C
Water resistance rating: 5 ATM
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Anhui Huami Information
Technology Co., Ltd. is under license. Other trademarks and trade names are
those of their respective owners.
9
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC ID: 2AC8UA2035
Any changes or modifications that are not expressly
approved by the party responsible for the compliance
may void the user’s authority to operate the device.
08 Regulatory Notice
IS 13252(Part 1)/
IEC 60950-1
R-R-41103527
www.bis.gov.in
