Amate Audio NITID S10 Manual de usuario

User’s manual

April 2023

NITID S10 Apr 2023

Amate Audio

Safety Instructions

1. All safety instructions must be read before using this device.

2. Keep and follow these instructions

3. Heed all warnings

4. The exclamation mark in the triangle indicates internal components which if

replaced can affect safety.

5. The lightning symbol within the triangle indicates the presence of dangerous

uninsulated voltages.

6. Only clean the device with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install the device near heat sources such as radiators, heaters or other

heat-emitting elements.

9. Protect the power cord from being walked on or pinched, particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus

10. The equipment must be repaired by qualified technical service personnel when:

A. The mains supply cable is damaged, or

B. Any object or liquid has damaged the device; or

C. The equipment does not function normally or correctly; or

D. The equipment has been exposed to the rain; or

E. The chassis is damaged

11. Disconnect the device in the case of electric storms or during long periods of

disuse.

12. WARNING – To reduce the risk of fire or electric shock, do not expose this

device to rain or moisture

13. The equipment shall not be exposed to dripping or splashing and no objects filled

with liquids, such as vases, shall be placed on the device.

14. For hanging and installation, use manufacturer recommended accessories only.

NITID S10 Apr 2023

Amate Audio

1. INTRODUCTION

General

Amate Audio would like to thank you for your confidence in our NÍTID Series. We

suggest you to carefully read the following instructions in order to obtain the best

results in performance.

Features and presentation

S10

•Self-powered two-way acoustic system

•XLR electronically balanced input & output

•AC PowerCon input & link

•500 W class D amplifier for bass range

•100 W class D amplifier for high range

•24-bit AD/DA converters, 48 kHz sampling rate

•DSP Controls (presets, parametric EQs, delay, mute, gain and limiter)

•ECO-mode available: automatic standby mode controlled by the input signal

•Amplifier self-diagnostics: input and output level, temperature, limiter active

•10” neodymium speaker with 2.5” voice coil

•1.4” polyester diaphragm driver

•50º to 100º (H) x 55º (V) asymmetrical dispersion horn

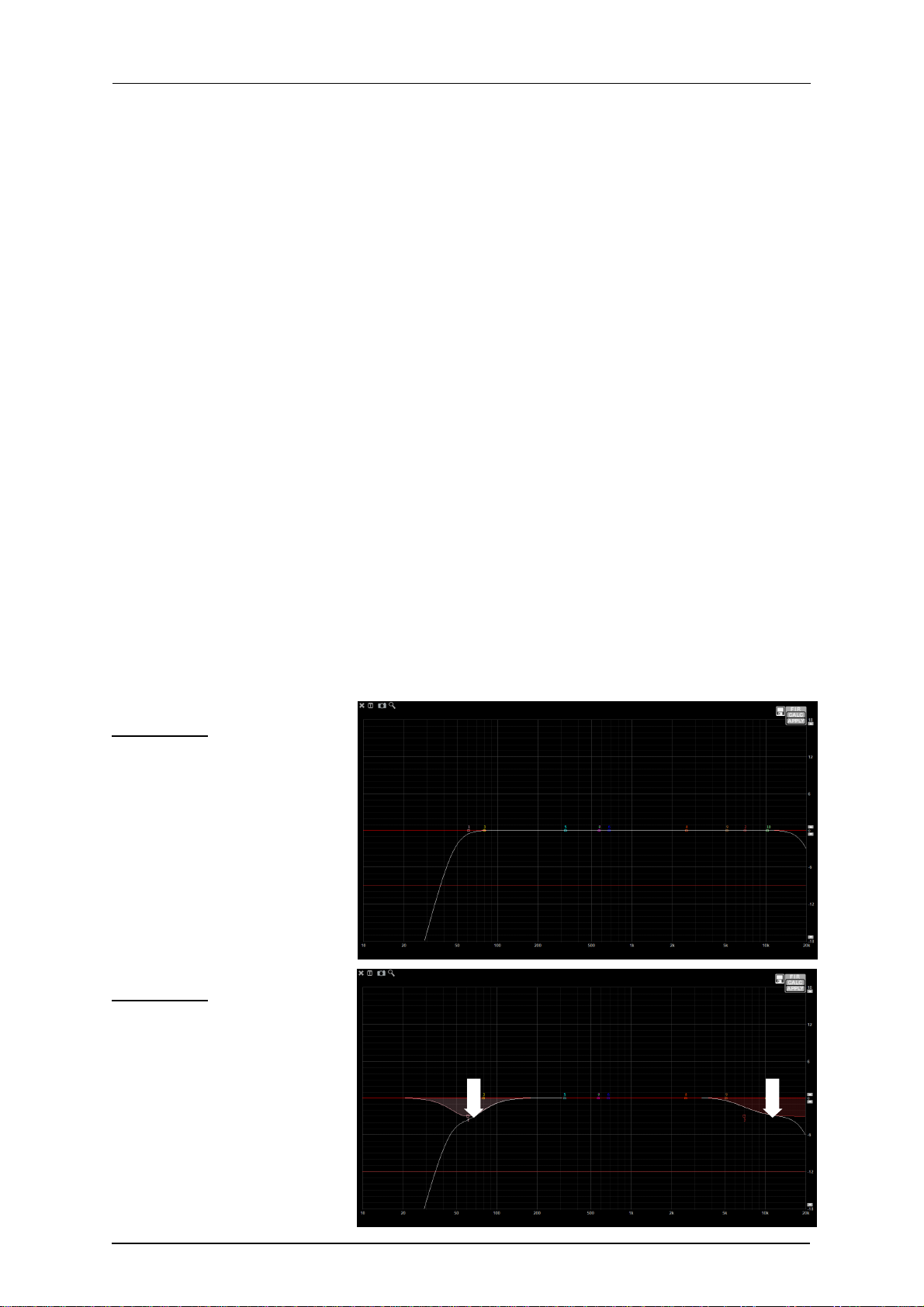

Presets on S10

The S10 includes several manufacturer presets for different types of applications.

PRESET 1: Flat

Single enclosure without

subwoofer, full range, flat

response. For pole mount

or hanged applications.

PRESET 2: Speech

Single enclosure without

subwoofer, full range, flat

response. For speakers

using microphone.

-3dB low

-3dB high

NITID S10 Apr 2023

Amate Audio

PRESET 3: Monitor

Single enclosure without

subwoofer full range, flat

response. For stage

monitor applications.

PRESET 4: HPF90

For using with subwoofer.

HPF at 90 Hz.

Fig. 1. Presets for S10

2. CONTROL AND CONNECTION PANEL

The S10 control panel contains the following elements:

A)TOUCHSCREEN: Displays information about the System status: current preset,

amplifier status and signal input level. Allows the user to configure the system:

Preset selection, Delay, Gain, Limiter, ECO mode on/off, Front LEDs on/off, etc.

For more information about the available functionality, read the Annex I of this

manual.

NOTE: For preventing the access to Main Menu with a PIN pattern, please refer to

Annex I.

B) MODEL DATA: The basic data of the model is found here:

- Model reference

- Amplifier program power (Watts)

- Maximum Sound Pressure Level Continuous delivered by the system (dB SPL)

C) BALANCED INPUT/LINK:

XLR-3 Female balanced signal connector for signal input.

XLR-3 Male connector for parallel connection of various cabinets with the same input

signal.

Nominal Input sensitivity: +8dBu (2 Vrms)

Maximum Input Voltage without clipping: +14dBu (4Vrms)

Maximum Input Voltage: +20dBu (8Vrms)

PF90

NITID S10 Apr 2023

Amate Audio

IMPORTANT: Please always use balanced microphone cable with the

following pin assignment:

1= Shield (Ground) 2= Live (+) 3= Return (-)

Fig. 2. S10 control and connection panel

NITID S10 Apr 2023

Amate Audio

D) AC MAINS INPUT/LINK: Mains supply connection via PowerCon.

•Blue connector for AC in.

•Grey connector to feed other units in parallel. Linking up to ten units is

possible, provided that a quality cable of a minimum section of 3 x 2.5mm

used. Connecting more than ten units in parallel may lead to a voltage drop in

the cable that will reduce the equipment performance.

Always use mains power cable supplied by manufacturer. Never connect

NÍTID cabinets to an unearthed mains supply or by using an unearthed

mains cable

E) AUTHENTICATION QR CODE: This QR code is a smart label that ensures that

the product is an original Amate Audio product. To verify the authenticity, please

follow the instructions in the following link:

http://www.amateaudio.com/en/product-authentication/

3. CONFIGURATIONS

3.1. Parallel connection

Connect the signal (mixing desk output) to INPUT on the first unit. Use the LINK

output to transfer the INPUT signal to the second unit and thus sequentially for

further units. All of the units in this chain must be switched on.

For the mains connection use the cable with the blue PowerCon.

You can use the mains connection in parallel by using a cable with grey PowerCon

at one end and the blue PowerCon at the other end.

Fig. 3. Parallel connection for S10 (signal and mains)

Do not connect NÍTID series units using PowerCon without earth.

Do not connect more than ten units using the AC output link connector.

NITID S10 Apr 2023

Amate Audio

3.2 Parallel connection with subwoofer

You can connect the S10 in parallel with a subwoofer. Please, follow the same

parameters as explained in figure 3, both for audio signals and mains. The maximum

number of subwoofers that may be linked depend on the used model. Check the

subwoofer user manual for more information.

4. MOUNTING AND INSTALLATION

Flying an S10 system is easy, fast and secure. To perform any operations related to

flying the system, read the present document, and act on the warnings and advice

given.

Only experienced installers with adequate knowledge of the system and local safety

regulations should fly speaker cabinets.

It is the user's responsibility to ensure that the systems to be flown and the flying

accessories (such as chains, eyebolts, lock pins...) comply with state and local

regulations. They should be regularly inspected and replaced if in doubt.

When flying enclosures from ceiling support structures, extreme care should be

taken to assure the load bearing capabilities of the structures. Do not fly systems

from unsafe structures.

All flying accessories that are not supplied by Amate Audio are the user's

responsibility. Use at your own risk. Remember that no risks should be taken with

regards to public safety.

4.1. Placement

When possible, cabinets should be

located in a high position, slightly

inclined to the audience. If the

loudspeakers are located too low, the

listeners at the end of the room will not

hear a good sound quality.

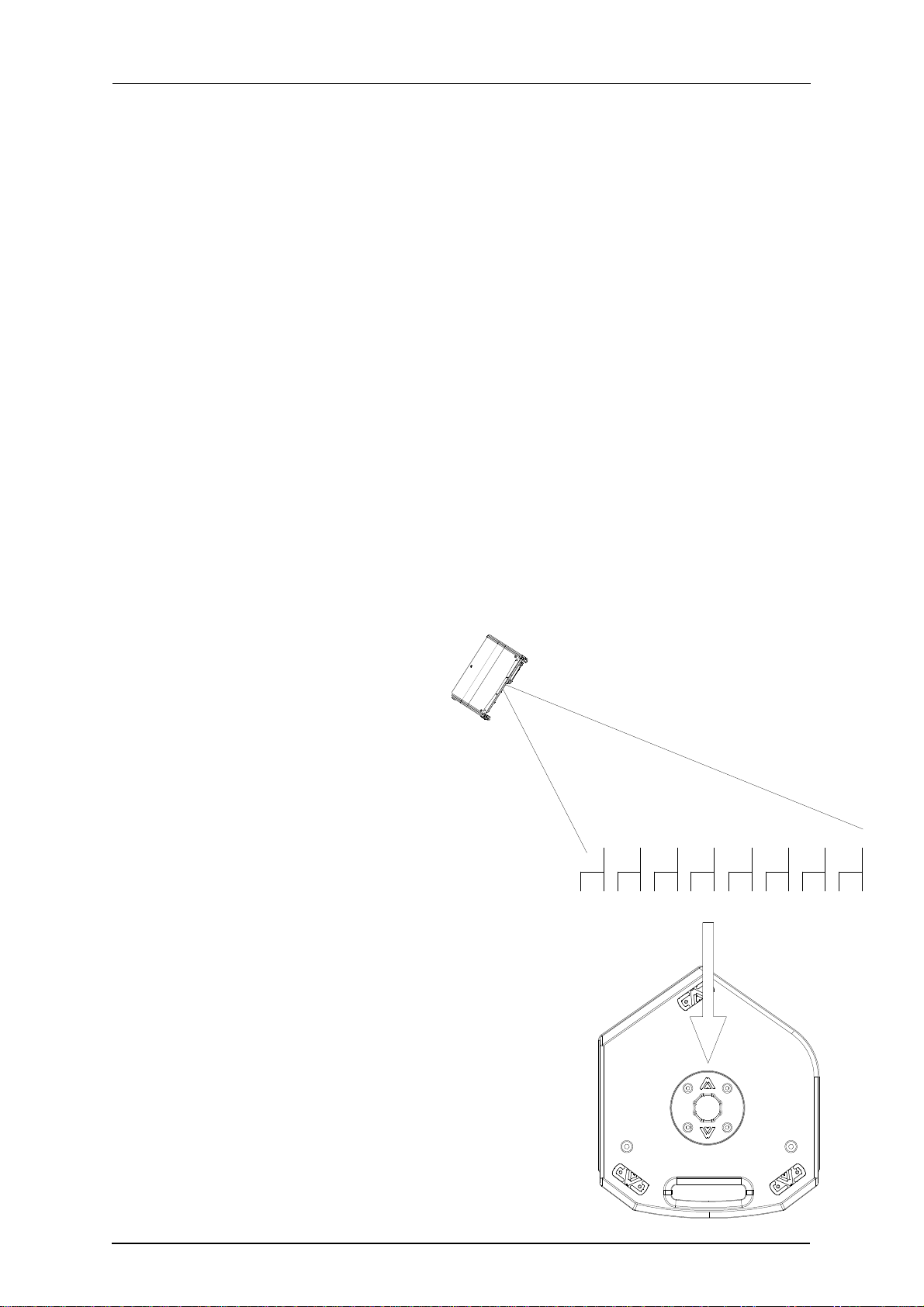

Fig. 4. Flying placement

4.2. S10 with subwoofer

The S10 is equipped with a 35 mm socket for mounting

the speaker on a subwoofer (use SP/CRTL bar) or on

a tripod. Be careful not to use this system on non-flat

surfaces as it may become unstable.

Fig. 5. S10 35 mm bottom socket

NITID S10 Apr 2023

Amate Audio

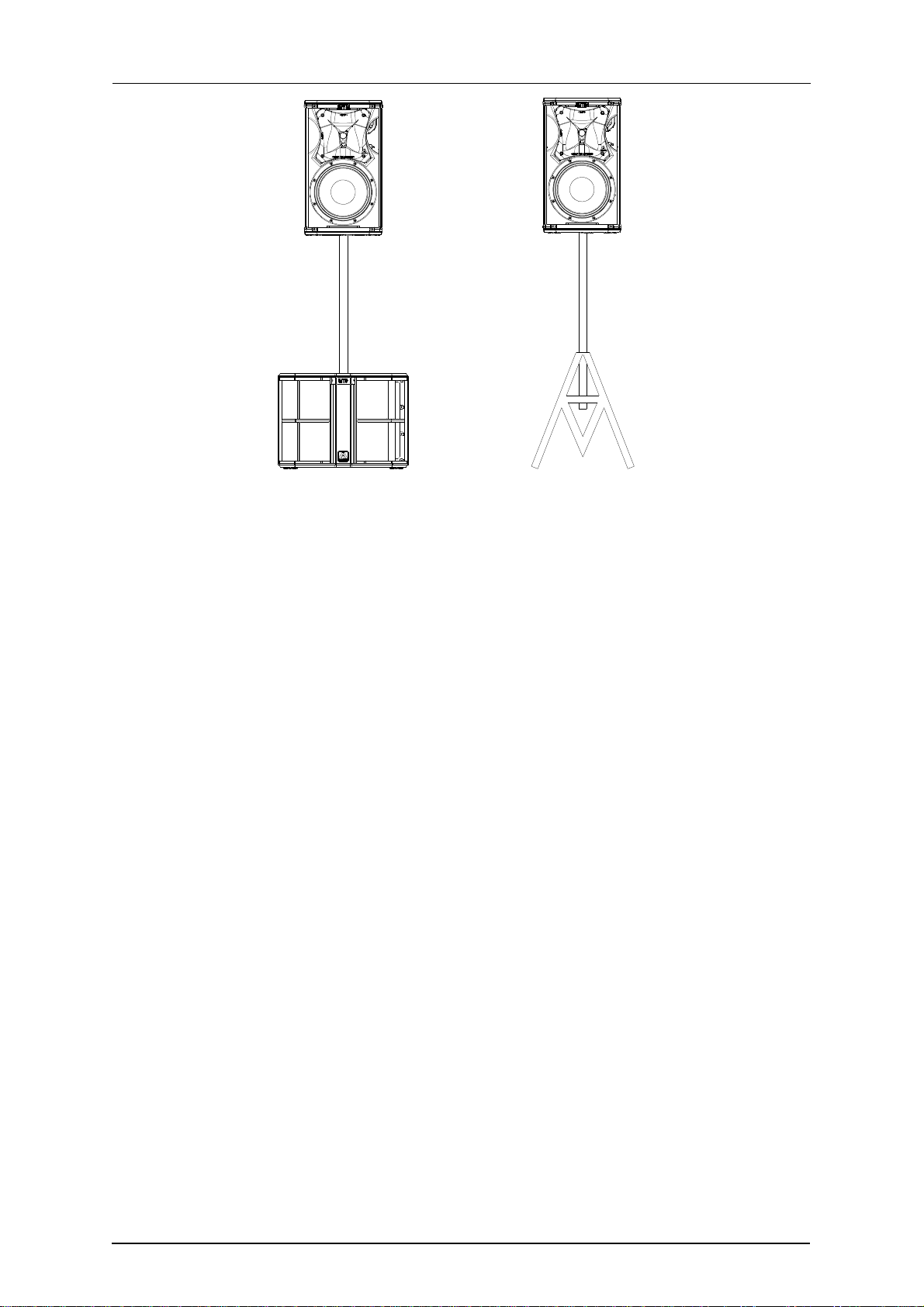

Fig. 6. Use with subwoofer or tripod

4.3. Asymmetrical and rotatable horns

The S10 incorporates an asymmetrical dispersion horn which will optimise coverage.

To rotate the horn, unscrew the frontal grille, and then, unscrew the four fixing

screws of the horn. Rotate it 180 degrees taking care of the wires. Screw the horn

again and finally place the frontal grille in its right position.

Good coverage of audiences often is a conflicting combination of:

•wide coverage for the closest audience (short throw)

•narrow coverage for distant areas (long throw)

The asymmetrical dispersion horn coverage varies from "short throw" to "long throw"

along the vertical axis (keeping a constant vertical directivity). In conclusion,

directivity feature of (50º to 100º(H), 55º(V)) can be seen as if the horn itself had

"two" horizontal directivities, which depend on the distance. For short distances the

horn should be used with its "wide" dispersion (100º). For long distances the horn

should be used with its "narrow" dispersion (50º). We suggest you to pay attention

to the following examples.

4.3.1. Vertical-Positioned Cabinets (Flown and aiming to the audience)

We need wide coverage (100º) for the closest listeners and narrow coverage for the

distant audience.

NITID S10 Apr 2023

Amate Audio

100º

50º

LONG THROW

SHORT THROW

50º

100º

Nearfield

100º

SHORT THROW

50º

LONG THROW

50º

100º

Nearfield

Fig. 7. Vertical position

4.3.2. Horizontal-Positioned Cabinets (Flown and aiming to the audience)

We need wide coverage (100º) for the closest listeners and narrow coverage for the

distant audience.

Fig. 8. Horizontal position

The horns have the

"Nearfield" mark printed on

the 100º horizontal

coverage side.

Fig.

“Near Field” logo

NITID S10 Apr 2023

Amate Audio

100º

SHORT THROW

50º

LONG THROW

50º

100º

Nearfield

100º

SHORT THROW

50º

LONG THROW

50º

100º

Nearfield

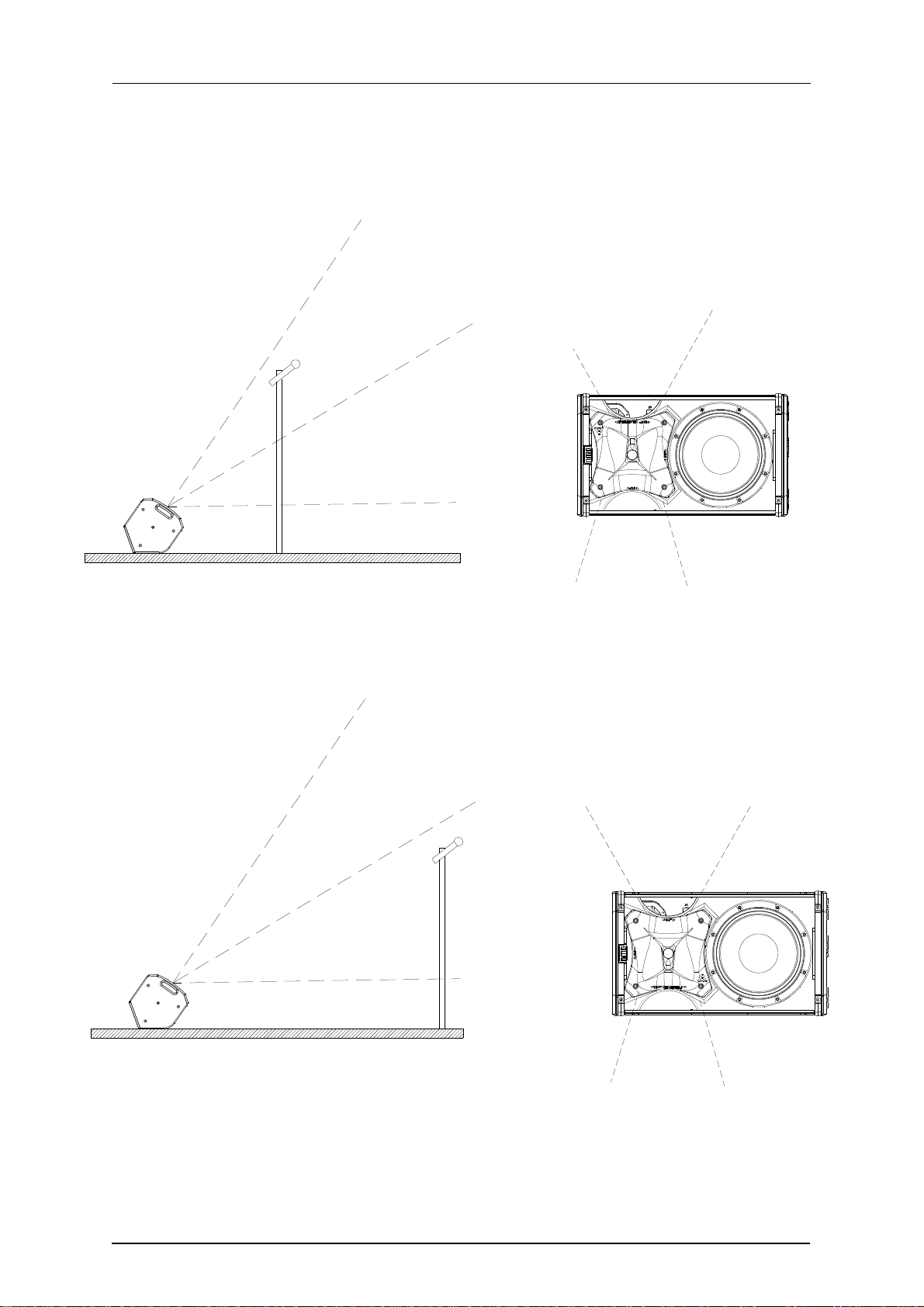

4.3.3. Stage monitor use

Case 1

We need wider coverage (100º) when musicians are closer to the cabinet than when

they move away from it (50º).

Case 2

We need wider coverage (100º) when performers move away from the cabinet (long

stages) than when they are close to it (50º).

Fig. 11. Stage monitor use (case 2)

4.4. Rotatable logo

All grille’s logo can be rotated.

Fig.

Stage monitor use (case 1)
