Amantii SYM XT Series Instrucciones de montaje

Repair Guide

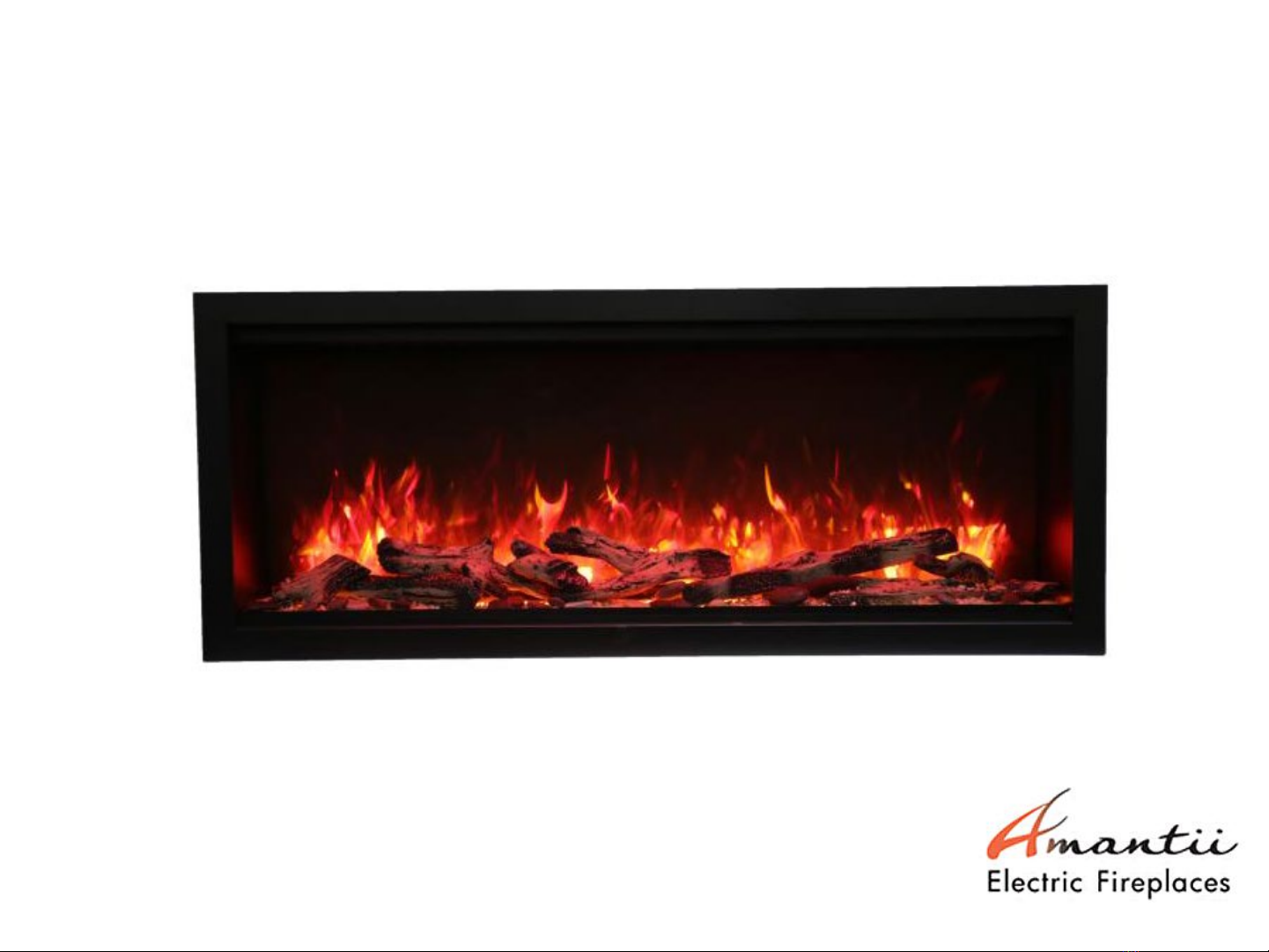

SYM XT Series

Content

•How to replace LED light

•How to replace flicker motor

•How to replace heating element

•How to replace the PCB board

•How to replace the signal receiver

•How to replace the canopy light

•How to replace the touch panel

Replacing the LED light

Step 1

Replace ember bed LED light

Remove the screws circled in red to remove the trim.

Magnetic stone

Trim

Please note: Magnetic stones are in place to secure the bottom of the trim to

the fireplace.

Step 2 After the trim has been removed, safely take off the front glass panel.

Front glass panel

Step 3 Remove the screws circled in red to take off the steel panel holding the

ember bed glass panel in place

The steel panels

Step 4

After the steel panels have been removed, remove the ember bed glass panel.

Please note: Lift one corner of the glass upward for easy removal of the glass.

As shown in the diagram below.

The ember bed LED strips are situated below the ember bed glass panel.

Step 5

Unbuckle the defective LED strip from the hooks that hold it in place and unplug

to replace the strip

Unplug

Unbuckle

Replacing the flame LED light

Follow steps 1 to 4 from the how to replace the Ember Bed LED light instructions,

you will then arrive here

Step 1 Remove the screws circled in red to remove the steel bar holding the

back glass and remove the back glass.
