CABINET PARTS

4−09 Litho In U.S.A. (mat) (eeb) Part No. W10247066 Rev. B

REFRIGERATOR

For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3

(White) (Black) (Bisque) (Stainless Steel)

CABINET PARTS

2W10247066

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10141352

Tech Sheet

W10164066

Use & Care Guide

W10164065

Tag, Energy

2 67006317 Tube, w/waterline

(fill IM)

3 67003405 Block, Pivot

4 B5759649 Gasket, MC Back

5 10450603 Roller

6 Cover, Fill Tube

12981401B

Black

12981401W

White

7 67006427 Cover, Control Box

8 M0108105 Clamp, Tube

9 67006521 Screw, Hinge Cover

10 12456801 Bracket, Roller

11 67006380 Screw, Center

Hinge

12 67006611 Bolt, Roller Adj.

13 Cover, Top Hinge

(Left)

67005951 Black

67005952 Bisque

67005953 White

14 67006303 Screw, Top Hinge

15 Hinge, Center (RT)

67006379 White

67006443 Black

16 67006390 Box, HV Control

17 Cover, Corner

12587703W

White

67003485 Black

12587703C

Bisque

18 67005950 Hinge, Top Left

19 67007174 Bracket, Foot

Cabinet (2)

20 67006564 Screw (8)

21 Shim, Top Hinge

67006308 Left

67006309 Right

22 Grille, Toe

67006375 Black

67006376 Bisque

67006377 White

12957701SP

Lid, HV Control

24 Hinge, Center (LT)

13000001WD

White

13000001ED

Black

25 67006425 Screw, Cover

26 12580303 Roller Bracket

27 67006426 Cover, Water Valve

28 67006626 Screw, Block

29 67006429 Gasket, HV Control

12575101ED

Cover,MC Back

31 M0286708 Nut, Speed

32 M1205302 Rivet

33 67003796 Fiber, Acoustic

34 67003868 Brake, Foot

W10164422

Board, HV Control

36 67001066 Tube, Drain

37 67001067 Clip, Drain Tube

38 Cabinet (Not a

Servicable Part)

39 67005955 Hinge, Top Right

40 Cover, Top Hinge

(Right)

67005956 Black

67005957 Bisque

67005958 White

For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3

(White) (Black) (Bisque) (Stainless Steel)

REFRIGERATOR LINER PARTS

W10247066

For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3

(White) (Black) (Bisque) (Stainless Steel)

REFRIGERATOR LINER PARTS

4W10247066

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67006328 Module, Light

3 67006326 Foil, Light

4 67006327 Cover, Light

5 67006316 Grille, Air

6 12466103 Switch, Light

7 67006318 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light

Y12570701

Socket, Light

11 67006330 Cover, Water Tank

(Upper)

12 67006331 Lid, Water Filter

13 67006329 Cover, Water Tank

(Lower)

UKF8001AXX

Filter, Water

15 67006325 Bracket, Filter

Base

16 12002355 Thermistor

17 67006324 Bracket, Water

Tank & Valve

18 12956202 Water Tank &

Head Assembly

19 12664501 Plug, Bypass

20 67006322 Valve, Water Inlet

21 67006350 Cover, Ice Box

Harness

22 M0238642 Screw

23 67006319 Cover, Chiller

Vent

24 12962204 Waterline

W10118193

Enclosure, Valve

W10118194

Lid, Enclosure

For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3

(White) (Black) (Bisque) (Stainless Steel)

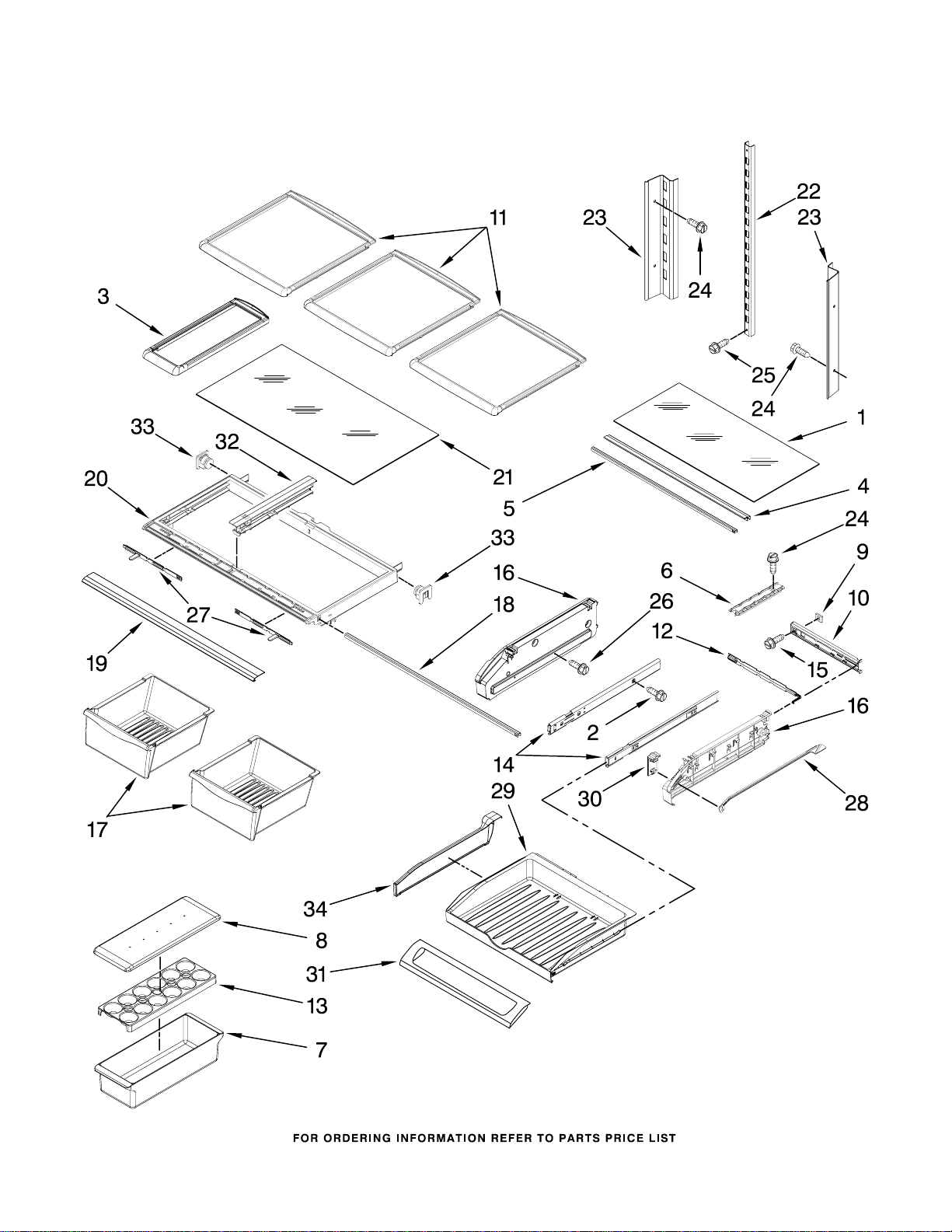

SHELF PARTS

W10247066

For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3

(White) (Black) (Bisque) (Stainless Steel)

SHELF PARTS

6W10247066

Illus. Part

No. No. DESCRIPTION

1 67002761 Glass, Pantry

2 67006287 Screw

3 67006412 Shelf, Mini

(Stationary)

4 67006010 Support, Pantry(2)

5 67002330 Brace, Pantry (2)

6 67001719 Track, Pantry

7 10423131 Bin, Utility

8 10436404 Lid, Utility

9 67002329 Gasket, Pantry

10 67005625 Housing, Control

11 67006411 Shelf, Glide (3)

12 67003793 Slide, Temperature

13 10436506 Tray, Egg

14 67007026 Glide, Drawer (2)

15 67006400 Screw

16 Track, Pantry

67005863 Left

67005858 Right

17 67005915 Pan, Crisper (2)

12642303WD

Support, Crisper

Cover

19 67004636 Trim, Crisper

20 67003854 Frame, Crisper

21 67006704 Glass, Crisper

Cover

22 67006358 Ladder, Center

23 67006354 Ladder, Side

24 67006400 Screw

25 67006360 Screw

26 67006415 Screw

27 67005864 Slide, Humidity

Control

28 67003795 Rod, Temperature

Control

29 67003531 Drawer, Pantry

30 67003791 Knob, Temperature

Control

31 67005900 Door,

Pantry Drawer

32 67004514 Support, Center

Crisper Frame

33 12603701 Stud,

Crisper Frame

34 67002759 Divider,

Pantry Drawer

For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3

(White) (Black) (Bisque) (Stainless Steel)

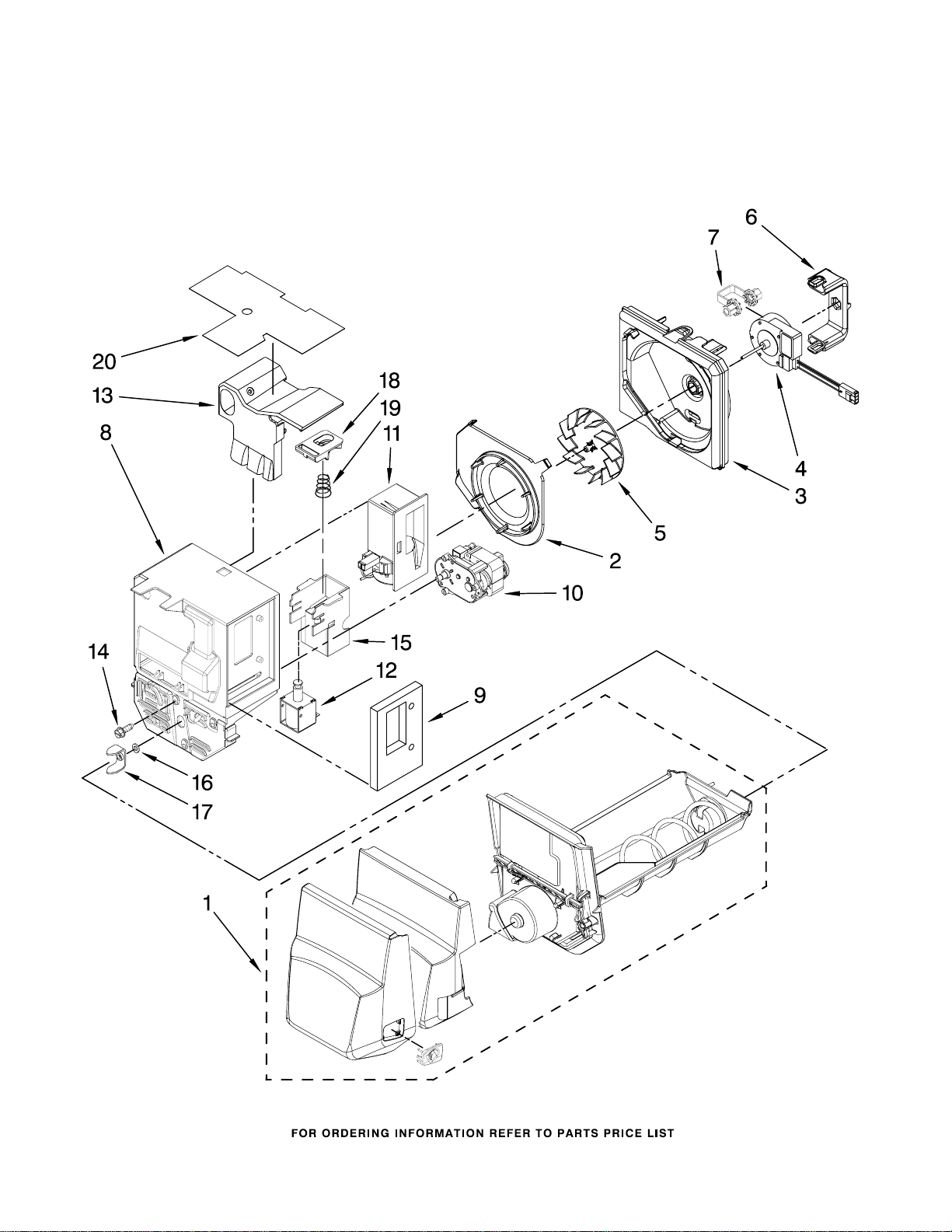

MOTOR AND ICE CONTAINER PARTS

W10247066

For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3

(White) (Black) (Bisque) (Stainless Steel)

MOTOR AND ICE CONTAINER PARTS

8W10247066

Illus. Part

No. No. DESCRIPTION

1 67006349 Ice Bin Assembly

(Includes Auger)

W10121282

Inlet, Blower

W10121281

Scroll, Blower

W10162697

Motor, Fan

W10123444

Wheel, Blower

6 67006338 Clip, Fan Motor

7 67006339 Grommet, Fan Motor

W10187860

Divider, Ice Box

9 67006341 Gasket, Damper

10 67006342 Motor, Auger

W10127427

Damper, Control

12 67006344 Solenoid

W10118612

Liner, Divider

14 67006425 Screw (3)

15 67007111 Bracket, Solenoid

16 67006346 Washer

17 63052−1 Yoke, Ice

Dispenser

18 67006347 Yoke, Solenoid

19 67006348 Spring, Solenoid

W10142628

Foil, Ice Box

For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3

(White) (Black) (Bisque) (Stainless Steel)

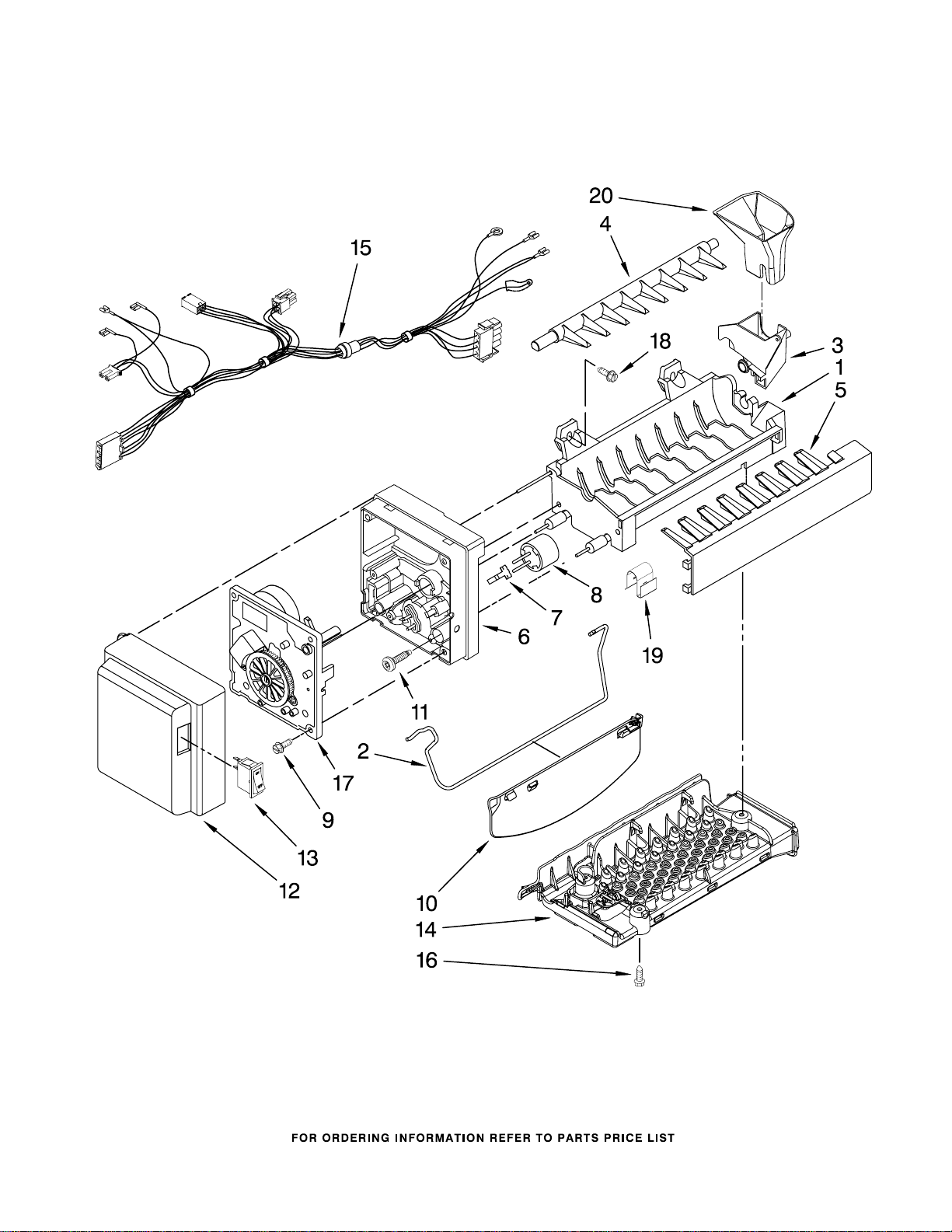

ICEMAKER PARTS

W10247066

For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3

(White) (Black) (Bisque) (Stainless Steel)

ICEMAKER PARTS

10 W10247066

Illus. Part

No. No. DESCRIPTION

W10122527

Mold & Heater

Assembly (Also

Order 542638

Grease)

W10175514

Arm, Shutoff

3 628515 Cup, Fill

4 627843 Ejector

5 2182124 Ice Stripper

6 2194712 Support, Housing

7 2315522 Retainer,

Thermostat

8 627985 Thermostat

(Also Order 542369

Cement)

9 489464 Screw (3)

W10121440

Extension, Shutoff

Arm

11 8533917 Screw (2)

W10121444

Cover

13 2313326 Switch, On−Off

W10121269

Impinger Assembly

W10117806

Harness, Icemaker

16 67006425 Screw, Impinger

17 626678 Module Assembly

18 489276 Screw (3)

19 628379 Clip

W10121434

Insert, Fill Clip

100

W10122533

Icemaker Assembly

Following Parts Not Illustrated

10244904 Coupling

For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3

(White) (Black) (Bisque) (Stainless Steel)
