Amana AFF2534FEW11 Guía de solución de problemas

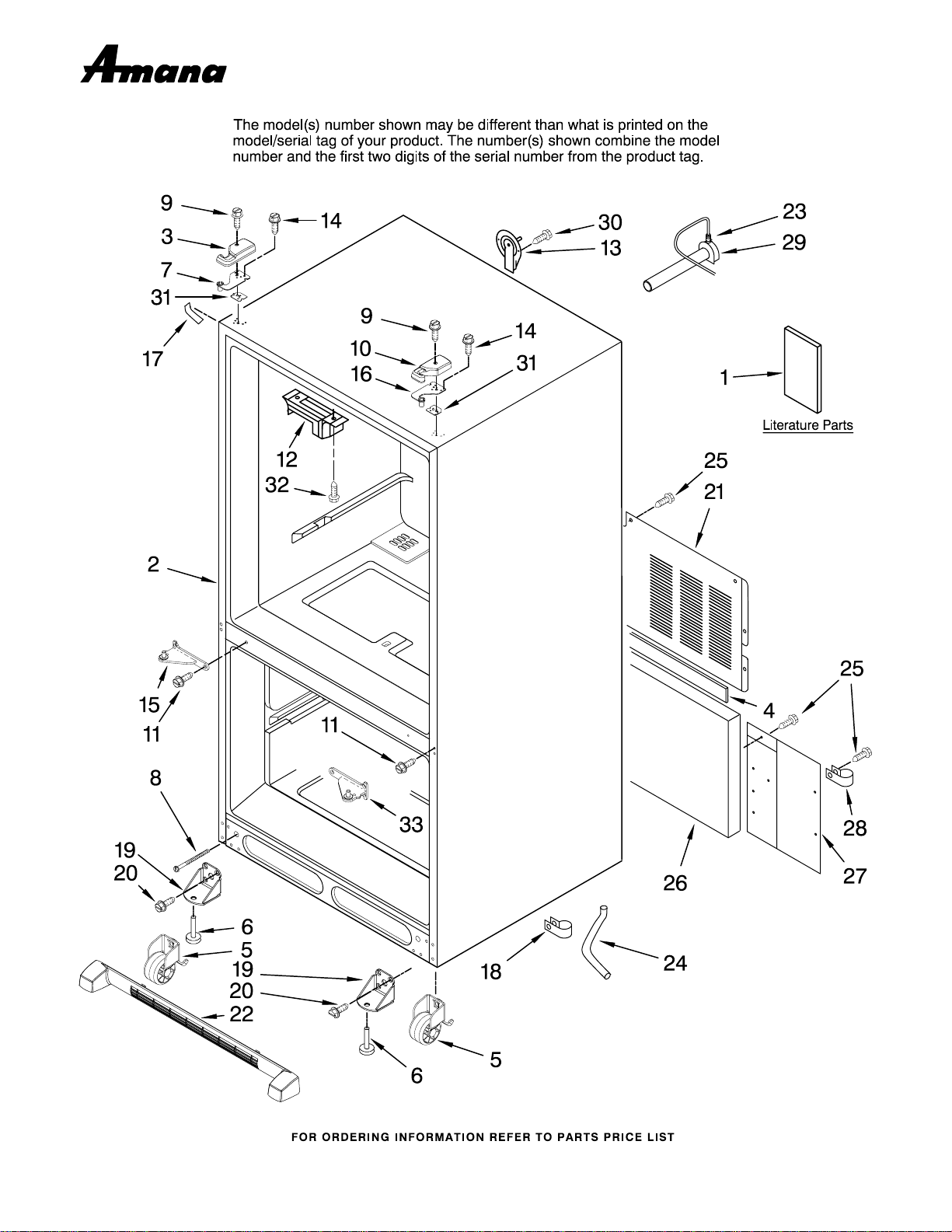

CABINET PARTS
1
For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11
(White) (Black) (Stainless Steel)
1−10 Litho In U.S.A. (mat) (eeb) Part No. W10242316 Rev. A
REFRIGERATOR
CABINET PARTS
2
For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11
(White) (Black) (Stainless Steel)
W10242316
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10137643
Use & Care Guide
W10133234
Energy Guide
12827952 Tech Sheet
2 Cabinet (Not a
Servicable Part)
3 Cover, Left Hinge
12684201W
White
12684201B
Black
4 B5759649 Gasket
5 67006118 Roller Assy. (2)
6 67003868 Foot, Brake
7
12566605ED
Hinge, Left Top
8 67006611 Bolt, Adjusting
(Front Roller)
9 67006521 Screw
10 Cover, Right Hinge
12684202W
White
12684202B
Black
11 67005822 Screw
12 67003405 Block, Pivot
13 67003331 Cover, Water Line
14 67006303 Screw (3)
15 Hinge, Center (LT)
67006277 White
67006442 Black
16
12566604ED
Hinge, Right Top
17 Cover, Corner
67003484 White
67003485 Black
18 67001067 Clip, Drain
19 67007174 Bracket, Foot (2)
20 67006564 Screw (4)
21 67006101 Cover, Unit
22 Grille, Toe
67006377 White
67006375 Black
23 M0114003 Clip, Speed
24 67001066 Tube, Drain
25 67006425 Screw
26 67003796 Fiber, Acoustic
27 12479803 Cover, Water Valve
28 M0108105 Clamp, Tube
29
W10137519
Elbow, Fill Tube
30 67006287 Screw
31 12579702 Shim, Top Hinge
32 67006669 Screw, Block
33 Hinge, Center (RT)
67006379 White
67006443 Black
FREEZER LINER PARTS
3
For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11
(White) (Black) (Stainless Steel)
W10242316
FREEZER LINER PARTS
4
For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11
(White) (Black) (Stainless Steel)
W10242316
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 67001291 Gasket, Foam
3 67005874 Guide, Fill Tube
4 67003905 Cover, Light
5 67003636 Motor, Evaporator
6
Y12570701
Socket, Light
7 12002355 Thermistor
8 67003924 Cover, Thermistor
9 A0282812 Bulb, Light
10 67001035 Housing, Light
11 67005873 Cover, Evaporator
12 67006425 Screw
13
W10121318
Grommet
14 67003906 Module, Light
15
W10167028
Clip, Evap. Motor
16 67005653 Switch, Light
17 67006530 Screw
18 D7753903 Funnel, Drain
19 M0500703 Seal
20 67002492 Gasket, Bottom
21 B8381501 Gasket
22
W10175909
Grille, Fz Air
23
W10167023
Shroud, Evap.Fan
24 2169142 Blade, Fan
(Evaporator)
25 Bracket, Door
W10122147
Left
W10122148
Right
26 67006473 Screw (8)
27 Cradle, Basket
67004014 Left
67004015 Right
28
W10120018
Slide, Drawer (2)
29 Adapter, Slide
W10128118
Left
W10128119
Right
30 67006406 Screw (6)
31 67004017 Shaft
32 12002497 Gear
(Includes LH & RH)
Following Parts Not Illustrated
67006095 Harness, Lights
(Freezer)

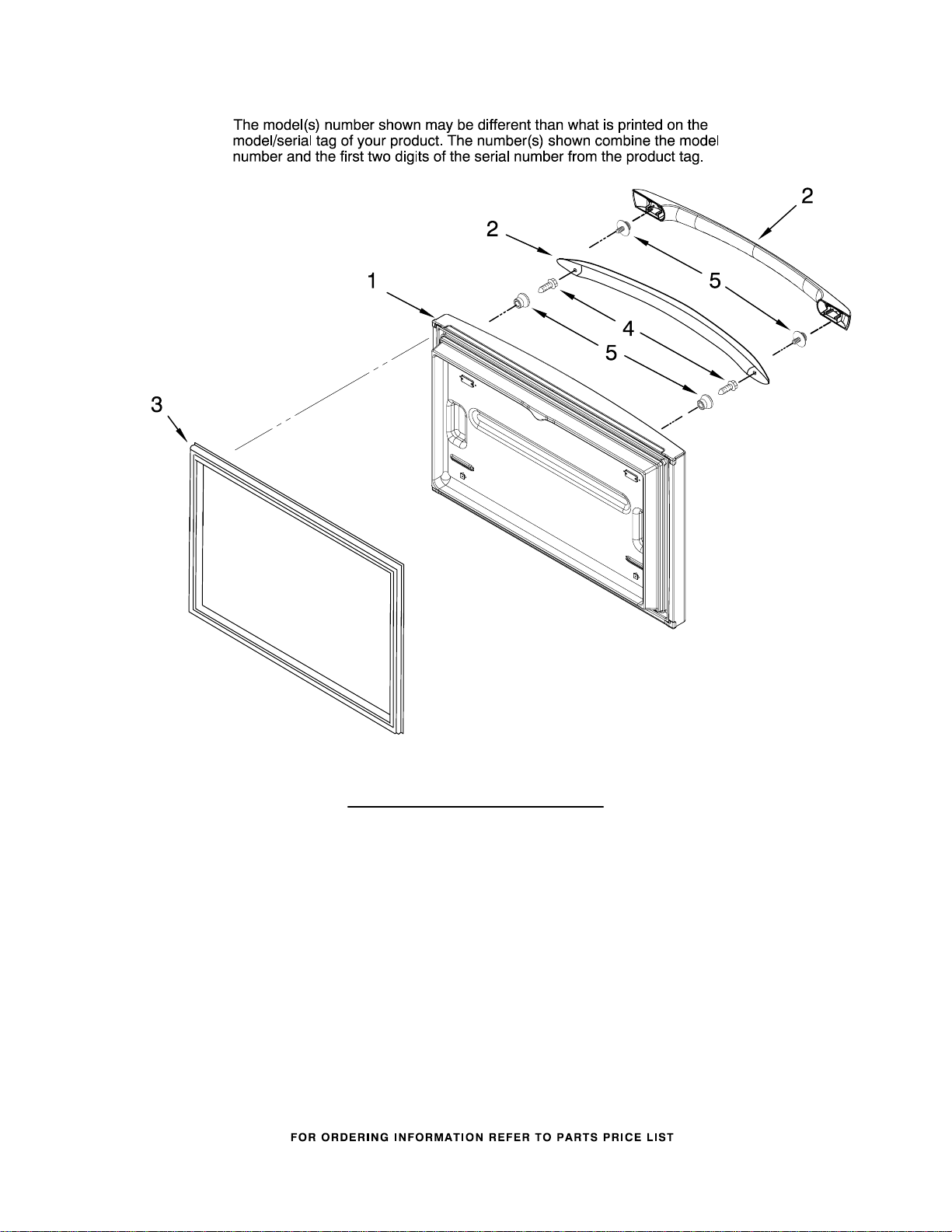

FREEZER DOOR PARTS
5
For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11
(White) (Black) (Stainless Steel)
W10242316
Illus. Part
No. No. DESCRIPTION
1 Door, Freezer
13092203WQ
White
13092203BQ
Black
13092213SQ
Stainless
2 Handle, Door
W10119666
White
W10119668
Black
W10138763
Stainless
3 Gasket, Door
W10133249
White
W10131754
Black
4 67002935 Screw, Handle
5 Mount, Handle
12992902 (Black and White
Models)
67006113 (Stainless Model)
REFRIGERATOR LINER PARTS
6
For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11
(White) (Black) (Stainless Steel)
W10242316
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 67004078 Module, Light
3 67004695 Overlay
4 67004005 Module, Control
5
W10165748
Board, Control
(Incl Instr Sheet)
6 C3680310 Switch, Light (2)
7 67003897 Cover, Light
8 67003901 Housing, Light
9 A0282812 Bulb, Light (2)
10
Y12570701
Socket, Light (2)
11 67003900 Insert,
Damper Cover
12 67006602 Screw
13 67003899 Cover, Damper
14 67006604 Insulation
15
W10127429
Control, Damper
(Includes Harness)
16 12002355 Thermistor
17 67003940 Switch, Energy
Saver
Following Parts Not Illustrated
67004032 Harness, Controls
(Refrigerator)
REFRIGERATOR DOOR PARTS
7
For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11
(White) (Black) (Stainless Steel)
W10242316
REFRIGERATOR DOOR PARTS
8
For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11
(White) (Black) (Stainless Steel)
W10242316
Illus. Part
No. No. DESCRIPTION
1 Door, Left
67007053 White
67007057 Black
13024038SQ
Stainless
2 Door, Right
67007019 White
67007058 Black
13024037SQ
Stainless
3 67003637 Door, Dairy
4 67001279 Tray, Dairy
5 Bucket, Door
67003770 Medium (3)
12699207 Gallon (2)
6 Mullion, Door
67003263 White
67003264 Black
7 67006786 Screw
8 Gasket, Door
W10137006
White
W10131754
Black
9 Handle, Door
W10119666
White − LH
W10119663
White − RH
W10119668
Black − LH
W10119665
Black − RH
W10136873
Stainless
10 67006287 Screw
11 Stop, Door
12968202W
White
67007011 Black
12
Y12528501
Nameplate
13 Mount, Handle
12992902 (Black and White
Models)
67006113 (Stainless Model)
14 Screw, Handle
67002935 (Stainless Model)
15 Closure, Door
67003638 White
67003639 Black
UNIT PARTS
9
For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11
(White) (Black) (Stainless Steel)
W10242316
UNIT PARTS
10
For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11
(White) (Black) (Stainless Steel)
W10242316
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 67006433 Screw
2
W10162928
Blade, Fan
3 67005889 Basepan
4 67006425 Screw
5 67005491 Block, Condenser
6 67004700 Tube, Discharge
7
W10119856
Harness, Evap.
Heater
8 67007175 Pan, Drain
9 61004743 Grommet (3)
10 67002493 Heater, Defrost
11 67007052 Clip, Retainer
12 67005560 Start Device
13 61003210 Gasket
14
W10165425
Thermostat,
Defrost
15 67005680 Grommet (2)
16 67006573 Screw
17 67003493 Grommet (4)
18 67006131 Condenser
19 67006432 Screw
20 67002490 Tray, Drip
21 67006737 Screw
22 12002041 Evaporator Kit
(Incl. Evap., Heat
Shield, & Instr.
Sheet)
23 Dam
67001084 Right Side
67001083 Left Side
24 67004432 Motor, Fan
25 10428101 Clip, Heater
26 13060301 Harness, Unit
with Power Cord
27
W10143759
Drier
28 67005565 Compressor
(Includes items
11,12,17,27)
29 10623002 Clip, Evaporator
30 67006434 Axle, Roller (2)
31
W10158508
Shroud
32 67004953 Bracket, Fan Motor
33 67004954 Screw
34 10547003 Clip, Drier
35 67005149 Roller (2)
36
W10137529
Grommet, Cond. (4)
37 67005561 Capacitor
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.25 Ozs.
(R−134A)
