Amana AFB2534DEW13 Manual de usuario

CABINET PARTS

For Models: AFB2534DEW13, AFB2534DEB13

(White) (Black)

11−08 Litho In U.S.A. (mat) (eeb) Part No. W10242312 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: AFB2534DEW13, AFB2534DEB13

(White) (Black)

W10242312

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137643

Use & Care Guide

W10123928

Energy Guide

12827952 Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Cover, Left Hinge

12684201W

White

12684201B

Black

4 B5759649 Gasket

5 67006118 Roller Assy. (2)

6 67003868 Foot, Brake

12566605ED

Hinge, Left Top

8 67006611 Bolt, Adjusting

(Front Roller)

9 67006521 Screw

10 Cover, Right Hinge

12684202W

White

12684202B

Black

11 67005822 Screw

12 67003405 Block, Pivot

14 67006303 Screw (3)

15 Hinge, Center (LT)

67006277 White

67006442 Black

12566604ED

Hinge, Right Top

17 Cover, Corner

67003484 White

67003485 Black

18 67001067 Clip, Drain

19 67007174 Bracket, Foot (2)

20 67006564 Screw (4)

21 67006101 Cover, Unit

22 Grille, Toe

67006377 White

67006375 Black

24 67001066 Tube, Drain

25 67006425 Screw

26 67003796 Fiber, Acoustic

27 12479803 Cover, Water Valve

31 12579702 Shim, Top Hinge

32 67006669 Screw, Block

33 Hinge, Center (RT)

67006379 White

67006443 Black

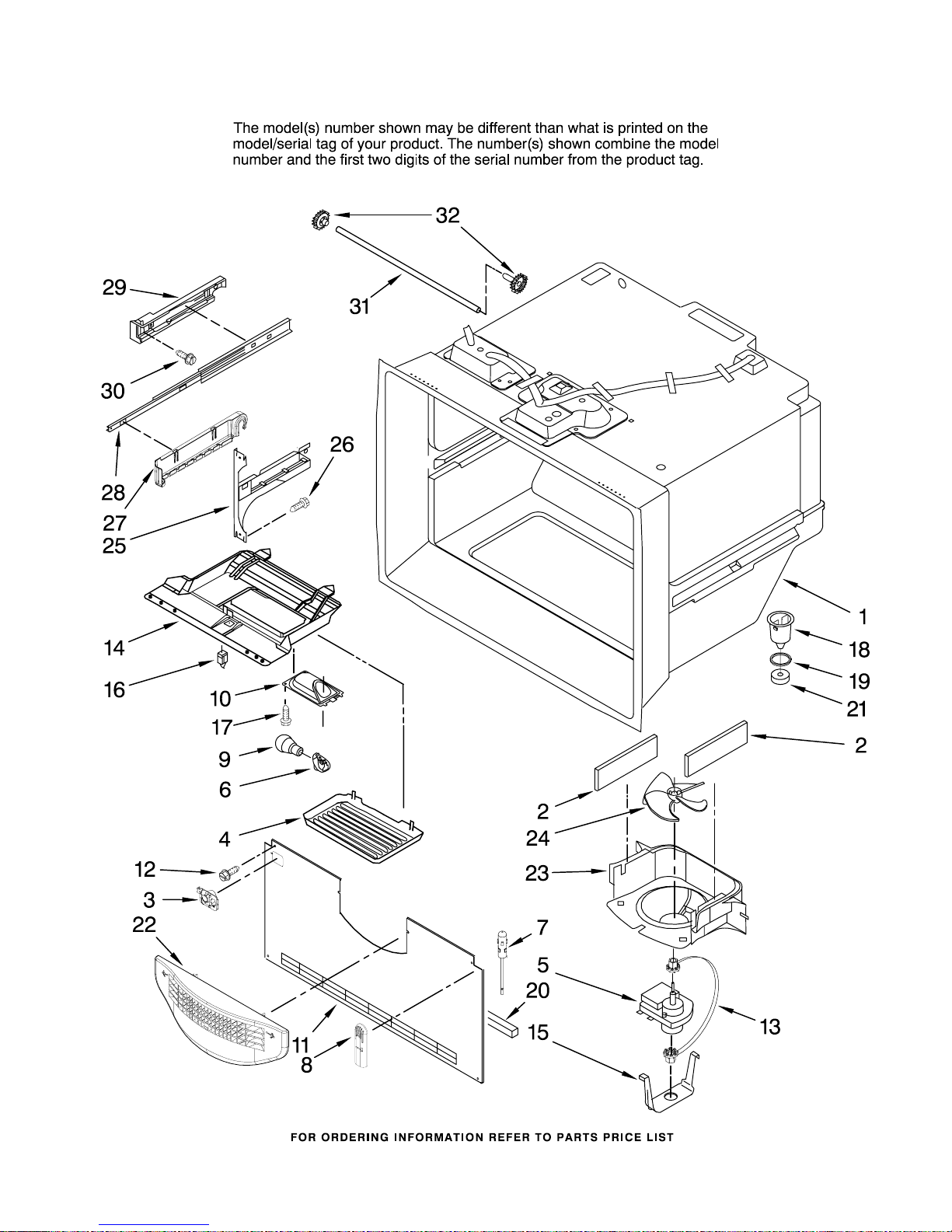

FREEZER LINER PARTS

For Models: AFB2534DEW13, AFB2534DEB13

(White) (Black)

W10242312

FREEZER LINER PARTS

For Models: AFB2534DEW13, AFB2534DEB13

(White) (Black)

W10242312

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 67005874 Guide, Fill Tube

4 67003905 Cover, Light

5 67003636 Motor, Evaporator

Y12570701

Socket, Light

7 12002355 Thermistor

8 67003924 Cover, Thermistor

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005873 Cover, Evaporator

12 67006425 Screw

W10121318

Grommet

14 67003906 Module, Light

W10167028

Clip, Evap. Motor

16 67005653 Switch, Light

17 67006530 Screw

18 D7753903 Funnel, Drain

19 M0500703 Seal

20 67002492 Gasket, Bottom

21 B8381501 Gasket

W10175909

Grille, Fz Air

W10167023

Shroud, Evap.Fan

24 2169142 Blade, Fan

(Evaporator)

25 Bracket, Door

W10122147

Left

W10122148

Right

26 67006473 Screw (8)

27 Cradle, Basket

67004014 Left

67004015 Right

W10120018

Slide, Drawer (2)

29 Adapter, Slide

W10128118

Left

W10128119

Right

30 67006406 Screw (6)

31 67004017 Shaft

32 12002497 Gear

(Includes LH & RH)

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

FREEZER DOOR PARTS

For Models: AFB2534DEW13, AFB2534DEB13

(White) (Black)

W10242312

Illus. Part

No. No. DESCRIPTION

1 Door, Freezer

13092203WQ

White

13092203BQ

Black

2 Handle, Door

W10119666

White

W10119668

Black

3 Gasket, Door

W10133249

White

W10131754

Black

4 12992902 Screw, Handle

REFRIGERATOR LINER PARTS

For Models: AFB2534DEW13, AFB2534DEB13

(White) (Black)

W10242312

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67004078 Module, Light

3 67004695 Overlay

4 67004005 Module, Control

W10165748

Board, Control

(Incl Instr Sheet)

6 C3680310 Switch, Light (2)

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

(Includes Harness)

16 12002355 Thermistor

17 67003940 Switch, Energy

Saver

Following Parts Not Illustrated

67004032 Harness, Controls

(Refrigerator)

REFRIGERATOR DOOR PARTS

For Models: AFB2534DEW13, AFB2534DEB13

(White) (Black)

W10242312

REFRIGERATOR DOOR PARTS

For Models: AFB2534DEW13, AFB2534DEB13

(White) (Black)

W10242312

Illus. Part

No. No. DESCRIPTION

1 Door, Left

13024018WQ

White

13024018BQ

Black

2 Door, Right

13024017WQ

White

13024017BQ

Black

3 67003637 Door, Dairy

4 67001279 Tray, Dairy

5 Bucket, Door

67003770 Medium (3)

12699207 Gallon (2)

6 Mullion, Door

67003263 White

67003264 Black

7 67006786 Screw

8 Gasket, Door

W10137006

White

W10131754

Black

9 Handle, Door

W10119666

White − LH

W10119663

White − RH

W10119668

Black − LH

W10119665

Black − RH

10 67006287 Screw

11 Stop, Door

12968202W

White

67007011 Black

Y12528501

Nameplate

13 12992902 Mount, Handle

15 Closure, Door

67003638 White

67003639 Black

16 Grippers

67003212 Medium

67005453 Gallon

UNIT PARTS

For Models: AFB2534DEW13, AFB2534DEB13

(White) (Black)

W10242312

UNIT PARTS

For Models: AFB2534DEW13, AFB2534DEB13

(White) (Black)

W10242312

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10162928

Blade, Fan

3 67005889 Basepan

4 67006425 Screw

5 67005491 Block, Condenser

6 67004700 Tube, Discharge

W10119856

Harness, Evap.

Heater

8 67007175 Pan, Drain

9 61004743 Grommet (3)

10 67002493 Heater, Defrost

11 67007052 Clip, Retainer

12 67005560 Relay/Capacitor

13 61003210 Gasket

W10165425

Thermostat,

Defrost

15 67005680 Grommet (2)

16 67006573 Screw

W10169124

Grommet (4)

18 67006131 Condenser

19 67006432 Screw

20 67002490 Tray, Drip

21 67006737 Screw

22 12002041 Evaporator Kit

(Incl. Evaporator

#67003720, Heat

Shield & Instruct.

Sheet)

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060301 Harness, Unit

with Power Cord

W10143759

Drier (service)

28 67005565 Compressor

(Includes items

11,12,17,27)

29 10623002 Clip, Evaporator

30 67006434 Axle, Roller (2)

W10158508

Shroud

32 67004953 Bracket, Fan Motor

33 67004954 Screw

34 10547003 Clip, Drier

35 67005149 Roller (2)

W10137529

Grommet, Cond. (4)

37 67005562 Capacitor

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.25 Ozs.

(R−134A)
