CABINET PARTS
1
For Model: ABL2222FES3, ABR2222FES3
(Stainless Steel)(Stainless Steel)
4−09 Litho In U.S.A. (mat)(bay) Part No. W10268067 Rev.A
REFRIGERATOR
CABINET PARTS
2
For Model: ABL2222FES3, ABR2222FES3
(Stainless Steel)(Stainless Steel)
W10268067
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10175445
Owners Manual
W10184250
Energy Tag
12845601 Tech Sheet
2 Cabinet (Not a
Servicable Part)
3 Plug, Button (3)
M0310731 Black
4 12249902 Label, Fill Tube
5 Roller Assembly
W10212382
Left
W10212381
Right
7 10351006 Pin, Center Hinge
9 12992602 Screw
10 12477501 Cover, Fill Tube
11 12992201 Screw
12 12990521 Screw (8)
13 A3076901 Plug, Button
14 12992403 Screw (3)
15 Hinge, Center
12607104ED
Black
16 10354002 Foot Brake (2)
17 Cover, Corner
12587703B
Black
18
12566606ED
Hinge, Top
20 12991302 Screw (8)
21 Cover, Hinge
12477601B
Black
22 Grille Assembly
(Includes Clips)
W10236196
Black
25 12990511 Screw (9)
27
W10217701
Cover, Water Valve
28
W10210979
Cover, Unit
29 12820505 Insulation, Sound
30
W10210988
Tube, Drain
33 B5759655 Gasket
REFRIGERATOR LINER PARTS
3
For Model: ABL2222FES3, ABR2222FES3
(Stainless Steel)(Stainless Steel)
W10268067
REFRIGERATOR LINER PARTS
4
For Model: ABL2222FES3, ABR2222FES3
(Stainless Steel)(Stainless Steel)
W10268067
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 12806301 Bracket, Control
and Lights
3 12816501 Overlay
4 12806406 Housing,
Electronic Control
5 12868513 Board, Control
6
C3680310V
Switch, Light
7 12806501 Cover, Light
8
12806601V
Housing, Light
9
W10194422V
Bulb, Light (2)
10
12570701V
Socket, Light (2)
11 12806801 Insert,
Damper Cover
12 12990604 Screw (2)
13 12806701 Cover, Damper
14 13012402 Insulation
15
W10196393
Control, Damper
16 12002355 Thermistor
17 M0310343 Plug Button
Following Parts Not Illustrated
12868701 Harness, Controls
(Refrigerator)
(Includes # 16)

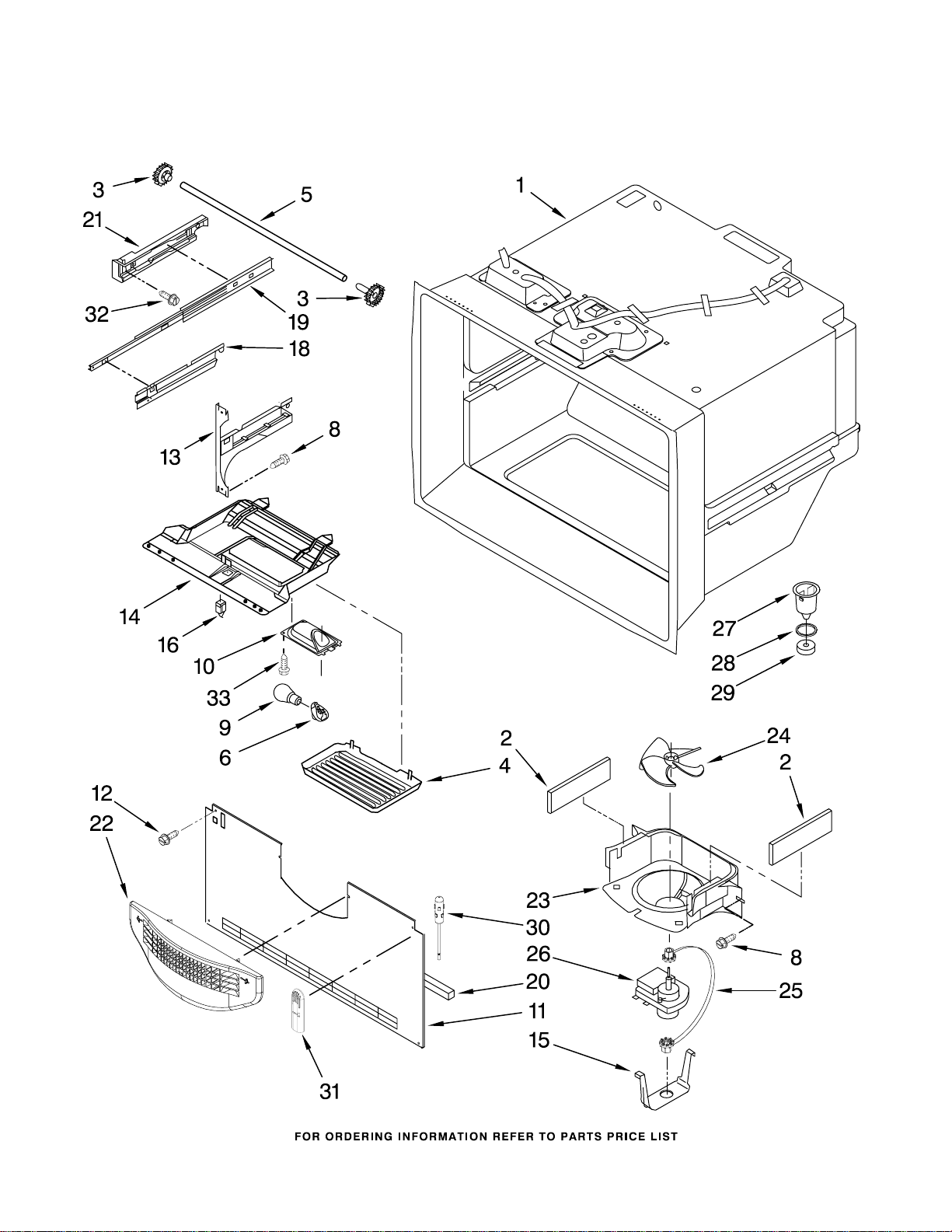

FREEZER LINER PARTS
5
For Model: ABL2222FES3, ABR2222FES3
(Stainless Steel)(Stainless Steel)
W10268067
FREEZER LINER PARTS
6
For Model: ABL2222FES3, ABR2222FES3
(Stainless Steel)(Stainless Steel)
W10268067
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 A3189392 Gasket, Foam (2)
3 12002497 Gear (2)
(Includes RH & LH)
4 12804901 Cover, Light
5
12812902WD
Shaft
6
12570701V
Socket, Light
8 12990521 Screw (8)
9
W10194422V
Bulb, Light
10
12476401V
Housing, Frz. Light
11 12226111 Cover, Evaporator
12 12990101 Screw (7)
13 Bracket, Door
W10122147
Left
W10122148
Right
14 12805001 Housing, Lighting
15 13058002 Clip, Evap. Motor
16 12466105 Switch, Light
18 Bracket, Basket
12812303 Left
12812304 Right
19
W10120018
Slide, Drawer (2)
20 A3189395 Gasket, Bottom
21 Bracket, Slide
W10128118
Left
W10128119
Right
22 13024803 Cover, Fan Shroud
23 13057901 Shroud, Evap.Fan
24 2169142 Fan, Evaporator
25
W10121318
Grommet (2)
26
W10128551
Motor, Evaporator
27 D7753903 Funnel, Drain
(Incl. # 28 & 29)
28 M0500703 Seal
29 B8381501 Gasket
30 12002355 Thermistor
31 12815301 Cover, Thermistor
32 12990501 Screw (6)
33
12991603V
Screw
Following Parts Not Illustrated
13014801 Harness, Lights
(Freezer)
REFRIGERATOR DOOR PARTS
7
For Model: ABL2222FES3, ABR2222FES3
(Stainless Steel)(Stainless Steel)
W10268067
REFRIGERATOR DOOR PARTS
8
For Model: ABL2222FES3, ABR2222FES3
(Stainless Steel)(Stainless Steel)
W10268067
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(w/ Insulation)
Stainless Steel
13023840SQ
Left
13023839SQ
Right
3
12744905V
Door, Compartment
4
12369502SP
Tray, Dairy
5
12557204V
Bucket, Medium
6 12528501 Nameplate
8 Gasket, Door
Magnetic
W10164035
Black
9 Handle, Door
W10197305N
Stainless Steel
10 12991703 Screw
11 Closure, Door
12028505B
Black
13 Bushing
10961006B
Black
14 12557905 Retainer, Door
15 12990504 Screw
17 Stop, Door
10447112 Black
18 13001201 Mount, Handle
FREEZER DOOR PARTS
9
For Model: ABL2222FES3, ABR2222FES3
(Stainless Steel)(Stainless Steel)
W10268067
FREEZER DOOR PARTS
10
For Model: ABL2222FES3, ABR2222FES3
(Stainless Steel)(Stainless Steel)
W10268067

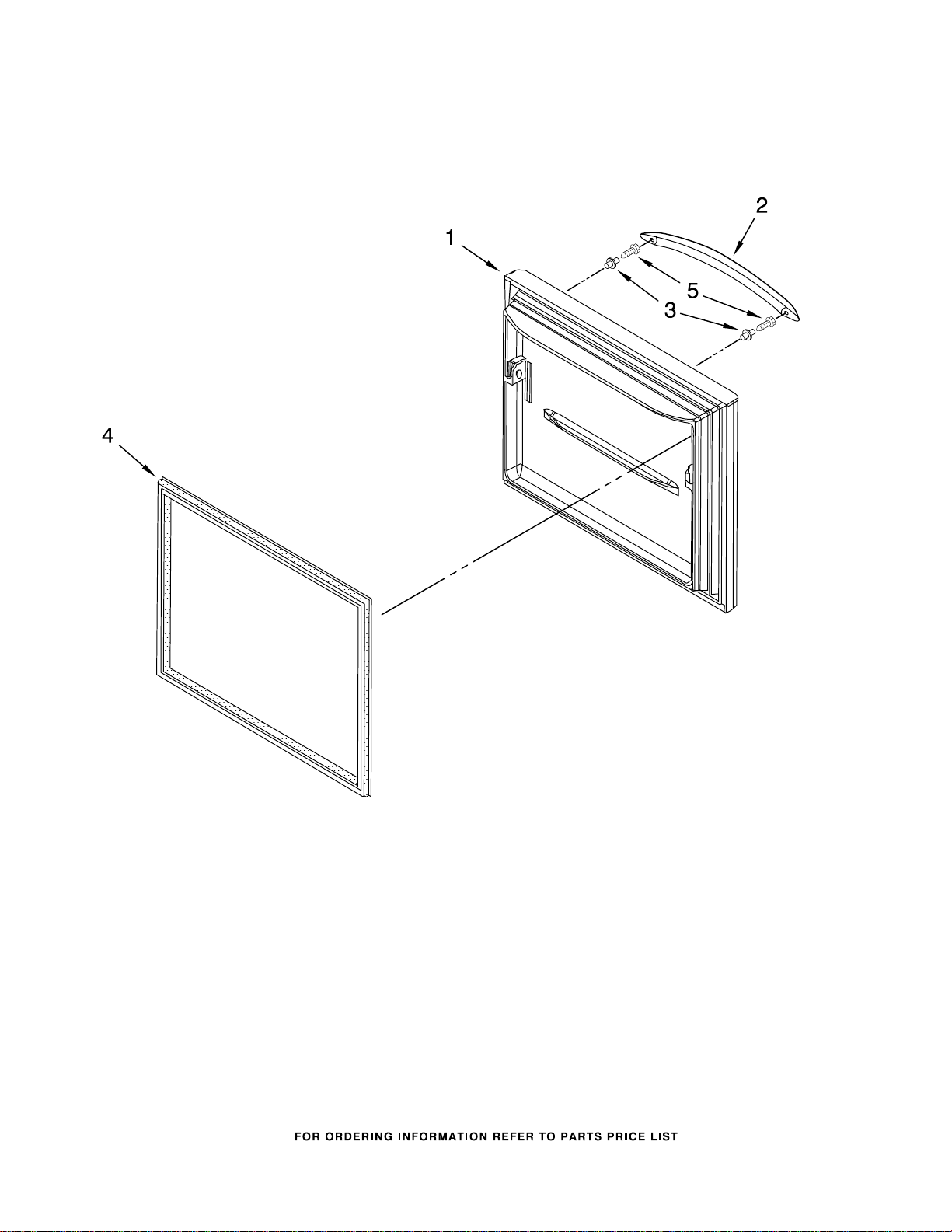

Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(w/ Insulation)
13092210SQ
Stainless Steel
2 Handle, Door
W10197305N
Stainless Steel
3 13001201 Mount, Handle
4 Gasket, Door
W10164037
Black
5 12991703 Screw
