COOKTOP PARTS
1
For Models: AGR6011VDW0, AGR6011VDB0, AGR6011VDS0
(White) (Black) (Stainless Steel)
08−08 Litho in U.S.A. (LAN)(BAY) Part No. W10213955 Rev. A
30" GAS FREESTANDING
SELF CLEAN RANGE
SEALED BURNER
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10196154
Use & Care Guide
W10198636
Tech Sheet
W10196161
Installation
Instructions
Anti−Tip Template
9757142 English/Spanish
9757143 English/French
9762761 Safer Cooking Tips
2 Cap, Burner
LF & RF
W10169974
Grey
W10169984
Black
LR
W10173832
Grey
W10173833
Black
RR
W10169975
Grey
W10169985
Black
3 3196557 Screw
4 Burner
8286182 LF & RF (12K)
W10194076
LR − RF(9K)
8286181 RR(6K)
5 Cooktop
8272251 White
8272253 Black
6 Panel, Manifold
8523854 White
8523855 Black
7 Knob, Control (2)
W10163287
White
W10163288
Black
8 3400701 Screw
9 Grate, Burner (4)
W10165803
Grey
8522851 Black
10 Grate, Center
W10165811
Grey
8522846 Black
CONTROL PANEL PARTS
2
For Models: AGR6011VDW0, AGR6011VDB0, AGR6011VDS0
(White) (Black) (Stainless Steel)
W10213955
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Endcap, Left Hand
W10184433
White
W10184437
Black
Endcap, Right Hand
W10184434
White
W10184438
Black
2 Panel, Control
W10170026
White
W10170027
Black
W10170028
Stainless Model
3 9758080 Module, Spark
4 9756301 Cover, Upper
5
W10184040
Shield, Heat
6
W10184370
Cover, Back
7 8523412 Bracket, Support
8 Control, Range
W10173502
White
W10173503
Black
9 3196178 Screw
10
W10137524
Brkt−Mntg, DSI
11 9762855 Brkt−Mntg,Console
12 8273564 Clip
13 Switch−Rocker
3149360 White
3148564 Black
14 3196169 Screw
MANIFOLD PARTS
3
For Models: AGR6011VDW0, AGR6011VDB0, AGR6011VDS0
(White) (Black) (Stainless Steel)
W10213955
MANIFOLD PARTS
4
For Models: AGR6011VDW0, AGR6011VDB0, AGR6011VDS0
(White) (Black) (Stainless Steel)
W10213955
Illus. Part
No. No. DESCRIPTION
1 8273096 Screw, Valve
2 Burner Base
W10170844
Large (3)
W10170843
Small (1)
3 Tubing, Burner
W/Orifice
W10177162
Left Front
W10177161
Left Rear
W10177160
Right Front
W10177159
Right Rear
4
W10169490
Tubing (Manifold
to Regulator)
5 8523406 Harness, Igniter
(W/Switches)
6
W10170546
Electrode (4)
7
W10169928
Pipe, Manifold
8 Valve
9757218 LF − RF − LR
8273004 Right Rear
9 8273060 Nut (4)
10 8273062 Screw (4)
11 3400228 Bolt
12 8054078 Burner, Broiler
13 8053970 Spreader, Flame
(Oven)
14 9758078 Burner, Bake
15 9761959 Valve/Regulator
16 Igniter
8054129 Broil
9758079 Bake
17 8272222 Tubing (Broiler
Fitting To Valve)
18 3186489 Fitting, Broiler
19 Orifice, Burner
W10170508
Left & Right Front
W10178934
Left Rear
W10170506
Right Rear
20
W10137062
Spreader, Flame
(Broiler)
21 3400016 Screw
22 3196265 Screw
23 3196176 Screw
24 3196385 Screw
Following Parts Not Illustrated
8523420 Spuds, LP Gas
(Kit of 4)

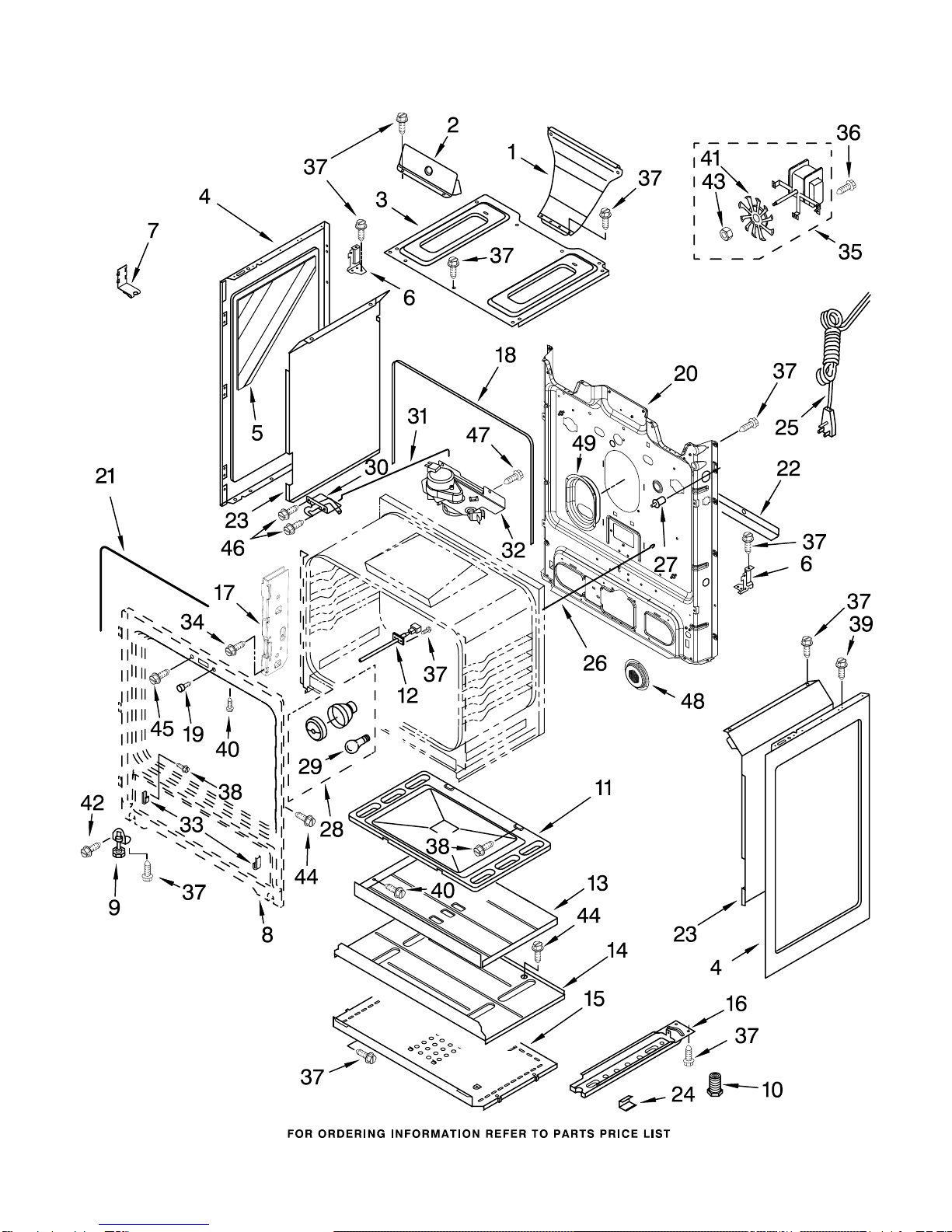

CHASSIS PARTS
5
For Models: AGR6011VDW0, AGR6011VDB0, AGR6011VDS0
(White) (Black) (Stainless Steel)
W10213955
CHASSIS PARTS
6
For Models: AGR6011VDW0, AGR6011VDB0, AGR6011VDS0
(White) (Black) (Stainless Steel)
W10213955
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
W10153186
Flue Box
2 8272747 Shield, Flue
3 8273036 Burner Box
4 Panel, Side (2)
8053830 White−Textured
8053832 Black
5
W10182346
Insulation
6 8523249 Brkt, Manifold Mtg
7 9761512 Clip, Mounting
8 Frame, Front
(Not Serviced)
9 3196037 Foot, Front (2)
10
W10058460
Foot, Rear (2)
11 3195097 Bottom, Oven
12 8273902 Sensor, Oven
13 8053967 Baffle, Burner
14 8053969 Shield, Heat
15 8053505 Shield, Lower
16 9760314 Rail, Base (2)
17 9760407 Brkt − Mounting
18
W10008830
Seal, Oven Flange
19 9758701 Spacer, Door
20
W10134118
Back, Main
21 8522416 Seal, Oven
22 8053971 Brace, Main Back
23 Retainer, Insul.
9761449 Left Hand
9761448 Right Hand
24 3196576 Clip, Panel (6)
25 9757891 Cord, Power
26 9757239 Rod − Dr Switch
27 9757238 Switch, Door
28 3196701 Light Socket Assy
29 311255 Bulb, Oven Light
30 9761013 Latch, Door
31
W10078370
Rod, Latch
32
W10107830
Latch−Mtr
33
W10114344
Glide, Drawer
34
W10031780
Screw
35
W10167915
Fan Motor, Conv
36 4449809 Screw
37 3196178 Screw
38 3196152 Screw
39 Screw
3196166 White
3196168 Black
40 3196176 Screw
41
W10116351
Fan Blade
42 3196179 Screw
43
W10116349
Nut
44 3196177 Screw
45 3196168 Screw
46 3196560 Screw
47 3196160 Screw
48
W10134124
Cover, Fan
49
W10134126
Bracket, Fan
INSULATION
8524099 Insulation, Wrap
8272613 Insulation, Vent
8272614 Insulation, Back
DRAWER & BROILER PARTS
7
For Models: AGR6011VDW0, AGR6011VDB0, AGR6011VDS0
(White) (Black) (Stainless Steel)
W10213955
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
W10138079
Rack, Oven (2)
2 9761031 Drawer, Storage
3
W10174397
Bracket, Drawer(2)
4 Rivet, Push (2)
3196814 White
3196813 Black
5 Panel, Drawer Frnt
W10022090
White
W10022100
Black
6 3196168 Screw
7 9761033 Liner, Drawer
8 8053334 Spacer, Glide
9
W10133364
Panel, Stainless
10
W10197980
Handle, Stainless
11 9781235 Clip
DOOR PARTS
8
For Models: AGR6011VDW0, AGR6011VDB0, AGR6011VDS0
(White) (Black) (Stainless Steel)
W10213955
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Trim, Top
W10144869
White
W10144870
Black
9762394 Stainless Model
2 3196164 Screw
3 Handle, Door
W10144888
White
W10144889
Black
W10144890
Stainless Model
4 9761344 Liner, Door
5
W10031790
Screw
6 9758162 Glass, Inner (2)
7 3186289 Frame, Glass
8
W10113759
Strap Door (2)
9 8272618 Insulation, Door
10 9761493 Hinge, Door
9761496 Stainless Model
11 9761357 Retainer, Insul.
12 Trim, Door Side
Left Hand
8523172 White
8523171 Black
W10113926
Stainless Model
Right Hand
8523166 White
8523165 Black
W10113925
Stainless Model
13 Glass, Outer Door
W10118454
White
W10118455
Black
14 3196160 Screw
15 3196025 Clip, Door Glass
15
W10031780
Screw
16 Trim, Bottom
8523175 White
8523177 Black
17 3196794 Bracket, Window
18 3196165 Screw
19 9761517 Clip, Door Mntg(2)
OPTIONAL PARTS (NOT INCLUDED)
9
For Models: AGR6011VDW0, AGR6011VDB0, AGR6011VDS0
(White) (Black) (Stainless Steel)
W10213955
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
511873 White Porcelain
(2 Oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
4396923 Pan − Broiler
ANTI−TIP KIT
W10017440
Anti−Tip Kit
WIRING HARNESS PARTS
W10174441
Harness, Main
W10170250
Harness, Bake &
Broil Ignitor
8523599 Harness, Wire
(Cooktop Spark)
W10045060
Harness, Grnd DSI
3196174 Screw, Ground
3196520 Clip, Wire
3196896 Clip, Wire
313438 Clip, Harness
3196173 Screw
3195927 Wire, Tie
3196696 Clip, Harness
