DOOR AND PANEL PARTS
1
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
For Models: ADB1500AWB10, ADB1500AWW10, ADB1500AWQ10, ADB1500AWS10, ADB1500AWZ10
(Black) (White) (Bisque) (Stainless) (Oiled Bronze)
1 Literature Parts
W10158012
Instructions,
Installation
99003434 Energy Guide
99003365 Guide, Use & Care
2 Bracket, Hinge
99002929 Left
99002930 Right
3 99001075 Screw
4
Y99002587
Pad, Foam
5 Panel, Front
99002768 Black
99002770 White
99002769 Bisque
99002771 Stainless
99003425 Oiled Bronze
6 Screw
912366 Black
99001194 White
99002114 Bisque
7 Panel, Toe
99002765 Black
99002766 White
99002767 Bisque
8 Support, Front
99002859 Black
99002860 White
99002861 Bisque
3−08 Litho In U.S.A. (ebk) Part No. W10178035 Rev. B
CONTROL PANEL PARTS
2W10178035
Illus. Part
No. No. DESCRIPTION
For Models: ADB1500AWB10, ADB1500AWW10, ADB1500AWQ10, ADB1500AWS10, ADB1500AWZ10
(Black) (White) (Bisque) (Stainless) (Oiled Bronze)
1 99002575 Housing, Board
(Top)
2 99003360 Board, Control
3 99002576 Housing, Board
4 Panel, Control
99003414 Black
99003368 White
99003367 Bisque
5 99002751 Switch, Door
6 99003347 Latch, Assembly
DOOR AND LATCH PARTS
3
W10178035
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
For Models: ADB1500AWB10, ADB1500AWW10, ADB1500AWQ10, ADB1500AWS10, ADB1500AWZ10
(Black) (White) (Bisque) (Stainless) (Oiled Bronze)
1 99002986 Harness, Wiring
2 99002590 Grill, Door Vent
3 99002186 Seal, Door Vent
4 99002992 Cap, Rinse Aid
5 99003321 Dispenser, Rinse
Aid
6 99002673 Housing, Vent
Assembly
7 Y912620 Screw, Door
8 99003424 Inner Door
W/ Damper
9 99003316 Bracket, Dispenser
10 912615 Screw
LOWER WASHARM PARTS
4W10178035
Illus. Part
No. No. DESCRIPTION
For Models: ADB1500AWB10, ADB1500AWW10, ADB1500AWQ10, ADB1500AWS10, ADB1500AWZ10
(Black) (White) (Bisque) (Stainless) (Oiled Bronze)
1 99002654 Cap, Wash Arm
2 99002678 Wash Arm, Lower
(Includes Item 3)
3 99002653 Shield, Radiant
HEATER PARTS
5
W10178035
Illus. Part
No. No. DESCRIPTION
For Models: ADB1500AWB10, ADB1500AWW10, ADB1500AWQ10, ADB1500AWS10, ADB1500AWZ10
(Black) (White) (Bisque) (Stainless) (Oiled Bronze)
1 99002971 Heater Element
Assembly
W/ Gasket
2 99002972 Nut, Heater
NOTE:
If heater element is
removed, it must be replaced.

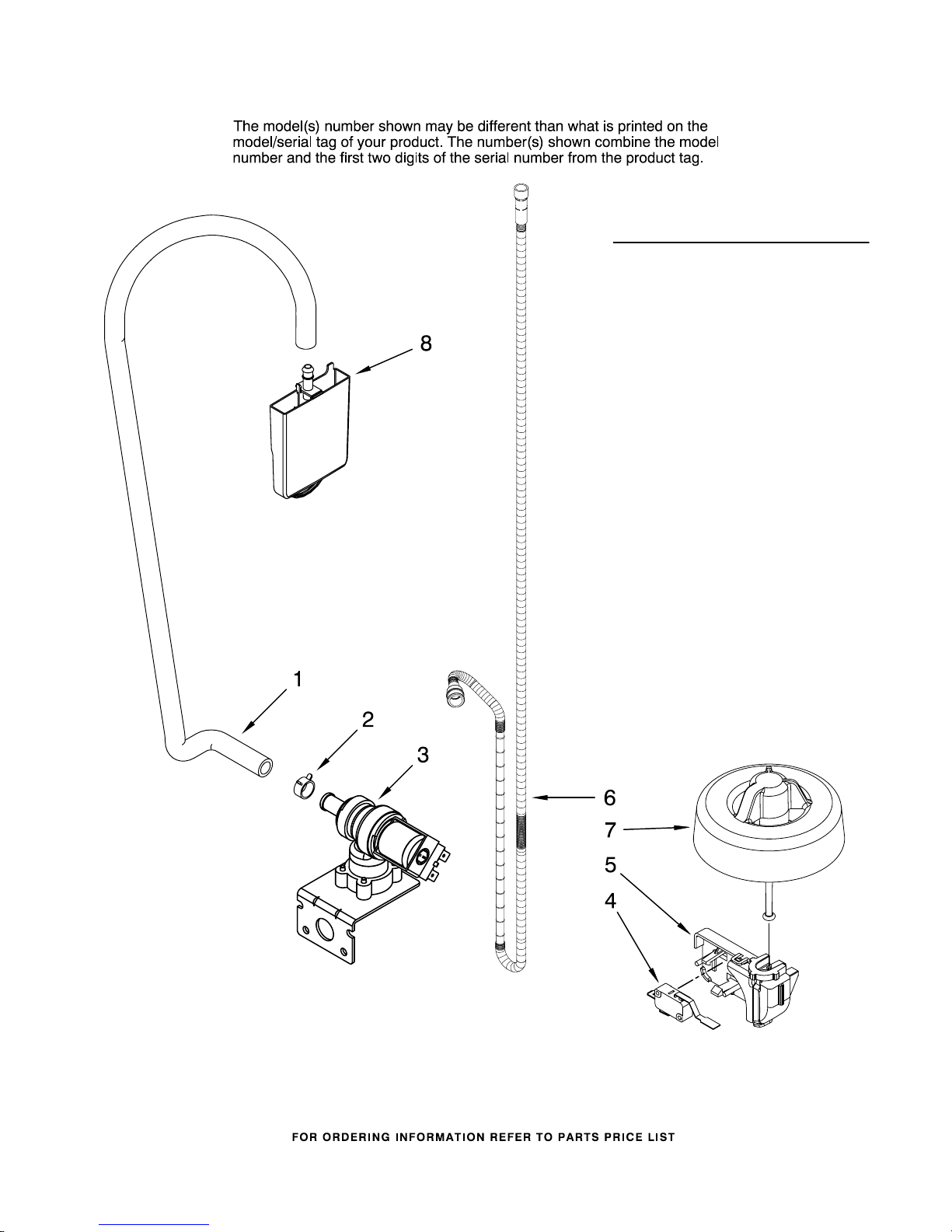

FILL AND OVERFILL PARTS
6W10178035
Illus. Part
No. No. DESCRIPTION
For Models: ADB1500AWB10, ADB1500AWW10, ADB1500AWQ10, ADB1500AWS10, ADB1500AWZ10
(Black) (White) (Bisque) (Stainless) (Oiled Bronze)
1 99002852 Hose, Inlet
2 911856 Clamp, Spring
3 99002975 Valve, Water
4 99002631 Switch, Float
5 99002943 Plate, Switch
Mounting
6 99002652 Hose, Drain
7 99002630 Float
8 99002645 Inlet, Air/Water
TUB AND FRAME PARTS
7
W10178035
For Models: ADB1500AWB10, ADB1500AWW10, ADB1500AWQ10, ADB1500AWS10, ADB1500AWZ10
(Black) (White) (Bisque) (Stainless) (Oiled Bronze)
TUB AND FRAME PARTS
8W10178035
Illus. Part
No. No. DESCRIPTION
For Models: ADB1500AWB10, ADB1500AWW10, ADB1500AWQ10, ADB1500AWS10, ADB1500AWZ10
(Black) (White) (Bisque) (Stainless) (Oiled Bronze)
1 99003357 Strike, Door
2 99002648 Bracket, Cabinet
Mounting
3 99002640 Fastener
4 99002610 Bracket, Spring
Adjustment
5 Bracket, Support
99002636 Left
6 99003688 Nut
7 99002607 Bracket, Cable
8 99002608 Roller, Cable
Bracket
9 99002609 Bolt, Shoulder
10 99002598 Spring, Door
11 99003446 Door Cable Assy.
12 99002639 Insulation, Tub
13 99002588 Seal, Door
14
W10142297
Tub Assembly
15 99002633 Thermostat,
Limiting
16 99002634 Clip, Thermostat
17 99002692 Screw, Trim
Mounting
18 99002637 Bracket, Junction
Box
19 99002635 Leg, Leveling
20 99002649 Strip, Trim
21 99002638 Cover, Junction
Box
22 Support, Hinge
99002928 Left
99002927 Right
23 Backer, Hinge
Seal
99002761 Left
99002762 Right
24 99002601 Screw
25
W10200542
Seal, Air/Water
Inlet
26 99002948 Grill, Air/Water
Inlet
PUMP AND MOTOR PARTS
9
W10178035
For Models: ADB1500AWB10, ADB1500AWW10, ADB1500AWQ10, ADB1500AWS10, ADB1500AWZ10
(Black) (White) (Bisque) (Stainless) (Oiled Bronze)
PUMP AND MOTOR PARTS
10 W10178035
Illus. Part
No. No. DESCRIPTION
For Models: ADB1500AWB10, ADB1500AWW10, ADB1500AWQ10, ADB1500AWS10, ADB1500AWZ10
(Black) (White) (Bisque) (Stainless) (Oiled Bronze)
1 99002666 Screw
2 99002979 Guard, Filter
3 99002668 Screw
4 99002677 Discharge, Housing
Assembly
5 99002659 Wash Impeller
Assembly
6 99003291 Filter/Flowplate,
Assembly
7 99002663 Gasket, Motor
Mount
8 99002651 O−Ring, Turbidity
Sensor
9 99002650 Sensor, Turbidity
10 99003697 Pivot, Wash Arm
11 99002664 Screw
12 99002658 Chopper
13 99002980 Wash Motor Assy.
14 99003309 Flapper, Drain
Pump Inlet
15 99002857 O−Ring, Drain Pump
16 99002740 Screw
17 99002750 Drain Pump Assy.
18 99003440 Shield, Capacitor
19 99002665 Capacitor
20 99002601 Screw
