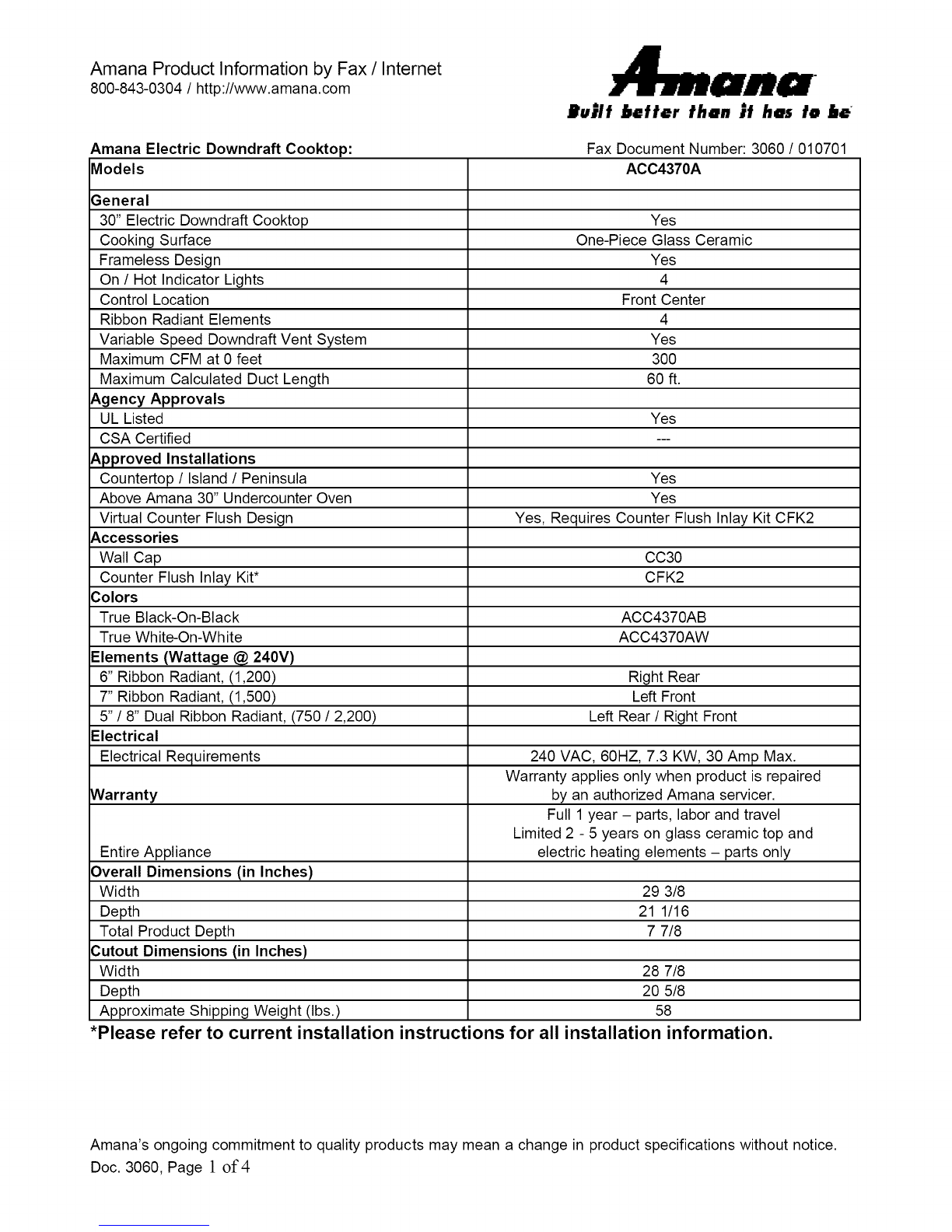

Amana ACC4370A Manual de usuario

Amana Product Information by Fax /Internet

800-843-0304 /http://www.amana.com Juilf beft@r than if has to b@_

Amana Electric Downdraft Cooktop:

Models

General

30" Electric Downdraft Cooktop

Cooking Surface

Frameless Design

On /Hot Indicator Lights

Control Location

Ribbon Radiant Elements

Variable Speed Downdraft Vent System

Maximum CFM at 0 feet

Maximum Calculated Duct Length

&gency Approvals

UL Listed

CSA Certified

,pproved Installations

Countertop /Island /Peninsula

Above Amana 30" Undercounter Oven

Virtual Counter Flush Design

&ccessories

Wall Cap

Counter Flush Inlay Kit*

Oolors

True Black-On-Black

True White-On-White

Elements (Wattage @ 240V)

6" Ribbon Radiant, (1,200)

7" Ribbon Radiant, (1,500)

5"/8" Dual Ribbon Radiant, (750 /2,200)

Electrical

Electrical Requirements

Fax Document Number: 3060 /010701

ACC4370A

Yes

One-Piece Glass Ceramic

Yes

Front Center

Yes

300

60 ft.

Yes

Yes, Requires Counter Flush Inlay Kit CFK2

CC30

CFK2

ACC4370AB

ACC4370AW

Right Rear

Left Front

Left Rear /Right Front

tVarranty

Entire Appliance

Dverall Dimensions (in Inches)

Width 29 3/8

Depth 21 1/16

Total Product Depth 7 7/8

Outout Dimensions (in Inches)

Width 28 7/8

Depth 20 5/8

Approximate Shipping Weight (Ibs.) 58

240 VAC, 60HZ, 7.3 KW, 30 Amp Max.

Warranty applies only when product is repaired

by an authorized Amana servicer.

Full 1 year - parts, labor and travel

Limited 2 - 5 years on glass ceramic top and

electric heating elements - parts only

*Please refer to current installation instructions for all installation information.

Amana's ongoing commitment to quality products may mean a change in product specifications without notice.

Doc. 3060, Page ! of 4

Amana Product Information by Fax /Internet

800-843-0304 /http://www.amana.com

Cutout Dimensions for Counter Installation

29 3/8"

20 s/8" 28 _/8"

Minimum Clearances to Combustible Surfaces

The dimensions provided are to be

measured from the cooktop itself, and not

the installation cutout for the cooktop.

A--30 inches minimum clearance between the

top of the cooking surface and the bottom

of an unprotected wood or metal cabinet.

A--24 inches minimum clearance when bottom

of wood or metal cabinet is protected by not

less than 1/4-inch thick flame retardant

millboard covered with not less than No.28

MSG sheet steel, 0.015 inch thick

stainless steel, 0.024-inch thick aluminum,

or 0.020 inch thick copper.

B--0 inches minimum distance between

cooktop and wall, cabinet taller than 36

inches or a walkway.

C_0 inches minimum distance between

cooktop and back wall or backguard.

D--2 inches minimum distance between

cooktop and edge of countertop.

E--Minimum of 18 inches (on each side)

between top of countertop and bottom of an

unprotected wood or metal cabinet.

F--Minimum of 30 inches (30-inch cooktop)

length for protected cabinets above the

cooktop.

C.. ......

Amana's ongoing commitment to quality products may mean a change in product specifications without notice.

Doc. 3060, Page 2 of 4

Amana Product Information by Fax /Internet

800-843-0304 /http://www.amana.com

Duct Locations without a Wall Oven

Cooktops can be vented vertically or horizontally.

If vented horizontally vent air through left or rear wall.

If vented vertically, locate hole between floor joists.

Do not vent exhaust air into a wall, ceiling, or a

Concealed space of a building.

Back Edge of

Cooktop Cutout

Cooktop Side View Cooktop Front View

f-' !"' "' _ ''" _ _' '' _'''' _ _ ' _ ""_4" fl _ ' " ' ' ' " " J ' " " 'J ' " " " J " ' " ;' "r_4"

t _/" [_ _...............t.

................ i

• {÷6 1/2" -_i

*--6/8" _i i

Duct Length Calculations

Ducting length is calculated in terms of straight

metal duct. Fittings such as elbows or transition

pieces should be limited to 50% of total duct length.

Using too many fittings can cause airflow problems.

Maximum allowable calculated duct length is 60

equivalent feet.

Use Duct Length Piece Equivalents section

found in the Installation Instructions.

Do not use any duct other than metal.

Flexible duct is not recommended because it

can create a fire hazard. However, if it is used,

one foot of flexible duct is equal to two feet of

smooth metal duct.

Exterior exhaust opening must be a minimum of

one foot (12 inches) from an obstruction.

1' of Duct 1'

90°Elbow 5'

3' of Duct 3' ",

90°Elbow 5' -_

10' of Duct 10' -2

TotalFeet 24' "-

Amana's ongoing commitment to quality products may mean a change in product specifications without notice.

Doc. 3060, Page _3of 4

Amana Product Information by Fax /Internet

800-843-0304 /http://www.amana.com

Duct Locations Above a Wall Oven

Cooktop can be vented vertically or horizontally.

If vented horizontally, vent air through left or

rear wall.

If vented vertically, vent edge must be a

minimum of 3/4-inch away from the wall oven.

Do not vent exhaust air into a wall, ceiling, or a

concealed space of a building.

Amana's ongoing commitment to quality products may mean a change in product specifications without notice.

Doc. 3060, Page 4 of 4

Amana Product Information by Fax /Internet

800-843-0304 /http://www.amana.com Juilf beft@r than if has to b@_

Amana Electric Downdraft Cooktop:

Models

General

30" Electric Downdraft Cooktop

Cooking Surface

Frameless Design

On /Hot Indicator Lights

Control Location

Ribbon Radiant Elements

Variable Speed Downdraft Vent System

Maximum CFM at 0 feet

Maximum Calculated Duct Length

&gency Approvals

UL Listed

CSA Certified

,pproved Installations

Countertop /Island /Peninsula

Above Amana 30" Undercounter Oven

Virtual Counter Flush Design

&ccessories

Wall Cap

Counter Flush Inlay Kit*

Oolors

True Black-On-Black

True White-On-White

Elements (Wattage @ 240V)

6" Ribbon Radiant, (1,200)

7" Ribbon Radiant, (1,500)

5"/8" Dual Ribbon Radiant, (750 /2,200)

Electrical

Electrical Requirements

Fax Document Number: 3060 /010701

ACC4370A

Yes

One-Piece Glass Ceramic

Yes

Front Center

Yes

300

60 ft.

Yes

Yes, Requires Counter Flush Inlay Kit CFK2

CC30

CFK2

ACC4370AB

ACC4370AW

Right Rear

Left Front

Left Rear /Right Front

tVarranty

Entire Appliance

Dverall Dimensions (in Inches)

Width 29 3/8

Depth 21 1/16

Total Product Depth 7 7/8

Outout Dimensions (in Inches)

Width 28 7/8

Depth 20 5/8

Approximate Shipping Weight (Ibs.) 58

240 VAC, 60HZ, 7.3 KW, 30 Amp Max.

Warranty applies only when product is repaired

by an authorized Amana servicer.

Full 1 year - parts, labor and travel

Limited 2 - 5 years on glass ceramic top and

electric heating elements - parts only

*Please refer to current installation instructions for all installation information.

Amana's ongoing commitment to quality products may mean a change in product specifications without notice.

Doc. 3060, Page ! of 4

Amana Product Information by Fax /Internet

800-843-0304 /http://www.amana.com

Cutout Dimensions for Counter Installation

29 3/8"

20 s/8" 28 _/8"

Minimum Clearances to Combustible Surfaces

The dimensions provided are to be

measured from the cooktop itself, and not

the installation cutout for the cooktop.

A--30 inches minimum clearance between the

top of the cooking surface and the bottom

of an unprotected wood or metal cabinet.

A--24 inches minimum clearance when bottom

of wood or metal cabinet is protected by not

less than 1/4-inch thick flame retardant

millboard covered with not less than No.28

MSG sheet steel, 0.015 inch thick

stainless steel, 0.024-inch thick aluminum,

or 0.020 inch thick copper.

B--0 inches minimum distance between

cooktop and wall, cabinet taller than 36

inches or a walkway.

C_0 inches minimum distance between

cooktop and back wall or backguard.

D--2 inches minimum distance between

cooktop and edge of countertop.

E--Minimum of 18 inches (on each side)

between top of countertop and bottom of an

unprotected wood or metal cabinet.

F--Minimum of 30 inches (30-inch cooktop)

length for protected cabinets above the

cooktop.

C.. ......

Amana's ongoing commitment to quality products may mean a change in product specifications without notice.

Doc. 3060, Page 2 of 4

Amana Product Information by Fax /Internet

800-843-0304 /http://www.amana.com

Duct Locations without a Wall Oven

Cooktops can be vented vertically or horizontally.

If vented horizontally vent air through left or rear wall.

If vented vertically, locate hole between floor joists.

Do not vent exhaust air into a wall, ceiling, or a

Concealed space of a building.

Back Edge of

Cooktop Cutout

Cooktop Side View Cooktop Front View

f-' !"' "' _ ''" _ _' '' _'''' _ _ ' _ ""_4" fl _ ' " ' ' ' " " J ' " " 'J ' " " " J " ' " ;' "r_4"

t _/" [_ _...............t.

................ i

• {÷6 1/2" -_i

*--6/8" _i i

Duct Length Calculations

Ducting length is calculated in terms of straight

metal duct. Fittings such as elbows or transition

pieces should be limited to 50% of total duct length.

Using too many fittings can cause airflow problems.

Maximum allowable calculated duct length is 60

equivalent feet.

Use Duct Length Piece Equivalents section

found in the Installation Instructions.

Do not use any duct other than metal.

Flexible duct is not recommended because it

can create a fire hazard. However, if it is used,

one foot of flexible duct is equal to two feet of

smooth metal duct.

Exterior exhaust opening must be a minimum of

one foot (12 inches) from an obstruction.

1' of Duct 1'

90°Elbow 5'

3' of Duct 3' ",

90°Elbow 5' -_

10' of Duct 10' -2

TotalFeet 24' "-

Amana's ongoing commitment to quality products may mean a change in product specifications without notice.

Doc. 3060, Page _3of 4

Amana Product Information by Fax /Internet

800-843-0304 /http://www.amana.com

Duct Locations Above a Wall Oven

Cooktop can be vented vertically or horizontally.

If vented horizontally, vent air through left or

rear wall.

If vented vertically, vent edge must be a

minimum of 3/4-inch away from the wall oven.

Do not vent exhaust air into a wall, ceiling, or a

concealed space of a building.

Amana's ongoing commitment to quality products may mean a change in product specifications without notice.

Doc. 3060, Page 4 of 4
