Altronix VERTILINE Series Instrucciones de funcionamiento y mantenimiento
Rev. 090710 More than just power.TM
Rack Mount Power Supplies
Installation Guide
Models Include:
Vertiline3D
- 12VDC @ 8A
- Eight (8) PTC protected outputs
Vertiline6D
- 24VDC @ 8A
- Eight (8) PTC protected outputs
- 2 - Vertiline3D / VertiLine6D
Overview:
Altronix Vertiline Rack Mount Power Supplies provide eight (8) filtered and electronically regulated power
outputs in a space saving 1U EIA 19” rack mount chassis. The units are available with either 12VDC or 24VDC
power outputs. Vertiline Rack Mount Power Supplies are also available in sixteen (16) outputs.
Specifications:
Agency Listing:
• CE European Conformity.
Input:
• 115VAC, 60 Hz.
Output:
Vertiline3D:
• Eight (8) PTC protected 12VDC outputs rated @
8A total current max. (1.0A per device, 2.5A max.).
Vertiline6D:
• Eight (8) PTC protected 24VDC outputs rated @
8A total current max. (1.0A per device, 2.5A max.).
• Filtered and electronically regulated outputs.
Features:
• Eight (8) power LED indicators.
• Illuminated master power disconnect
circuit breaker with manual reset.
• IEC 320 - 3-wire grounded line cord (detachable).
• Removable terminal blocks with locking
screw flange.
Mechanical:
• Units can be rack, wall or shelf mounted.
• Modular 1U standard EIA 19” rack mount chassis.
• Enclosure Dimensions (H x W x D approx.):
1.625” x 19.125” x 8.5”
(41.3mm x 486mm x 216mm).
Eight (8) Output Rack Mount Configuration Reference Chart:
Altronix
Model Number
Output
Voltage
Total
Output
Current
(Power)
Number of
Outputs
Output
Protection
Current (max.
per output)
115VAC 60Hz
Input Current
Vertiline3D 12VDC 8A 8 PTC 2.5A 1.5A
Vertiline6D 24VDC 8A 8 PTC 2.5A 3A
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to
rain or moisture. This installation should be made by qualified service personnel and
should conform to the National Electrical Code and all local codes.
Vertiline3D / VertiLine6D - 3 -
Installation Instructions:
1. Attach mounting brackets to Vertiline unit for desired rack or wall mount installation (Figs. 4-5, pg. 7).
Affix rubber pads to Vertiline for shelf installation (Fig. 6, pg. 7).
2. Secure the unit into rack, mount unit to wall or place unit on a shelf as desired (unit should be spaced at
least 3” from any video monitors). When installing the unit in a rack, allow for one half U spacing above
the unit for ventilation.
3. Insert and secure removable terminal blocks to unit (Fig. 1e, pg. 4).
4. Plug the grounded AC line cord (included) into the IEC 320 connector of the Vertiline unit (Fig. 1d, pg. 4).
Insert the plug end of the line cord into a grounded AC receptacle.
5. Set illuminated master power disconnect circuit breaker to the (ON) position (Fig. 1c, pg. 4).
6. Measure output voltage before connecting devices. This helps avoiding potential damage.
7. Set illuminated master power disconnect circuit breaker to the (OFF) position (Fig. 1c, pg. 4).
8. Connect the power output of terminals marked [+ 1 –] to the power input of device (Fig. 1b, pg. 4).
Repeat this step for each additional device (Outputs 2-8).
9. Upon completion of wiring, set illuminated master power disconnect circuit breaker to the
ON (RESET) position (Fig. 1c, pg. 4).
10. The power LEDs on the faceplate for Outputs 1-8 will illuminate when AC power is present (Fig. 1a, pg. 4).
Note: If any of the power LEDs are not illuminated the cause may be due to the following:
a. AC mains fail.
b. Illuminated master power disconnect circuit breaker is OFF or tripped.
c. One (1) or more power output PTCs are tripped due to a short circuit or overload condition.
To reset the PTC:
1. Set illuminated master power disconnect circuit breaker to the (OFF) position (Fig. 1c, pg. 4).
2. Eliminate the trouble condition (short circuit or overload).
3. Allow 1 minute for PTC to cool off (reset).
4. Set illuminated master power disconnect circuit breaker to the (ON) position (Fig. 1c, pg. 4).
5. All power LEDs will illuminate indicating power has been restored to all outputs (Fig. 1a, pg. 4).
- 4 - Vertiline3D / VertiLine6D
1a LED(s) 1-8: Power LED indicators.
1b Power Outputs: 12VDC or 24VDC.
1c Illuminated master power disconnect circuit breaker (switch):
• OFF position Circuit breaker tripped Switch not illuminated.
• RESET (ON) position Switch illuminated.
1d IEC 320 Connector: 115VAC 60Hz (grounded line cord included).
1e Removable Terminal Block.
Fig. 1
Vertiline3D and Vertiline6D (front)
Vertiline3D and Vertiline6D (rear)
1a 1b 1c
1d 1e
Removable Terminal
Block
Vertiline3D / VertiLine6D - 5 -

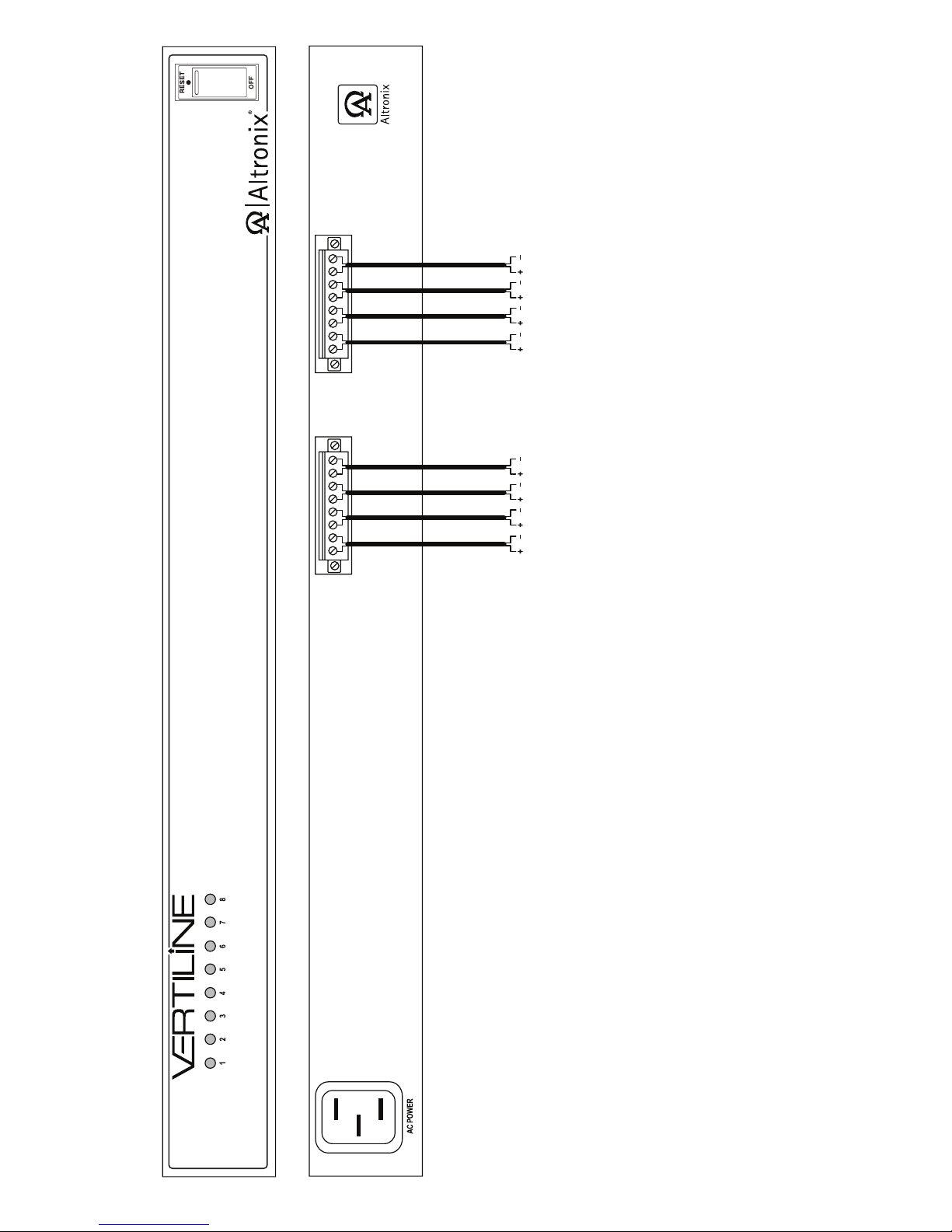

Fig. 2 Typical Application Drawing:
12VDC (VertiLine3D)
or 24VDC (VertiLine6D)
Power Outputs to Devices
- 6 - Vertiline3D / VertiLine6D
The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the
user to the presence of an insulated DANGEROUS VOLTAGE within the product’s enclosure that
may be of sufficient magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
CAUTION: To reduce the risk of electric shock do not open enclosure.
There are no user serviceable parts inside.
Refer servicing to qualified service personnel.
Fig. 3
Power switch with built-in circuit breaker:
OFF position - Switch not illuminated. Outputs not powered.
RESET (ON) position - Switch illuminated. Outputs powered.
Circuit breaker tripped - Switch not illuminated.
Power LEDs on faceplate are not illuminated.
Outputs not powered.
To reset circuit breaker set power switch to the ON (RESET)
position (Fig. 3, pg. 6).
1.625"
41.3mm
8.5"
216mm
0.75"
19.05mm
19.125"
486mm
17.625"
447.7mm
(ON)
TOP & BOTTOM
REAR
FRONT
1U EIA 19” Rack Mount Chassis Mechanical Drawing and
Dimensions (H x W x D):
1.625” x 19.125” x 8.5” (41.3mm x 486mm x 216mm)
Vertiline3D / VertiLine6D - 7 -
Mounting Options:
Fig. 4
Rack Mount Installation
1. Remove factory installed screws from both sides of the rack chassis (Fig. 4a).
2. Install mounting brackets (A) on the left and right side of rack chassis using the
two (2) flat head screws (B) (included) (Fig. 4b).
3. Place unit into desired EIA 19” rack position and secure with mounting screws (not included) (Fig. 4c).
A
B
Fig. 4b
Fig. 4a Fig. 4c
Top Top Top
Front
Left
Front
Left
Front Left
Remove
Wall Mount Installation
1. Install mounting brackets (A) on the left and right side of rack chassis using
two (2) flat head screws (B) (included) (Fig. 5a).
2. Place unit at desired location and secure with mounting screws (not included) (Fig. 5b).
Caution: It is necessary to make sure mounting screws are securely fastened to a beam when installing.
Fig. 5
A
B
Fig. 5b
Fig. 5a
Fig. 6
Shelf Installation
1. Position and affix rubber pads (C) (included) at
each corner on the bottom of the unit (Fig. 6).
2. Place unit in desired location.
B
A
C
Mounting Hardware (Included):
C
Left Side
Rubber Pad
Two (2) mounting brackets
Six (6) flat head screws
for mounting brackets.
Four (4) rubber pads.
- 8 - Vertiline3D / VertiLine6D
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
IIVertiline3D / Vertiline6D G23R MEMBER
