Altronix TROVE DMP 734 Manual de usuario

T1DMK3F4

4 Door Kit with Fused Outputs

Fully assembled kit includes:

- Trove1 enclosure with TDM1 Altronix/DMP backplane

- One (1) eFlow6NB - Power Supply/Charger

- One (1) VR6 - Voltage Regulator

- One (1) PDS8 - Dual Input Fused Power Distribution Module

T2DMK7F8

8 Door Kit with Fused Outputs

Fully assembled kit includes:

- Trove2 enclosure with TDM2 Altronix/DMP backplane

- One (1) eFlow104NB - Power Supply/Charger

- One (1) ACM8 - Fused Access Power Controller

- One (1) VR6 - Voltage Regulator

- One (1) PDS8 - Dual Input Fused Power Distribution Module

T1DMK3F4D

4 Door Kit with PTC Outputs

Fully assembled kit includes:

- Trove1 enclosure with TDM1 Altronix/DMP backplane

- One (1) eFlow6NB - Power Supply/Charger

- One (1) VR6 - Voltage Regulator

- One (1) PDS8CB - Dual Input PTC Power Distribution Module

T2DMK7F8D

8 Door Kit with PTC Outputs

Fully assembled kit includes:

- Trove2 enclosure with TDM2 Altronix/DMP backplane

- One (1) eFlow104NB - Power Supply/Charger

- One (1) ACM8CB - PTC Access Power Controller

- One (1) VR6 - Voltage Regulator

- One (1) PDS8CB - Dual Input PTC Power Distribution Module

Access & Power Integration

Altronix/DMP 734/734N Wiegand Kits

Models Include:

Rev. TDMK_022521

Installing Company: _________________________ Service Rep. Name: __________________________________________

Address: _________________________________________________________ Phone #: _________________________

All registered trademarks are property of their respective owners. More than just power.™

Installation Guide

All components of these Trove kits are UL Listed sub-assemblies.

Please refer to the included corresponding Sub-Assembly Installation Guides for further information.

- 2 - Trove DMP Kits Installation Guide

Overview:

Altronix T1DMK3F4(D) and T2DMK7F8(D) Trove DMP kits are pre-assembled and consist of Trove enclosures/backplanes with factory installed

Altronix power supply/chargers and sub-assemblies.

T1DMK3F4(D) accommodates up to four (4) DMP 734/734N Wiegand modules for up to four (4) doors in a single enclosure.

T2DMK7F8(D) accommodates up to eight (8) DMP 734/734N Wiegand modules for up to eight (8) doors in a single enclosure.

Configuration Chart:

Altronix

Model

Number

Power Supply Board

Input Fuse Rating

Power Supply Board

Battery Fuse Rating

120VAC 60Hz

Input Current (A)

Maximum Supply

Current for Main

and Aux. Outputs on

Power Supply board

and ACM8(CB) Access

Power Controllers’

outputs

Nominal DC

Output Voltage

Fail-Safe/Fail-Secure or

Dry Form “C” Outputs

Additional Fused

Outputs

ACM8(CB) Board

Input Fuse Rating

ACM8 Board

Output Fuse Rating

ACM8CB Board

Output PTC Rating

PDS8 Board

Input Fuse Rating

PDS8 Board

Output Fuse Rating

PDS8CB Board

Input PTC Rating

PDS8CB Board

Output PTC Rating

[DC] [Aux]

Output

Range

(VDC)

Output

Range

(VDC)

T1DMK3F4 5A/

250V

10A/

32V 3.5 24VDC @ 6A

20.17-

26.4

20.28-

26.4

–

–––

10A/

32V

3A/

32V – –

T1DMK3F4D – 9A 2A

T2DMK7F8 6.3A/

250V

15A/

32V 4.5 24VDC @ 9.4A 810A/

250V

2.5A/

250V –10A/

32V

3A/

32V – –

T2DMK7F8D – 2.5A – – 9A 2A

Installation Instructions:

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.

Product is intended for indoor use only.

1. Remove backplane from enclosure. Do not discard hardware.

2. Mark and predrill holes in the wall to line up with the top two/three keyholes in the enclosure. Install two/three upper fasteners and screws

in the wall with the screw heads protruding. Place the enclosure’s upper keyholes over the two/three upper screws; level and secure.

Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install the three fasteners. Place the enclosure’s

upper keyholes over the two/three upper screws. Install the three lower screws and make sure to tighten all screws.

3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired

location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure

approximately 2” from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the

Access Control Panel input or the appropriate UL Listed reporting device.

To activate alarm signal open the door of the enclosure.

4. Mount DMP 734/734N Wiegand modules to backplane, refer to pages 3, 4.

5. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow6NB,

eFlow104NB and corresponding Sub-Assembly Installation Guides for ACM8(CB),

PDS8(CB) and VR6 for further installation instructions.

Hardware:

Nylon Spacer | 5/16” Pan Head Screw | Lock Nut

Fig. 1

Tamper Switch

(provided)

To Access Control Panel or

UL Listed Reporting Device

Edge of

Enclosure

Trove DMP Kits Installation Guide - 3 -

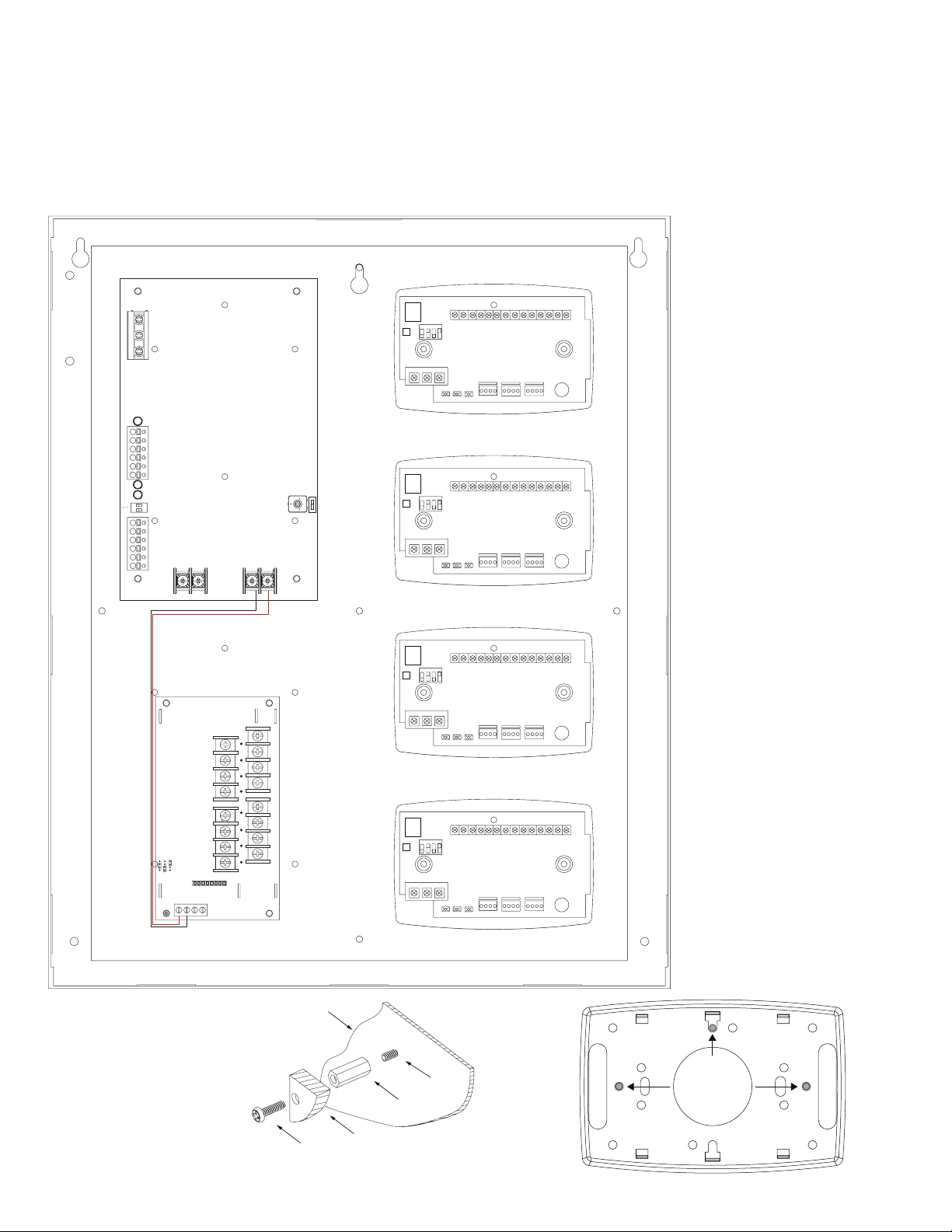

T1DMK3F4(D): Configuration of DMP 734/734N Wiegand Modules:

1. Fasten spacers (provided) to pems that match the hole pattern for DMP Wiegand Modules (Fig. 2, pg. 3).

2. Mount DMP 734/734N modules into the correct positions (Fig. 2, pg. 3):

a. Remove DMP 734/734N board from the plastic housing. Use the base part of the housing to mount onto TDM1 (Fig. 2a, 2b, pg. 3).

b. Secure the base of DMP 734/734N to the spacers using provided 5/16” pan head screws.

c. Make all necessary connections before reassembling DMP 734/734N Wiegland modules.

3. Fasten TDM1 backplane to Trove1 enclosure utilizing hardware (provided).

NC C NO NC C NO

AC FAIL BATFAIL

TRIGGER

AC DCAC1

EOL NO GND

SUPERVISED RESET

+AUX-

- BAT +-DC +

L G N

OFF - 24V

ON - 12V

Altronix - eFlow6NB

+ INP1 --

DM1 +OFF

IN1

IN2DM1 +

DM2 +

Common (--- )

+ INP2 --

Common Power Outputs (NEG)

OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

1 2 3 4 5 6 7 8

Altronix

PDS8(CB)

Altronix VR6 is mounted under PDS8(CB)

DMP 734 or 734N

Wiegand

DMP 734 or 734N

Wiegand

DMP 734 or 734N

Wiegand

DMP 734 or 734N

Wiegand

Spacer

DMP 734 plastic housing

Backplane

Pan Head

Screw

Pem Mounting

Spacer

Placement

Fig. 2bFig. 2a

Fig. 2 - T1DMK3F4(D) Conﬁguration

- 4 - Trove DMP Kits Installation Guide

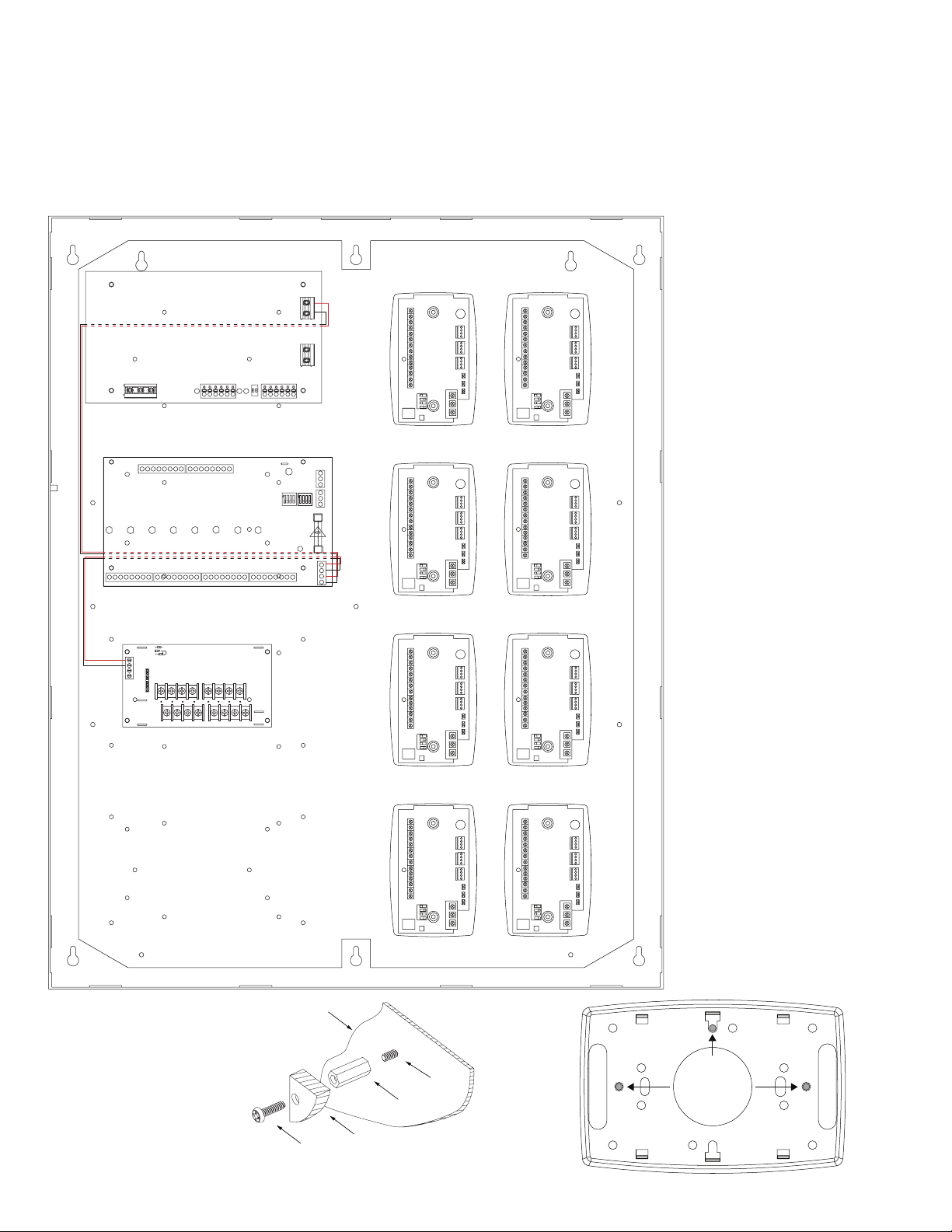

T2DMK7F8(D): Configuration of DMP 734/734N Wiegand Modules:

1. Fasten spacers (provided) to pems that match the hole pattern for DMP 734/734N Wiegand Modules (Fig. 3, pg. 4).

2. Mount DMP 734/734N modules into the correct positions (Fig. 3, pg. 4):

a. Remove DMP 734/734N board from the plastic housing. Use the base part of the housing to mount onto TDM2 (Fig. 3a, 3b, pg. 4).

b. Secure the base of DMP 734/734N to the spacers using provided 5/16” pan head screws.

c. Make all necessary connections before reassembling DMP 734/734N Wiegland modules.

3. Fasten TDM2 backplane to Trove2 enclosure utilizing hardware (provided).

Altronix - eFlow104NB

– DC +– BAT +

L G N

OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8

NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM

IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND

1 2 3 4 5 6 7 8

INPUT

TRIGGER

10A 250V

+INP- T + RET-

NO C NC

FACP INTERFACE

Power Control

- + - +

MAIN

TRG

FACP

1 2 3 4

Altronix ACM8(CB)

+ INP1 --

PWR1 +

OFF

IN1

IN2

PWR2 +PWR2 +

COM ---

+ INP2 --

Common Power Outputs (NEG)

OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

1 2 3 4 5 6 7 8

Altronix PDS8(CB)

Altronix VR6 is mounted under PDS8(CB)

DMP 734

or 734N

Wiegand

DMP 734

or 734N

Wiegand

DMP 734

or 734N

Wiegand

DMP 734

or 734N

Wiegand

DMP 734

or 734N

Wiegand

DMP 734

or 734N

Wiegand

DMP 734

or 734N

Wiegand

DMP 734

or 734N

Wiegand

Spacer

DMP 734 plastic housing

Backplane

Pan Head

Screw

Pem Mounting

Spacer

Placement

Fig. 3bFig. 3a

Fig. 3 - T2DMK7F8(D): Conﬁguration

Trove DMP Kits Installation Guide - 5 -

Notes:

- 6 - Trove DMP Kits Installation Guide

eFlow Power Supply/Chargers can be Controlled and Monitored while

Reporting Power/Diagnostics from Anywhere over the Network...

LINQ2 Mounts Inside any Trove Enclosure

LINQ2 - Network Communication Module

LINQ2 provides remote IP access to real-time data from eFlow power supply/chargers to help keep systems up

and running at optimal levels. It facilitates fast and easy installation and set-up, minimizes system downtime,

and eliminates unnecessary service calls, which helps reduce Total Cost of Ownership (TCO) - as well as creat-

ing a new source of Recurring Monthly Revenue (RMR).

LINQ2

Features:

- UL Listed in the U.S. and Canada.

- Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN.

- Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change,

output state change and unit temperature.

- Access control and user managment: Restrict read/write, Restrict users to speciﬁc resources

- Two (2) integral network controlled Form “C” Relays.

- Three (3) programmable input triggers: Control relays and power supplies via external hardware sources.

- Email and Windows Dashboard notiﬁcations

- Event log tracks history.

- Secure Socket Layer (SSL).

- Programmable via USB or web browser - includes operating software and 6 ft. USB cable.

LINQ2 Module

Altronix eFlow

Power Supply

Network Connection:

Installation, Programming

and Monitoring

Trove DMP Kits Installation Guide - 7 -

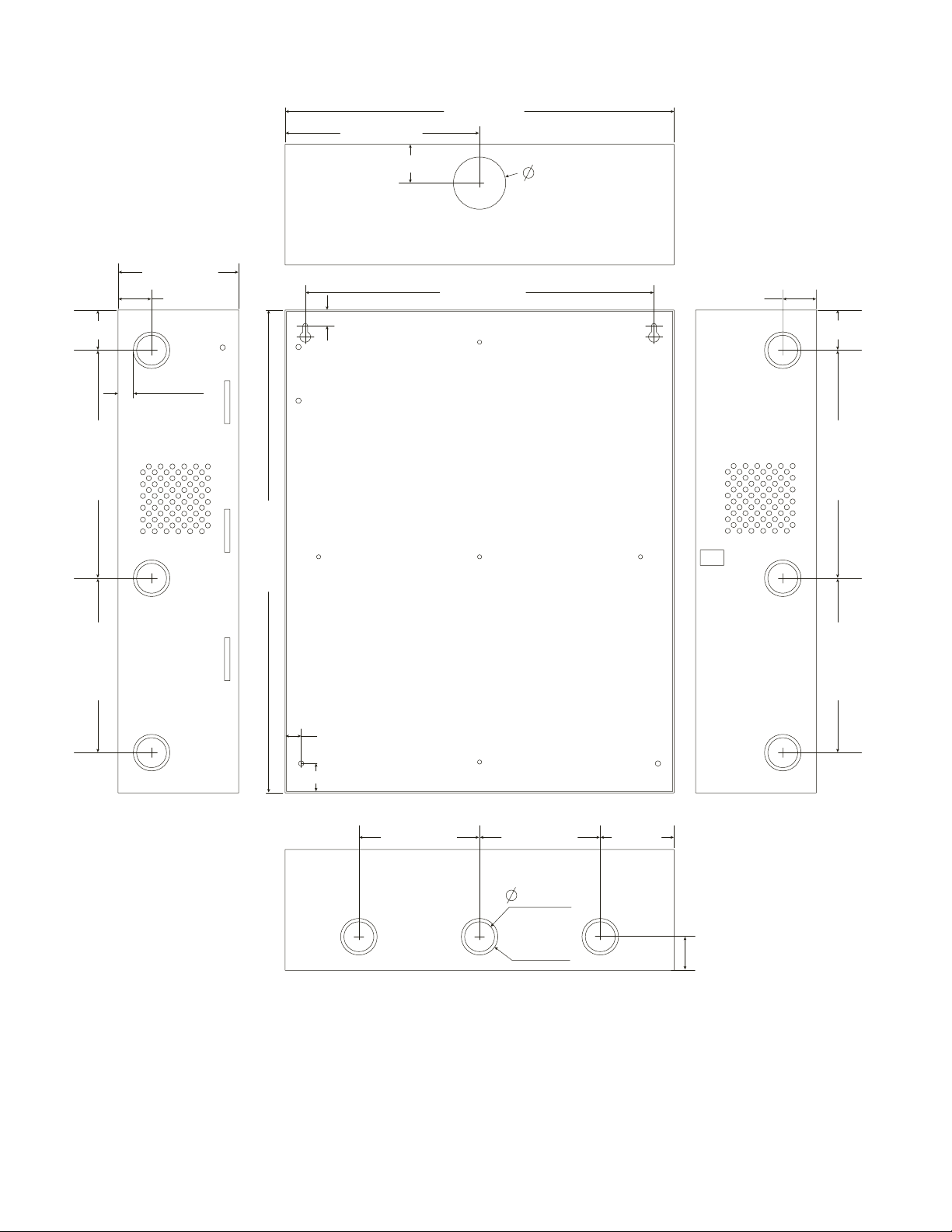

T1DMK3F4 Enclosure Dimensions (H x W x D approximate):

18” x 14.5” x 4.625” (457mm x 368mm x 118mm)

4.5” (114.3mm) 4.5” (114.3mm) 2.75”

(69.9mm)

1.115” (28.3mm)

1.36” (34.5mm)

1.25” (31.8mm) 1.25” (31.8mm)

1.5” (38.1mm)

8.5” (215.9mm)6.5” (165.1mm)

1.5” (38.1mm)

8.5” (215.9mm)6.5” (165.1mm)

4.5” (114.3mm)

13.0” (330.2mm)

0.6” (15.2mm)

14.5” (321.3mm)

1.45” (36.8mm)

7.25” (184.2mm)

1.95” (49.5mm)

1.1” (27.9mm)

0.6” (15.2mm)

0.57” (14.5mm)

18.0” (457.2mm)

1.25” (31.8mm)

- 8 - Trove DMP Kits Installation Guide

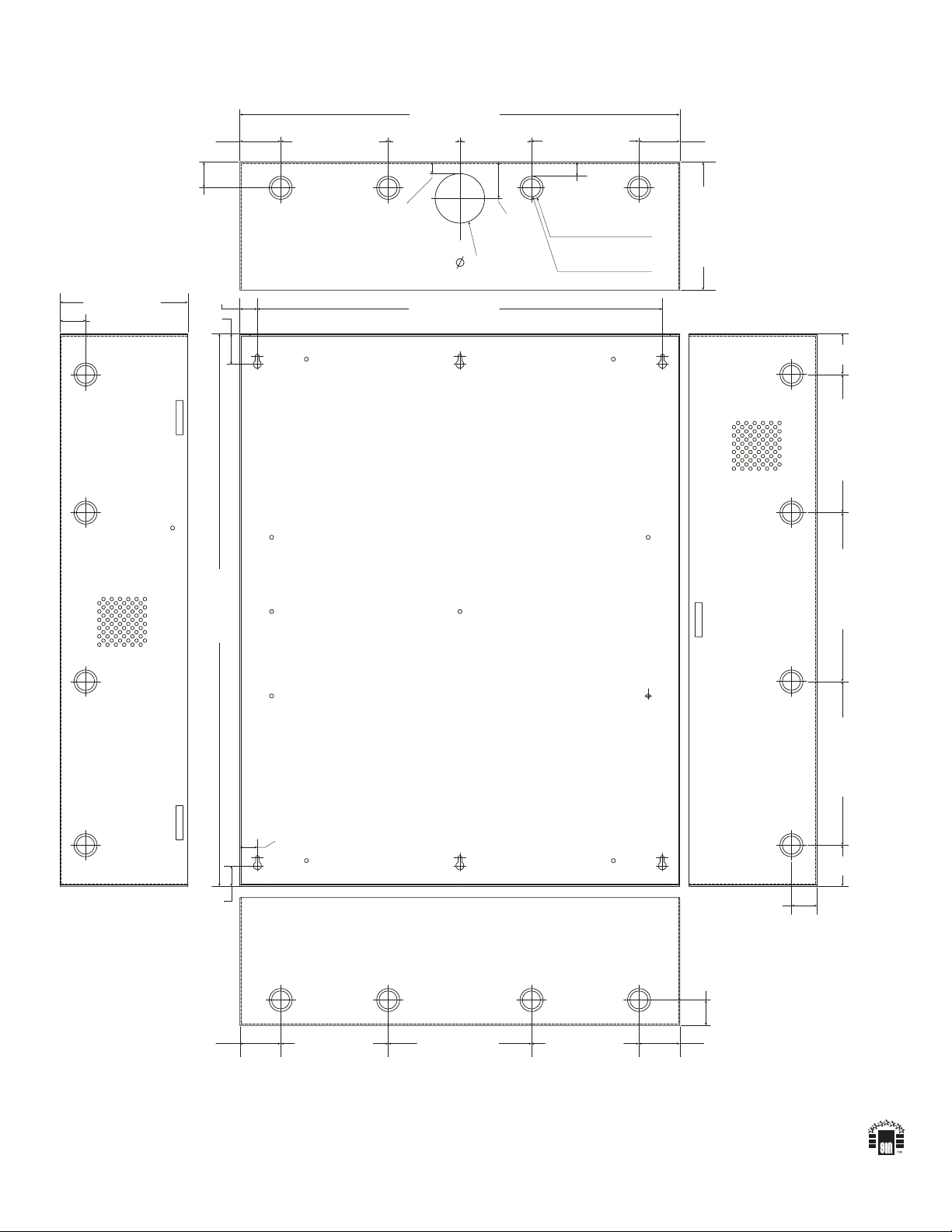

T2DMK7F8 Enclosure Dimensions (H x W x D):

27.25” x 21.75” x 6.5” (692.2mm x 552.5mm x 165.1mm)

6.75” (171.5mm)8.25” (209.5mm)

8.00” (203.2mm)

2.00” (50.8mm)

1.25” (31.8mm)

5.25” (133.4mm) 5.25” (133.4mm)7.00” (177.8mm)

1.25” (31.8mm)

6.25” (158.8mm) 19.80” (502.9mm)

1.00” (25.4mm)

27” (685.8mm)

1.5”

(38.1mm)

2.00” (50.8mm) 2.00” (50.8mm)

3.5”(88.9mm) 3.5”(88.9mm)

21.50” (546.1mm)

5.25” (133.35mm) 5.25” (133.35mm)

6.25” (158.8mm)

1.25”

(31.8mm)

0.85” (21.6mm)

0.5625” (14.3mm)

2.415” (61.3mm)

0.685” (17.4mm)

1.77”

(45mm)

0.885” (22.5mm)

1.125” (28.3mm)

Knockouts

2.00” (50.8mm) 2.00” (50.8mm)

Altronix is not responsible for any typographical errors.

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056

web site: www.altronix.com | e-mail: [email protected] | Lifetime Warranty

IITrove DMP Kits I27U MEMBER

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Fuente de alimentación de Altronix

Altronix

Altronix ALTV2416350 Manual de usuario

Altronix

Altronix AL600ULXD Manual de usuario

Altronix

Altronix VertiLine16C Series Manual de usuario

Altronix

Altronix eFLOW EF102NBV-32715 Manual de usuario

Altronix

Altronix OLS180 Manual de usuario

Altronix

Altronix Maximal11FEV Manual de usuario

Altronix

Altronix OLS20220 Manual de usuario

Altronix

Altronix AL600ULB Manual de usuario

Altronix

Altronix SMP7 Manual de usuario

Altronix

Altronix ALTV1224DC Series Manual de usuario

Altronix

Altronix ALTV248UL3 series Manual de usuario

Altronix

Altronix AL400ULPD8CB Manual de usuario

Altronix

Altronix AL175ULX Manual de usuario

Altronix

Altronix Trove T1SAK3F4 Manual de usuario

Altronix

Altronix AL300ULX Manual de usuario

Altronix

Altronix AL300ULX Manual de usuario

Altronix

Altronix AL100UL Manual de usuario

Altronix

Altronix R615DC8UL Manual de usuario

Altronix

Altronix ALTV129-DC Manual de usuario

Altronix

Altronix AL300XB2V Manual de usuario

Altronix

Altronix SMP7CTX Series Manual de usuario

Altronix

Altronix Maximal11FDV Manual de usuario

Altronix

Altronix SMP3CTX Series Instrucciones de funcionamiento y mantenimiento

Altronix

Altronix AL400X220 Series Manual de usuario

Manuales populares de Fuente de alimentación de otras marcas

Monacor

Monacor PS-12CCD Manual de usuario

VOLTIMA

VOLTIMA MagicBox 15 Manual de usuario

Agilent Technologies

Agilent Technologies 6032A Manual de usuario

Miller

Miller Auto Deltaweld 452 Manual de usuario

BCP

BCP PUOUBK Hoja de instrucciones

HC 2210 Manual de usuario

Puls

Puls CT5.241 Manual de usuario

OCZ

OCZ ZX1250W Manual de usuario

iseg

iseg ECH 238 Manual de usuario

Power

Power XXL A Series Manual de usuario

Agilent Technologies

Agilent Technologies 6631B Manual de usuario

Renogy

Renogy PHOENIX 300 Manual de usuario

HP 6200B Manual de servicio

Epson

Epson Stylus Scan 2500 Manual de funcionamiento

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manual de usuario

Puls

Puls MiniLine ML50.100 Manual de usuario

Puls

Puls AS-Interface SLA4.100 Manual de usuario

Kenwood

Kenwood PS-60 Manual de usuario
