Altronix ALTV615DC4UL Manual de usuario

Overview:

The Altronix ALTV615DC4UL CCTV Power Supply is designed with four (4) individual fused outputs for powering

CCTV Cameras and other video accessories. It will provide 5.5-15VDC distributed via four (4) fused outputs with a

total of up to 2.5 amp continuous supply current.

Specifications:

• UL Listed - U.S. and Canada for CCTV

Equipment (UL 2044).

• Input 24VAC 40VA or 24VAC 50VA, UL Listed

Plug-in transformer.

• 5.5VDC to 15VDC field adjustable.

Output Specification Chart:

Transformer Output current Output current

5.5 to 12VDC 12 - 15VDC

24VAC, 40VA 2.25 amp 1.8 amp

24VAC, 50VA 2.5 amp 2 amp

• Output fuses are rated at 1.0 amp / 250VAC (Fig. 1).

• AC input and DC output LED indicators.

•Power ON/OFF switch.

• Spare fuses included.

• Unit maintains camera synchronization.

• Ease of installation saves time and eliminates costly labor.

Enclosure Dimensions:

8.5"H x 7.5"W x 3.5"D

Installation Instructions:

1. Mount ALTV615DC4UL in desired location.

2. Connect 24VAC 40VA or 50VA UL Listed, class 2, plug-in transformer to terminals

marked [XFMR IN] (Fig. 1)

3. Adjust output voltage using trimpot on the board prior to connecting CCTV devices.

4. Switch SW1 (Fig. 1) to OFF position.

5. Measure output voltage before connecting devices. This helps avoid potential damage.

CAUTION: Determine the maximum operating voltage of the equipment being powered before adjusting

the output voltage.

6. Connect each DC CCTV cameras to terminal marked [+ OUT1 --- to + OUT4 ---] (Fig. 1) carefully observing

correct polarity.

7. Switch SW1 (Fig. 1) to ON position.

8. Green LED will illuminate when when unit is powered

9. Upon completion of wiring, secure enclosure door with screws (supplied).

WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.

This installation should be made by qualified service personnel and should conform to all local codes

and in accordance with the National Electrical Code.

ALTV615DC4UL

CCTV Camera & Accessory Power Supply

Rev. 013002

+OUT3 --- + OUT4 ---

XFMR IN

+OUT1 --- + OUT2 ---

ALTV615DC4UL

Power Supply

ON OFF

SW1

F1F2 F3 F4

BKLYN, N.Y. 11220

MADE IN USA

ALTRONIX CORP.

Adjustable DC

output

(power limited)

Transformer

24VAC, class 2 UL listed

plug-in transformer

40VA/50VA

Voltage

Adjustment

Fig. 1

TOP ONLY

Terminal Identification:

Terminal Legend Function/Description

XFMR IN Low voltage AC input (24VAC 40VA or 50VA) from

UL Listed, class 2 plug-in transformer.

+ OUT1 --- through Positive and Negative adjustable DC outputs.

+ OUT4 --- Up to (12VDC - 2.5 amp total continuous output), 12-15VDC 2 amp total continuous

output. (See specifications).

140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056

website: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.

IIALTV615DC4UL H10D

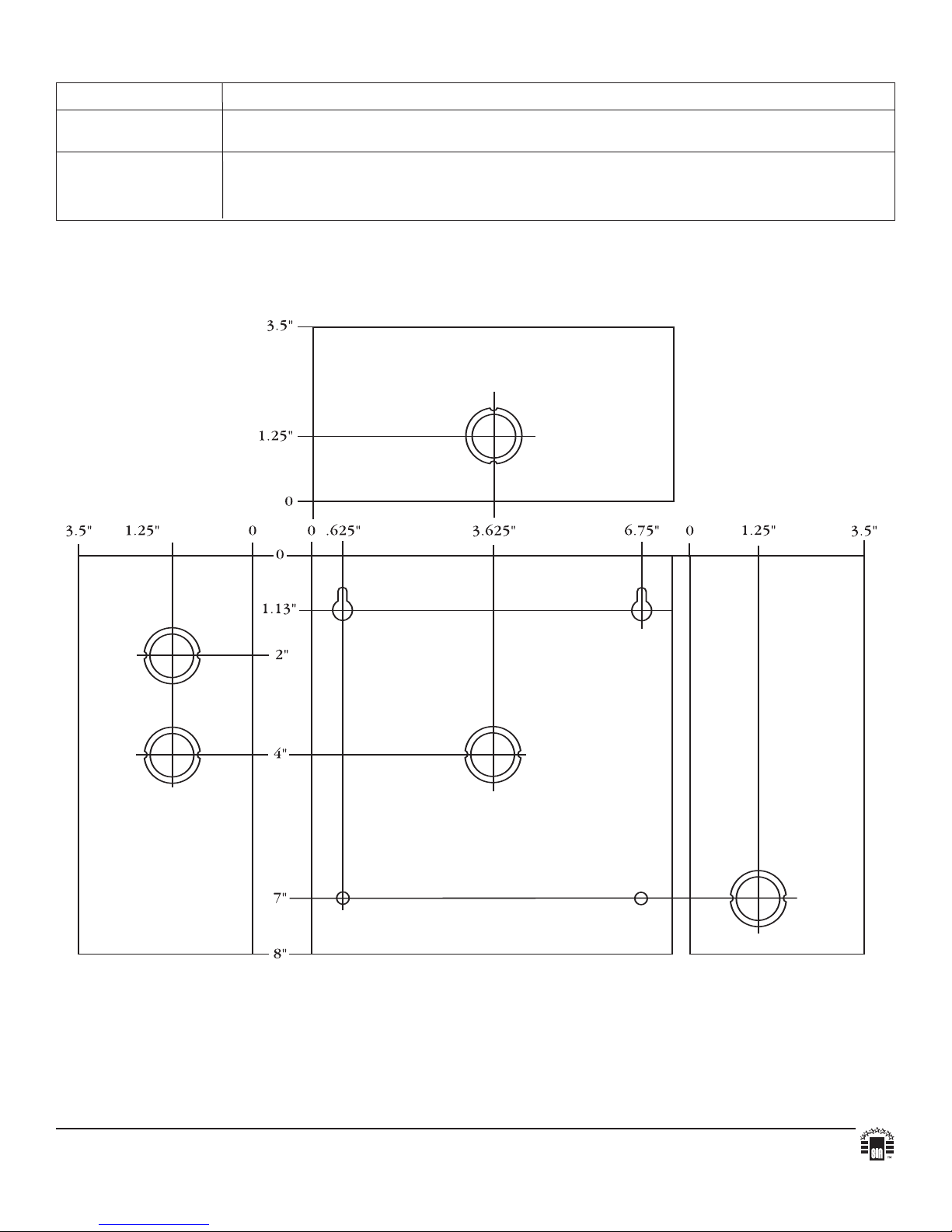

Enclosure Dimensions:

8.5”H x 7.5”W x 3.5”D

MEMBER

Altronix is not responsible for any typographical errors.
