Altelix NP17AV Manual de usuario

Altelix Audio/Video Enclosures

Installation Guide

NP17AV Installation Guide

Installing a Device in the NP17AV

Page-1

The NP17AV has three adjustable brackets used for securing the equipment inside

the enclosure. The brackets can be adjusted for width, length and height

Width and Height Adjustable Brackets

Length Adjustable Mounting Bracket

The following illustration shows the minimum and maximum size devices that can

be installed inside the enclosure.

SONOS® is a trademark or registered trademark of SONOS, Inc.

IS0107 Rev A 04/05/19

Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 [email protected] www.altelix.com

Specifications are subject to change without notice. See www.altelix.com for most current information

Width Length Height

Maximum Size:

9.25”(W) x 9.00”(L) x 3.50”(H)

Minimum Size:

3.00”(W) x 2.25”(L) x 0.50”(H)

Page-2

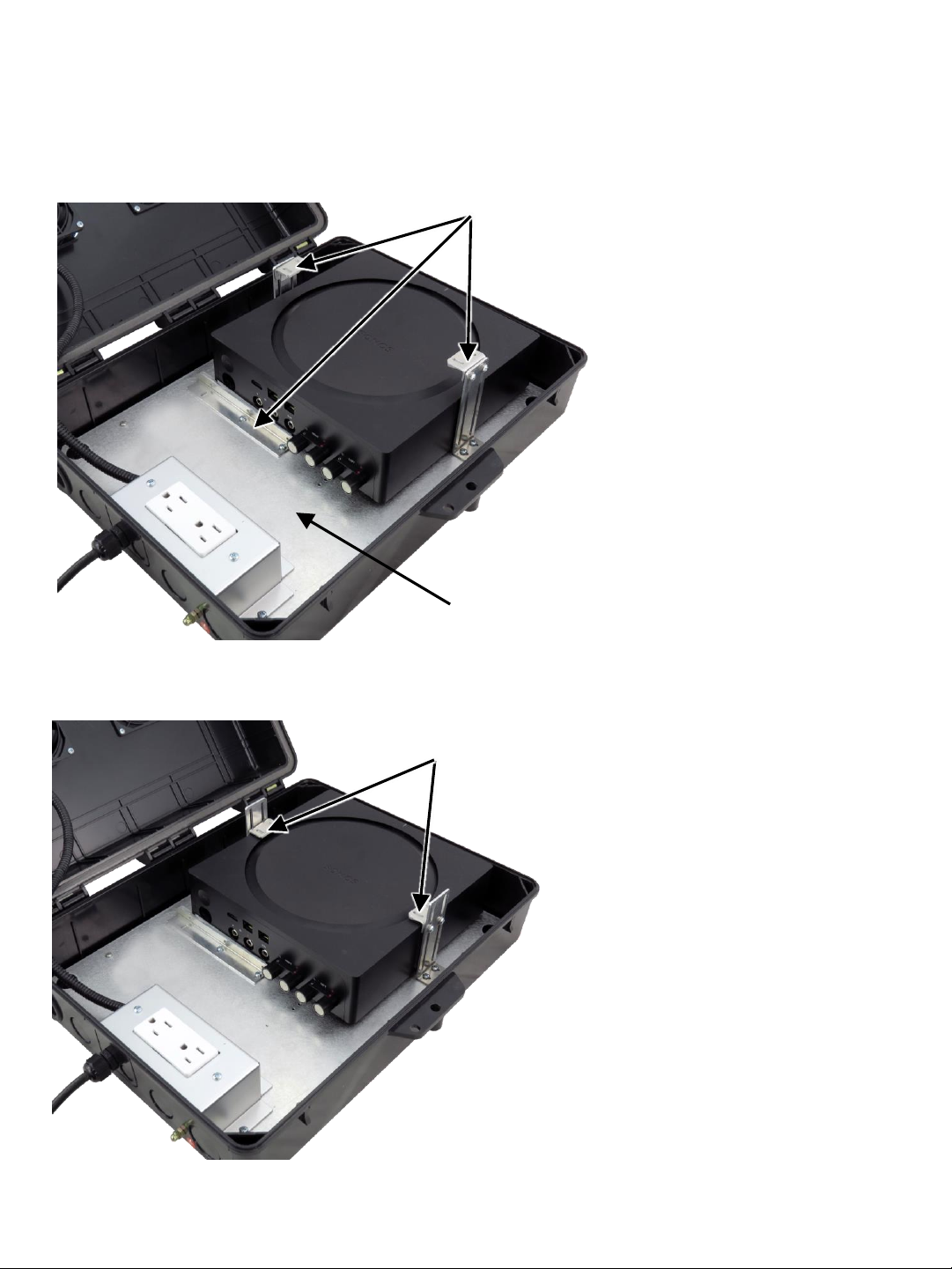

1. Position the device to be installed into the NP17AV enclosure as shown. Be sure

to orientate it so that any connections or ports are easily accessible. Once

positioned, secure the adjustable brackets to the back plate using the supplied

screws.

Mounting Brackets

Back Plate

2. Once the mounting brackets are attached to the back plate, secure the

device using the height adjustment brackets.

Height Adjustment Brackets

Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 [email protected] www.altelix.com

Specifications are subject to change without notice. See www.altelix.com for most current information

Shown with Sonos Amp

Not included

Shown with Sonos Amp

Not included

SONOS® is a trademark or registered trademark of SONOS, Inc.

NP17AV Installation Guide

IS0107 Rev A 04/05/19

Page-3

Self-Adhesive Cable Tie

Wiring the NP17AV

A rubber cable grommet is provided on the enclosure which allows speaker,

Ethernet or any other types of cables to be connected to the device mounted

inside the enclosure. An internal 120VAC power outlet can be used to deliver

power to the installed device. To provide power to the enclosure, simply plug the

enclosure’s 5 foot power cord into a 120VAC outlet. Self-adhesive wire ties are

included with the NP17AV and can be attached to the back plate to help with

cable management.

5 Foot Power Cord

Cable Grommet

Outdoor Version Shown

Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 [email protected] www.altelix.com

Specifications are subject to change without notice. See www.altelix.com for most current information

Shown with Sonos Amp

Not included

SONOS® is a trademark or registered trademark of SONOS, Inc.

NP17AV Installation Guide

IS0107 Rev A 04/05/19

Page-4

1. Using a ¼” drill bit, drill two holes into the rear of the enclosure at the locations

shown. Drill Locations

Mounting the NP17AV Enclosure

The NP17AV enclosure can be either wall mounted using the supplied hardware

or pole mounted using the optional NMK-0001 poll mounting kit available from

www.ALTELIX.com.

2. Using the included drilling template, place

in the desired mounting location and drill wall

as required.

3. Included with the enclosure are (4) Rubber

Bonded Washers and (4) Screws with Wall

Anchors.

4. Place Rubber Bonded

washers onto the screws

as shown.

5. (4) Holes in each corner of the metal back

plate provide access to the mounting holes in

the enclosure. When mounting, ensure the

rubber bonded washers complete cover the

enclosure mounting holes to provide a water-

tight seal.

Top of Enclosure

Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 [email protected] www.altelix.com

Specifications are subject to change without notice. See www.altelix.com for most current information

Back Plate

Access Hole

Enclosure

Mounting Hole

NP17AV Installation Guide

IS0107 Rev A 04/05/19
