Altec Lansing Shockwave Manual de usuario

IMT7000

Charging Cable

(USB-C to USB-A)

Quick Start Guide

IMT7000

Play/Pause (BT mode only)

AUX mode: Short press MUTE

Press and hold button for 3 seconds to

power on or power off speaker

Brief introduction to buttons on top panel

Volume Control：

Decrease volume

Previous song

Increase volume

Volume Control:

Next song

Power Button：

Bass Button:

Briefly press to switch bass mode,

total 3 modes.

Light Button:

Briefly press to turn on/off the light

mode and switch the light modes,

total 9 modes

BT & Party-sync Button:

Briefly press to enter Bluetooth pairing mode,

Press and hold for Bluetooth disconnect,

Double-click for party-sync connect or disconnect

AUX mode

Reset to default settings:

Press and hold the BASS button for 10S to reset all settings back to factory default.

Indicators:

: Bluetooth pairing (Flashing blue quickly),

Bluetooth connected (Solid blue),

Sync up with other speakers (Flashing blue slowly)

: AUX mode （Solid orange）

: Bass 1, Bass 2, Bass 3 (Solid Blue)

: Power on (Solid blue)

AL Shockwave

Bluetooth Connection

Party-sync with AL SHOCKWAVE Family

Go to the Bluetooth settings menu on your phone. Make sure

that Bluetooth is turned on. Connect to the device listed

as “AL Shockwave ”

Speaker will enter into BT mode when powered on;

Briey press the BT button to enter into BT mode;

Item Number Item name Pairing Name

IMT7000

IMT7100

IMT7200

IMT7300

Shockwave Wireless Party Speaker AL Shockwave

Shockwave 200 Wireless party speaker

Shockwave 300 Wireless Party Speaker

Shockwave 400 Wireless Party Speaker

AL Shockwave 200

AL Shockwave 300

AL Shockwave 400

ALShockwave

If you want to change to a dierent BT device when already paired press and

hold the BT button, the speaker will disconnect from its paired device. A dierent

device can now be paired.

A double press of the BT button is used to enter/exit party-sync mode on

extra speakers if you have them as below.

LIGHTING CONTROL

The Altec Lansing SHOCKWAVE family has four members that support party-sync.

You can mix and match between any of these four models, setting up one

speaker as the primary unit connected to up to 100 other speakers all playing

in sync.

1. Connect one speaker to your Bluetooth device in the normal way via Bluetooth.

2. Double-press the BT button on the next speaker to enter Party-sync mode,

its BT LED will ashes slowly and it will nd and connect to the rst (primary)

speaker.

3. Repeat No 2 if you have more speakers you want to connect.

4. To exit party-sync double press the BT button on the speakers you wish

to disconnect and return to normal operation.

Notes:

Playback volume is adjusted via the rst (primary) speaker.

The BT playback controls only operate on the rst (primary) speaker.

Turning o the rst (primary) speaker turns o all speakers.

All secondary speakers can be turned on/o individually and their light modes

changed via their individual controls.

Briey press the LIGHTS button to switch lighting mode.

(Note: Some modes which use ‘sound-to-light’ need music playing to be visible)

Mode 1:

Rotating ring in three colors

Mode 2:

Flashing to music

Mode 3:

‘Spectrum’

Mode 4:

‘Stacking/re-stacking’ lights both sides

Mode 5:

Rotating lights in multi-colors

Mode 6:

Breathing on/o

Mode 7:

Flashing to music, solid lighting when no audio

Mode 8:

‘Bar-graph’ in multi-colors

Mode 9:

Rotating ‘stacking/re-stacking’ lights

Each press moves to the next mode and back round to o.

Length of Charging cable (USB-A to USB-C): 90cm

Descriptions about the various ports on the speaker

INPUT/OUTPUT PORTS

AUX:

For line level or headphone output

from audio sources

USB OUT:

For charging your mobile devices

DC IN:

USB-C port for charging your speaker

from suitable USB socket/PSU.

RESET:

Button is recessed inside. For use only in the

unlikely case of a lock up. Use paperclip or pin

to perform restart of the speaker.

Charging-in indicator:

Solid red when charging, will

be off when fully charged

USB-A output: 5V 1A

Power Audio: 60W (Peak) Total

Drivers Units: 4” Bass, 2” Tweeter + Rear Auxiliary Bass Radiator.

S/N: ≥70dB

Distortion: ≤0.5%(1K,1W)

Dimensions: L205*H315*D172 mm

USB-C charging Input: 5V 2.5A

Tabla de contenidos

Otros manuales de Oradores de Altec Lansing

Altec Lansing

Altec Lansing 921-8A LF SPEAKER Manual de usuario

Altec Lansing

Altec Lansing timeMachine IMW465 Manual de usuario

Altec Lansing

Altec Lansing 8254-LF LF SPEAKER SYSTEM Manual de usuario

Altec Lansing

Altec Lansing 309 CEILING SPEAKERS Manual de usuario

Altec Lansing

Altec Lansing EP65 CEILING SPEAKERS Manual de usuario

Altec Lansing

Altec Lansing LF115-8A LF SPEAKER SYSTEM Guía del usuario

Altec Lansing

Altec Lansing AM9850 SIGNAL PROCESSING Manual de usuario

Altec Lansing

Altec Lansing 409B CEILING SPEAKER Manual de usuario

Altec Lansing

Altec Lansing CD912-8A CEILING SPEAKER Manual de usuario

Altec Lansing

Altec Lansing Cone 405A Manual de usuario

Altec Lansing

Altec Lansing 299-16A HF DRIVER Manual de usuario

Altec Lansing

Altec Lansing XT2 Manual de usuario

Altec Lansing

Altec Lansing 71 HF HORNS Manual de usuario

Altec Lansing

Altec Lansing 409T CEILING SPEAKER Manual de usuario

Altec Lansing

Altec Lansing 405-8H Manual de usuario

Altec Lansing

Altec Lansing 417-8C LF SPEAKER Manual de usuario

Altec Lansing

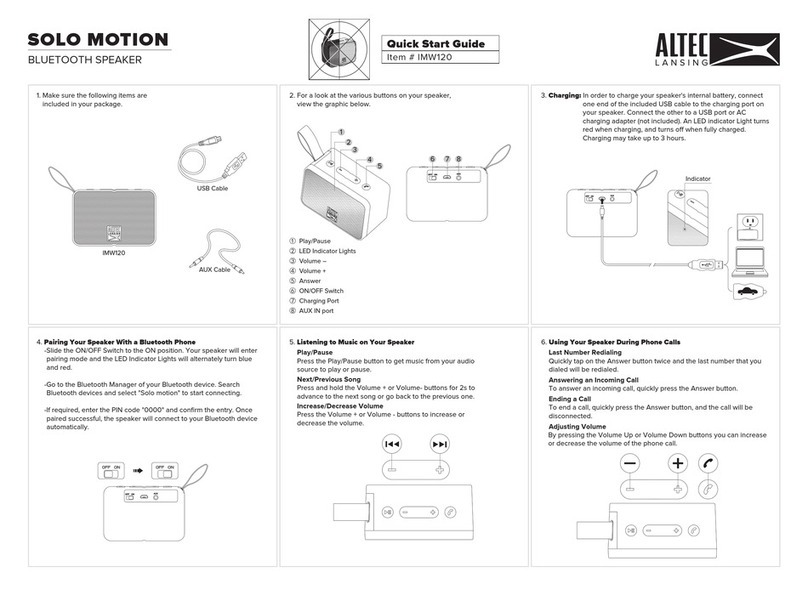

Altec Lansing SOLO MOTION Manual de usuario
