Alpine X009-GM2 9" Manual de usuario

Chevrolet/GMC

FULL SIZE TRUCK  1/13

CHEVROLET/GMC

X009-GM2 9”

Installation Manual

 Model: Full Size Truck

 Model Year: 2007-2013

 Trim Level: Upper Dash Radio

(Not compatible with Classic and LTZ models)

Introduction

Design and specications are subject to change without notice for improvement.

To Ensure Safe Use, Always Follow These Precautions

The installation of this product requires specialized skills and experience. We recommend that you have the

product installed by the store that you purchased it from.

Before you use this product, be sure to carefully read this installation manual and the separate user's manual

so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as

a result of failure to follow the instructions in the manuals.

This manual includes a number of symbols that are intended to help you use the product safely, to prevent

harm to you and others, and to protect against damage to property. These symbols and their meanings are

listed below. Make sure you fully understand these symbols before you begin reading the main text.

Explanations of Injury and Damage That May Result from Incorrect Use

Warning Ignoring the content marked by this indication and using the product incorrectly is

expected to lead to death or serious injury.

Caution Ignoring the content marked by this indication and using the product incorrectly is only

expected to lead to injury or property damage.

CHEVROLET

Model Year

SILVERADO 2007 - 2013

SILVERADO 2500HD 2007 - 2013

SILVERADO 3500HD 2007 - 2013

GMC

SIERRA 2007 - 2013

SIERRA 2500HD 2007 - 2013

SIERRA 3500HD 2007 - 2013

* The speciﬁed vehicles have been tested and have met compatibility specs at the time of testing. Compatibility is

not guaranteed if the manufacturer has made production changes to the listed vehicles above.

Chevrolet/GMC

FULL SIZE TRUCK  2/13

Types of Precautions

Forbidden

Indicates actions that are forbidden

(must not be performed)

Mandatory

Indicates actions that are

mandatory (must be performed)

Forbidden

Indicates that disassembly is

forbidden.

Marks content that should receive

your full attention.

Warning

Do not disassemble or modify the product. Doing so could lead to an accident, re,

or electric shock.

Forbidden

Store screws and other small objects where small children cannot reach them. If one of these

small objects is swallowed, consult with a doctor immediately.

When replacing fuses, be sure to use fuses with the specied current rating. Failing to do so could

lead to an accident or re.

Forbidden Mandatory

Only connect the product to a 12 VDC negative ground car. Failing to do so could lead to

an accident or re.

Mandatory

Before you begin wiring, remove the ground wire from the negative terminal of the battery.

Failing to do so could lead to electric shock or injury.

Do not cut the insulation on a cord and take power from another device. Doing so could

lead to re or electric shock.

Forbidden

Do not install the product in a location where it will obstruct the driver’s forward view;

interfere with the operation of the steering wheel, gearshift, or the like; or pose a

threat to passengers. Doing so could lead to an accident or injury. Forbidden

When making a hole in the vehicle body, be careful to avoid damaging pipes, the fuel tank,

electrical wiring, and the like. This kind of damage could lead to an accident or re.

Chevrolet/GMC

FULL SIZE TRUCK  3/13

When installing and grounding the product, do not use any of the bolts or nuts of the

steering wheel, brakes, fuel tank, or the like. Doing so could make the brakes stop working

or lead to re. Forbidden

Do not install the product near the passenger-side airbag. Doing so could interfere with the

operation of the airbag and lead to an accident or injury.

Forbidden

Bundle cords so that they don’t interfere with driving. Wrapping cords around the steering

wheel, gearshift, brake pedal, or the like, could lead to an accident or damage equipment.

Caution

Connect the product properly according to the instructions. Failing to do so could lead

to re or an accident.

Forbidden

Do not sandwich cords between the seat railing or allow them to touch protrusions.

Resulting breaks or shorts could lead to electric shock or re.

Do not block vents or heat sinks. Doing so could lead to re or damage equipment.

Use the accessories according to the instructions, and attach them securely.

Failing to do so could lead to an accident or damage equipment.

Forbidden

Do not install the product where it may be exposed to water or in a place with high levels

of humidity or dust. Doing so could lead to re or damage equipment.

Forbidden

The installation and wiring of this product requires specialized skills and experience.

Have the product installed and wired by the store that you purchased it from.

Chevrolet/GMC

FULL SIZE TRUCK  4/13

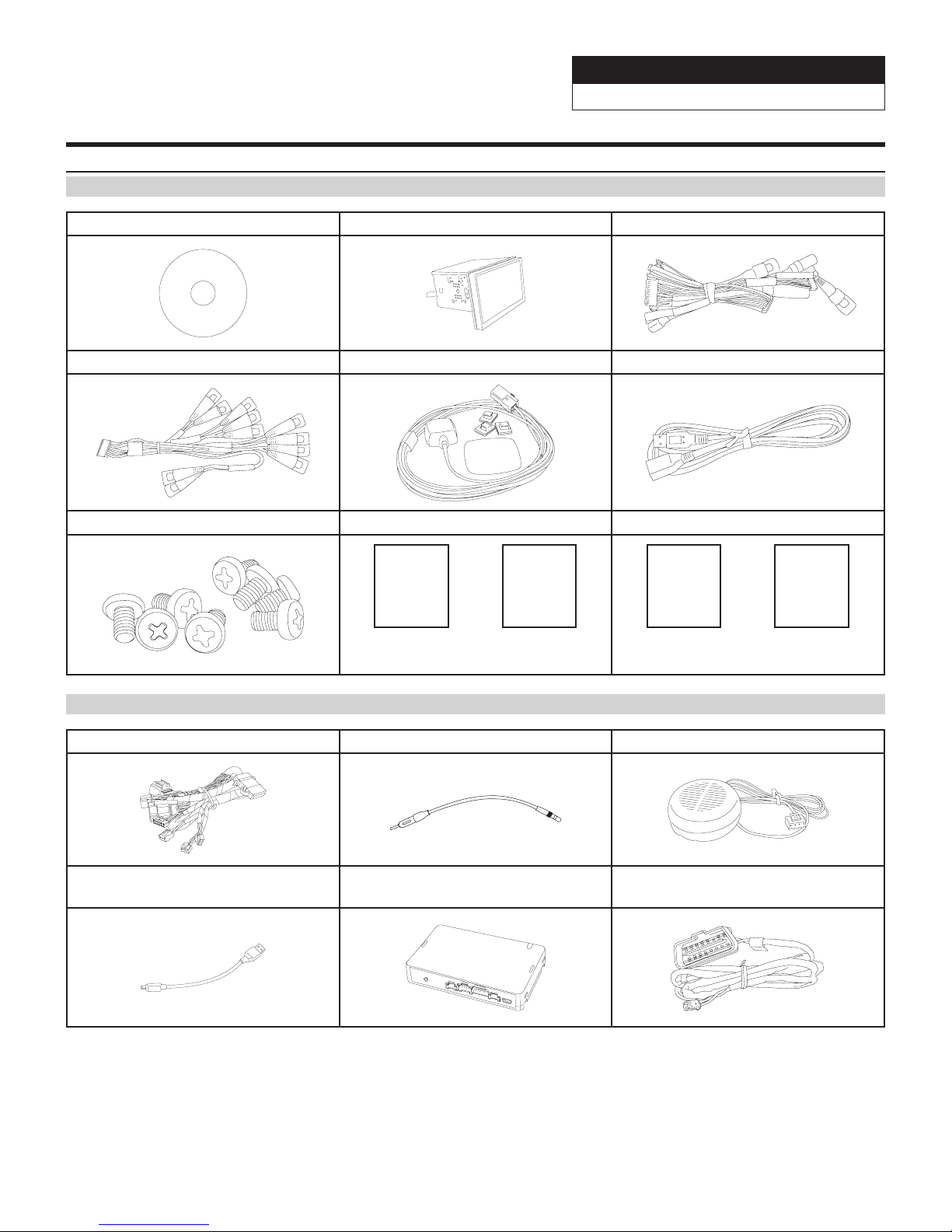

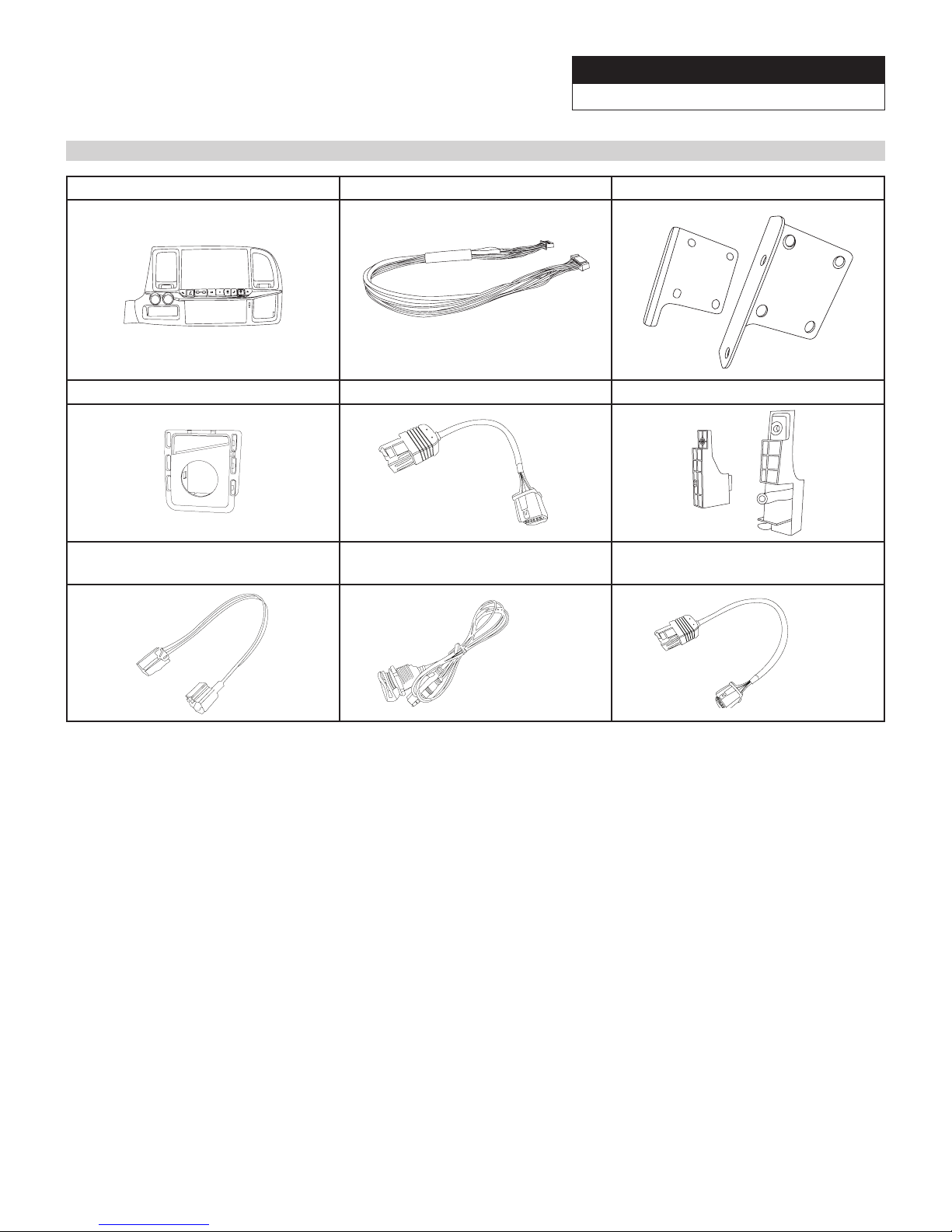

Accessory List

Head Unit Box Parts (X009)

Owner’s Manual Disc X009 Head Unit X009 Camera Harness

AUX/Pre Out Harness GPS Antenna USB Extension Cable

8mm x 8 Screws Quick Reference Guides Registration Cards

QRG

Audio

QRG

Navigation

Alpine

Registration Card

NAVTEQ

Registration Card

iDatalink Maestro Box Parts (ALP-MRR V2.0/ALP-HRM-GM2 V2.1)

Main Harness Antenna Adapter Chime Speaker

Maestro Module USB Flashing

Cable

iDatalink Maestro Module OBD II Adapter Cable

Chevrolet/GMC

FULL SIZE TRUCK  5/13

Installation Kit Parts (G-KTX-009-GM2)

X009-GM2 Radio Bezel Key Harness Side Mounting Brackets

4WD Rotary Switch Panel Optional Button Extension Cable HVAC Spacers

Cigarette Lighter Extension

Cable

USB/AUX Extension Cable 4WD Rotary Switch Extension

Cable

Chevrolet/GMC

FULL SIZE TRUCK  6/13

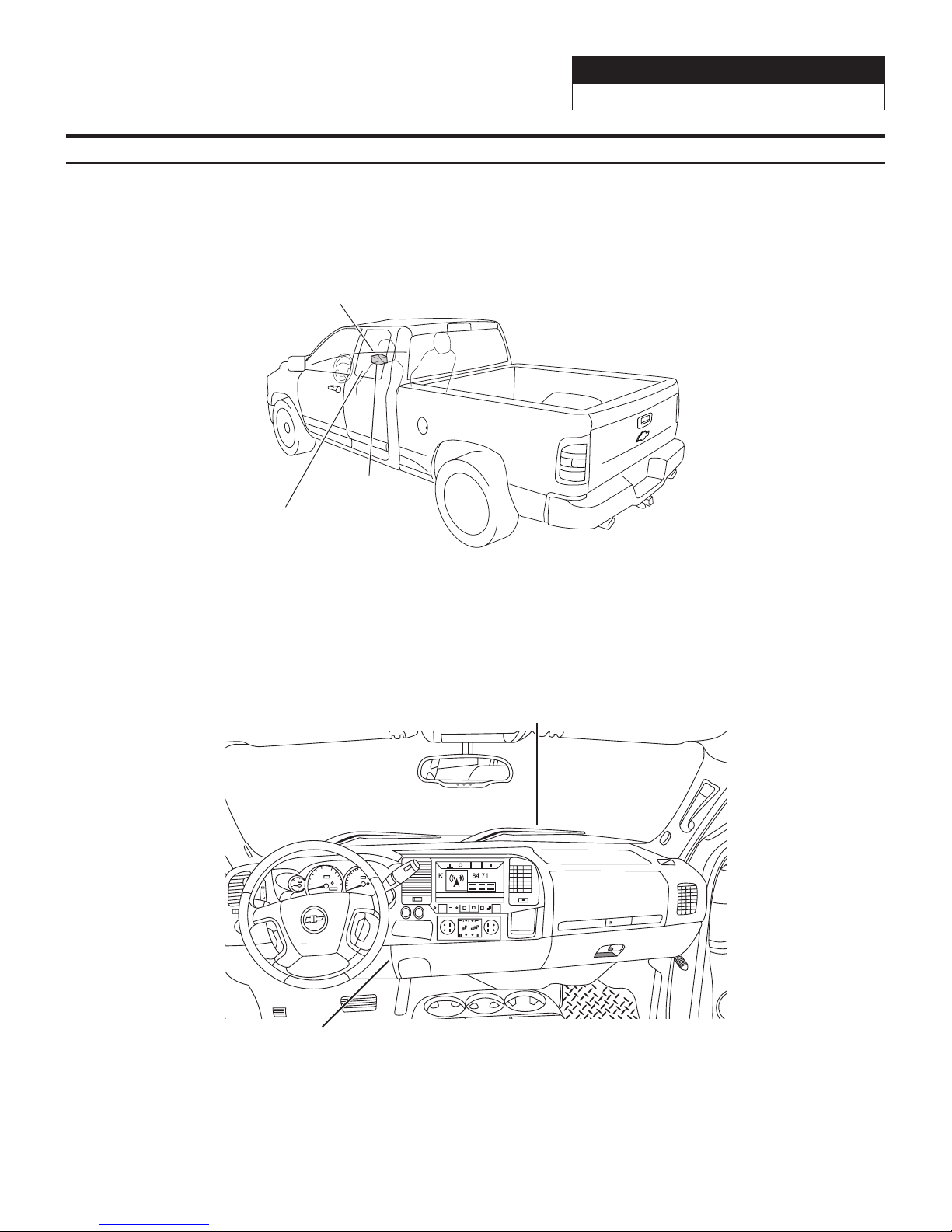

Component Locations

GPS Antenna Location

Head Unit

Maestro Chime

Speaker Location

GPS Antenna

Maestro Chime Speaker Location

Maestro Chime

Speaker Location

Chevrolet/GMC

FULL SIZE TRUCK  7/13

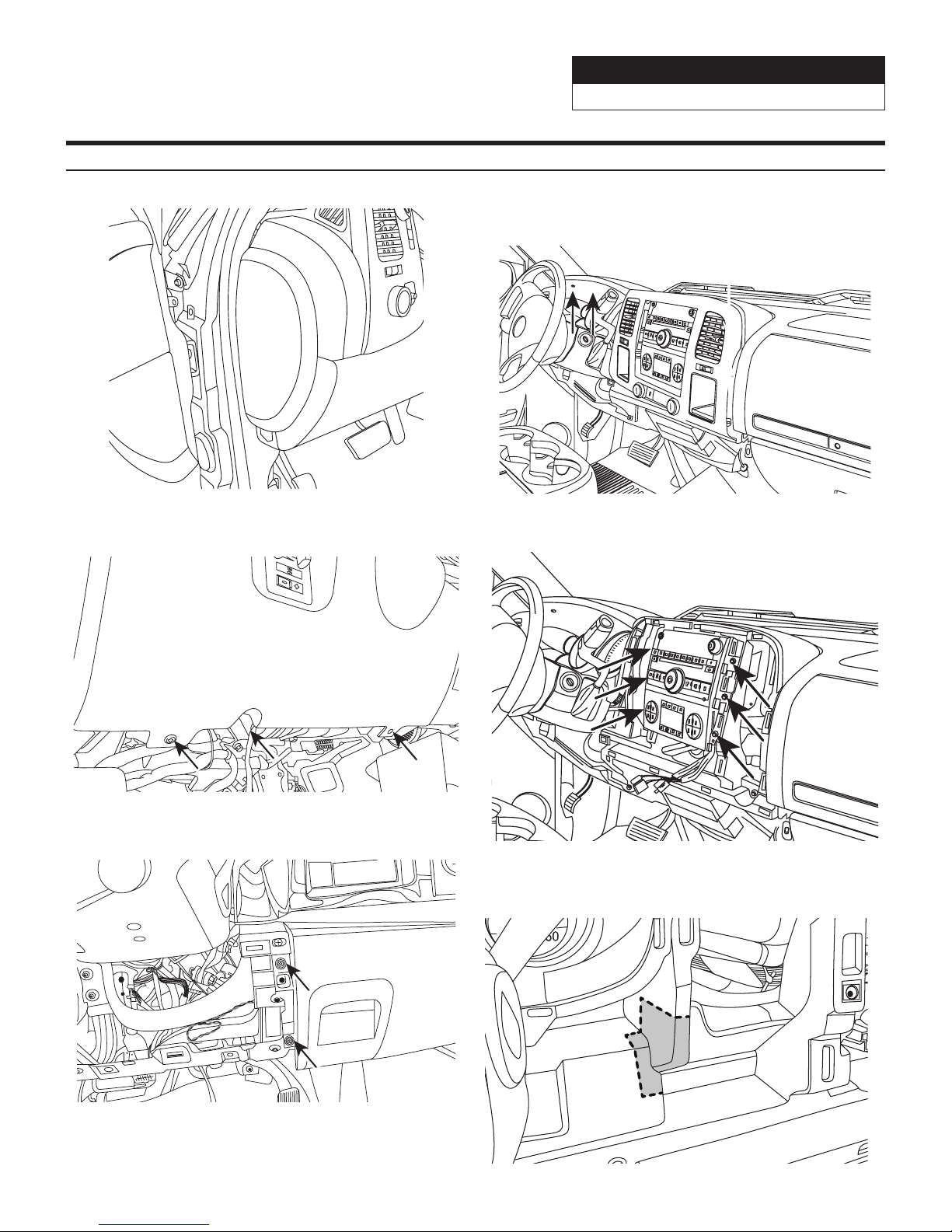

1 Remove the fuse panel cover.

2 Extract 2x Phillips screws, 1x 10mm bolt from the

drivers side knee cover and unsnap it

3 Extract 2x 9/32” - 7mm screws from the middle

panel and unsnap it.

4 Extract 2x Phillips screws from instrument panel

cover and remove it. Remove the radio bezel by

unsnapping it.

5 Extract 6x 7/32” - 7mm screws from the factory

radio/HVAC assembly and remove it.

6 Use a cutting tool to trim out the highlighted area as

shown below.

Factory Radio Removal Process

Chevrolet/GMC

FULL SIZE TRUCK  8/13

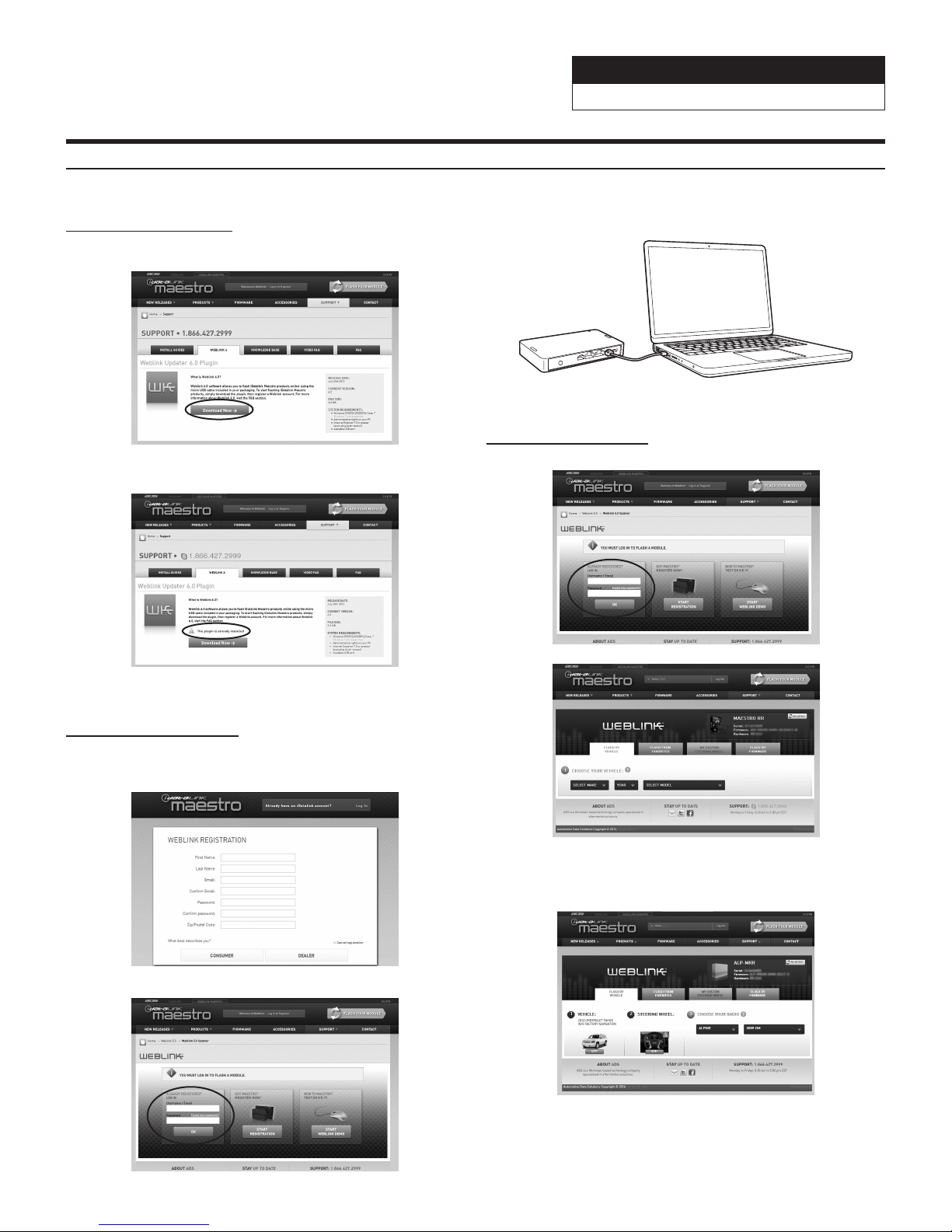

Flashing the iDatalink Maestro Module

1 INSTALL THE WEBLINK PLUG-IN

Go to:

idatalinkmaestro.com/plugin and follow the installation steps.

Review the System Requirements before installing.

If the plugin is already installed, the caution, “The plugin is already

installed” appears. Please skip to step 2.

2 REGISTER A WEBLINK ACCOUNT

Go to:

idatalinkmaestro.com/register and complete the registration process.

A conrmation email will be sent to you requiring validation.

For existing customers, click log in.

3 CONNECT YOUR MAESTRO MODULE

Use the included USB cable to connect your Maestro module to your

PC.

4 LOG INTO WEBLINK

Go to:

idatalinkmaestro.com/login.

Enter your username and password, then click OK.

5 PROGRAM YOUR MODULE

Follow the programming steps for your vehicle.

6 Once ashing is completed “FLASHING

COMPLETED” will be displayed.

Proceed to the next page to complete installation.

Chevrolet/GMC

FULL SIZE TRUCK  9/13

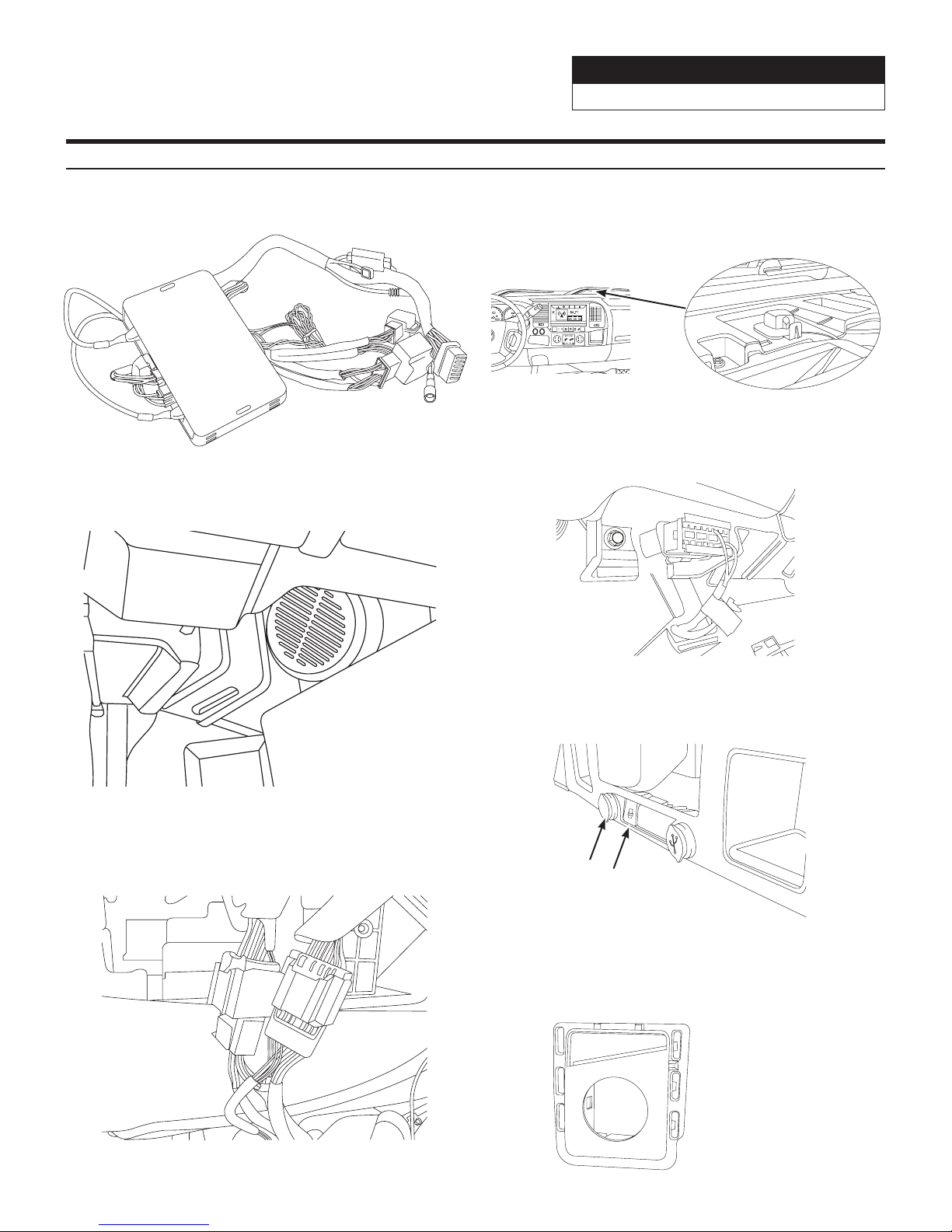

Installation Instructions

1 Connect the Maestro module to the X009 main

harness.

2 Attach the chime speaker on the metal dash

support to the right of the gas pedal.

3 Connect the X009-GM2 wire harness, antenna

adapter and USB adapter to the factory radio

harness and secure it.

4 Place the GPS antenna on the OEM GPS antenna

location as illustrated and feed the cable to the

radio cavity. Use the supplied metal base for the

best signal strength.

5 Plug the OBDII connector to the port located

under the driver side dashboard and run the wire

extension to back of the headunit.

6 Remove and transfer the factory cigarette lighter

socket, switch box, side pocket and vents to the

X009-GM2 radio bezel.

7 If the vehicle is equipped with 4WD, use the 4WD

rotary switch panel to mount the selector switch

on the right pocket location of the X009-GM2

radio bezel.

Chevrolet/GMC

FULL SIZE TRUCK  10/13

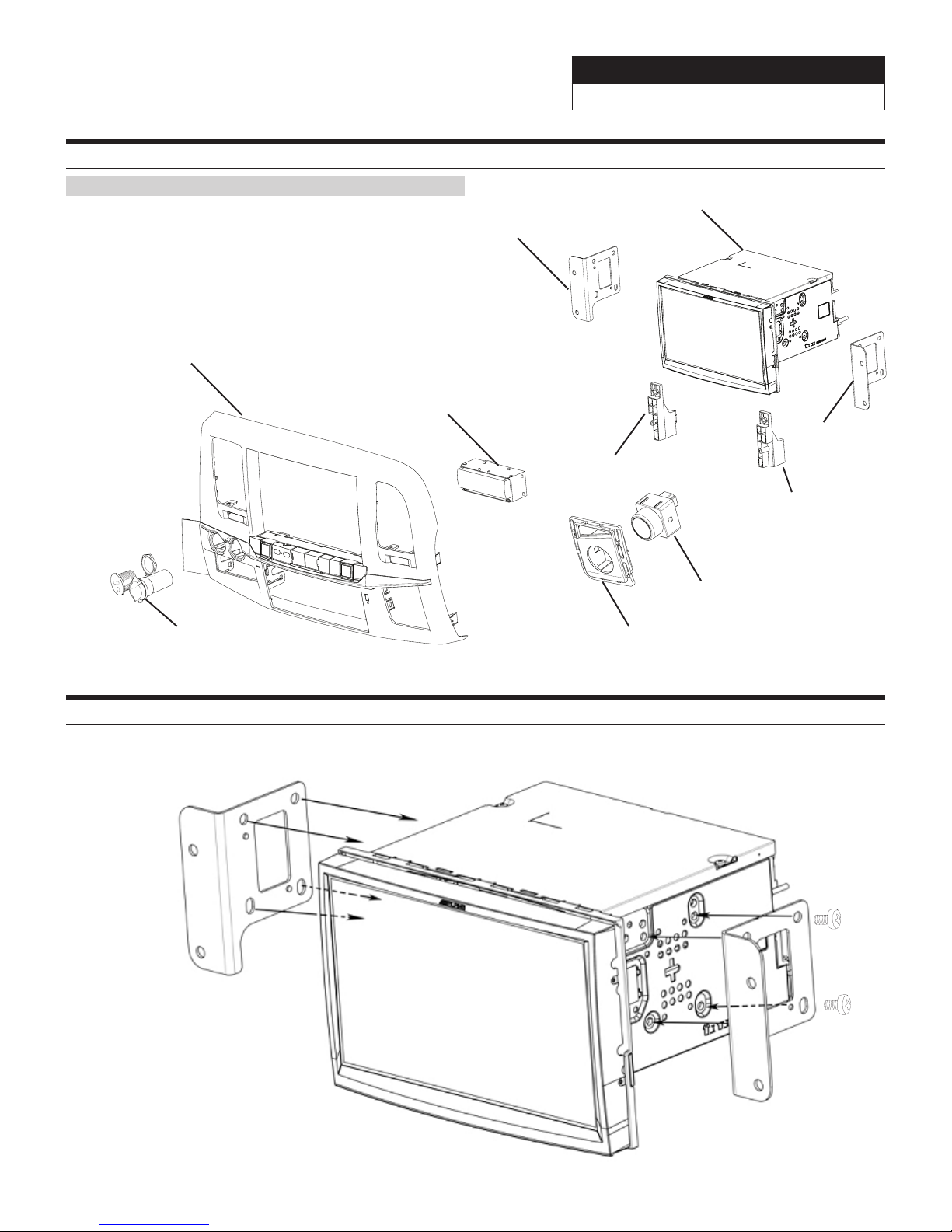

Exploded-View Diagram

Parts assembly diagram for the X009-GM2 kit.

OEM Switch Panel

Assembly

X009 Source Unit

Left HVAC Spacer

OEM Rotary

4WD Switch

Left Mounting Bracket

X009-GM2 Radio Bezel

Right

Mounting

Bracket

Right HVAC Spacer

4WD Rotary

Switch Panel

Side Mounting Bracket Assembly Procedure

Attach the left and right mounting brackets to the X009 source unit using 4 supplied M5x8 bolts on each

side.

(If 4WD Equipped)

OEM Cigarette
