Alpha MULTIPOINT Series Manual de usuario
INSTANT WATER HEATER
QUICK INSTALLATION GUIDE
(You are still required to refer to the instruction manual before installation)
1
2
FOR SINGLE
POINT OPENED
OUTLET
HEATER
For M5 and Smart
18 Series only.
3
TOOLS YOU NEED
Wire Cutter
Hammer
Plier
Drill
Screwdriver
Test Pen
PTFE Tape
Water Pump Plier
Safety Shoe
Spanner
4
ELECTRICAL REQUIREMENT
Wire cable (2.5mm) for 3.5kW
Wire cable (2.5mm) for 4.5kW
Wire cable (4.0mm) for 5.5kW
Wire cable (4.0mm) for 6.0kW
Wire cable (6.0mm) for 8.0kW
Direct Wiring installation
Incoming water source
Wire
5
15A (3 pin Plug)
ELECTRICAL REQUIREMENT
13A (3 pin Plug)
6
ELECTRICAL REQUIREMENT
3.5kW use 20A MCB
4.5kW use 25A MCB
5.5kW use 32A MCB
6.0kW use 32A MCB
8.0kW use 40A MCB
7
PARTS IDENTIFICATON
8

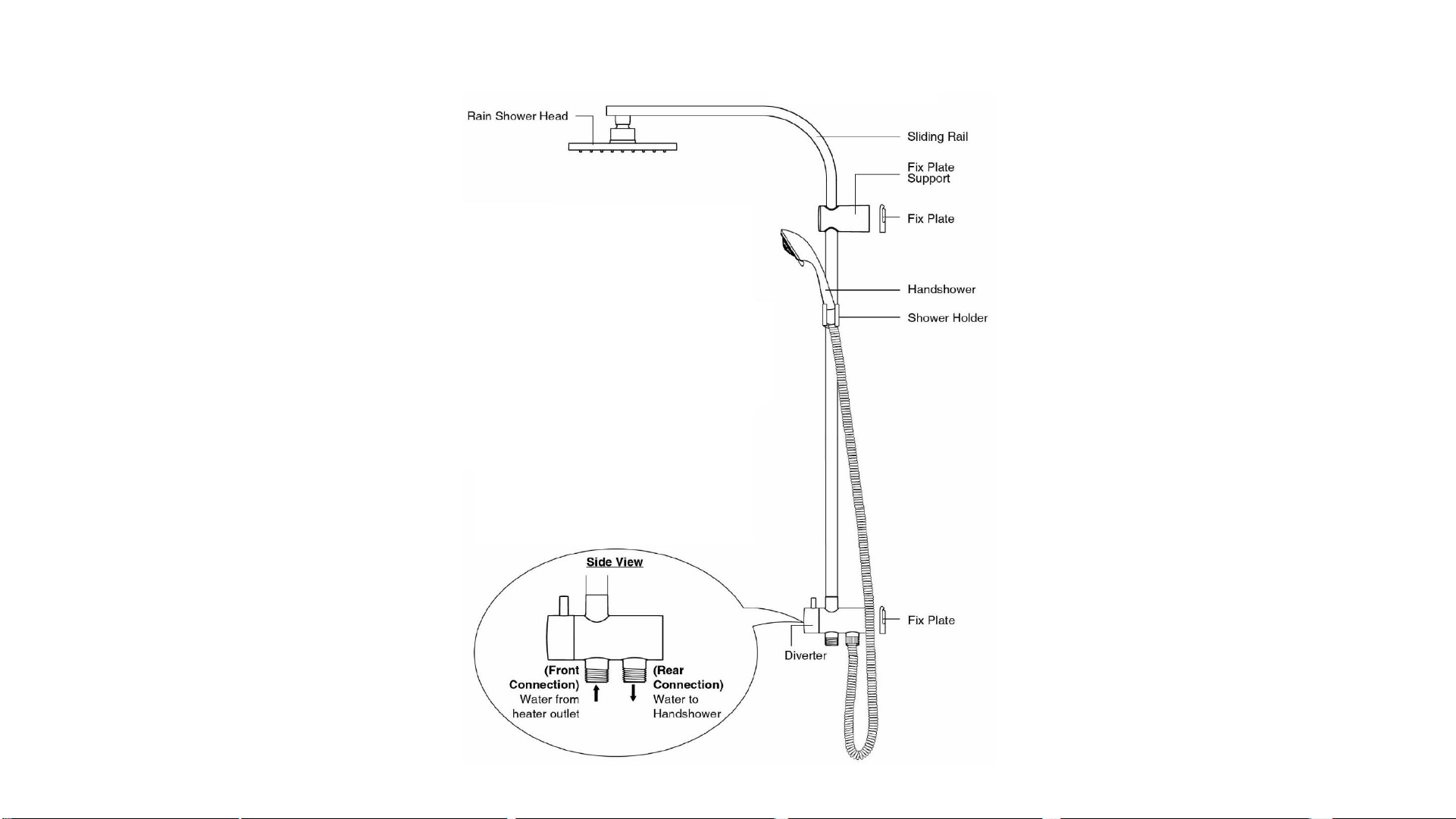

PARTS IDENTIFICATON (RAIN SHOWER)
9
INSTALLATION PROCEDURE
10
