Allweiler AE Series Manual de usuario

Progressing Cavity Pumps

Dismounting & Mounting

Instructions of

Allweiler Progressing Cavity Pumps

This presentation is built up in accordance to

the Allweiler operating and maintenance

instructions

The chapters mentioned refer to this manual

Progressing Cavity Pumps

Dismounting ( .2.1 Series AE)

•Dismount tie rods, discharge casing, stator

•Dismount suction casing

•Dismount joints

•Dismount drive shaft and the mech. seal

•Dismount the bearing

Rotor Pin type joint Drive shaft

Stator Coupling rod Bearing bracket

Progressing Cavity Pumps

Mounting of the

Progressing Cavity Pump

Series AE

Progressing Cavity Pumps

.2.2.1 Mounting of the angular-

contact and groove ball bearing

Progressing Cavity Pumps

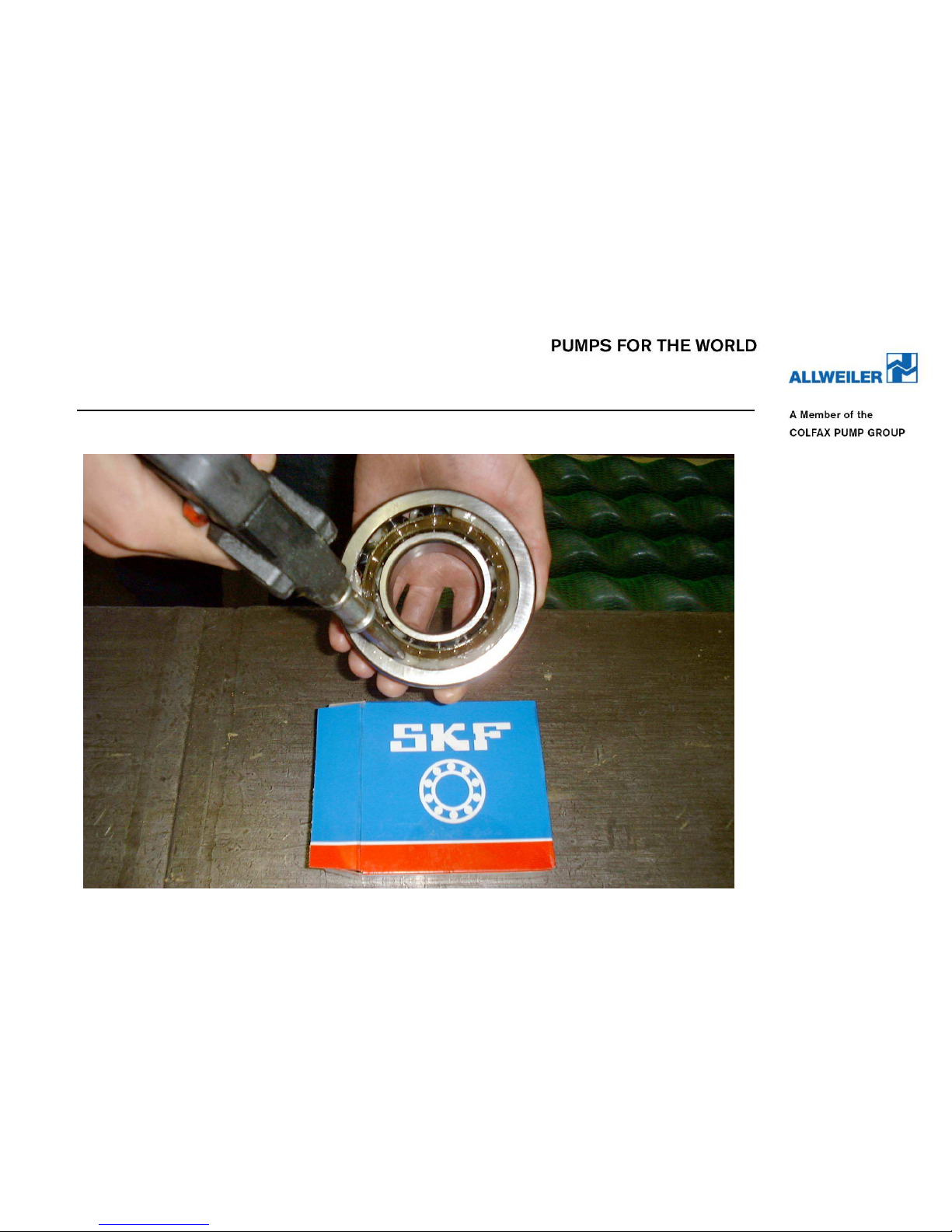

Fill ball

bearings

with

rolling

bearing

grease

Progressing Cavity Pumps

Fill hollow

spaces

between the

rolling bodies

up to approx.

30-50% with

grease.

Scrape off

excessive

grease.

Progressing Cavity Pumps

Slightly oil bearing

seat surface.

By means of a

suitable tube,

press double-row

angular-contact

ball bearing from

the driving side

over the outer

bearing ring into

the bearing

bracket.

Progressing Cavity Pumps

The two bearings

are to be pressed

into the bearing

bracket in O-type

arrangement, and

adjusted over

shim rings,

without

clearance.

Insert circlip in

the bearing

bracket.

Progressing Cavity Pumps

Insert

spacer

sleeve

in the

bearing

bracket.
